Governor Pressure

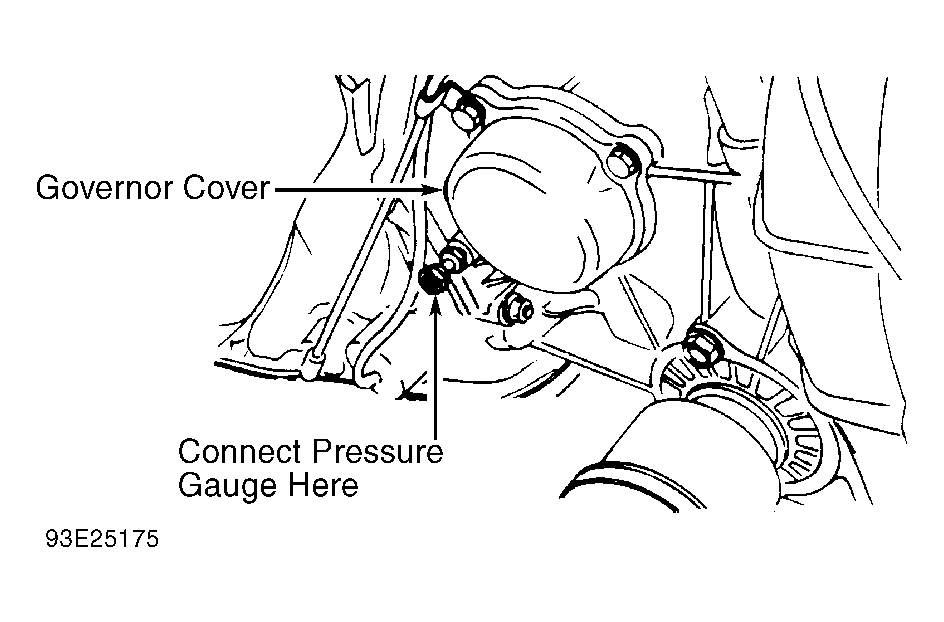

- Connect pressure gauge to governor pressure plug located on right side of final drive housing. See Fig 1. Place gauge in drivers compartment as outlined in 2WD line pressure test procedure.
- With engine at normal operating temperature and transaxle fluid level correct, check governor pressure with transaxle in 2. Check at speeds shown in GOVERNOR PRESSURES table.
GOVERNOR PRESSURES
| Vehicle Speed | psi (kg/cm2 ) | |
|---|---|---|
| 9-12 MPH | ||
| Turbo Models | 0 (0) | |
| Non-Turbo Models | 0 (0) | |
| 25 MPH | ||
| Turbo Models | 19-28 (1.4-2.0) | |
| Non-Turbo Models | 16-24 (1.1-1.7) | |
| 50 MPH | ||
| Turbo Models | 50-64 (3.5-4.5) | |
| Non-Turbo Models | 43-57 (3.0-4.0) | |
