Trouble Shooting: Symptoms

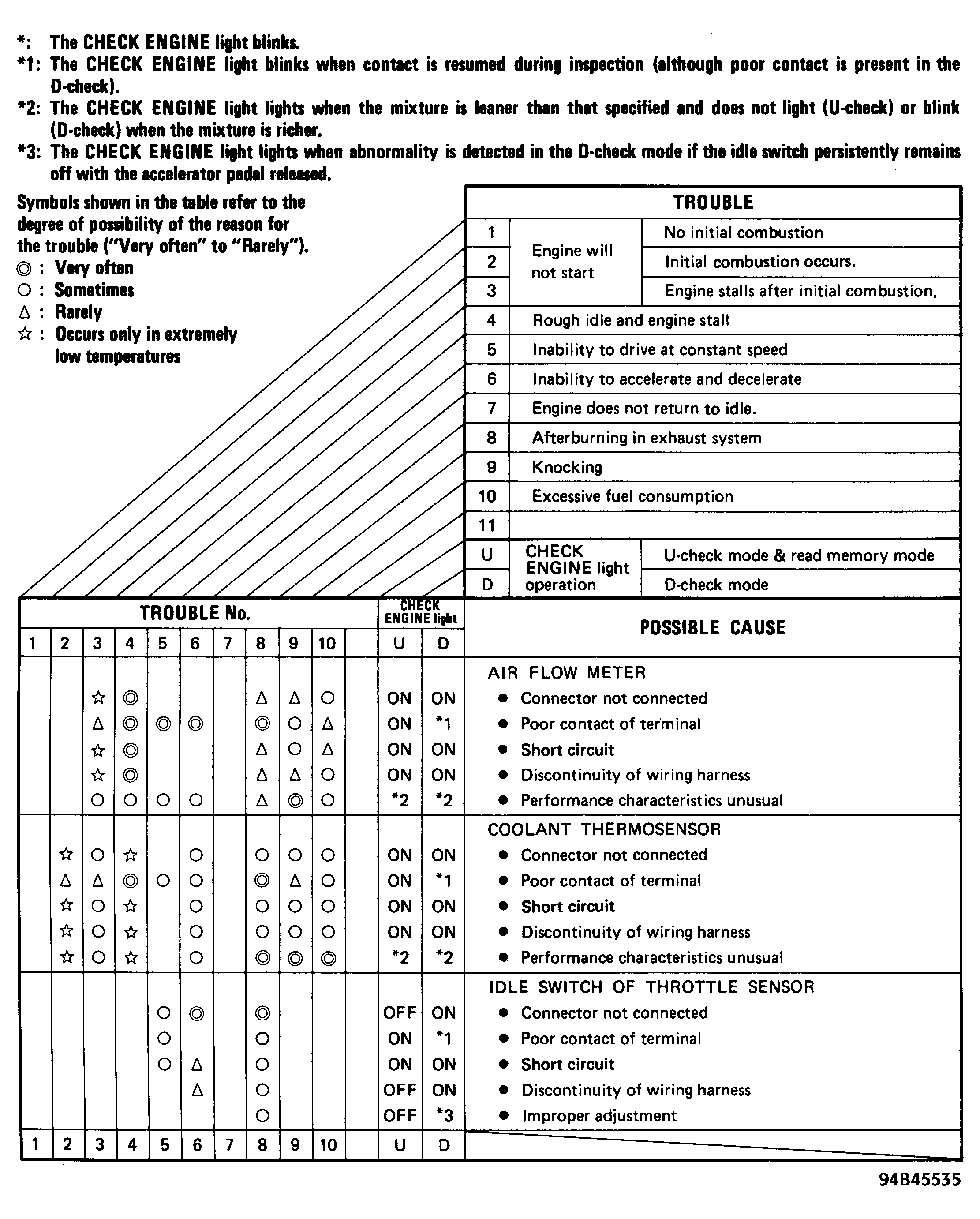

Fig 1: Symptom Diagnosis (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

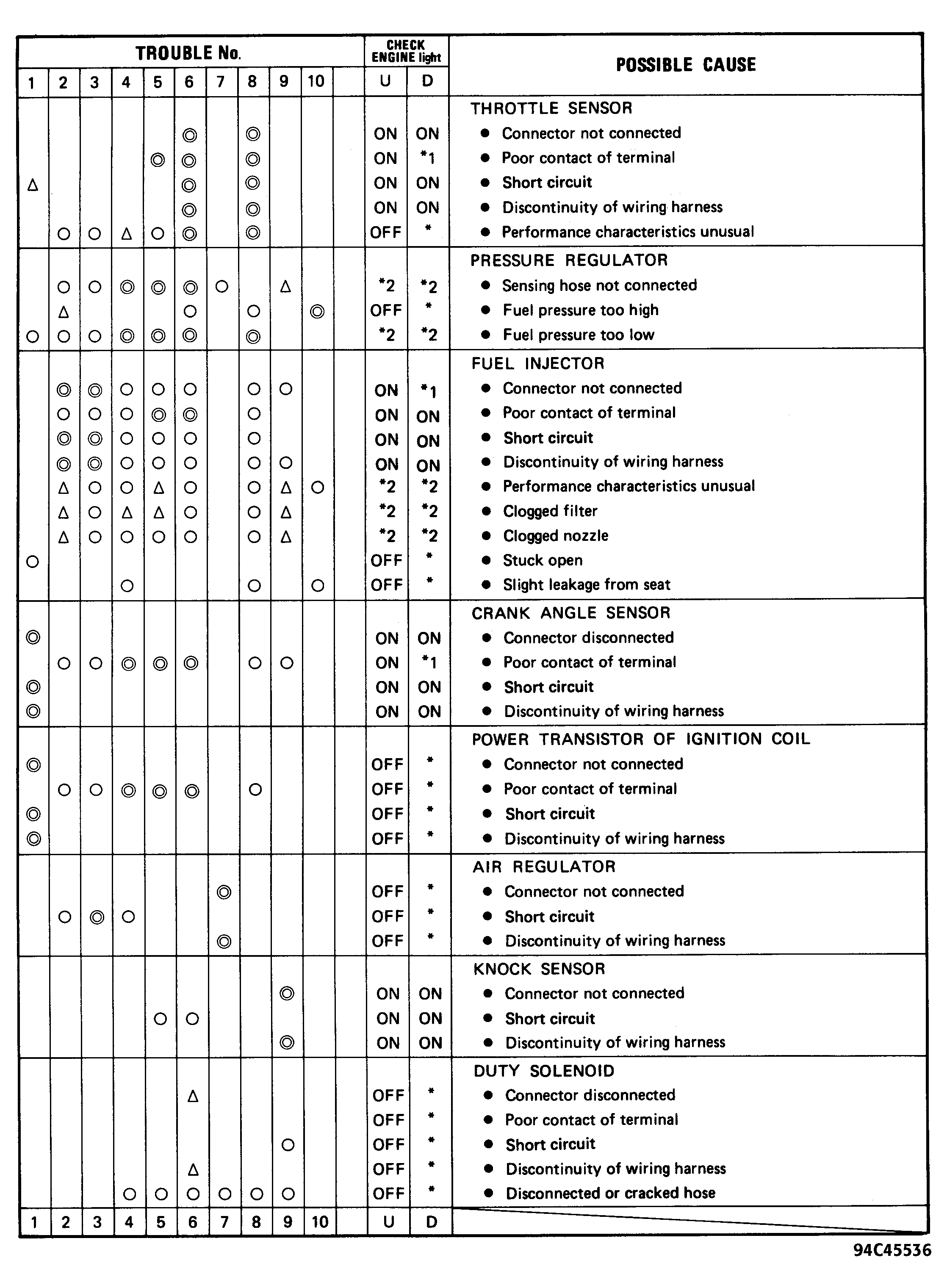

Fig 2: Symptom Diagnosis (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

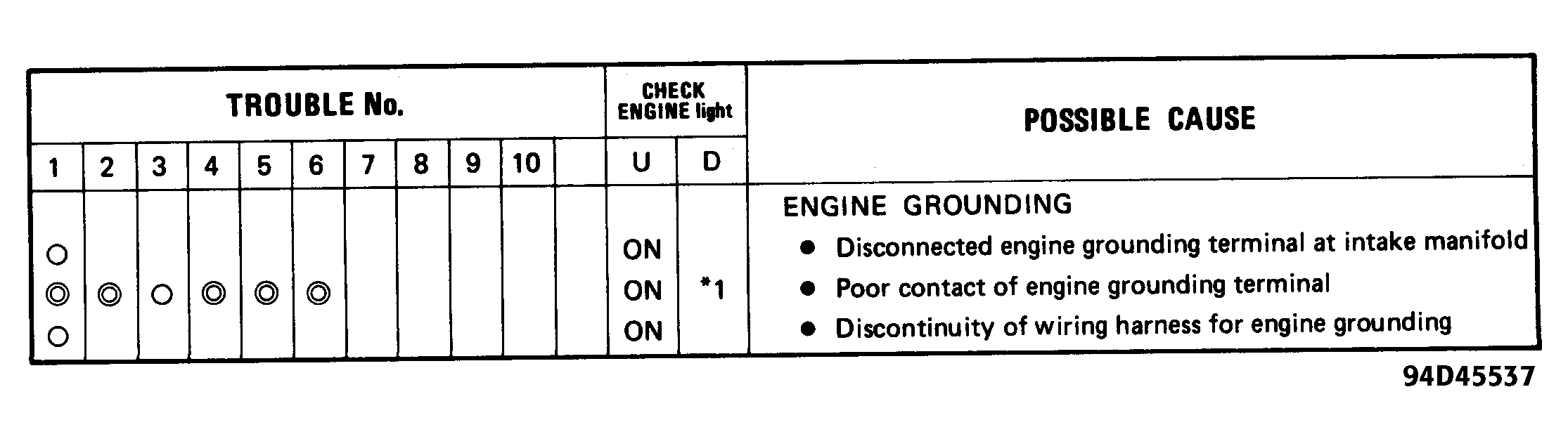

Fig 3: Symptom Diagnosis (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
