Component Locations

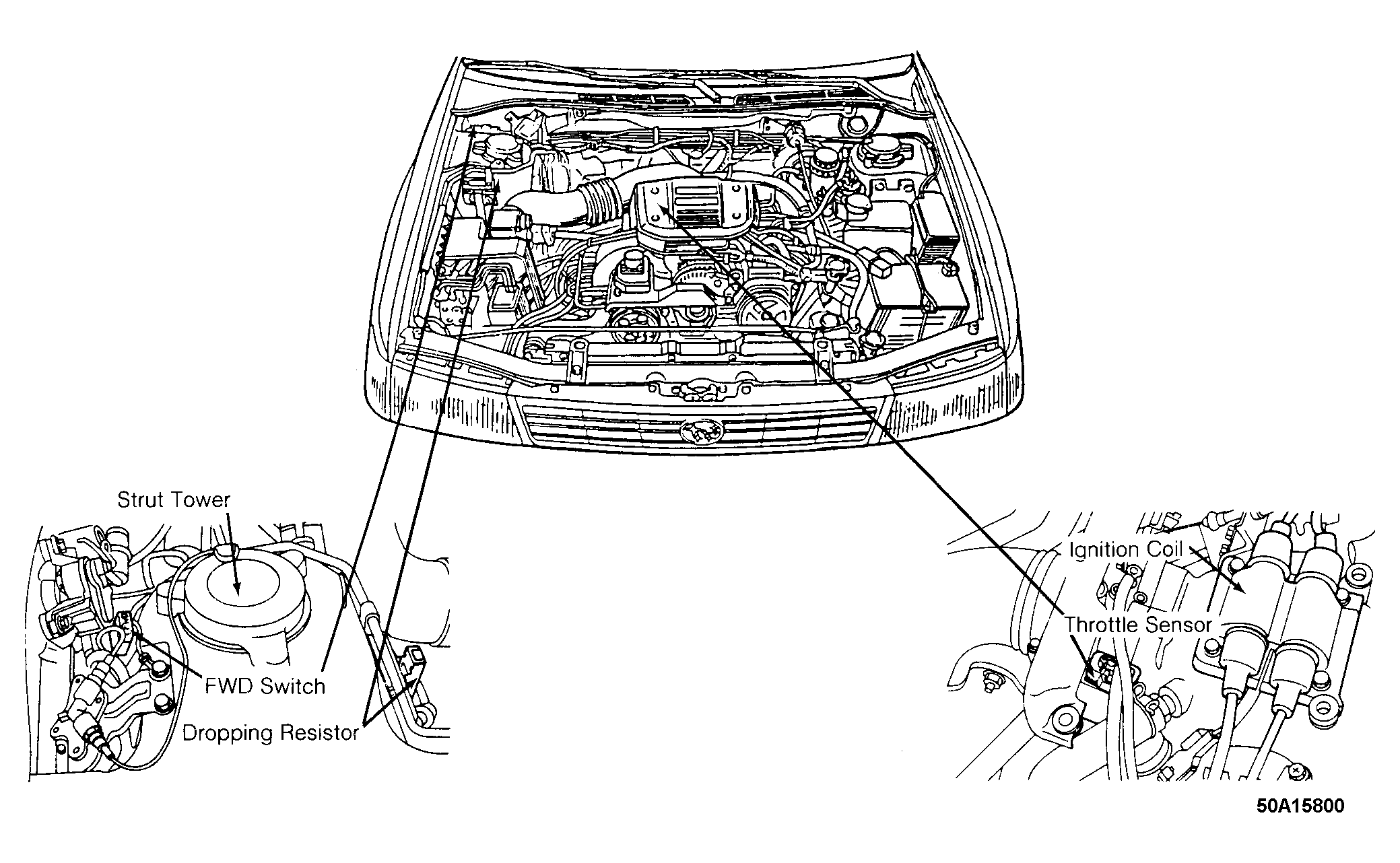

Fig 1: Identifying Electronic Component Locations

Courtesy of SUBARU OF AMERICA, INC.

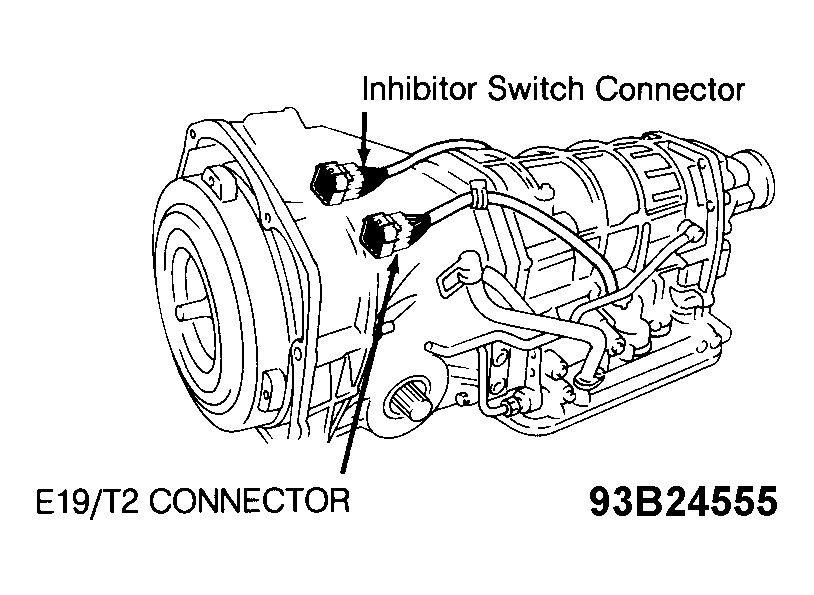

Fig 2: Identifying Electronic Component Locations

Courtesy of SUBARU OF AMERICA, INC.

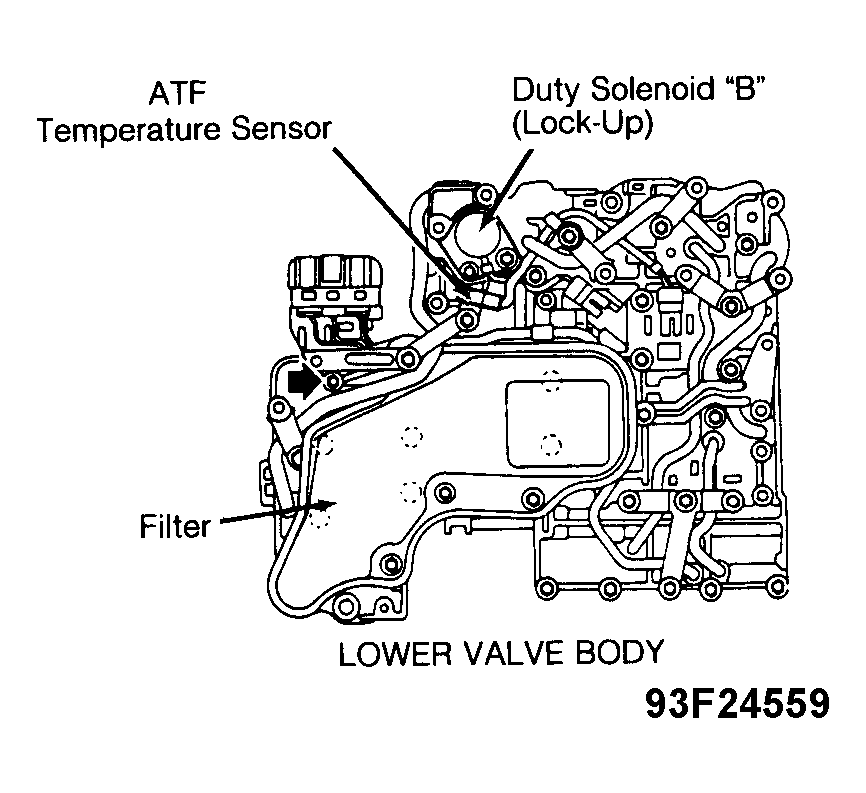

Fig 3: Identifying Electronic Component Locations

Courtesy of SUBARU OF AMERICA, INC.

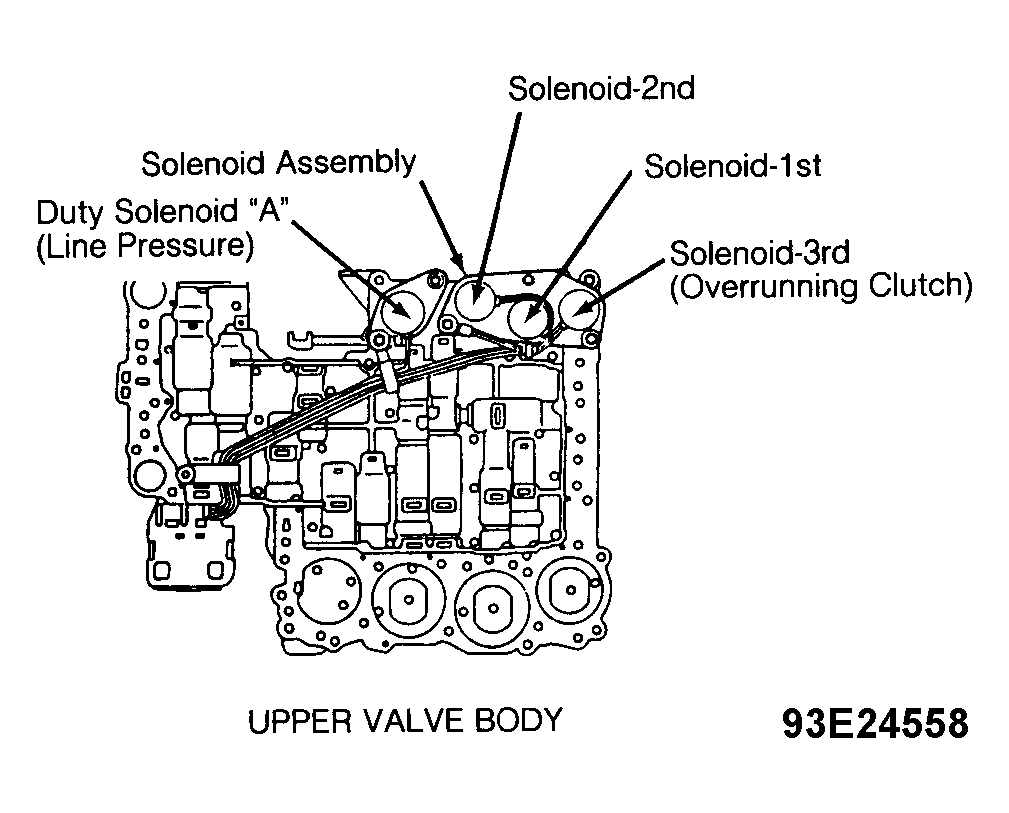

Fig 4: Identifying Electronic Component Locations

Courtesy of SUBARU OF AMERICA, INC.

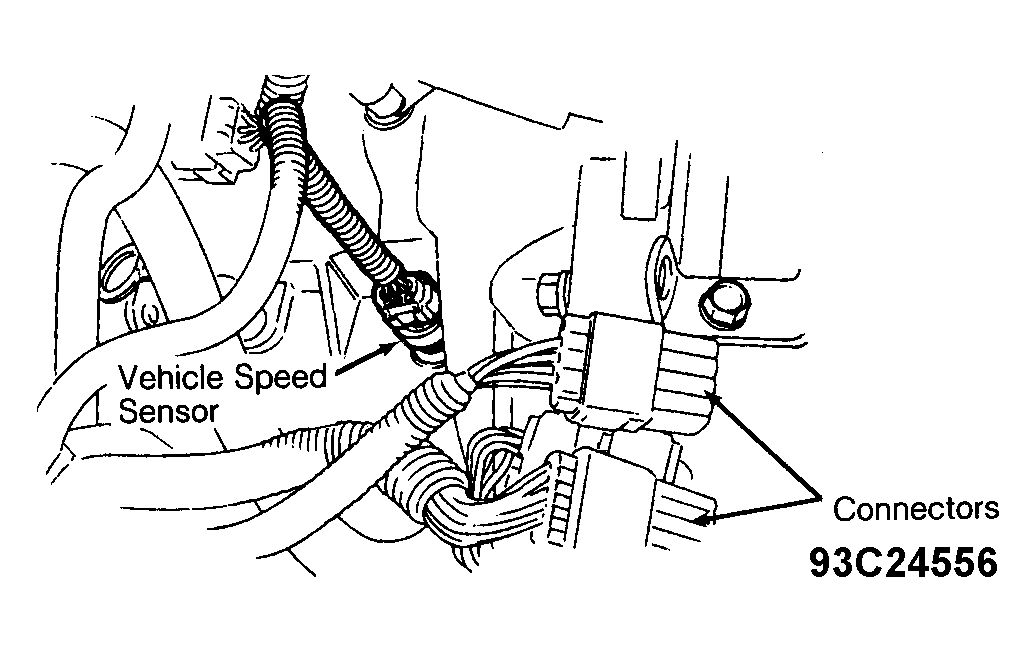

Fig 5: Identifying Electronic Component Locations

Courtesy of SUBARU OF AMERICA, INC.

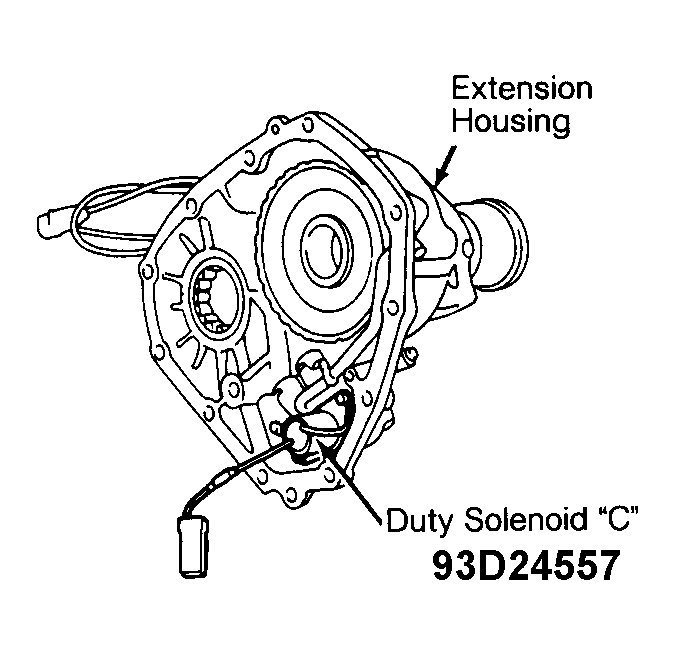

Fig 6: Identifying Electronic Component Locations

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying Electronic Component Locations (1 of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Electronic Component Locations (2 of 2)

Courtesy of SUBARU OF AMERICA, INC.
