Engine Systems
Engine Systems

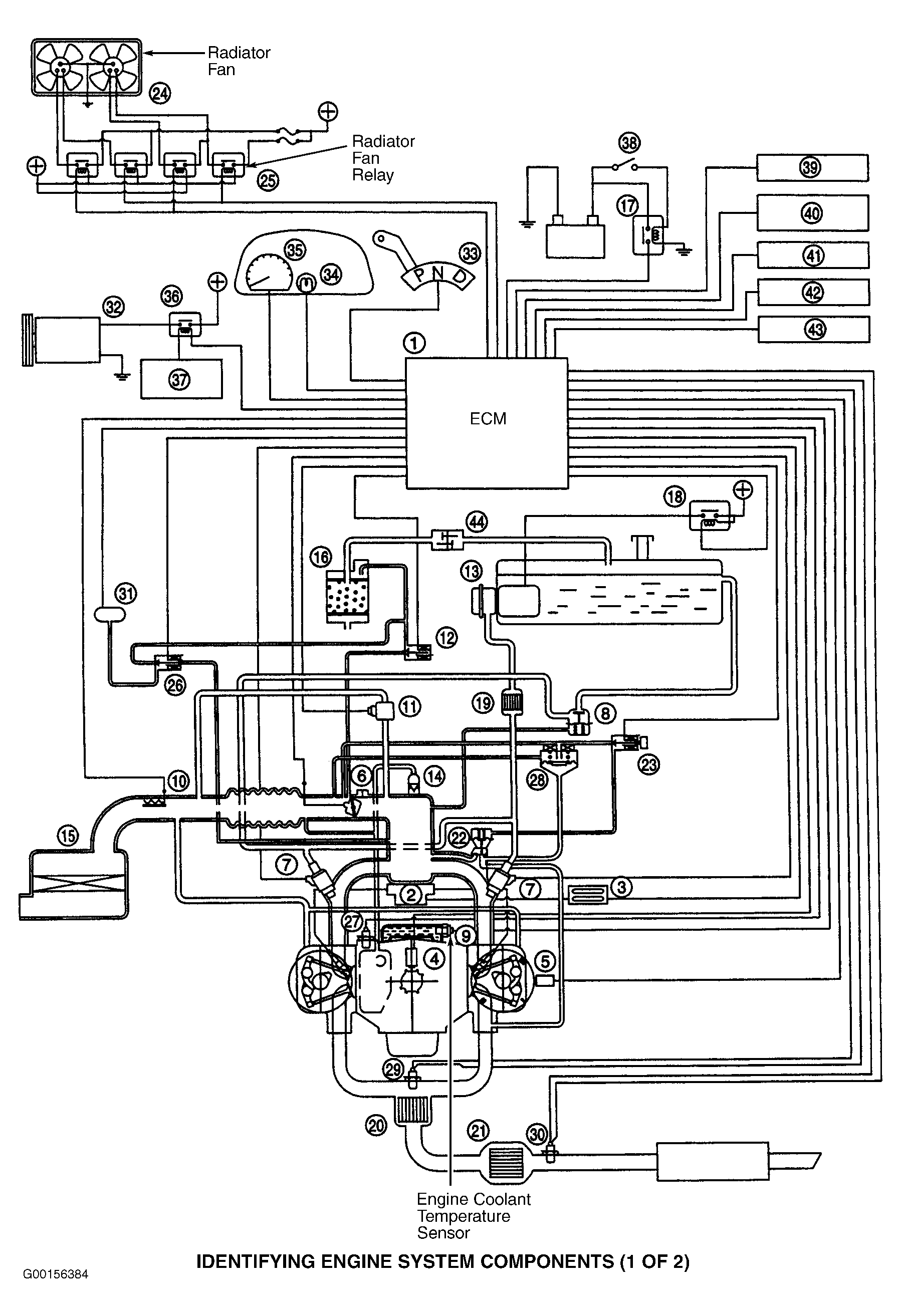

Fig 1: Identifying Engine System Components - Legacy (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

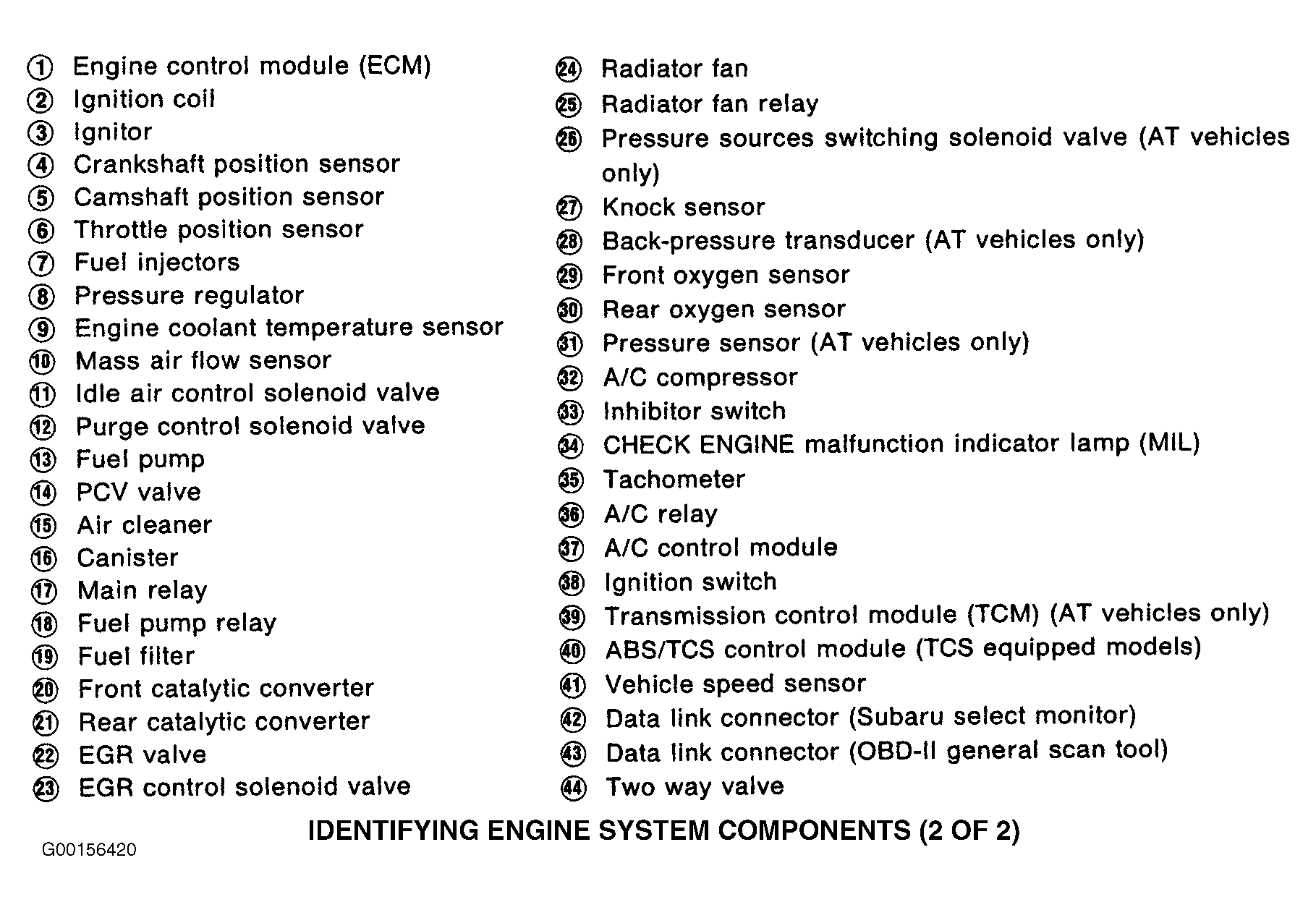

Fig 2: Identifying Engine System Components, Legend - Legacy (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

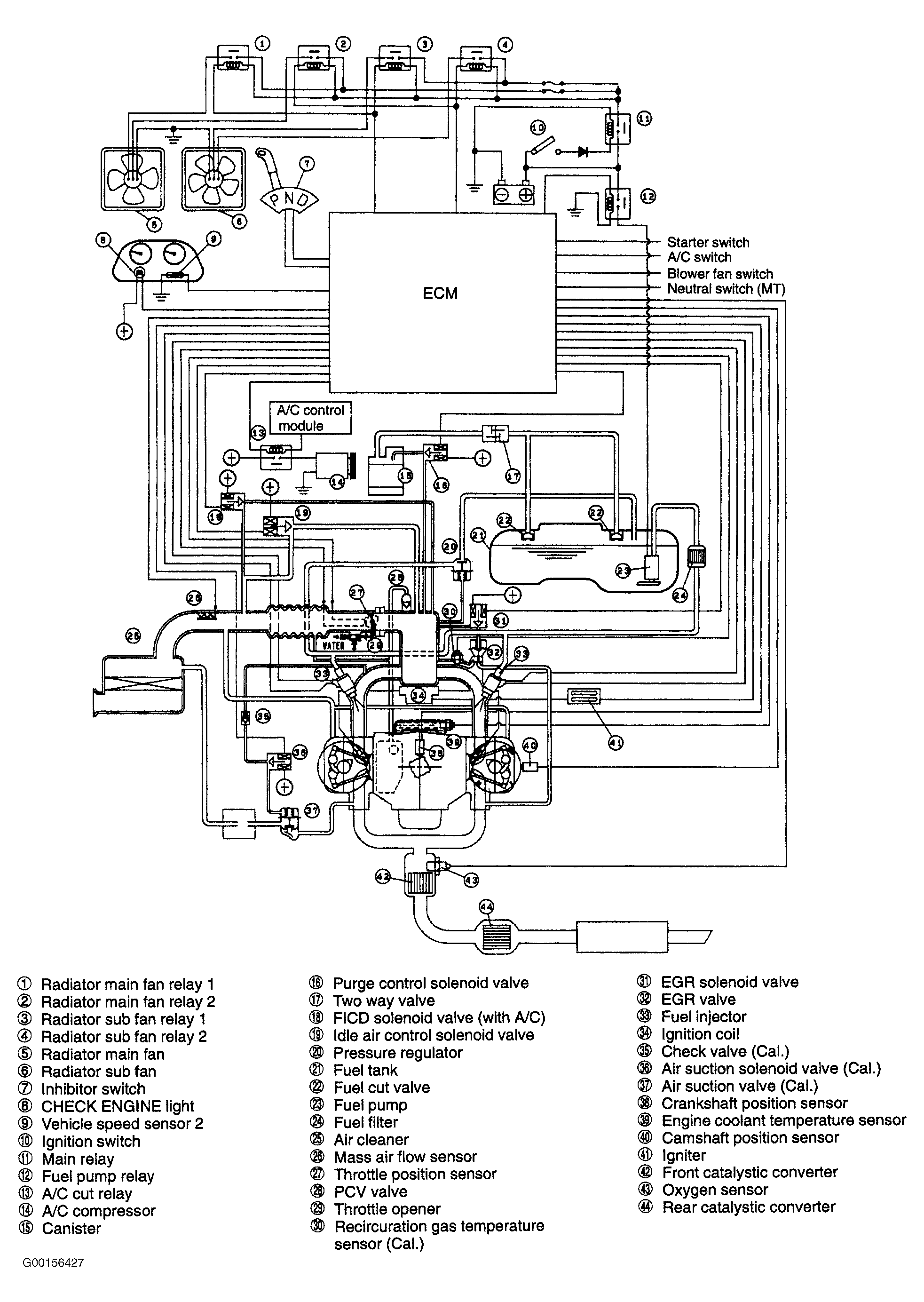

Fig 3: Identifying Engine System Components - Impreza
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
