Wiring Diagrams: Notes

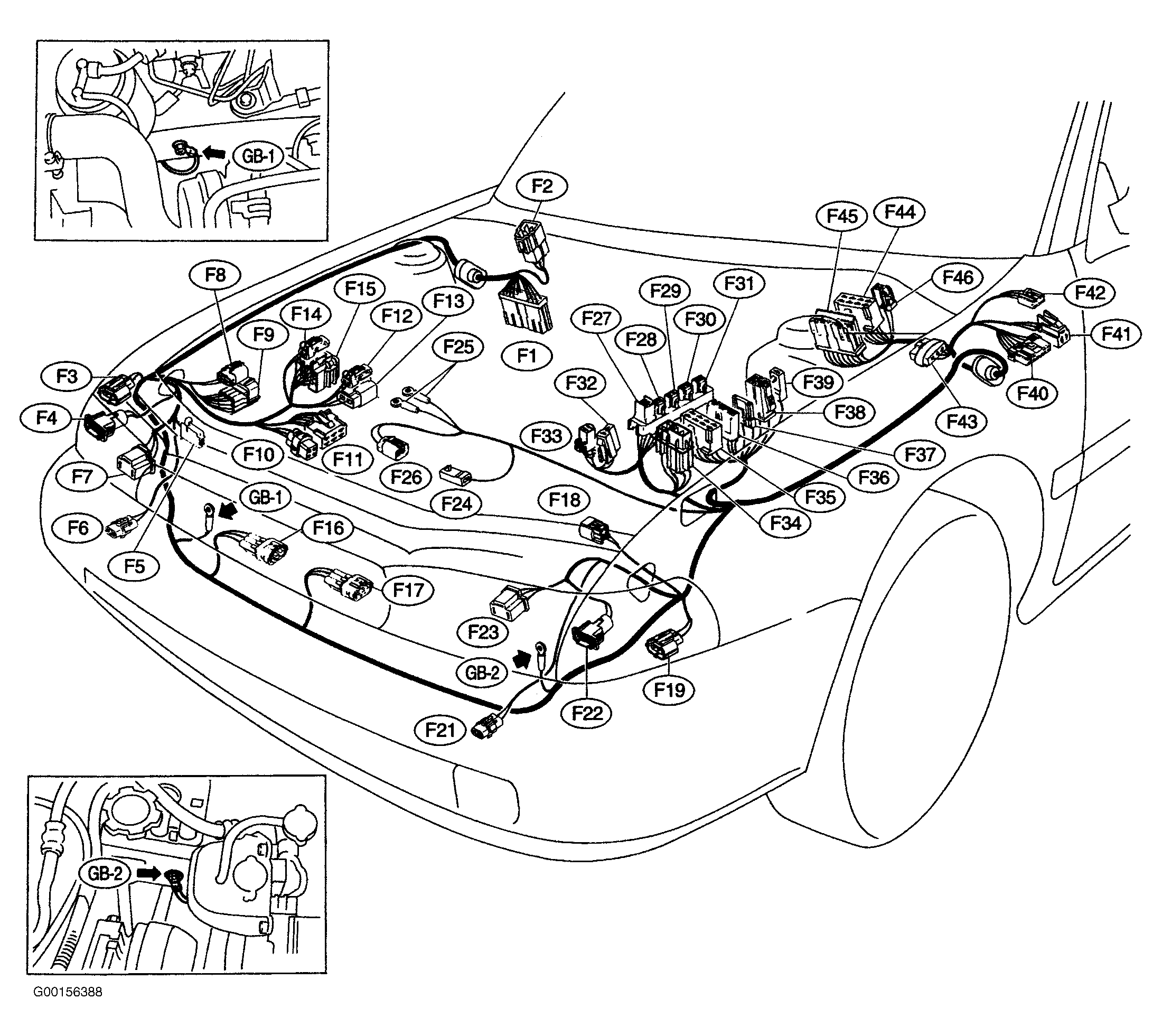

Fig 1: Harness Routing & Connector Identification Diagram
Courtesy of SUBARU OF AMERICA, INC.

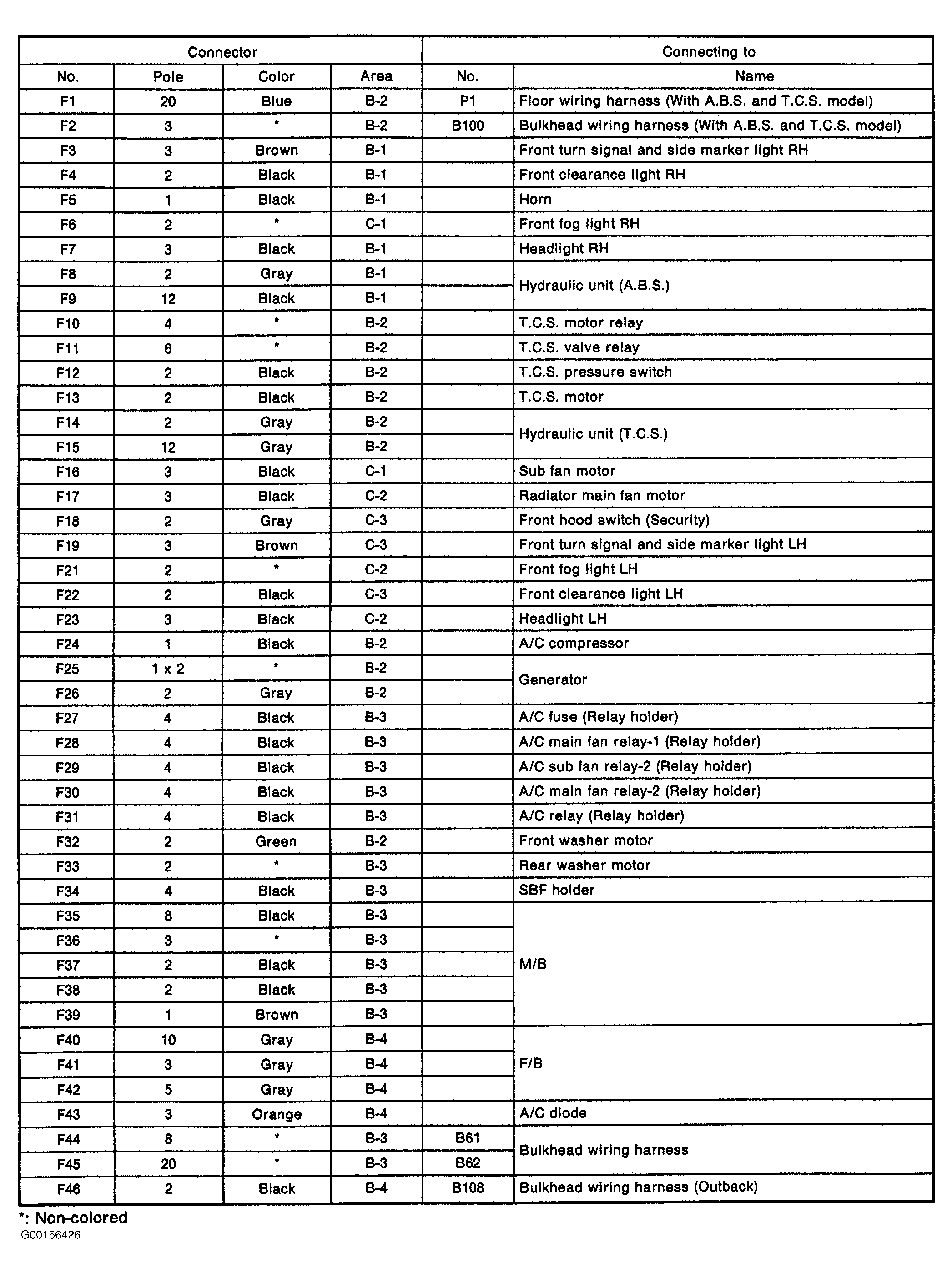

Fig 2: Harness Routing & Connector Identification Diagram - Legend
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
