Service Manual Corrections (18-57-00)

Publication date: 2000-01-27
Reference number: 18-57-00

SERVICE MANUAL CORRECTIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 18-57-00, Date of Issue: January 27, 2000

SERVICE MANUAL CORRECTIONS

Model(s): 1995-2000 Subaru Legacy Service Manual

Group: 18 - Service Manual Corrections

Bulletin No.: 18-57-00

Date: January 27, 2000

SERVICE INFORMATION

Replace the following revised pages into the applicable Service Manuals listed below:

Refer to Fig 1 -Fig 22 .

1995-1999 SERVICE MANUAL CORRECTIONS

Year	Vol #	MSA #	Section	Pages	Reference

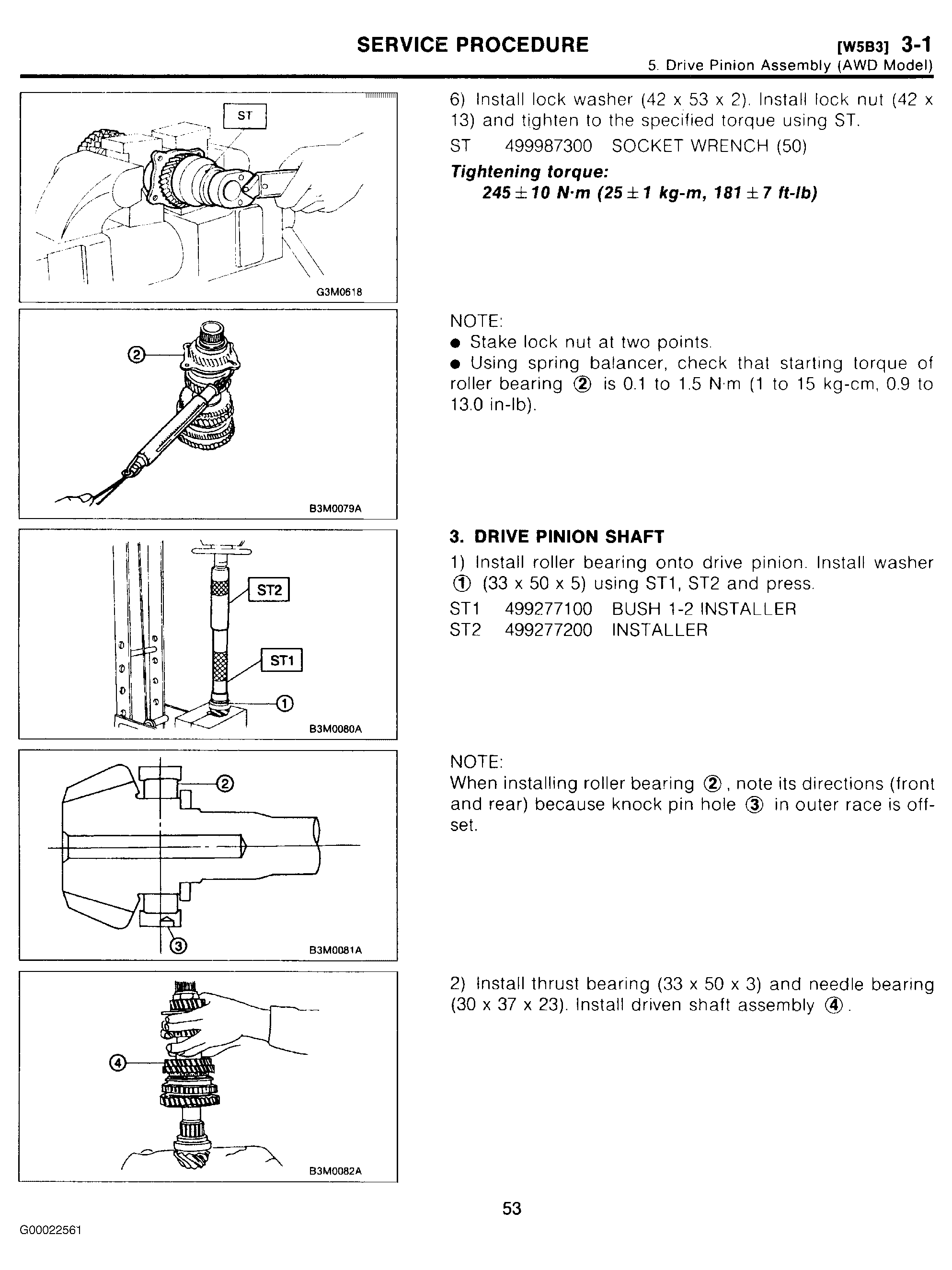

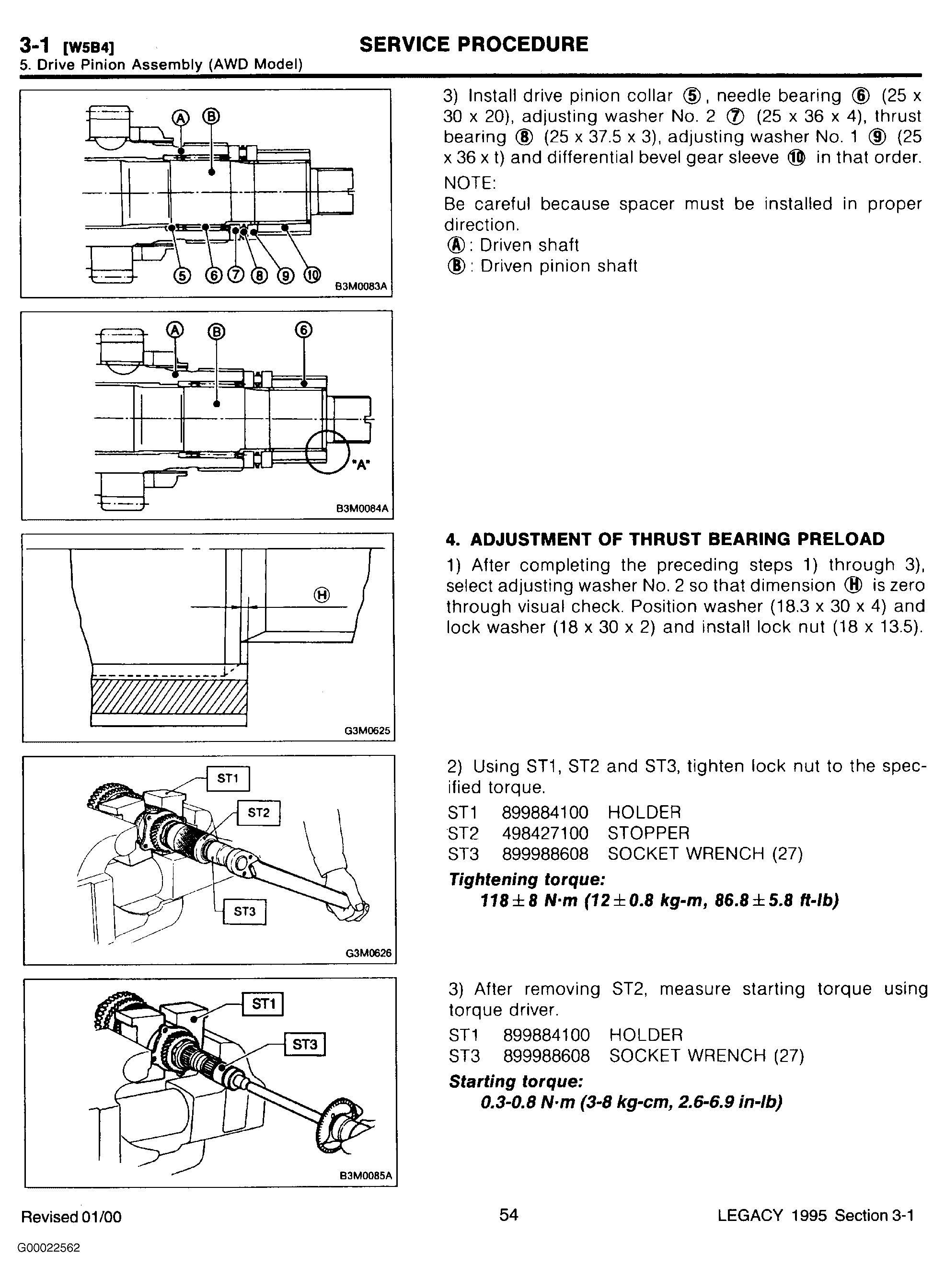

1995	2	MSA5T9407A	3-1	53-54	[W5B3] / [W5B4]

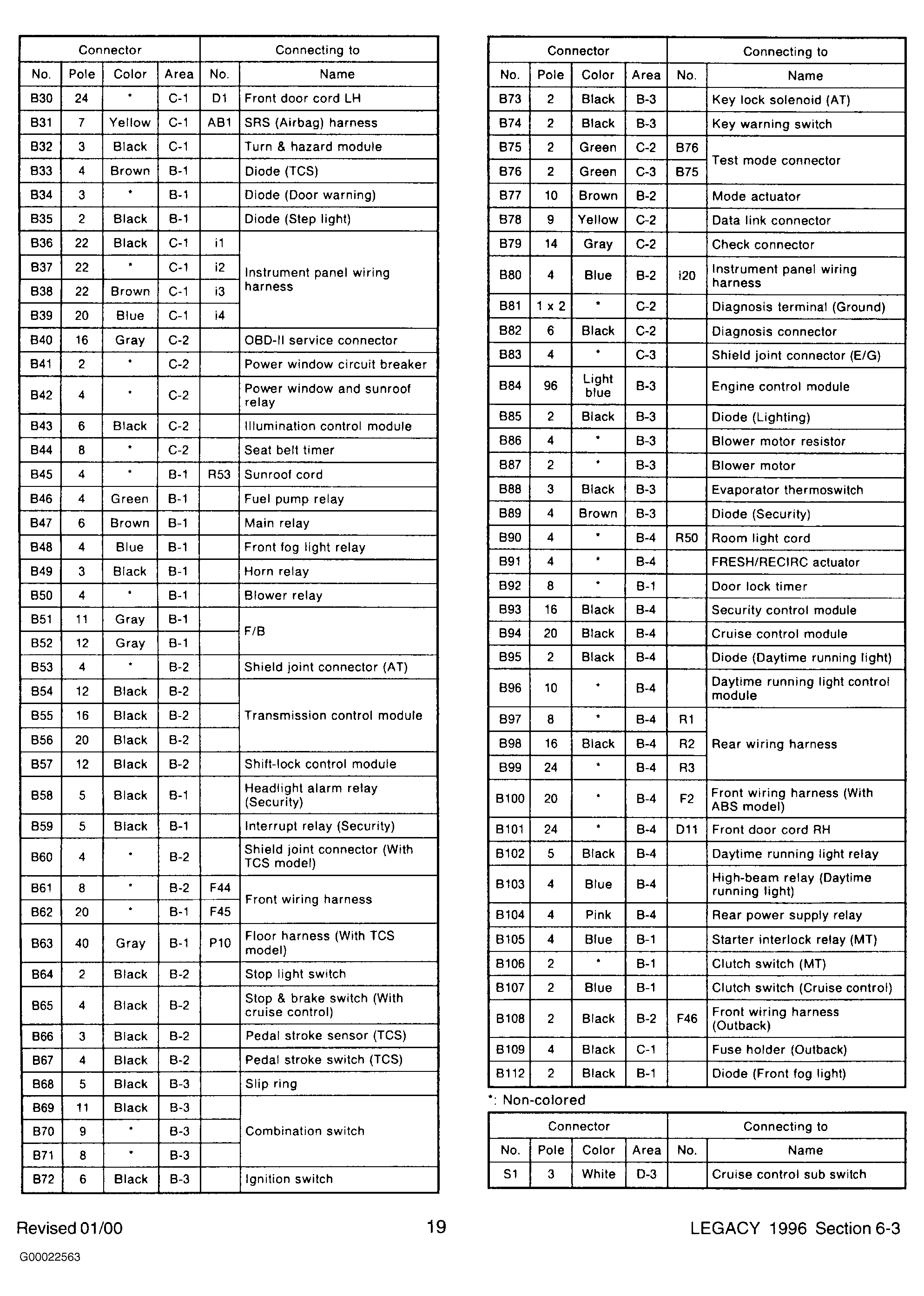

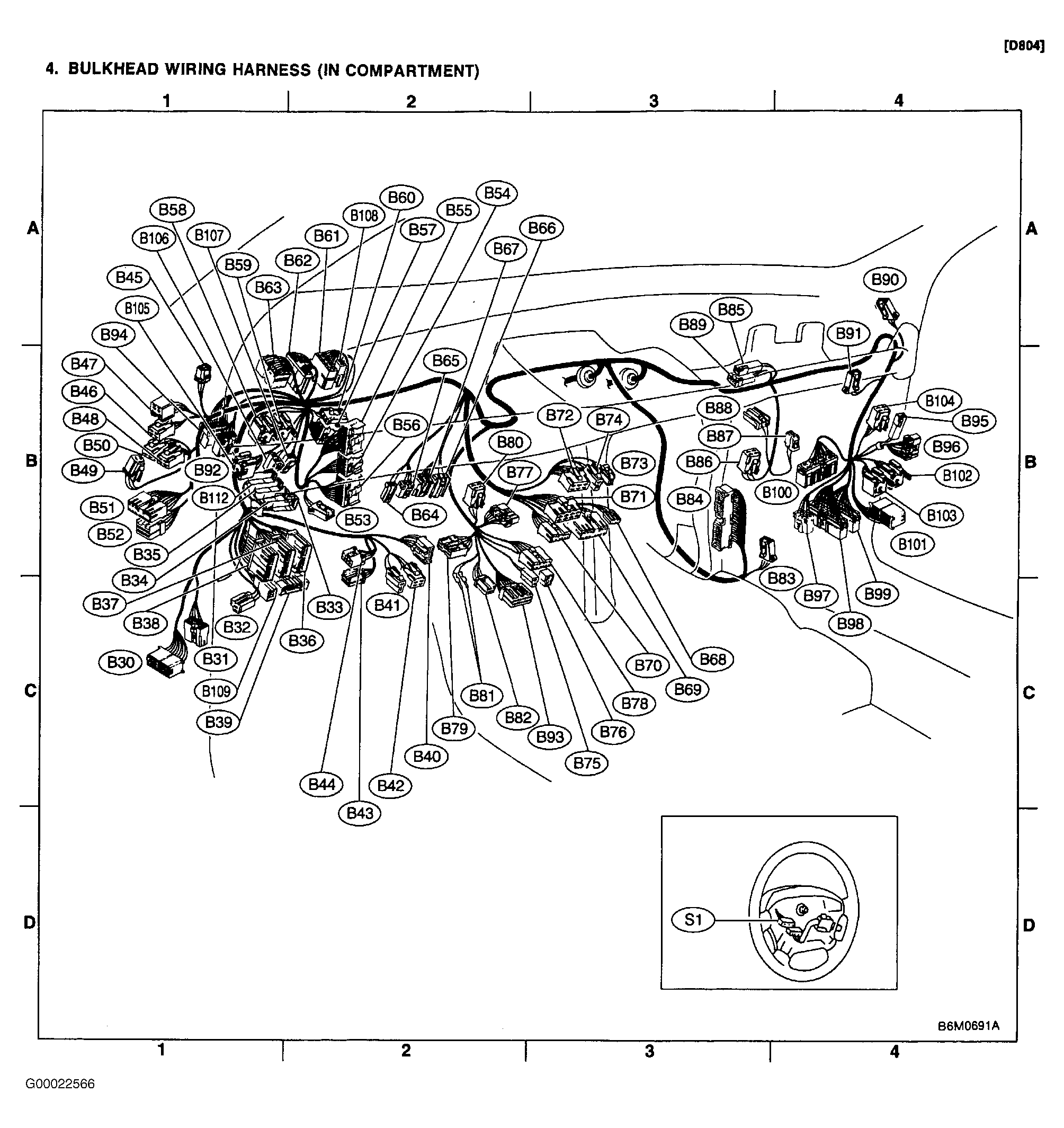

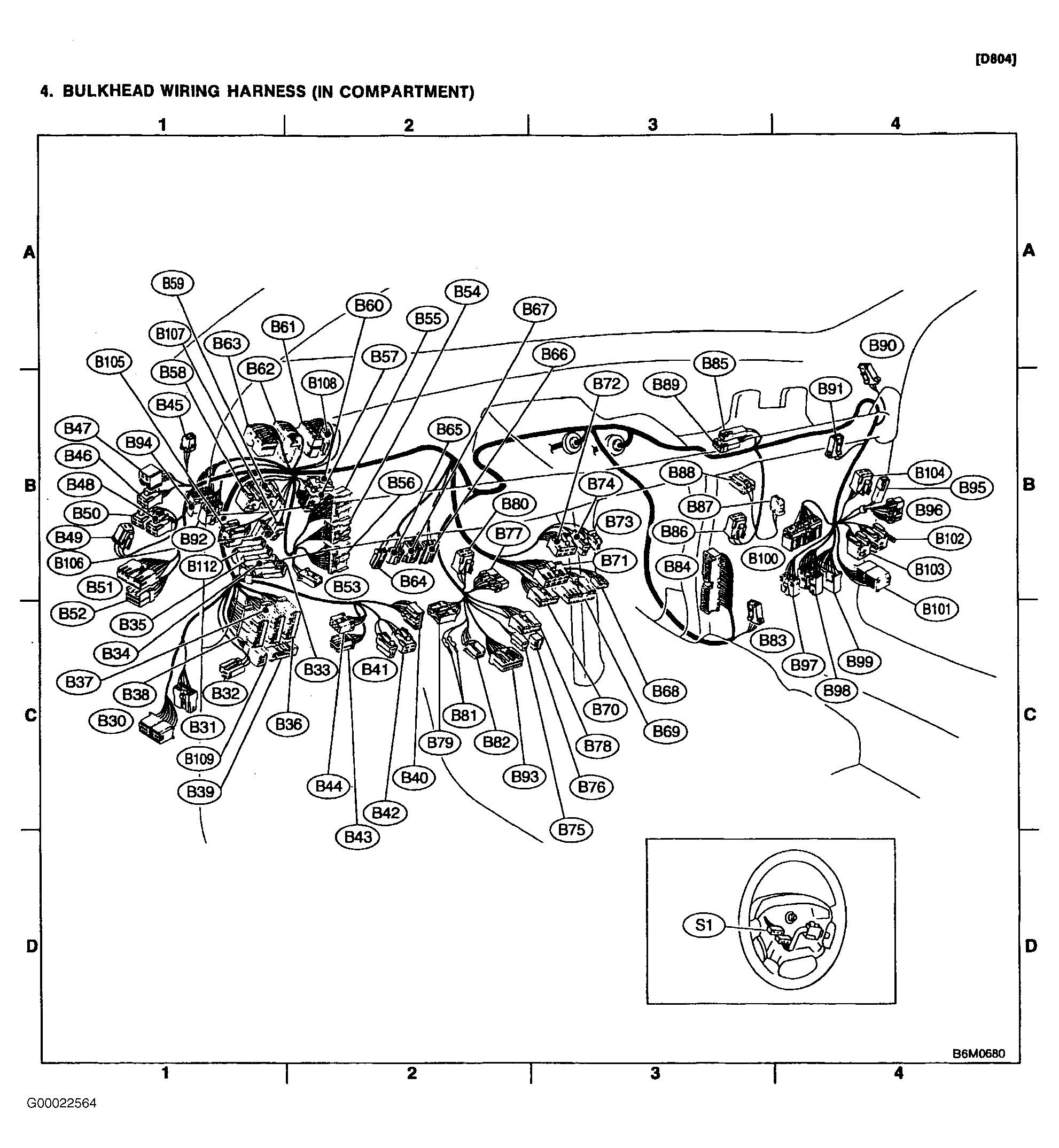

1996	5	MSA5T9607A	6-3	19	[D804]

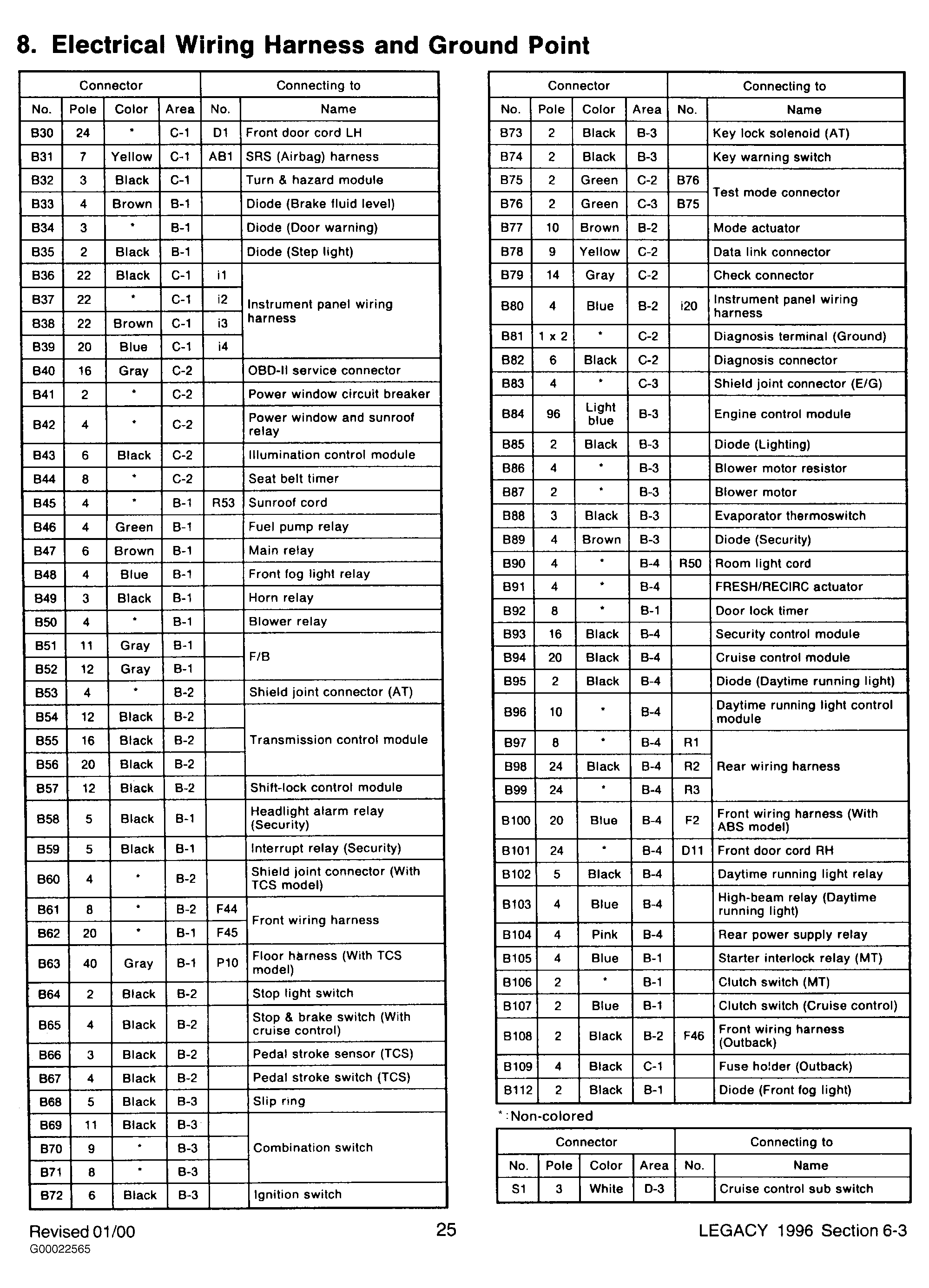

1996	5	MSA5T9607A	6-3	25	[D804]

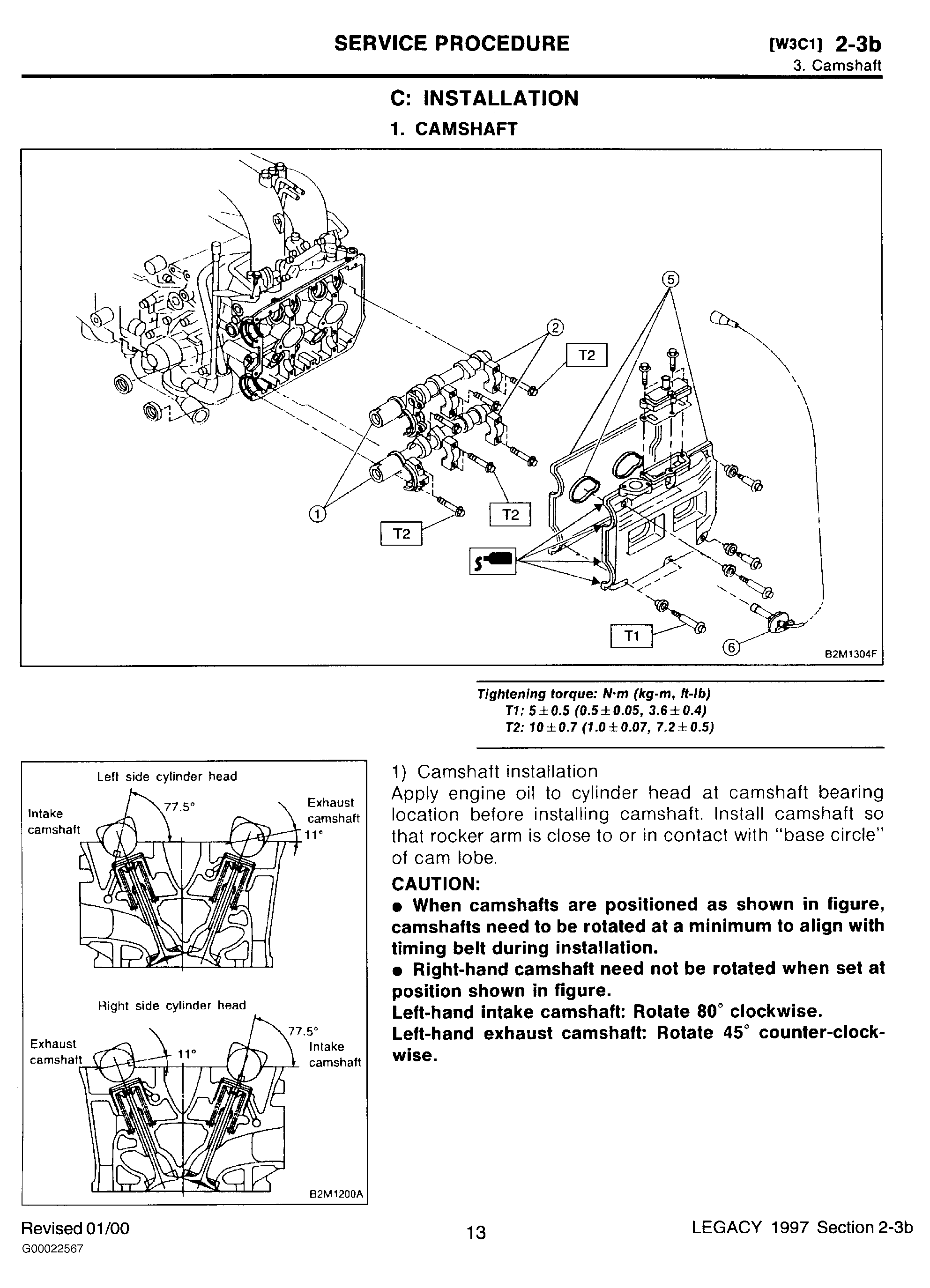

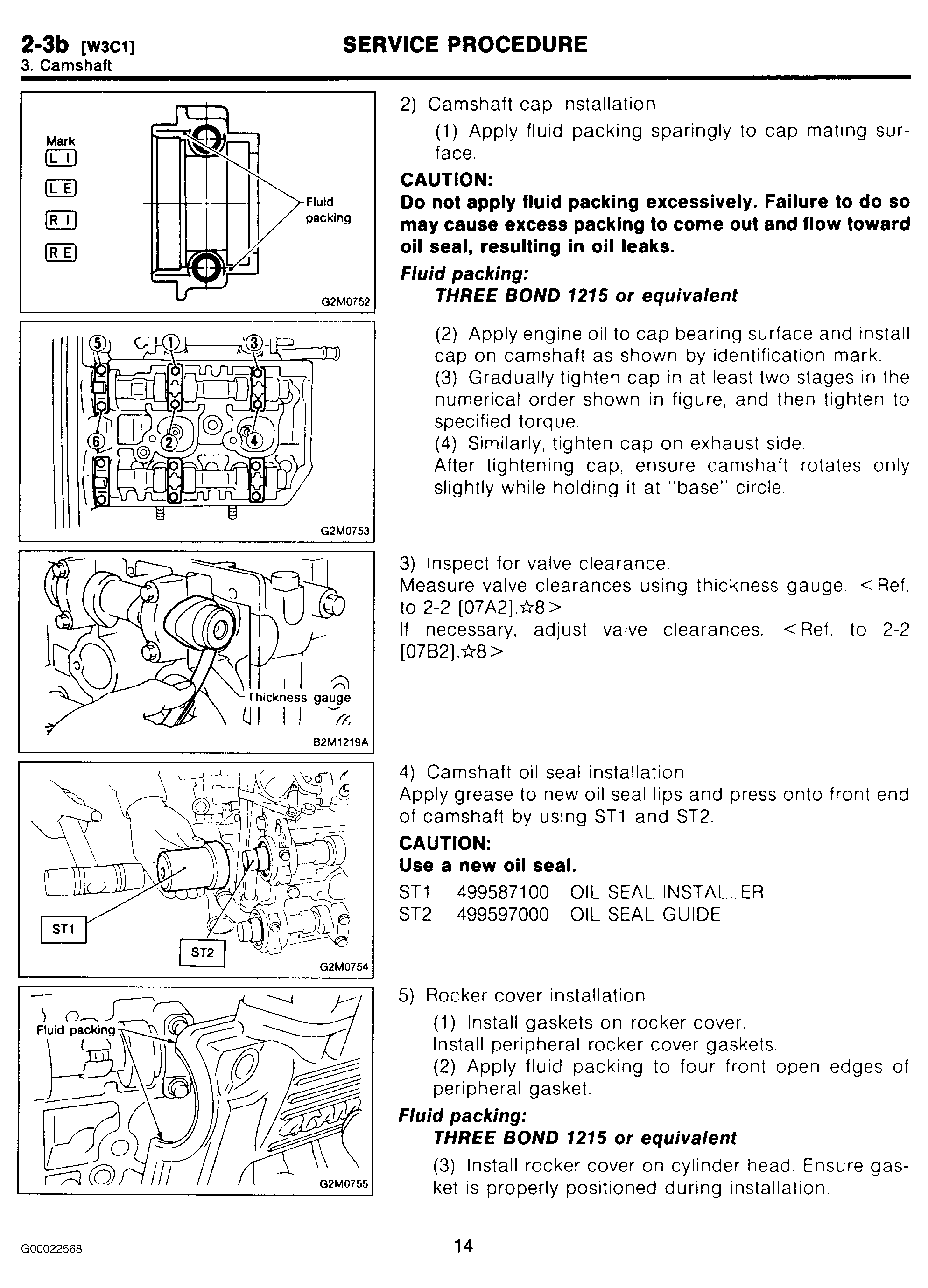

1997	6	MSA5T9701A	2-3b	13-14	[W3C1] / [W3C1]

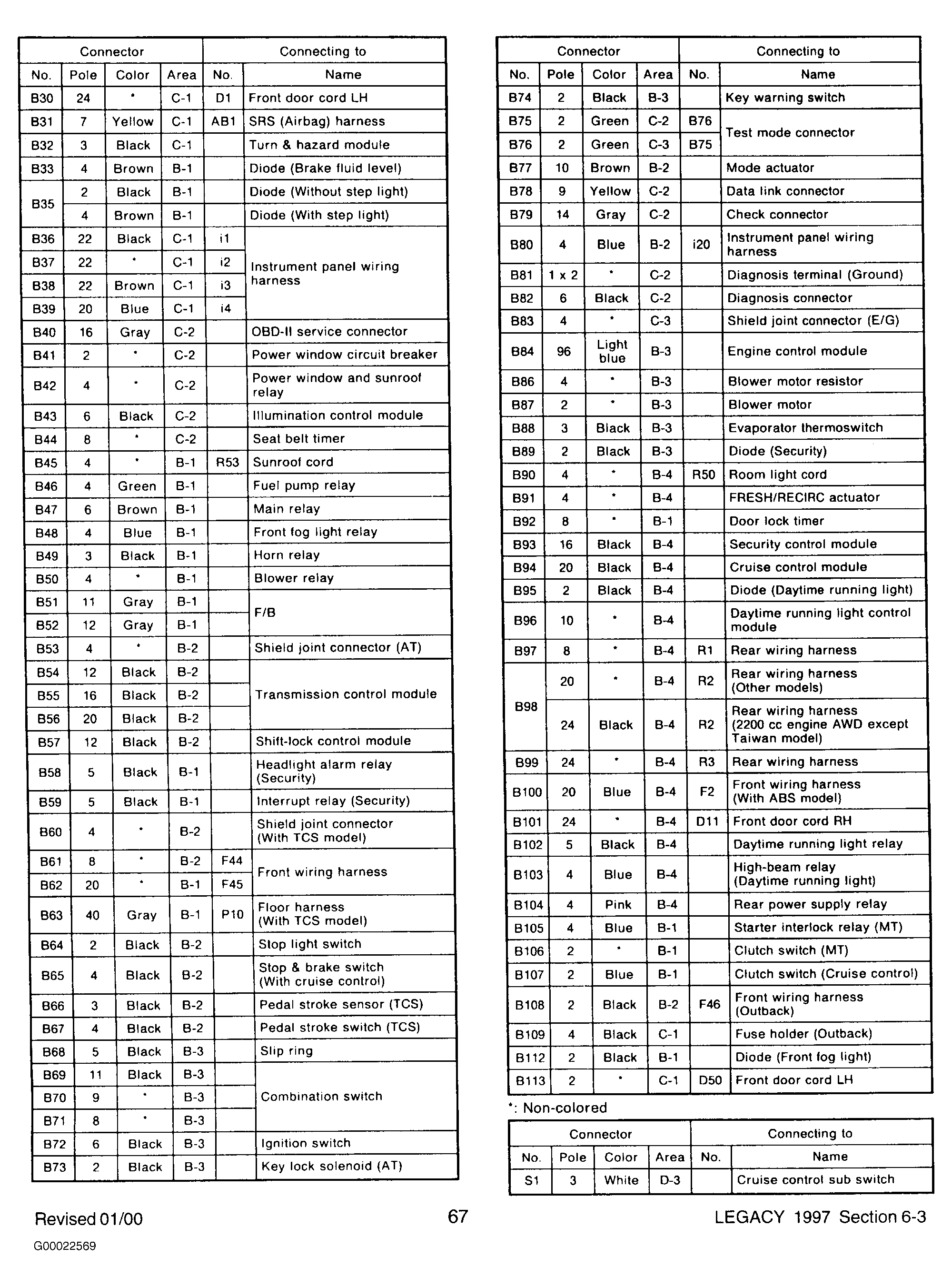

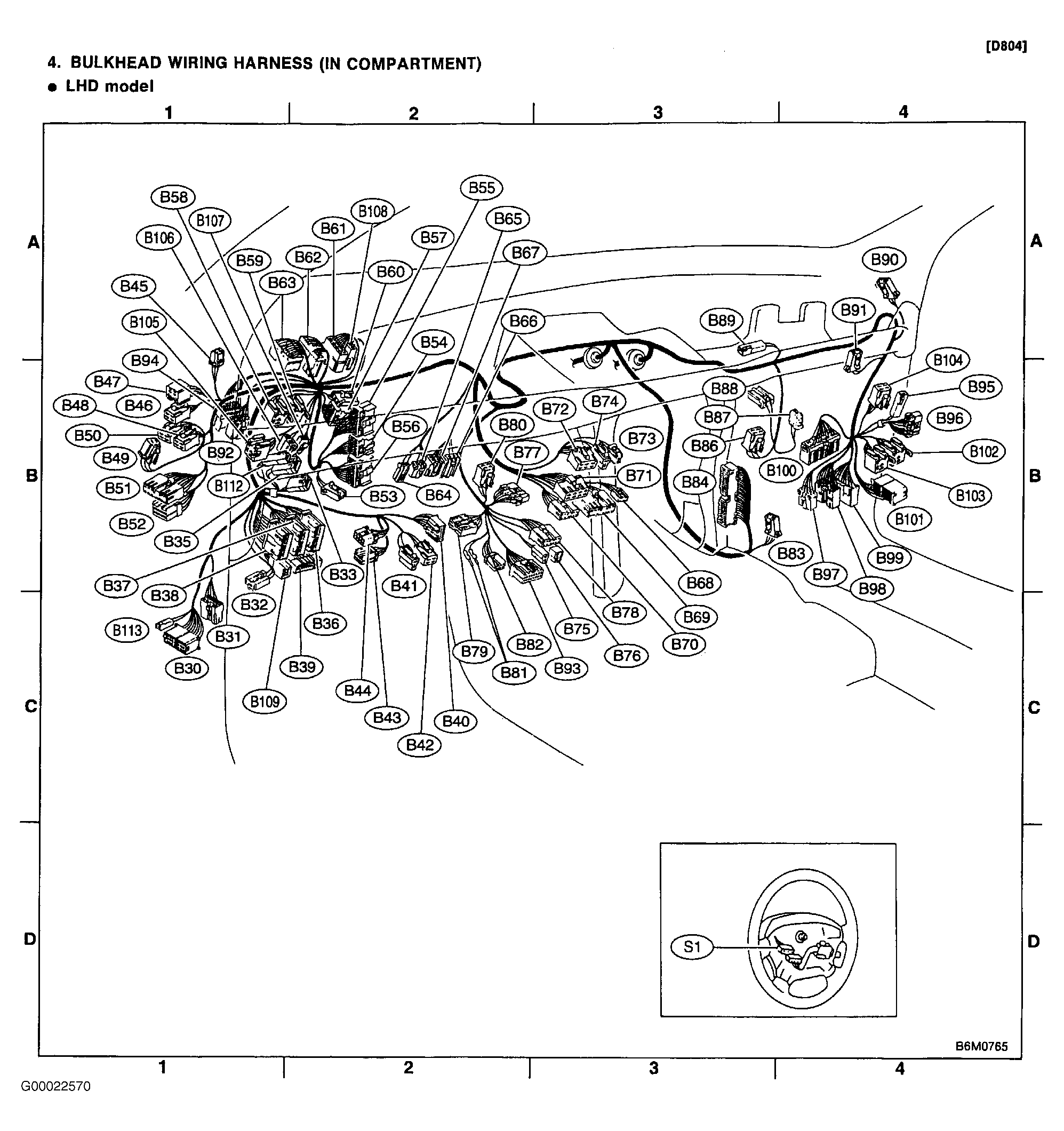

1997	6	MSA5T9701A	6-3	67	[D804]

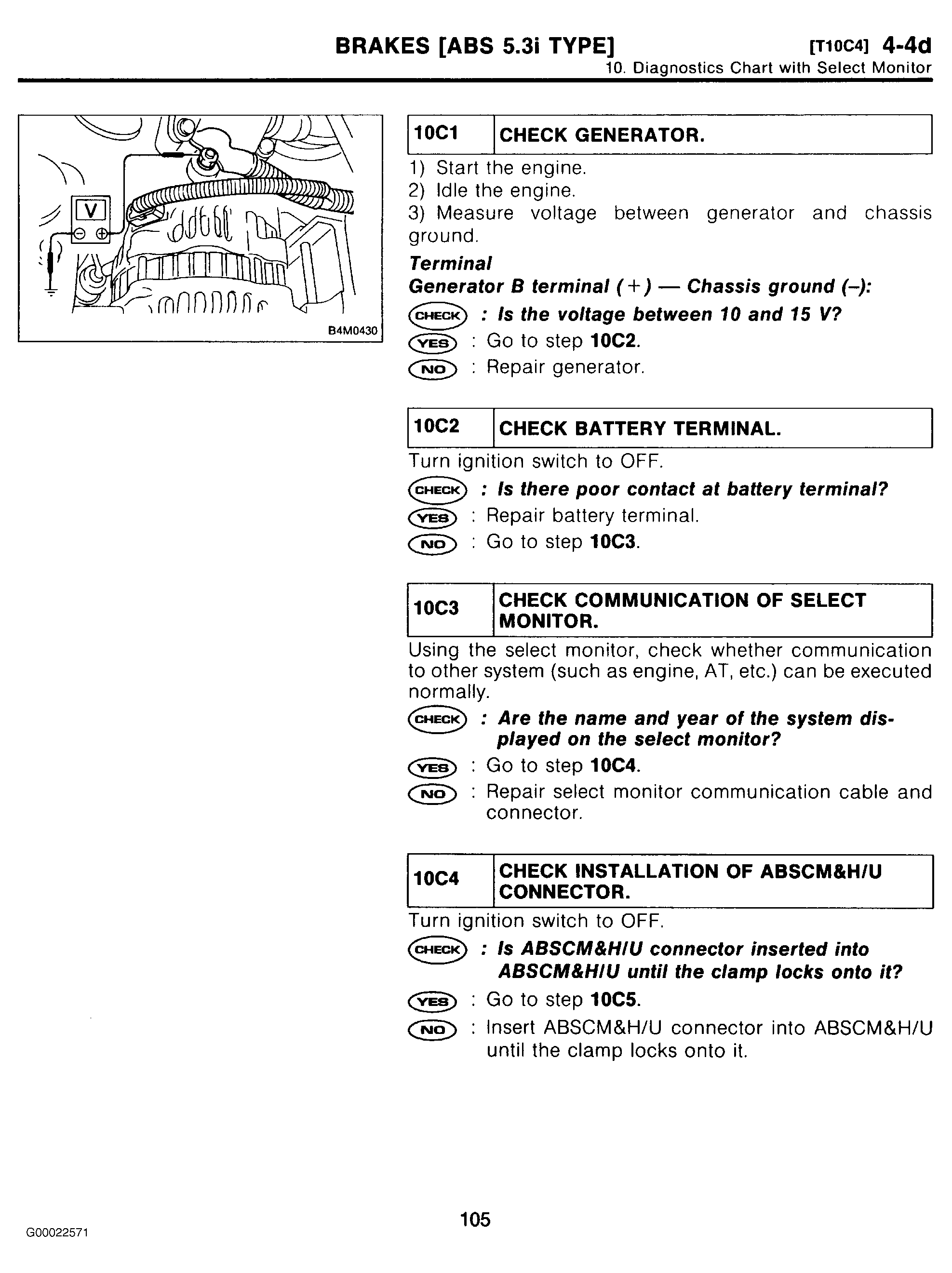

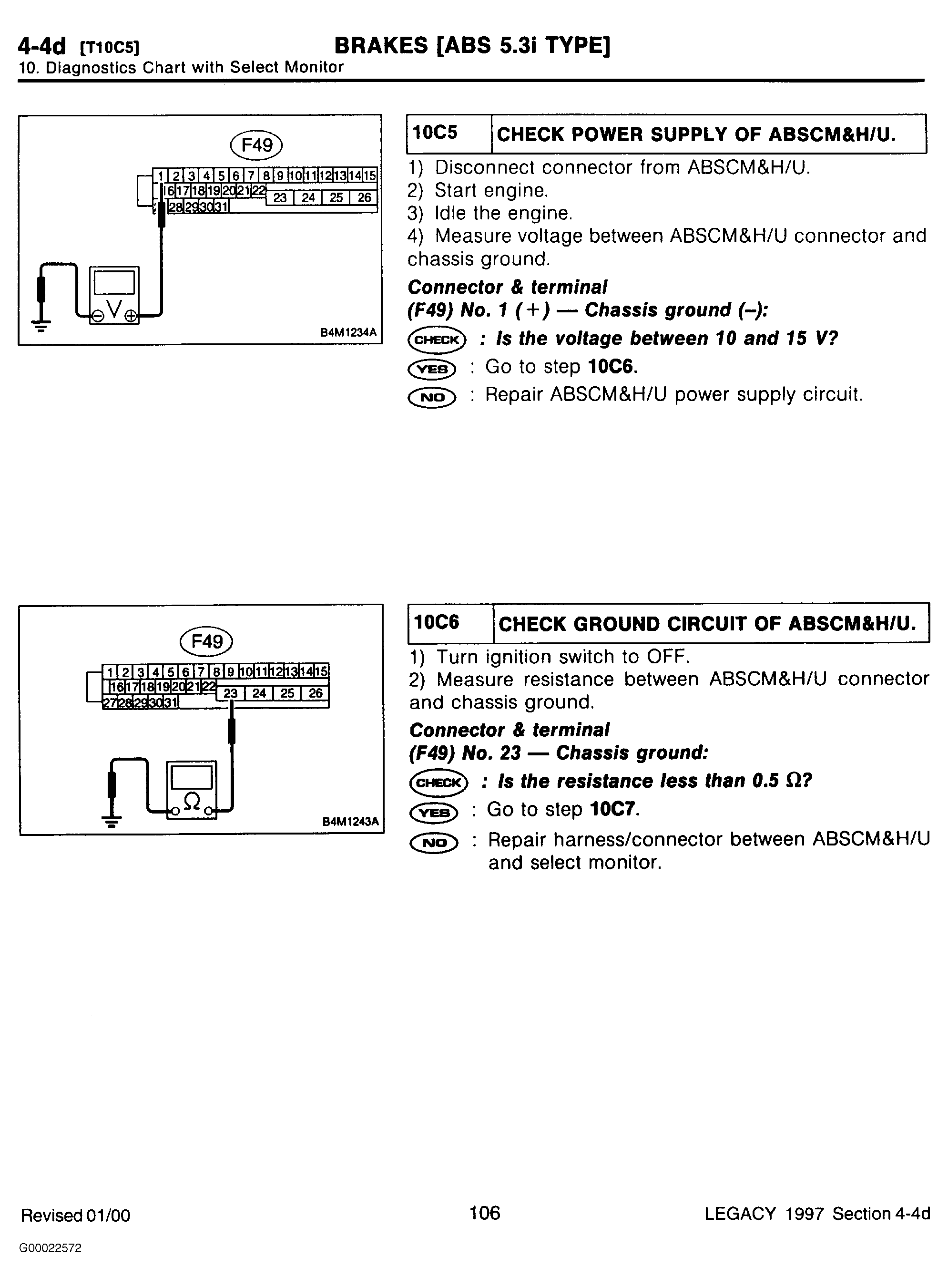

1997	7	MSA5T9712A	4-4d	105-106	[T10C4] / [T10C5]

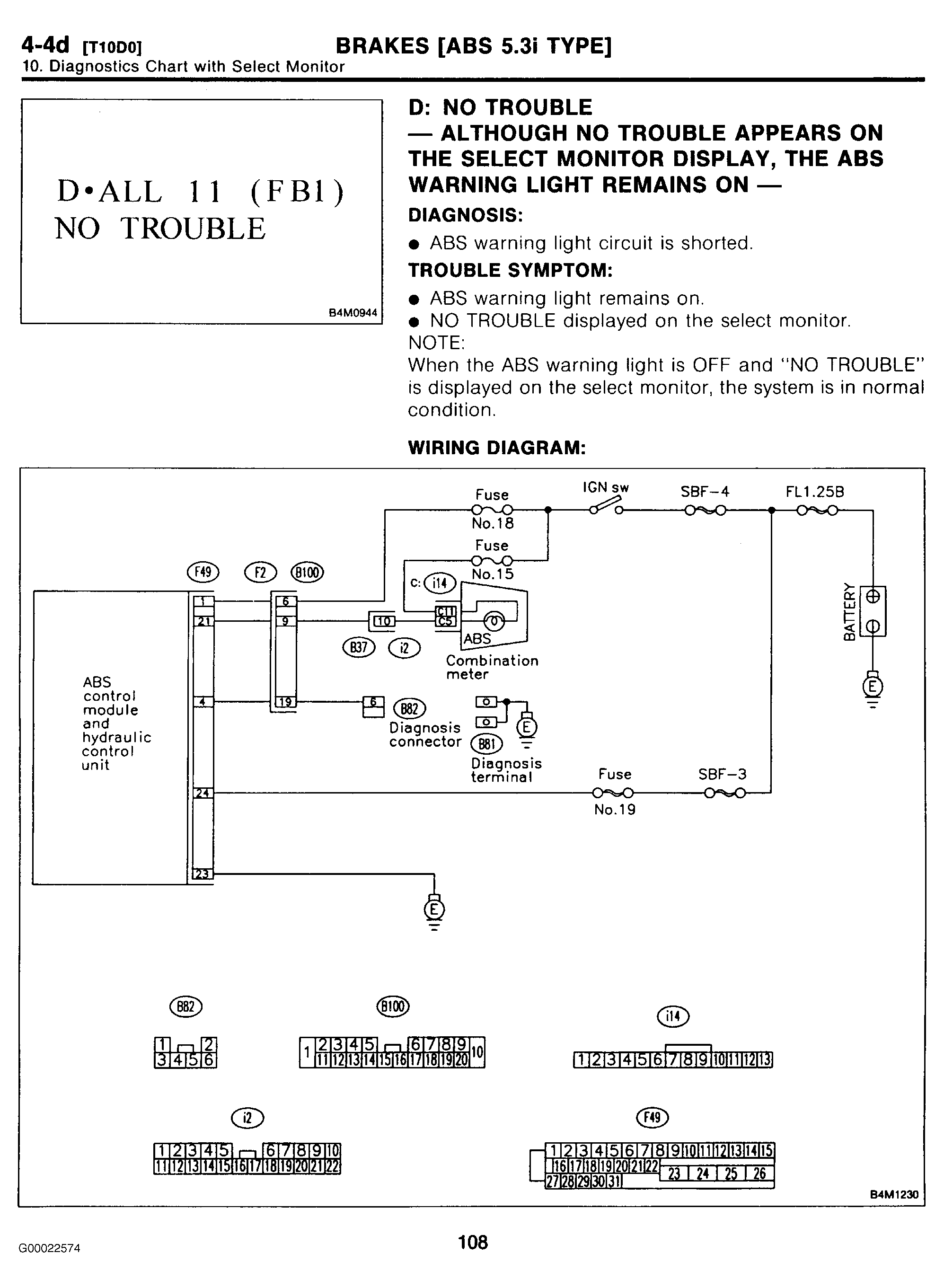

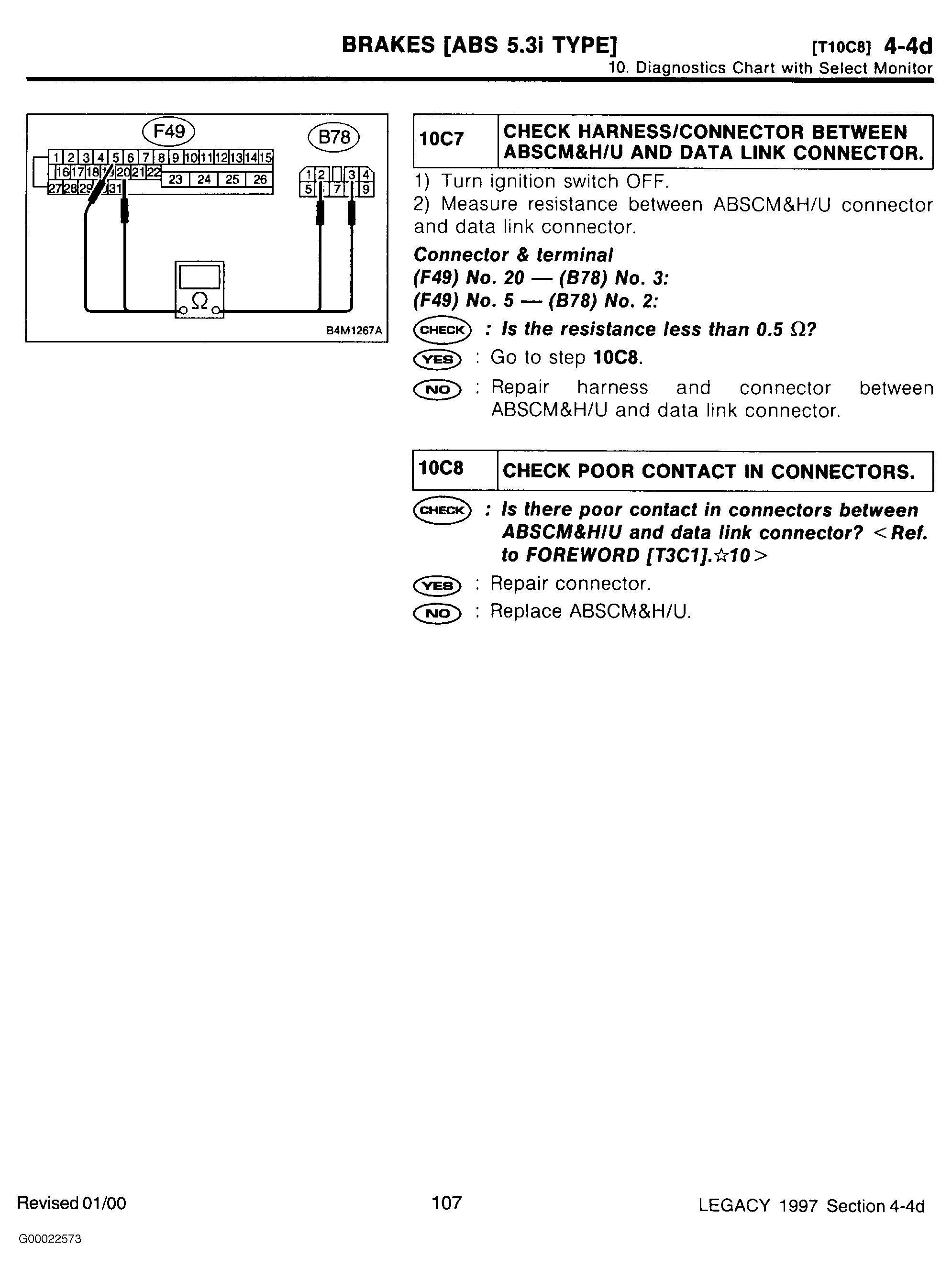

1997	7	MSA5T9712A	4-4d	107-108	[T10C8] / [T10D0]

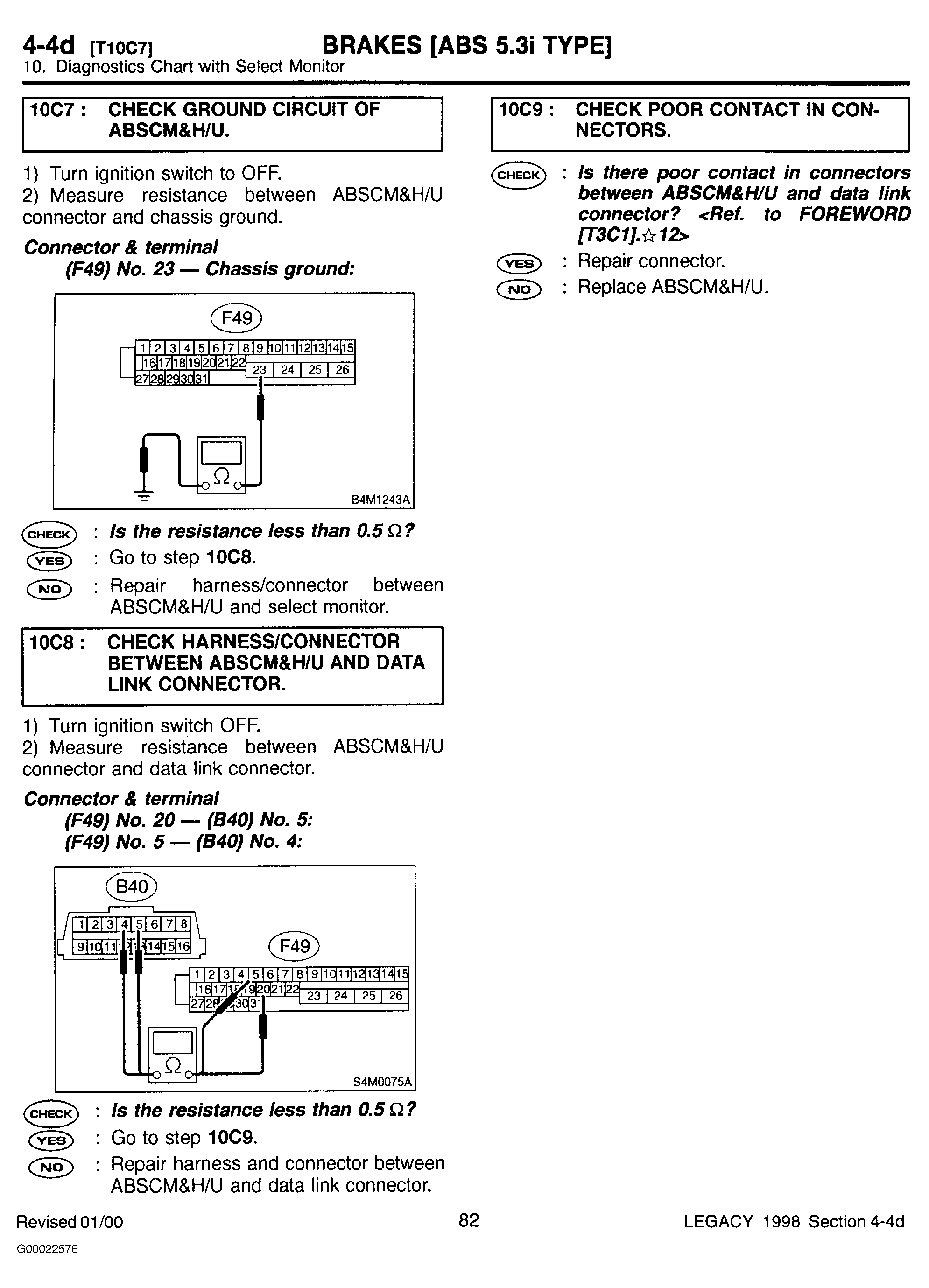

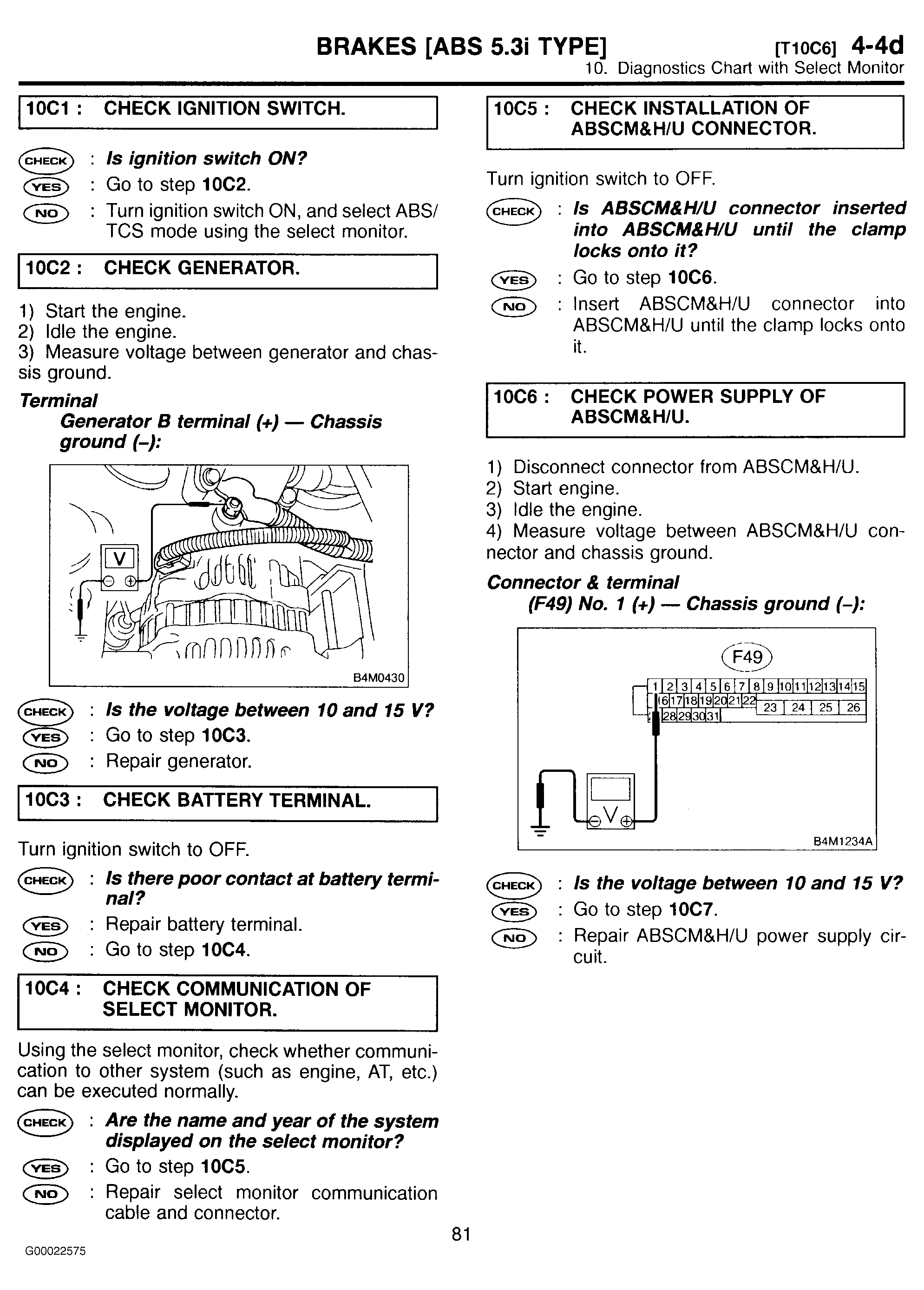

1998	9	MSA5T9802A	4-4d	81-82	[T10C6] / [T10C7]

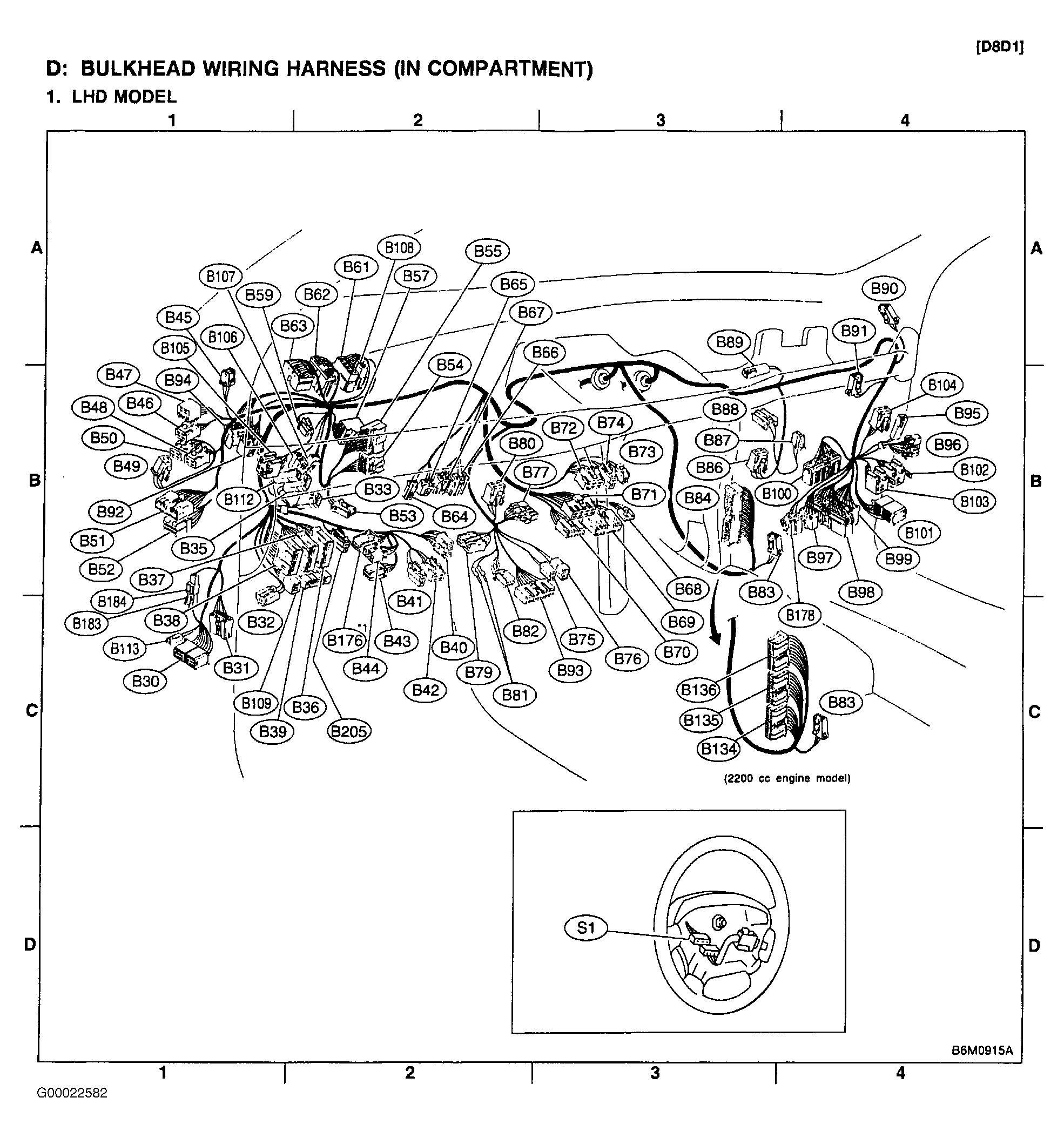

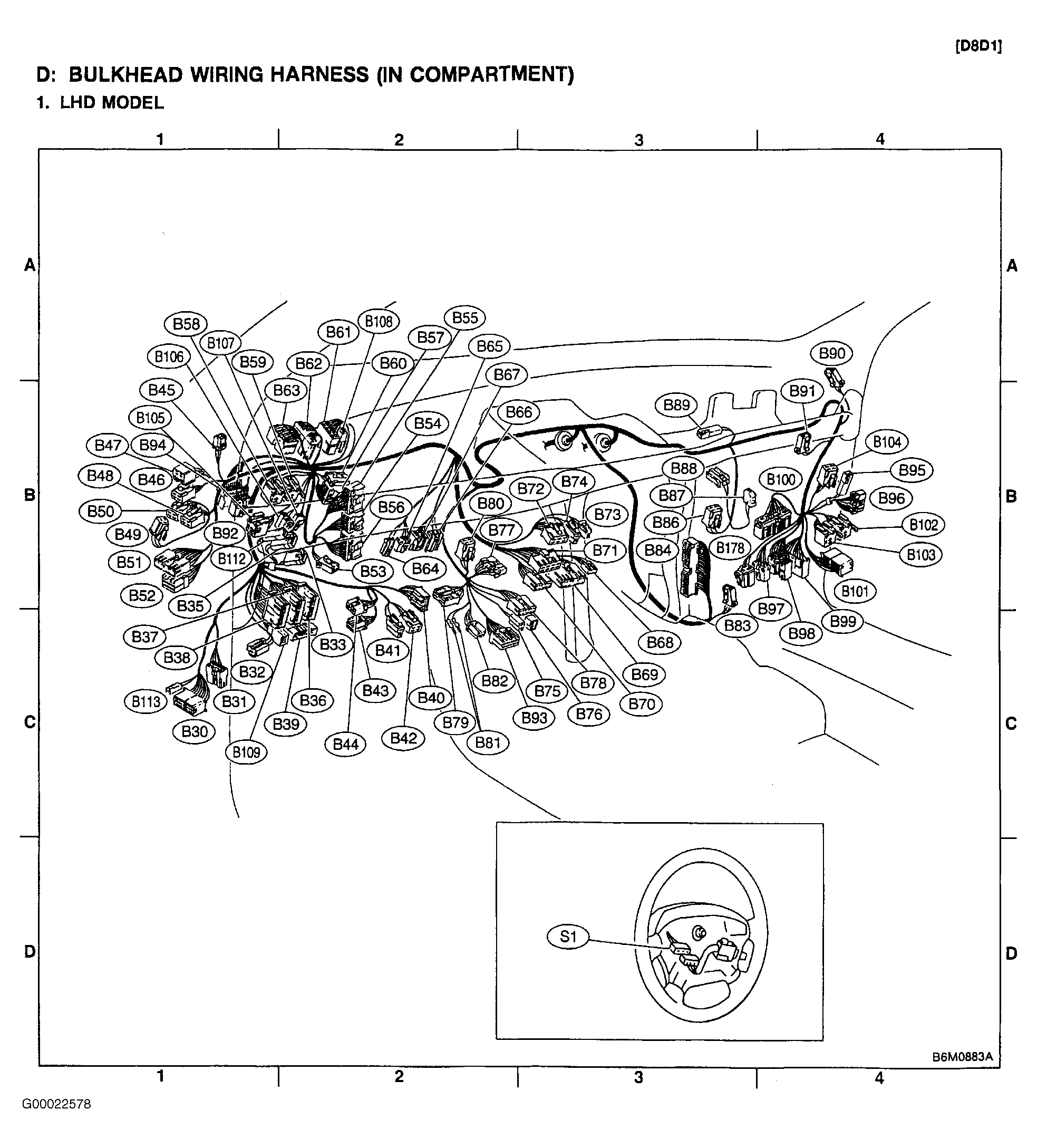

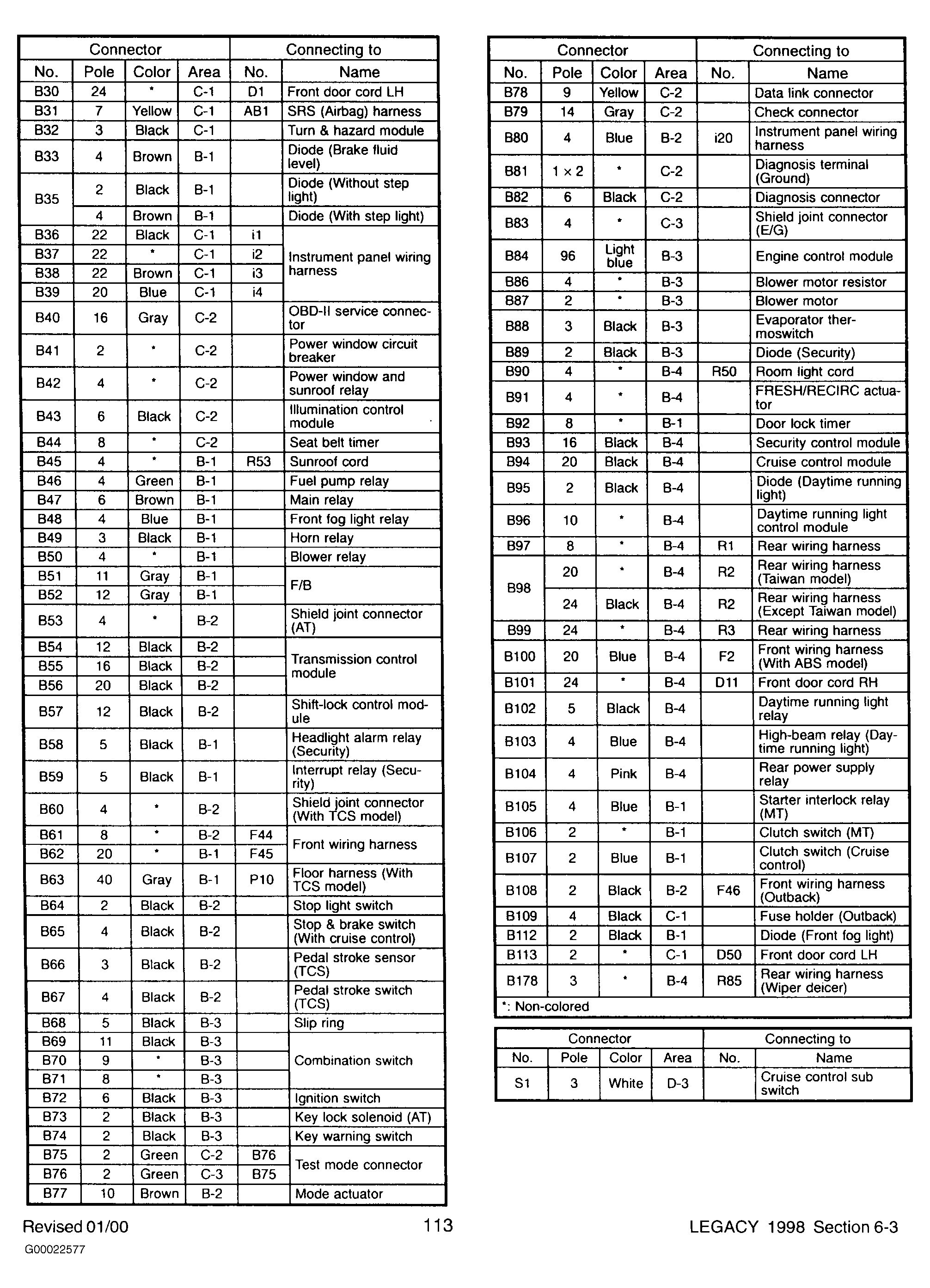

1998	9	MSA5T9802A	6-3	113	[D8D1]

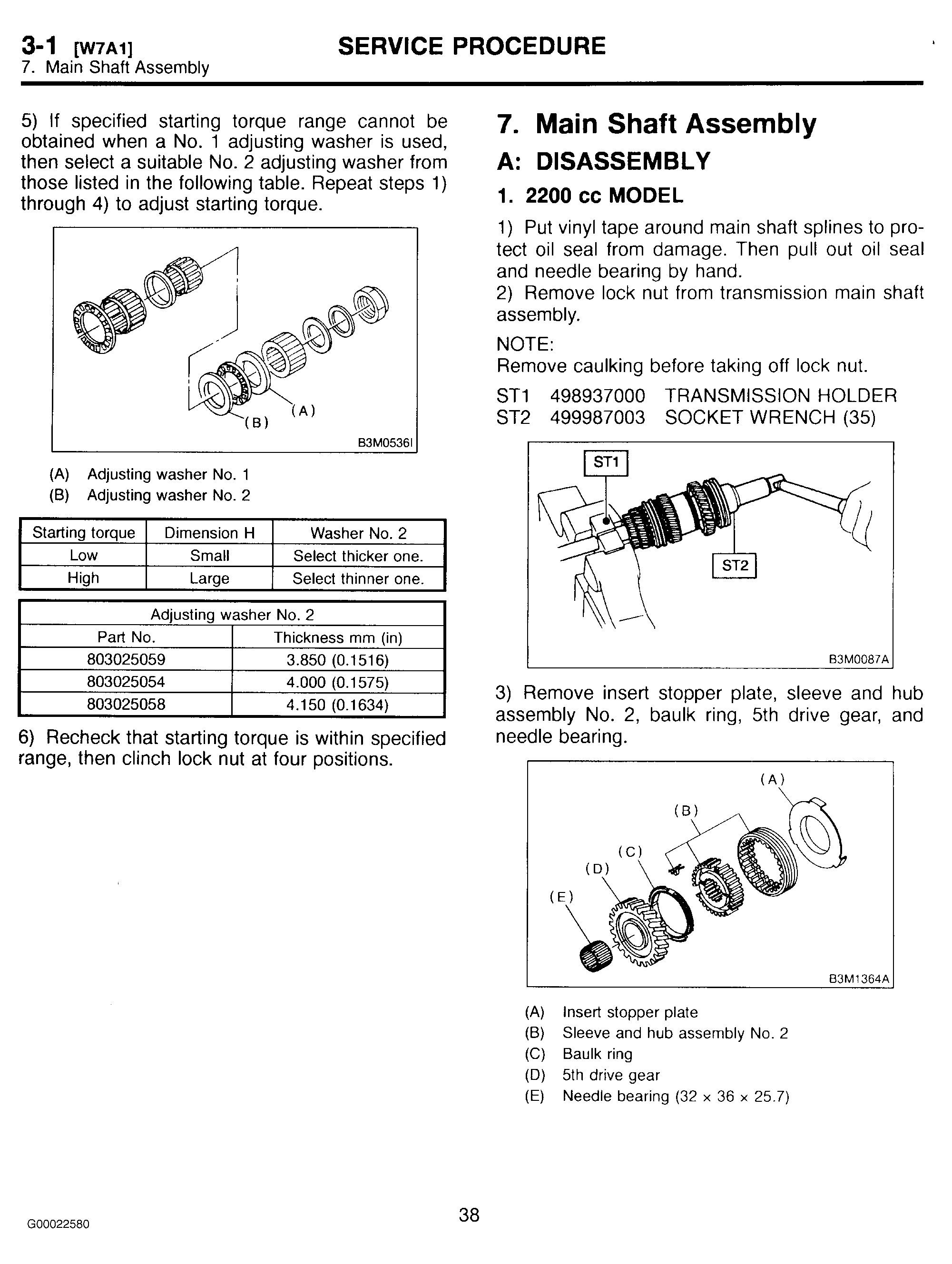

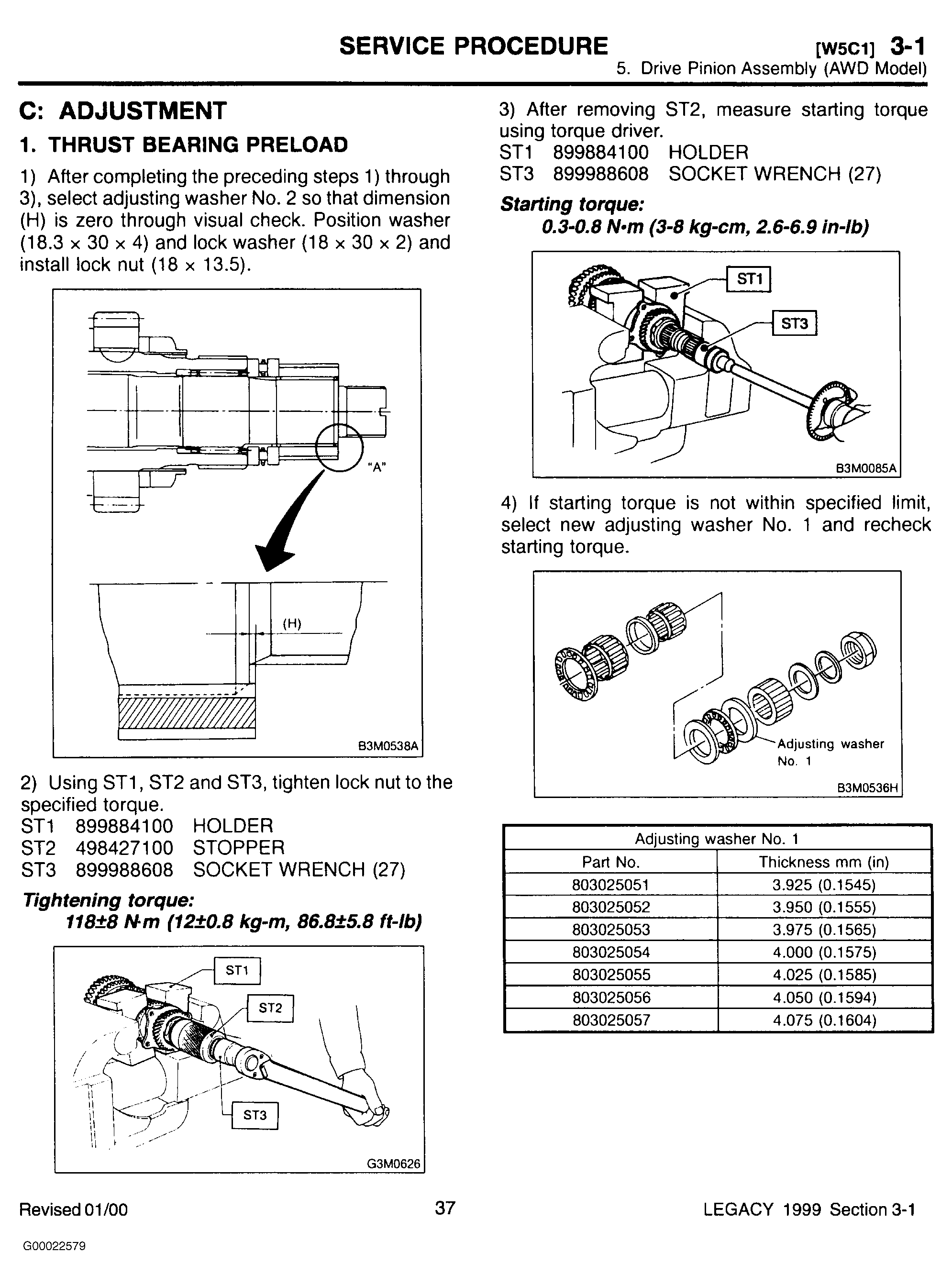

1999	11	MSA5T9902A	3-1	37-38	[W5C1] / [W7A1]

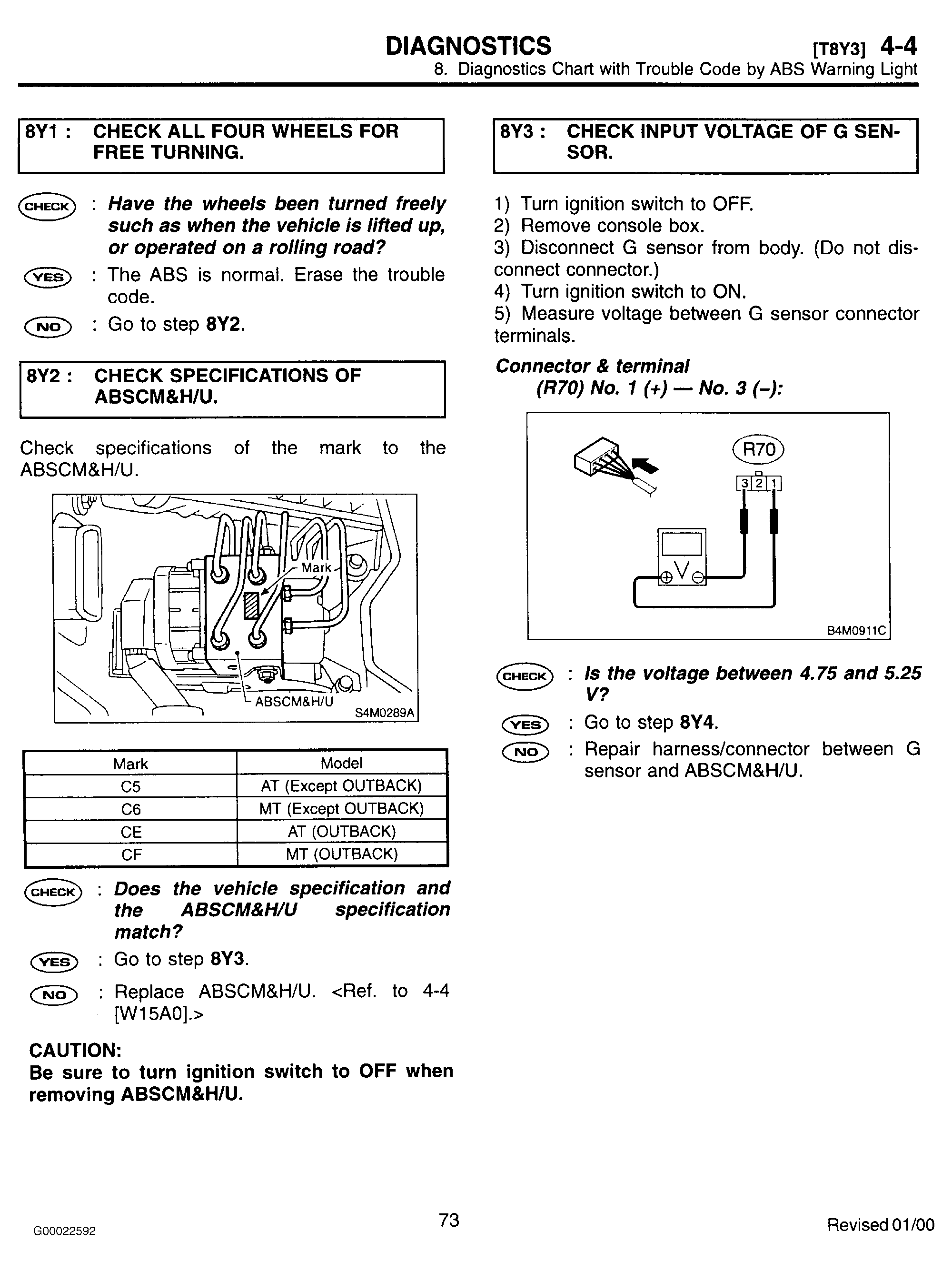

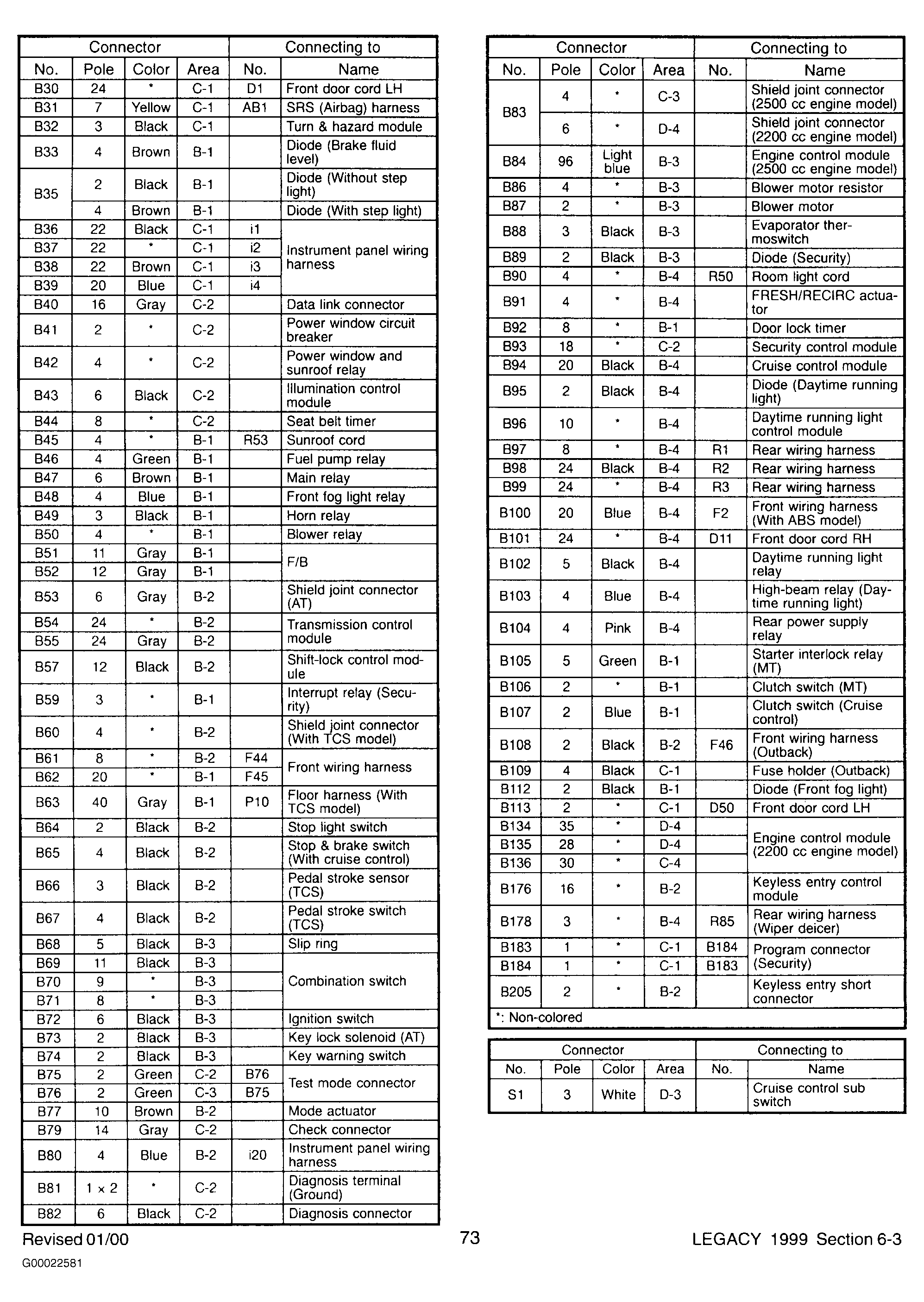

1999	12	MSA5T9903A	6-3	73	[D8D1]

The following pages are revised from your 2000 Legacy Service Manuals. Place a revised label on the indicated page in your original Service Manual and then place your corrected page into your Forester Correction Binder. Keep your Service Manuals and Correction Binders together for quick reference.

Refer to Fig 23 -Fig 32 .

2000 SERVICE MANUAL CORRECTIONS

Year	Book #	MSA #	Section	Pages	Reference

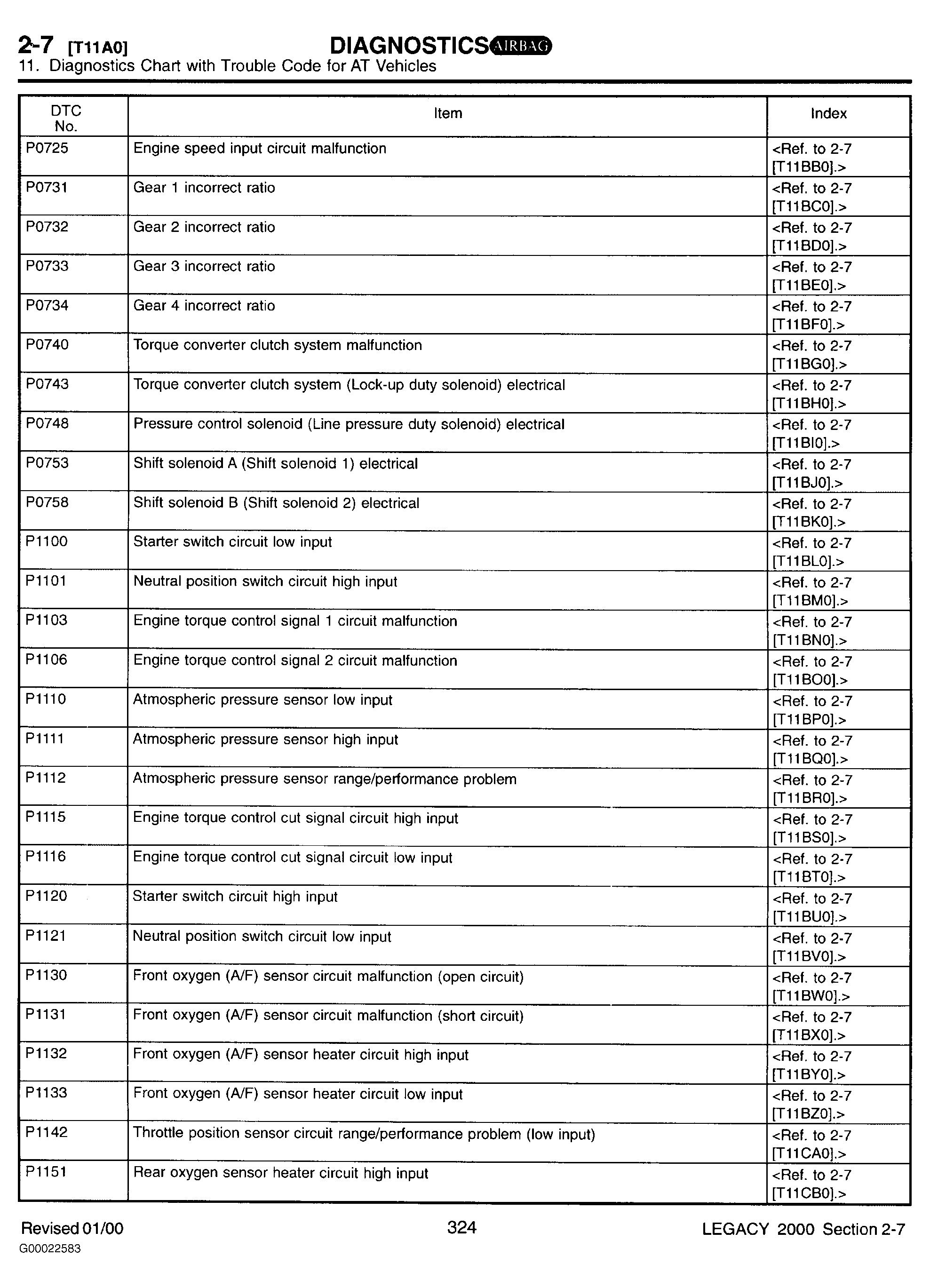

2000	4	MSA5T0004A	2-7	324	[T11A0]

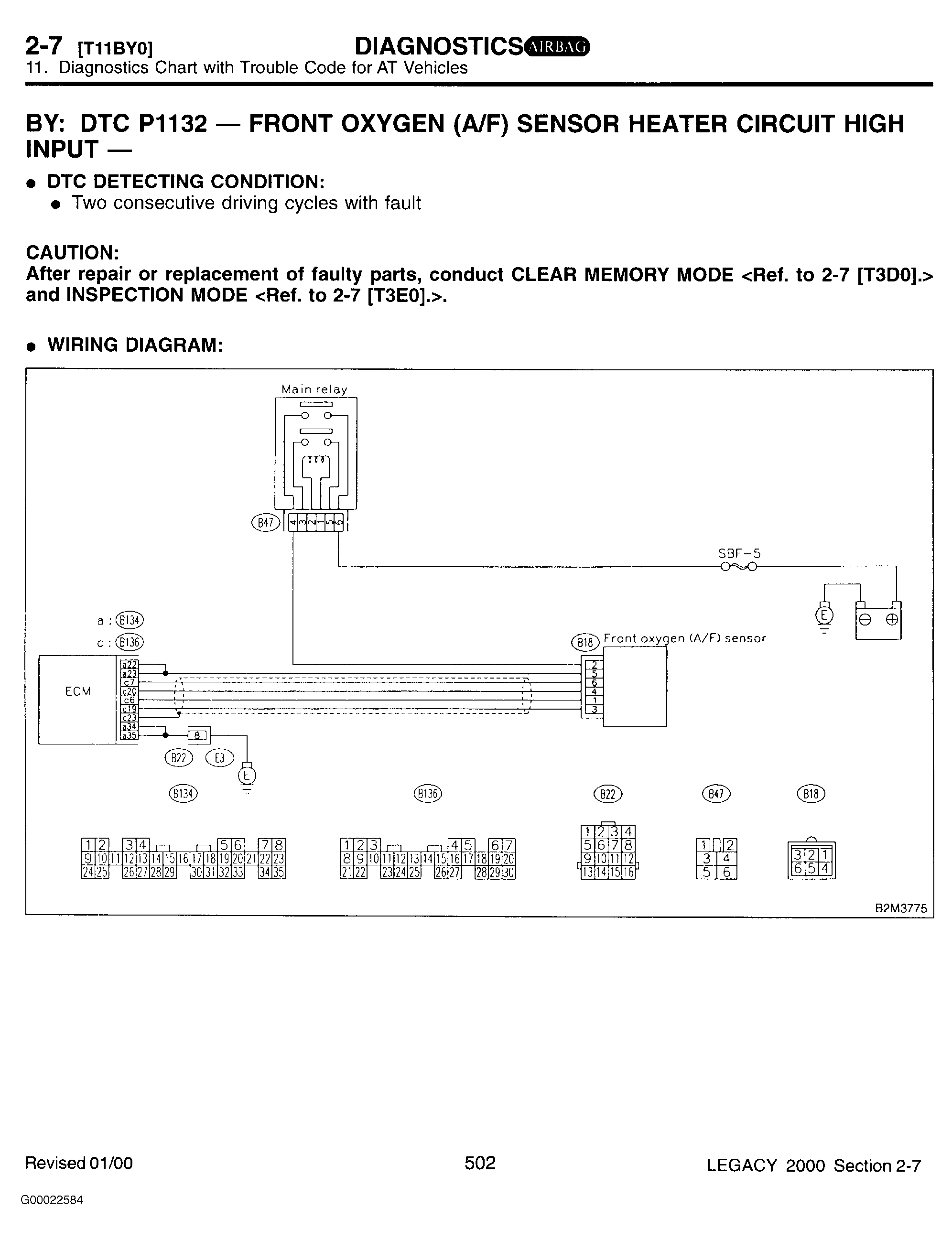

2000	4	MSA5T0004A	2-7	502	[T11BY0]

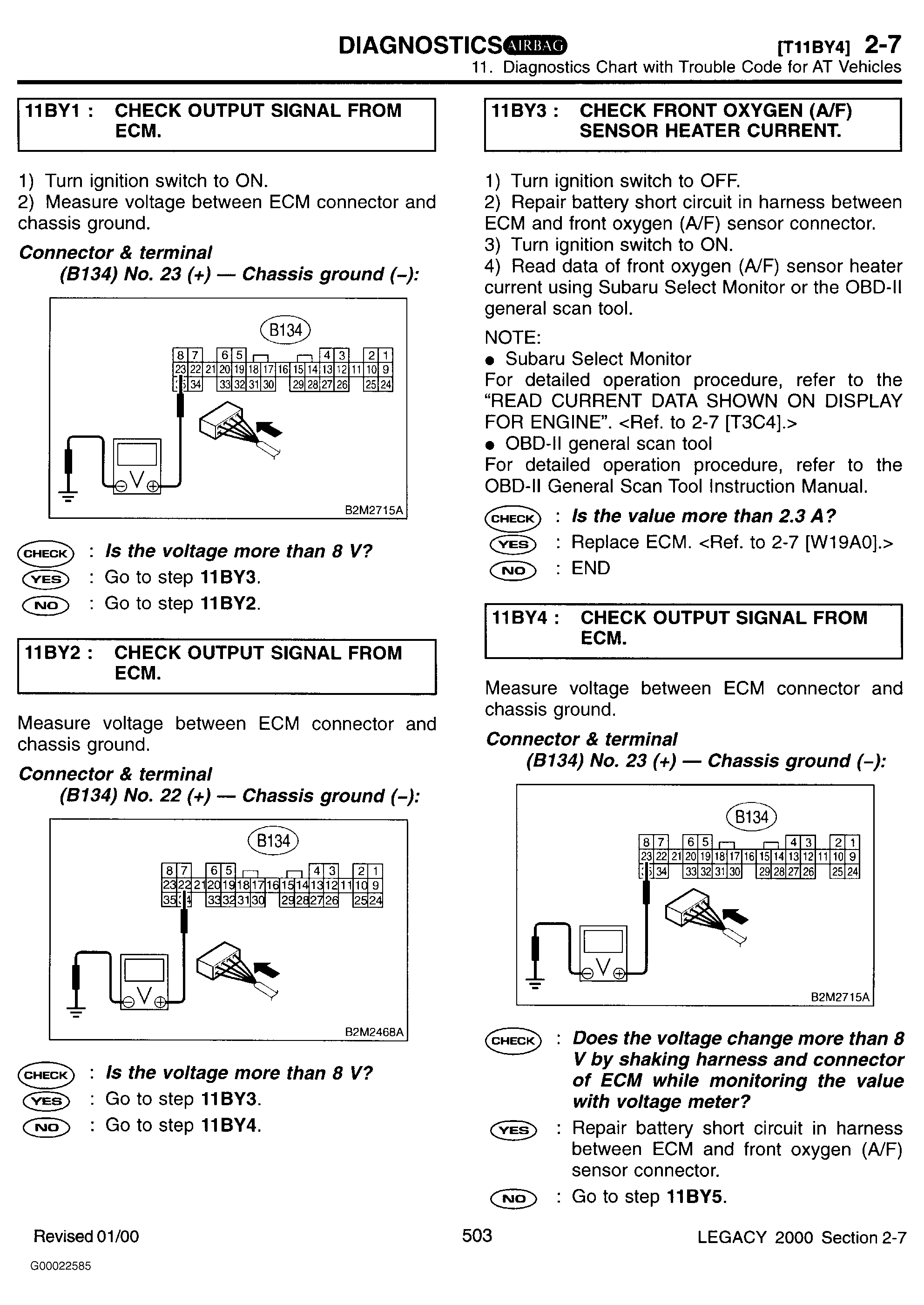

2000	4	MSA5T0004A	2-7	503	[T11BY4]

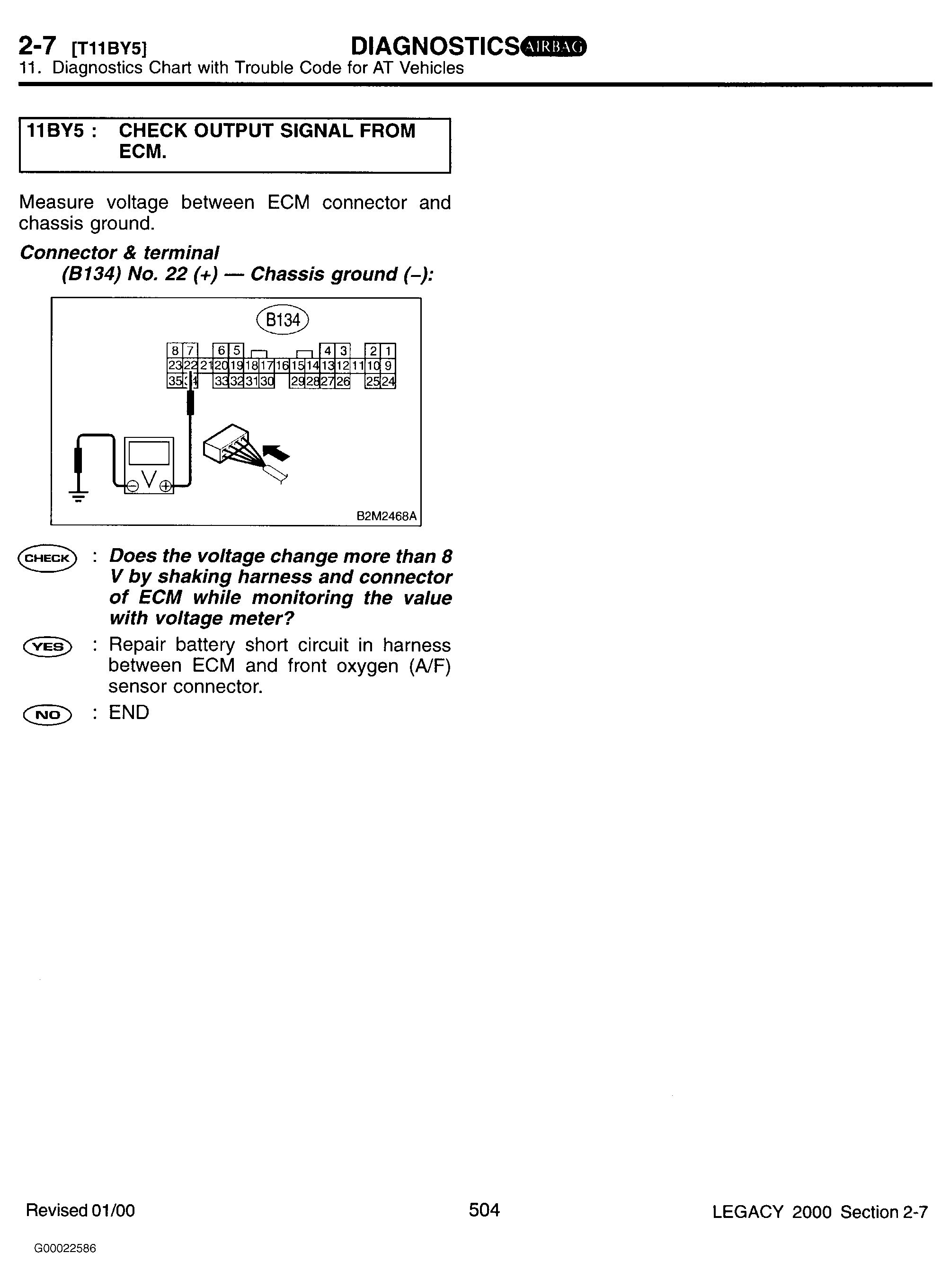

2000	4	MSA5T0004A	2-7	504	[T11BY5]

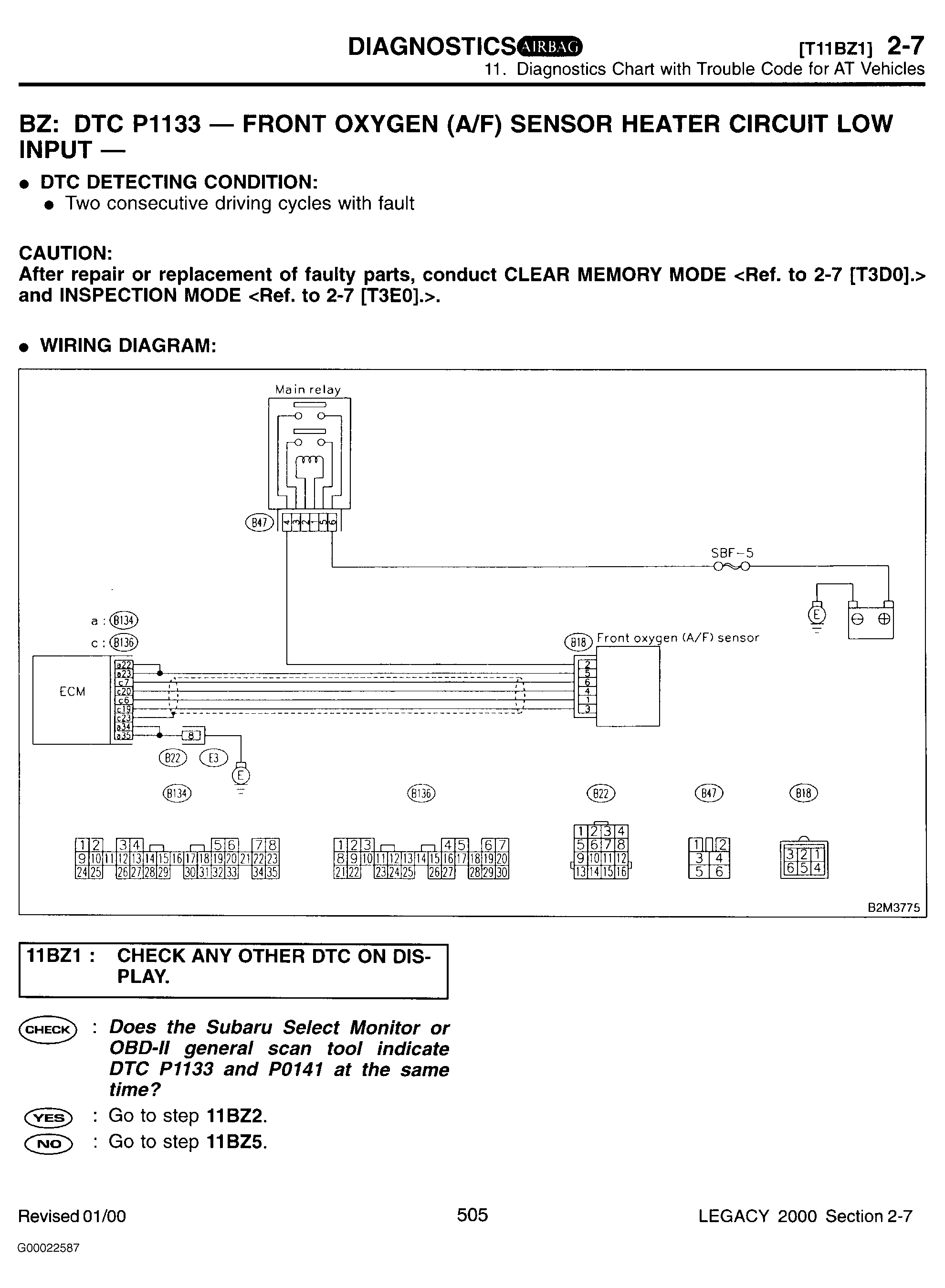

2000	4	MSA5T0004A	2-7	505	[T11BZ1]

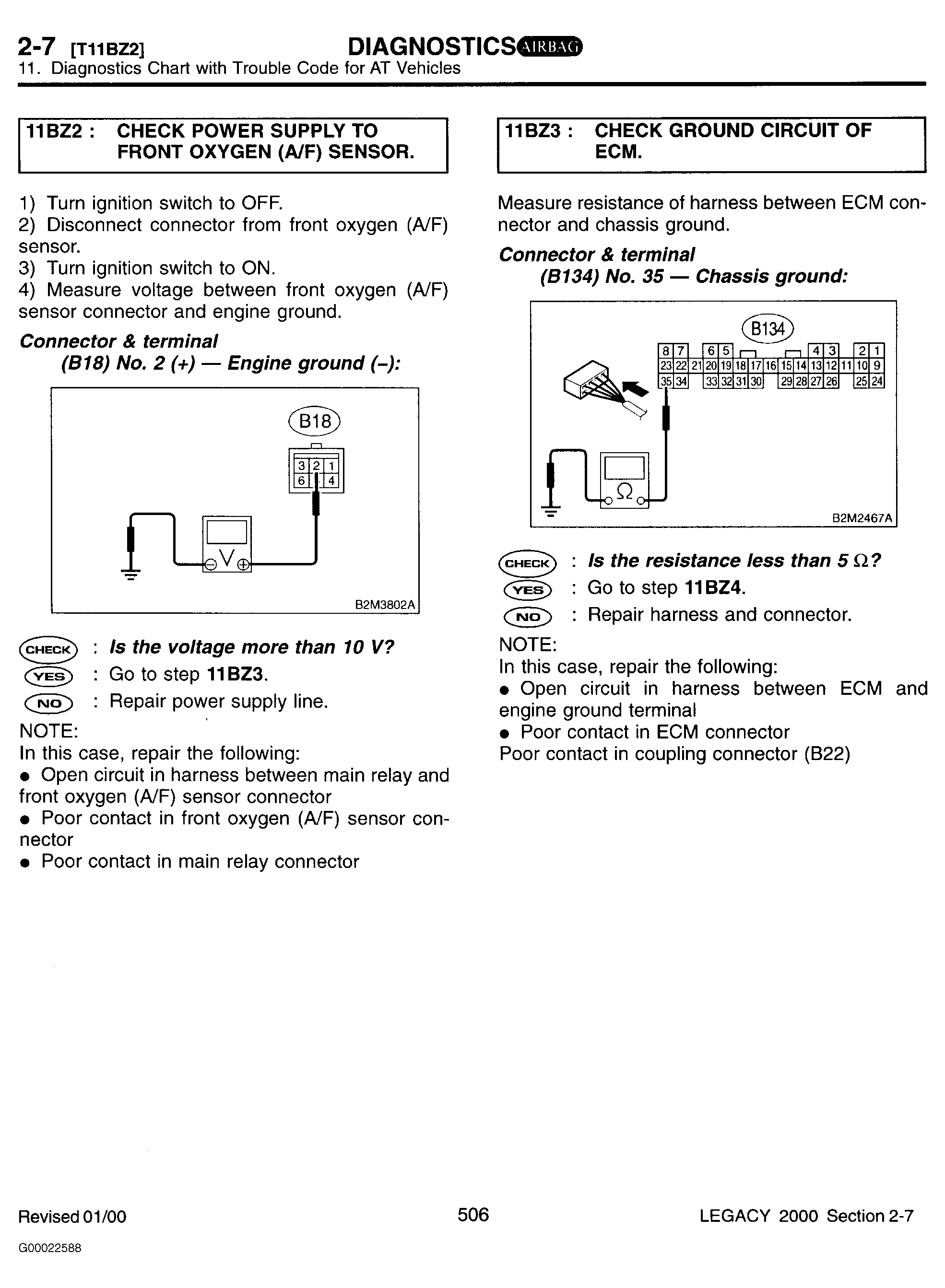

2000	4	MSA5T0004A	2-7	506	[T11BZ2]

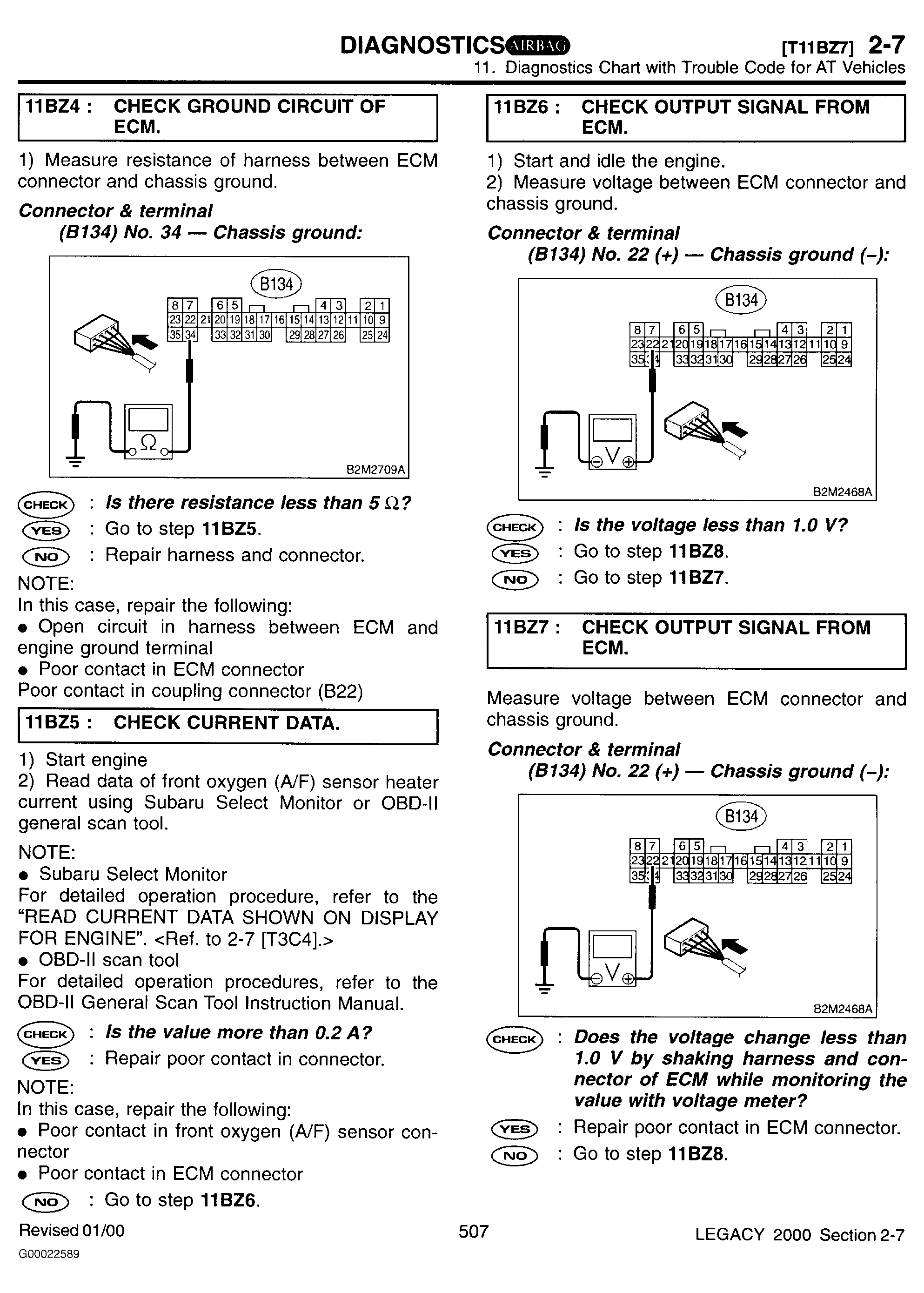

2000	4	MSA5T0004A	2-7	507	[T11BZ7]

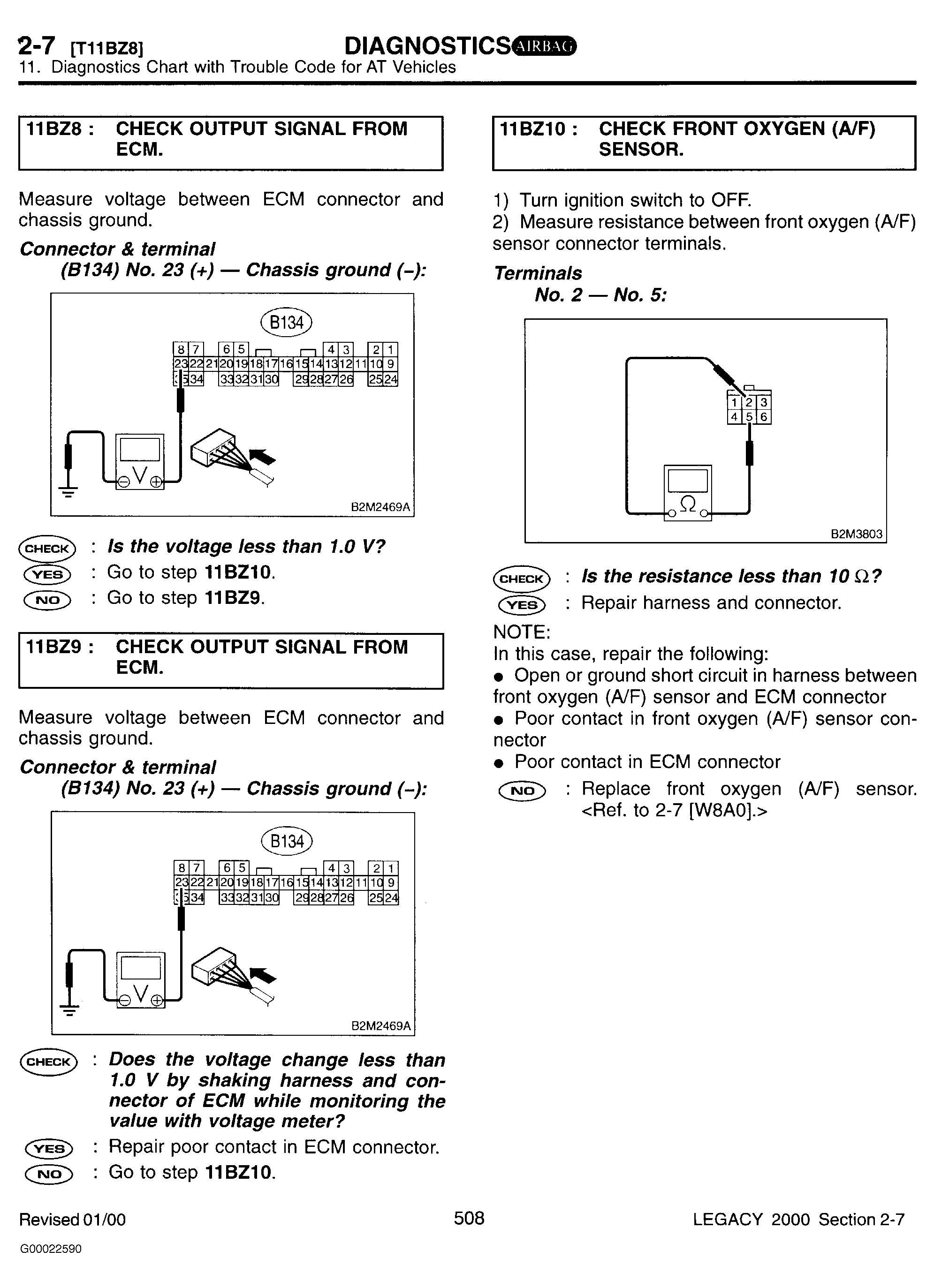

2000	4	MSA5T0004A	2-7	508	[T11BZ8]

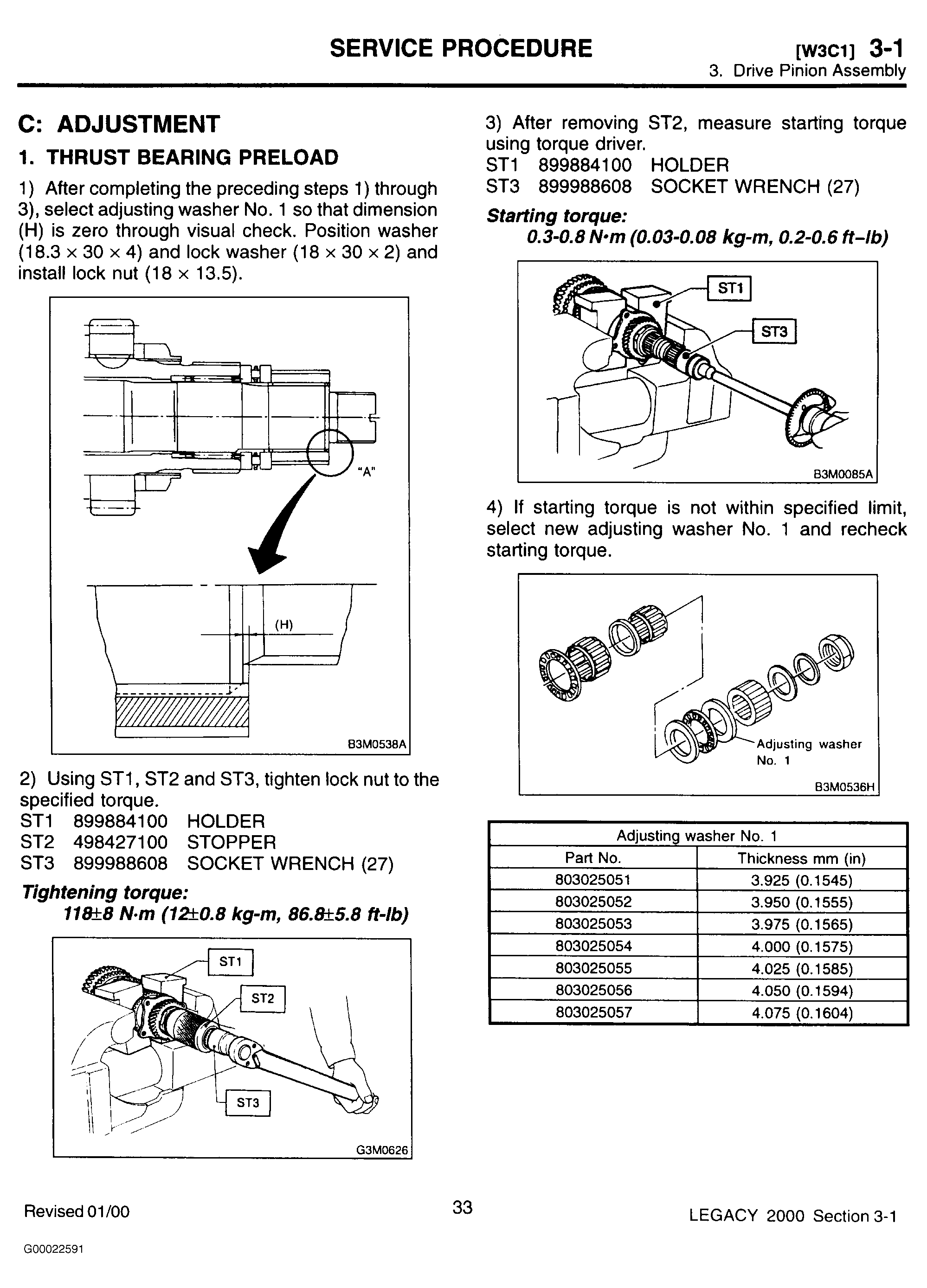

2000	5	MSA5T0005A	3-1	33	[W3C1]
2000	6	MSA5T0006A	4-4	734	[T8Y3]
