Pin Voltage Charts

Fig 1: ECU Connector Terminals

G95C32377

Courtesy of SUBARU OF AMERICA, INC.

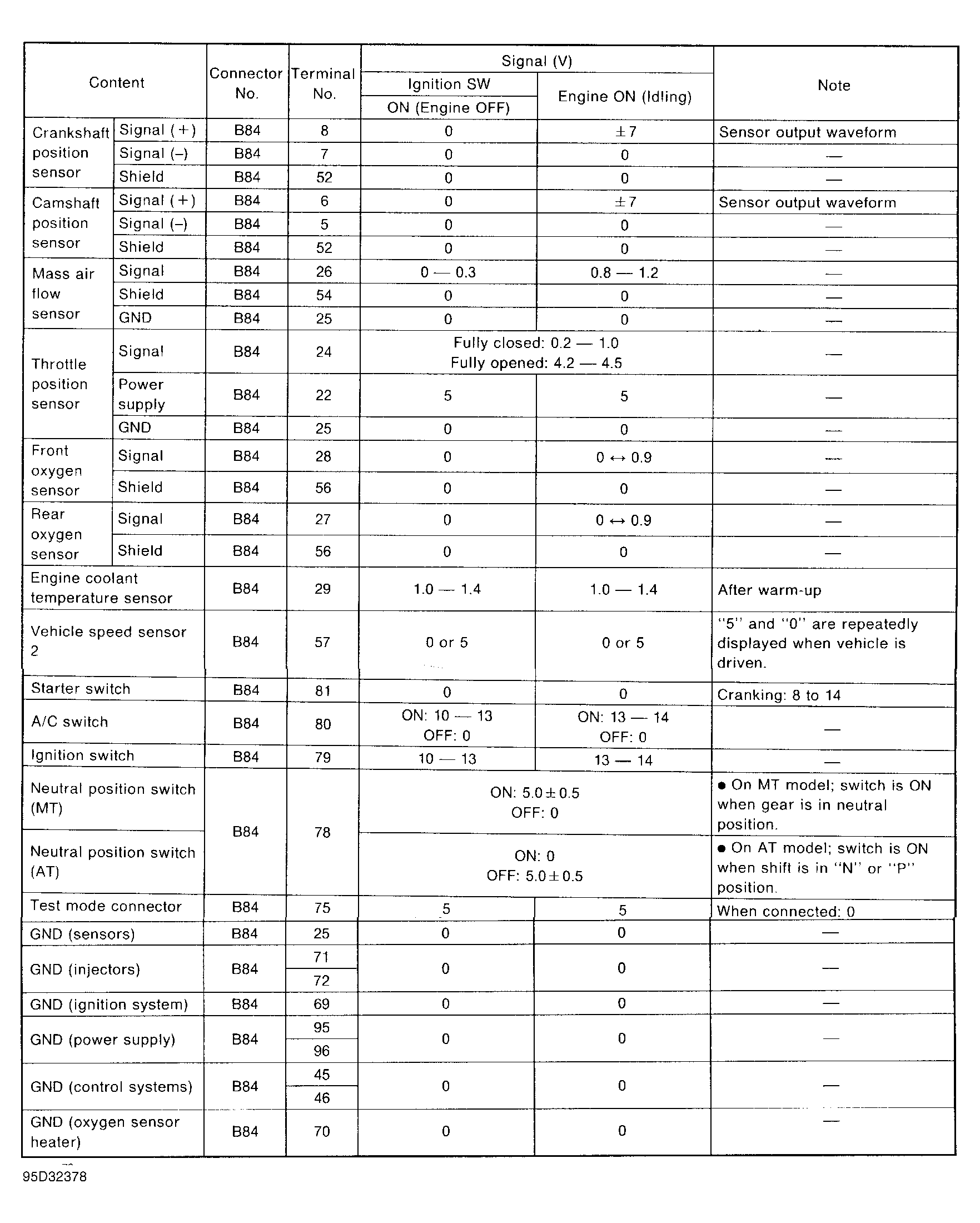

Fig 2: Pin Voltage Chart (1 Of 2)

G95D32378

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Pin Voltage Chart (2 Of 2)

G95E32379

Courtesy of SUBARU OF AMERICA, INC.

WIRING COLOR CODE

Color Code	Wire Color
B	Black
Br	Brown
G	Green
Gr	Gray
L	Blue
Lg	Light Green
R	Red
W	White
Y	Yellow
