Engine Controls - System/Component Tests
›
Component Locations
Component Locations

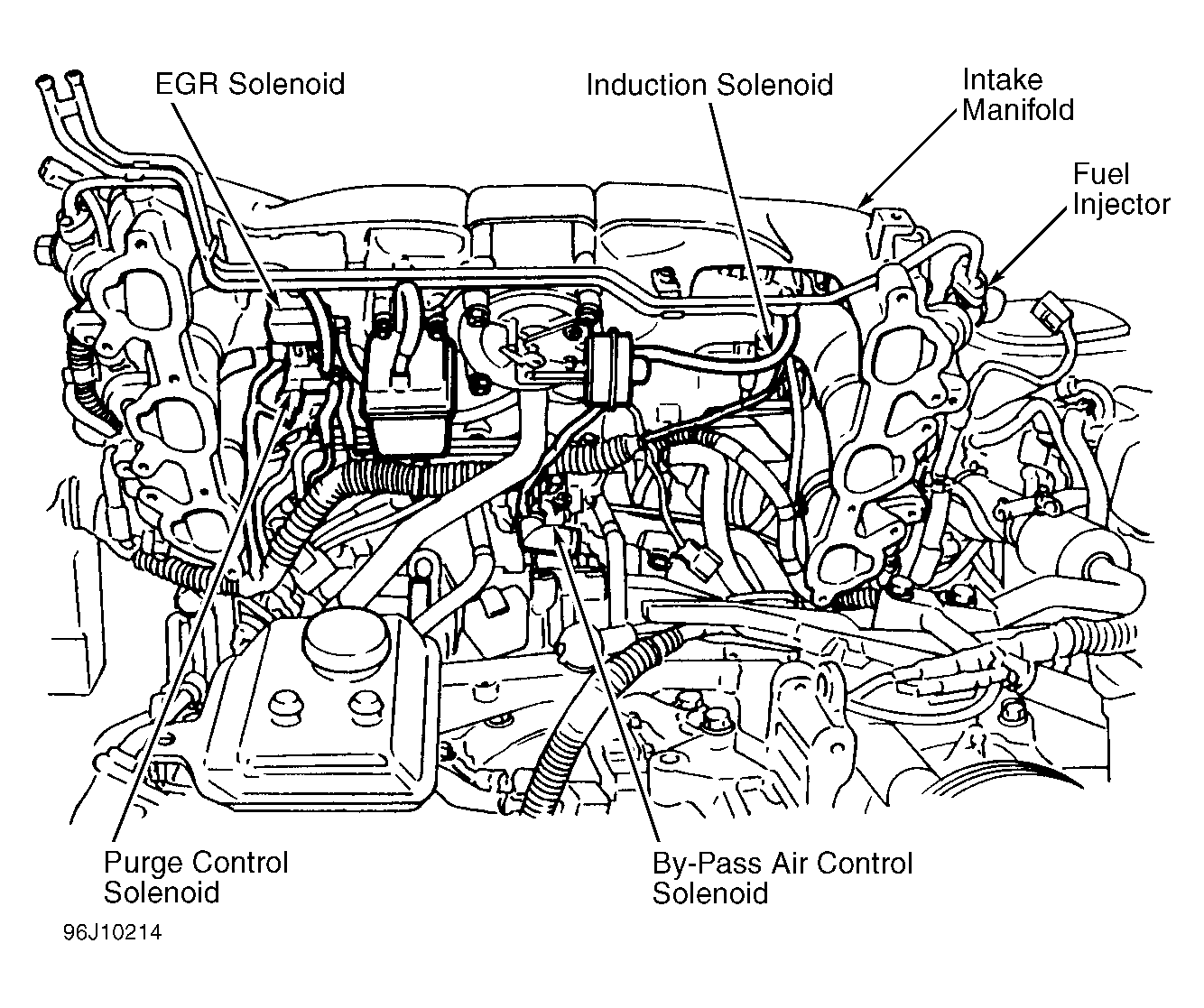

Fig 1: Component Locations (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

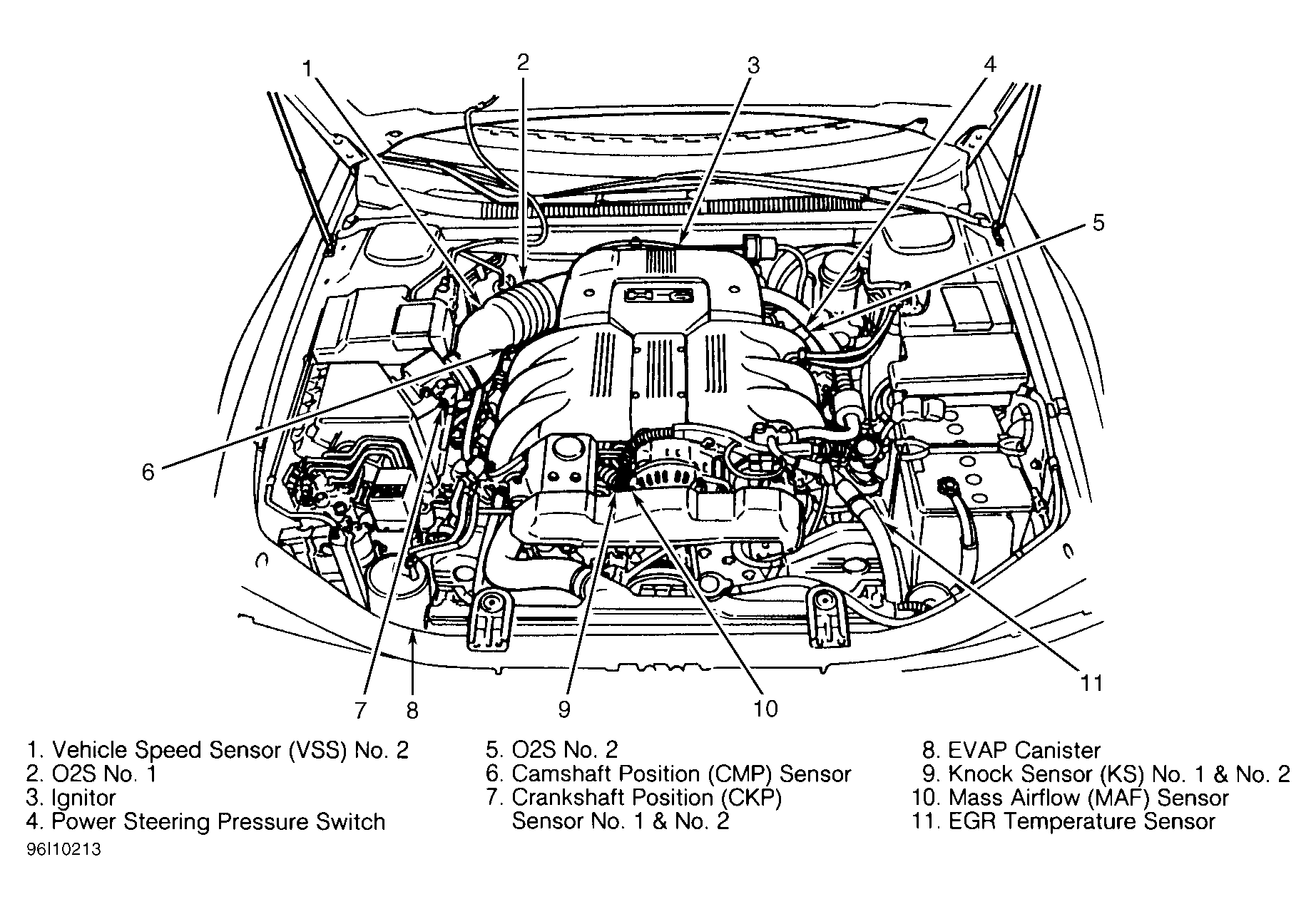

Fig 2: Component Locations (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
