Under-Dash Fuse/Relay Box

Under-dash fuse/relay box is located under the instrument panel behind the fuse box cover on driver's side, see illustration below.

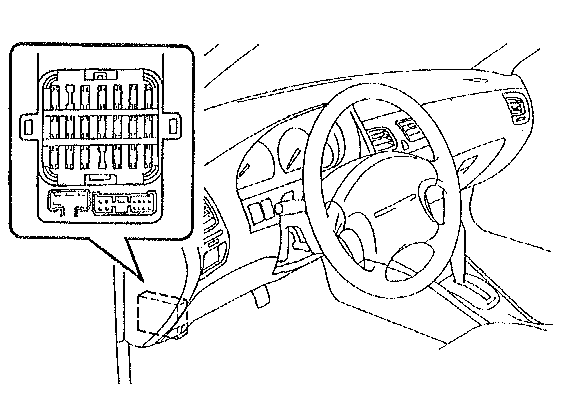

Fig 1: Locating Under-Dash Fuse/Relay Box

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Underdash Fuse Panel Identification

Courtesy of SUBARU AMERICA, INC.

FUSE PANEL BEHIND COIN TRAY

Fuse No.	Fuse Rating	Circuit
1	15A	Back-Up Light, Turn Signal Indicators
2	20A	Windshield Wiper & Washer
3	20A	Cigarette Lighter, Remote Controlled Rear View Mirrors
4	-	Empty
5	10A	Right Tail light
6	15A	Front Fog Light
7	20A	Rear Window Defogger
8	15A	Air Bag Supplemental Restraint System (SRS)
9	10A	Illumination Brightness Control
10	-	Empty
11	20A	Power Door Lock
12	20A	Brake Light, Horn
13	20A	Cooling Fan
14	10A	Automatic Transmission Control Unit
15	10A	Meter, Air Bag Indicator Light
16	15A	Ignition System, SRS Air Bag System
17	15A	Radio
18	10A	Cruise Control & ABS Control
19	20A	ABS Solenoid
20	15A	Heater Fan
21	15A	Heater Fan
