Service Manual Corrections (18-56-00)

Publication date: 2000-01-27
Reference number: 18-56-00

SERVICE MANUAL CORRECTIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 18-56-00, Date of Issue: January 27, 2000

SERVICE MANUAL CORRECTIONS

Model(s): 1998-2000 Subaru Forester Service Manual

Group: 18 - Service Manual Corrections

Bulletin No.: 18-56-00

Date: January 27, 2000

SERVICE INFORMATION

Replace the following revised pages into the applicable Service Manuals listed below:

Refer to Figs. Fig 1 through Fig 14 .

1998 SERVICE MANUAL CORRECTIONS

Year	Vol #	MSA #	Section	Pages	Reference

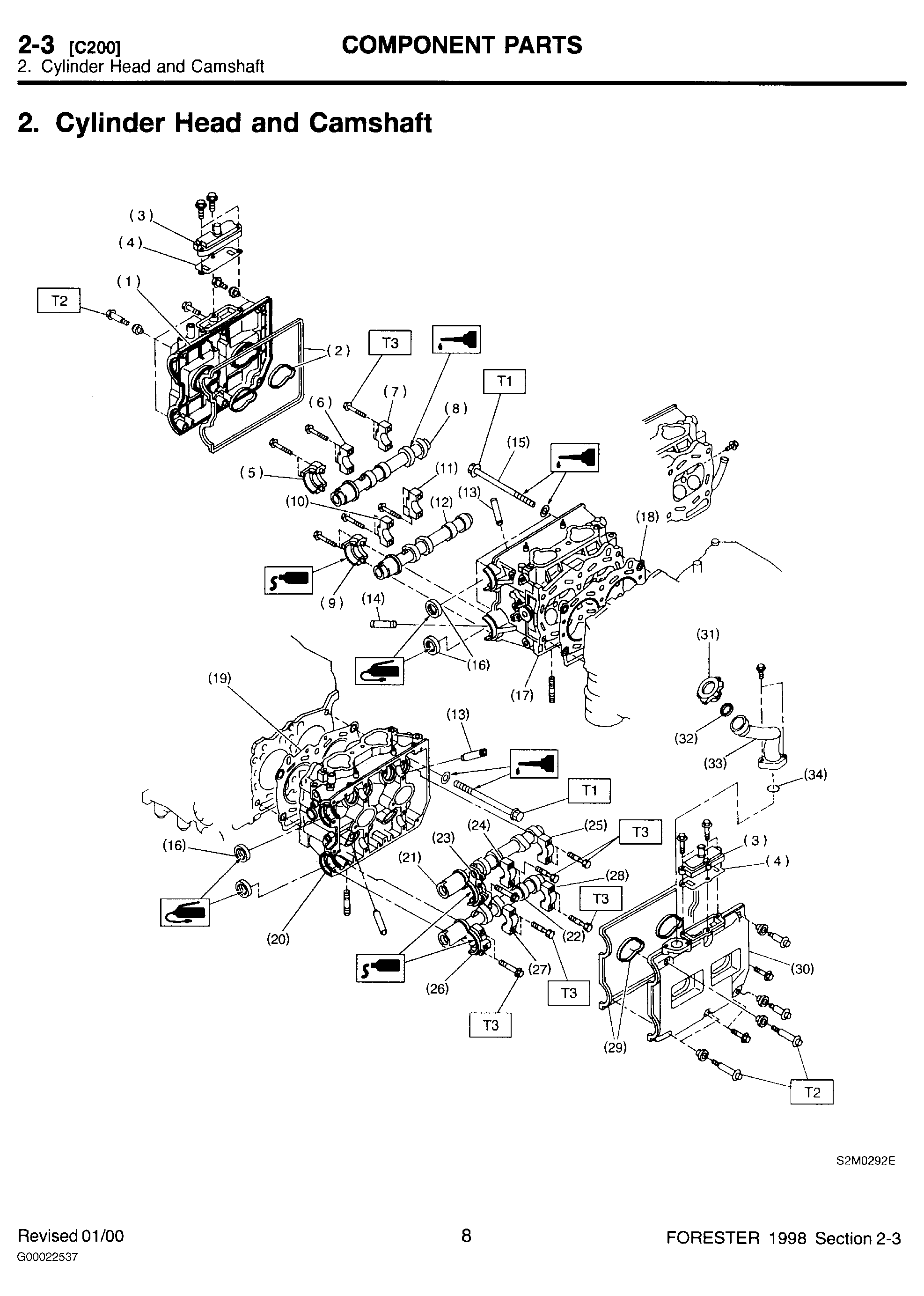

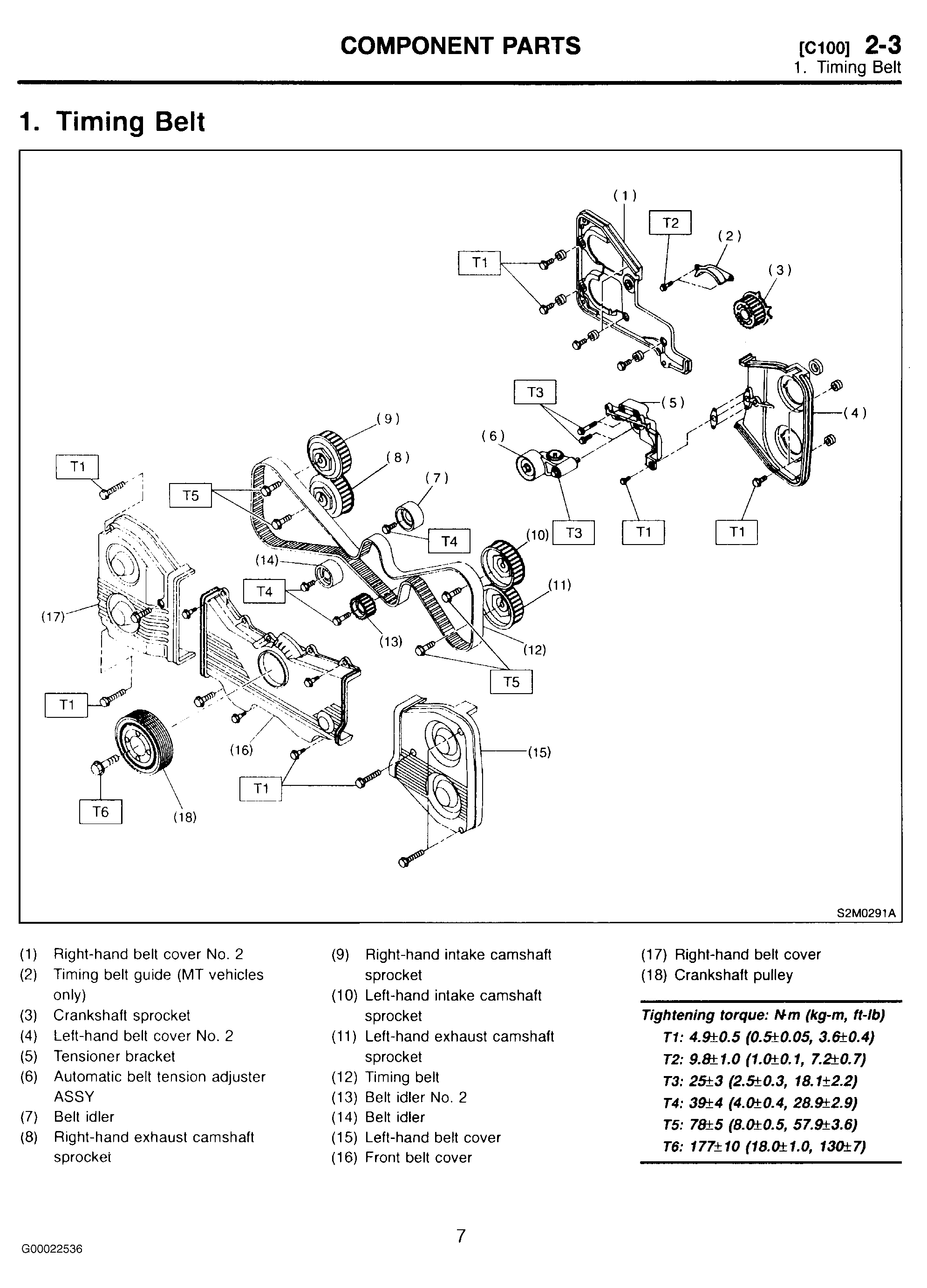

1998	1	MSA5M9710A	2-3	7-8	[C100] / [C200]

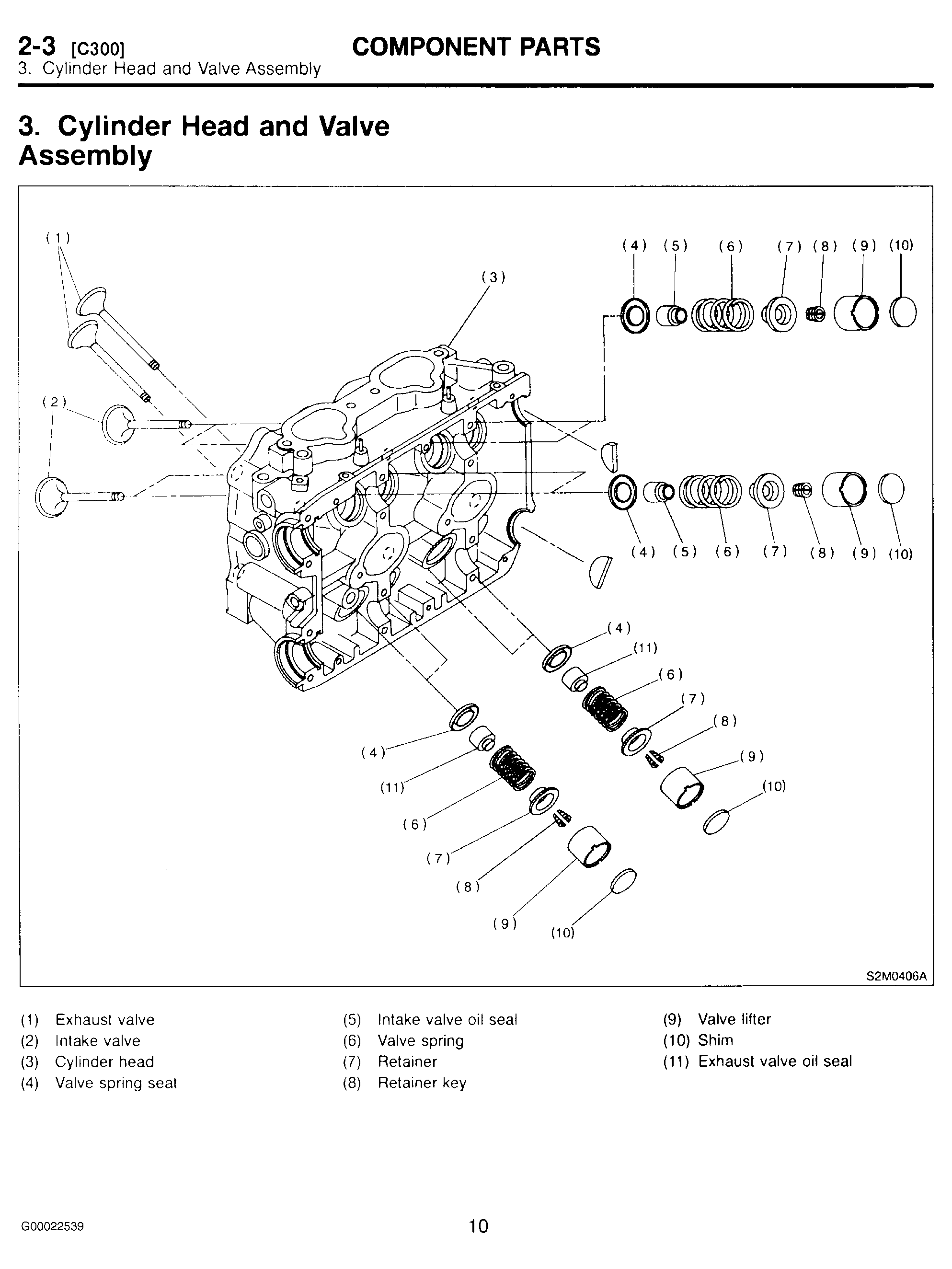

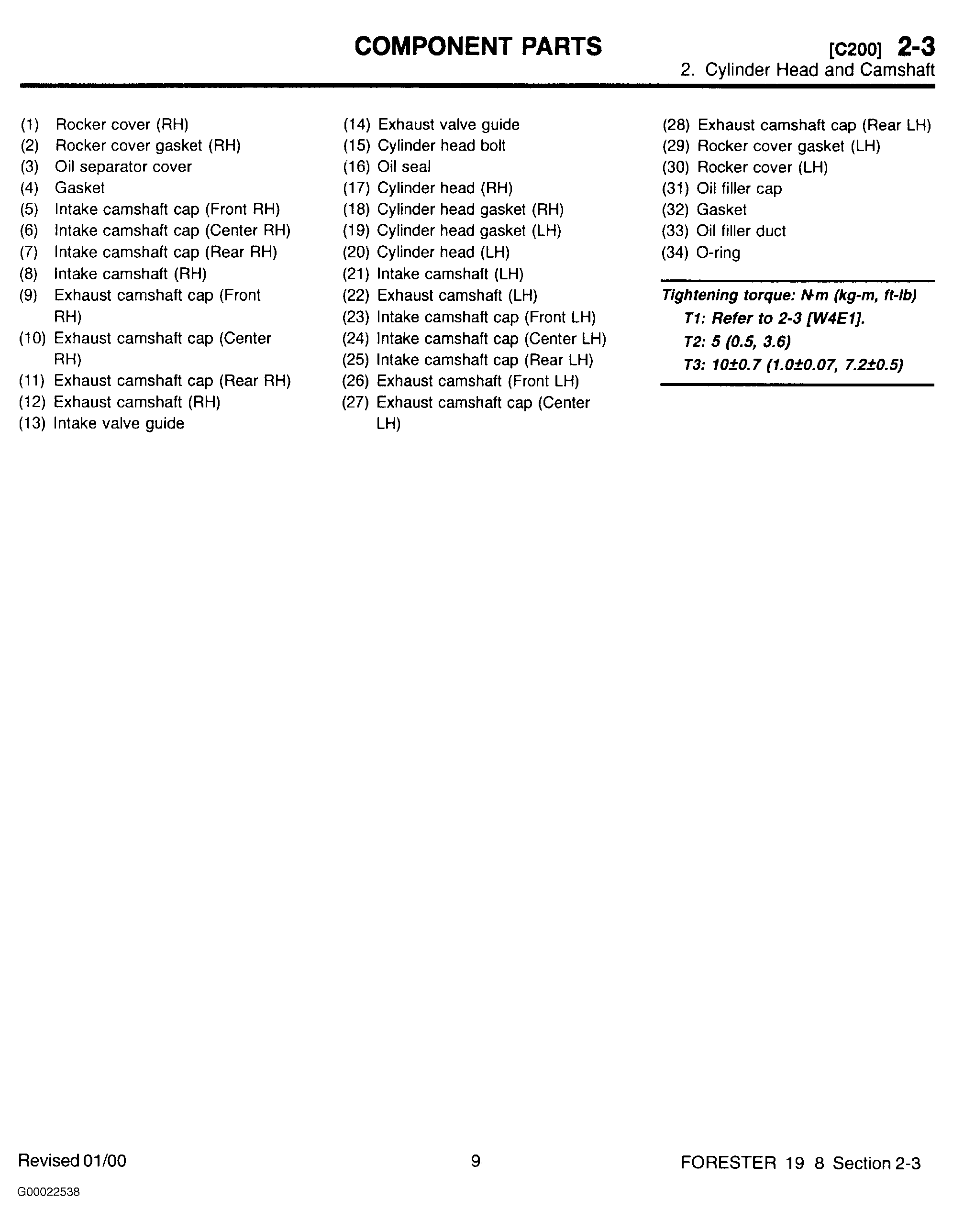

1998	1	MSA5M9710A	2-3	9-10	[C200] / [C300]

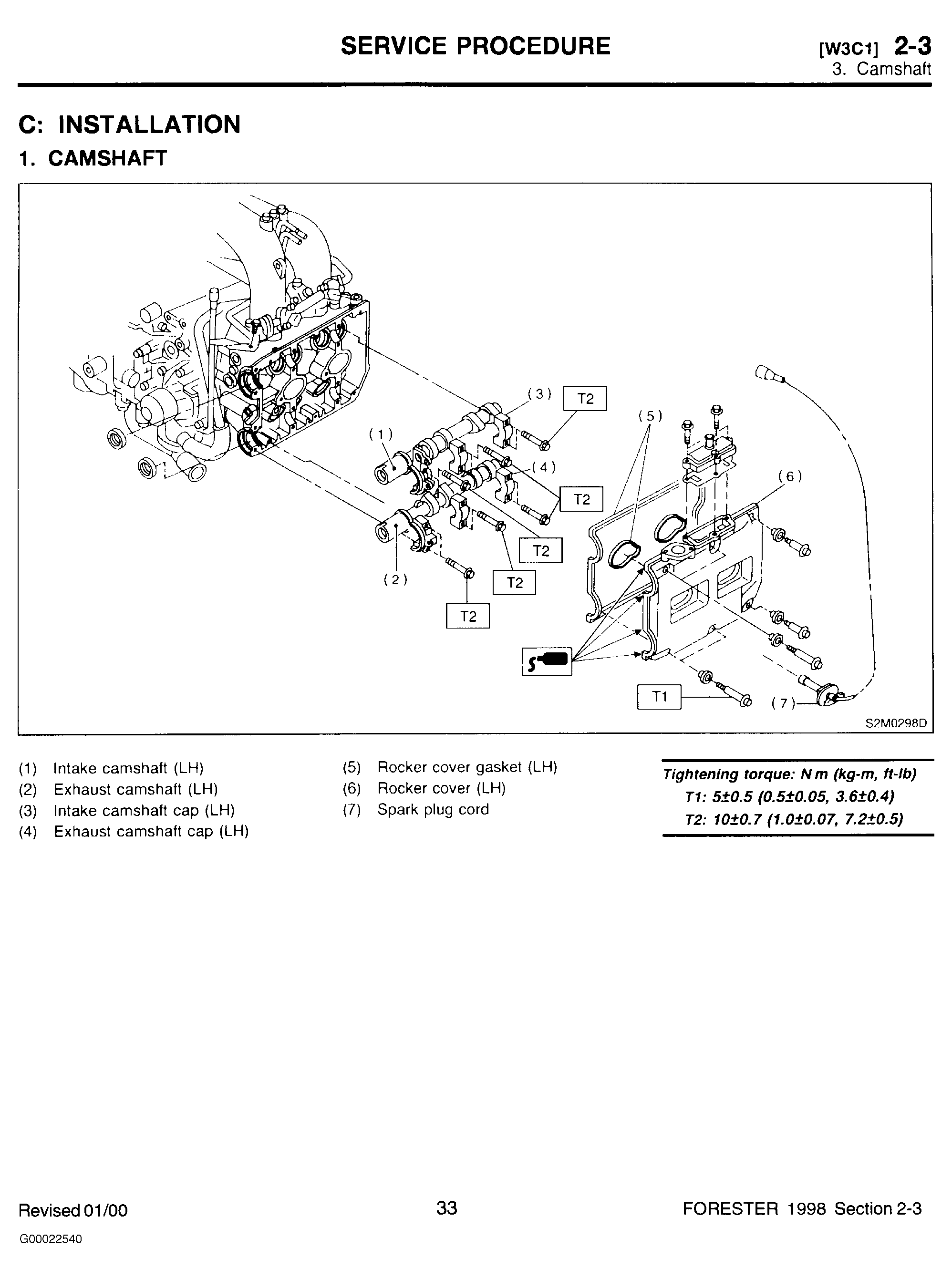

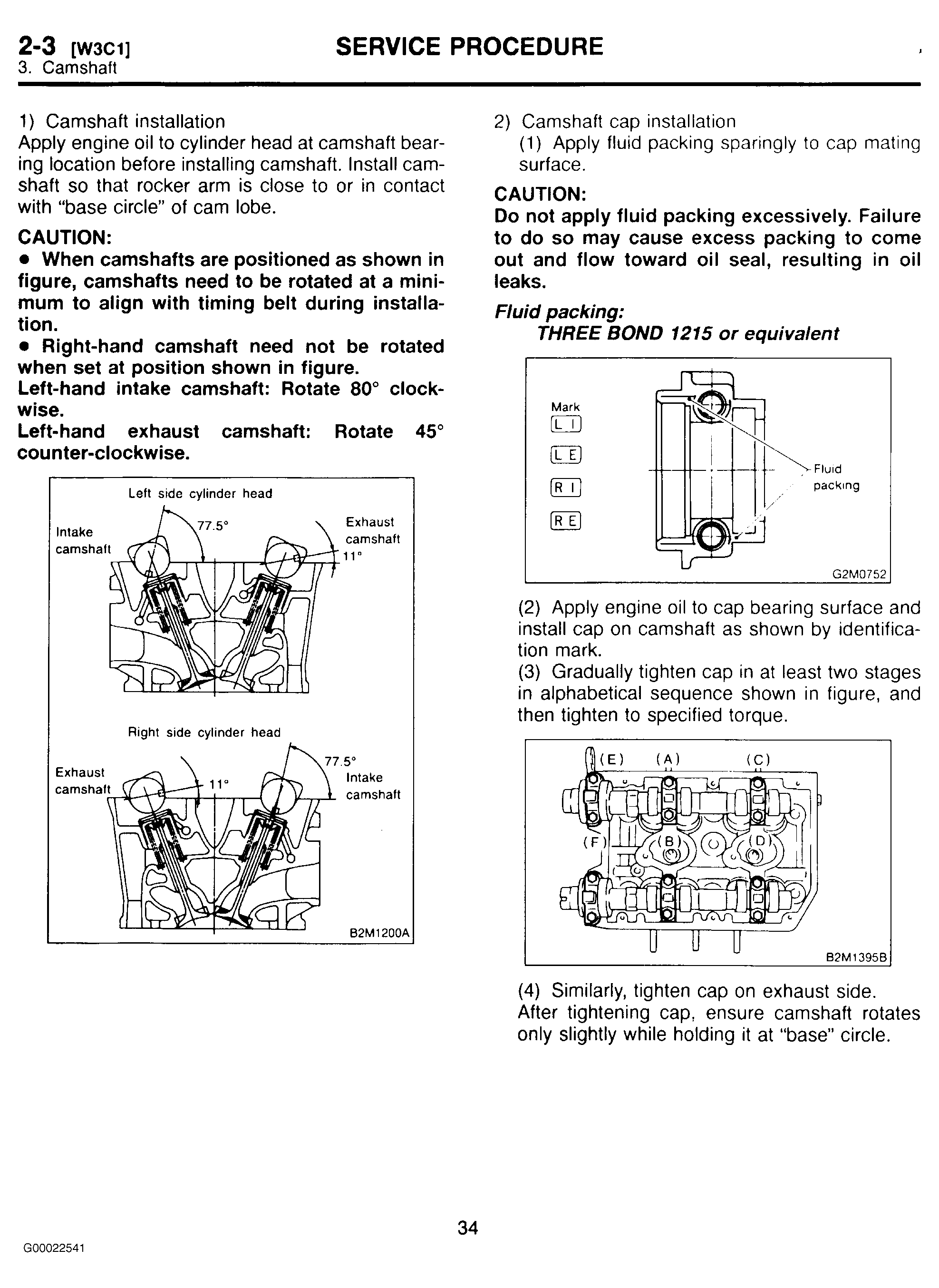

1998	1	MSA5M9710A	2-3	33-34	[W3C1] / [W3C1]

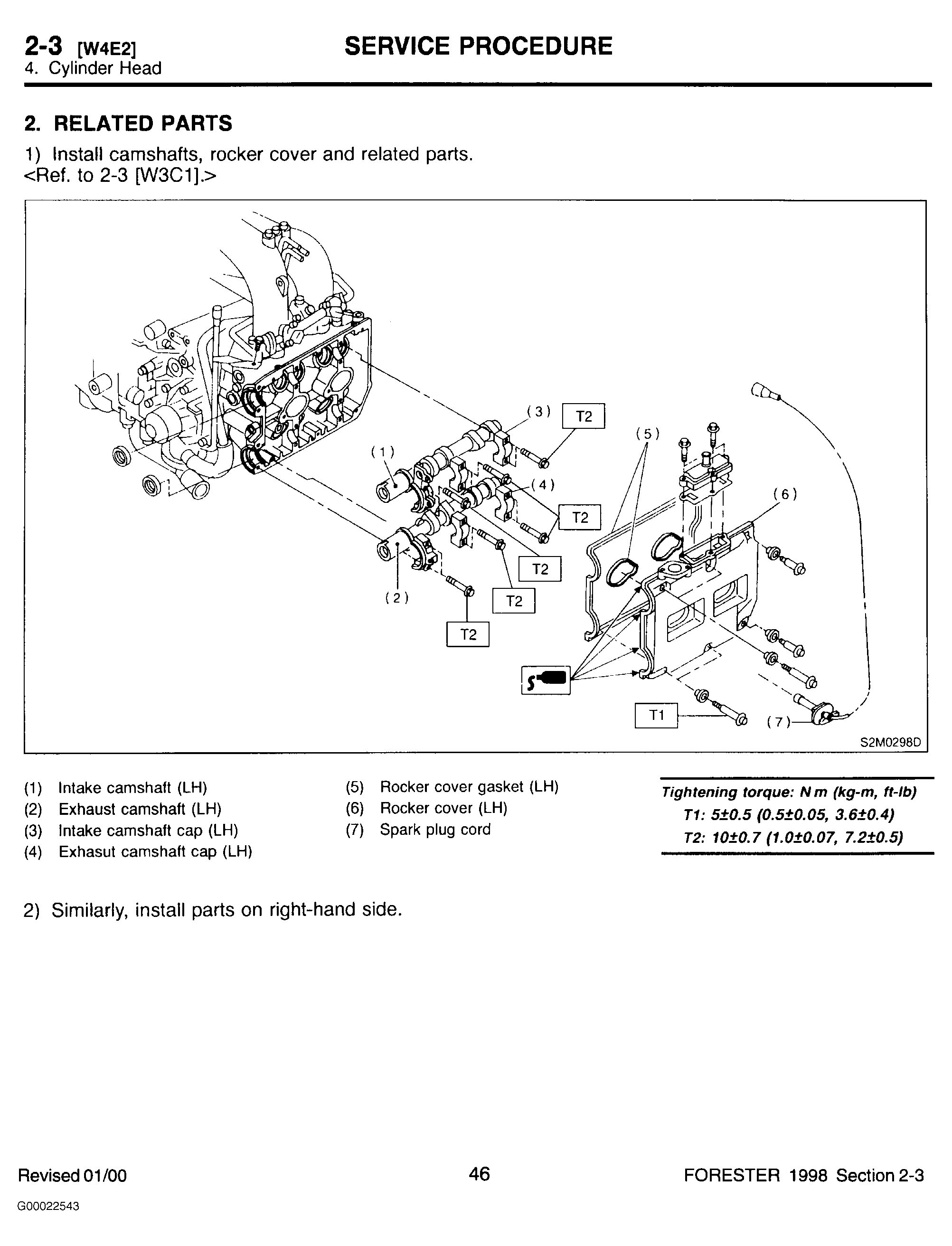

1998	1	MSA5M9710A	2-3	45-46	[W4E1] / [W4E2]

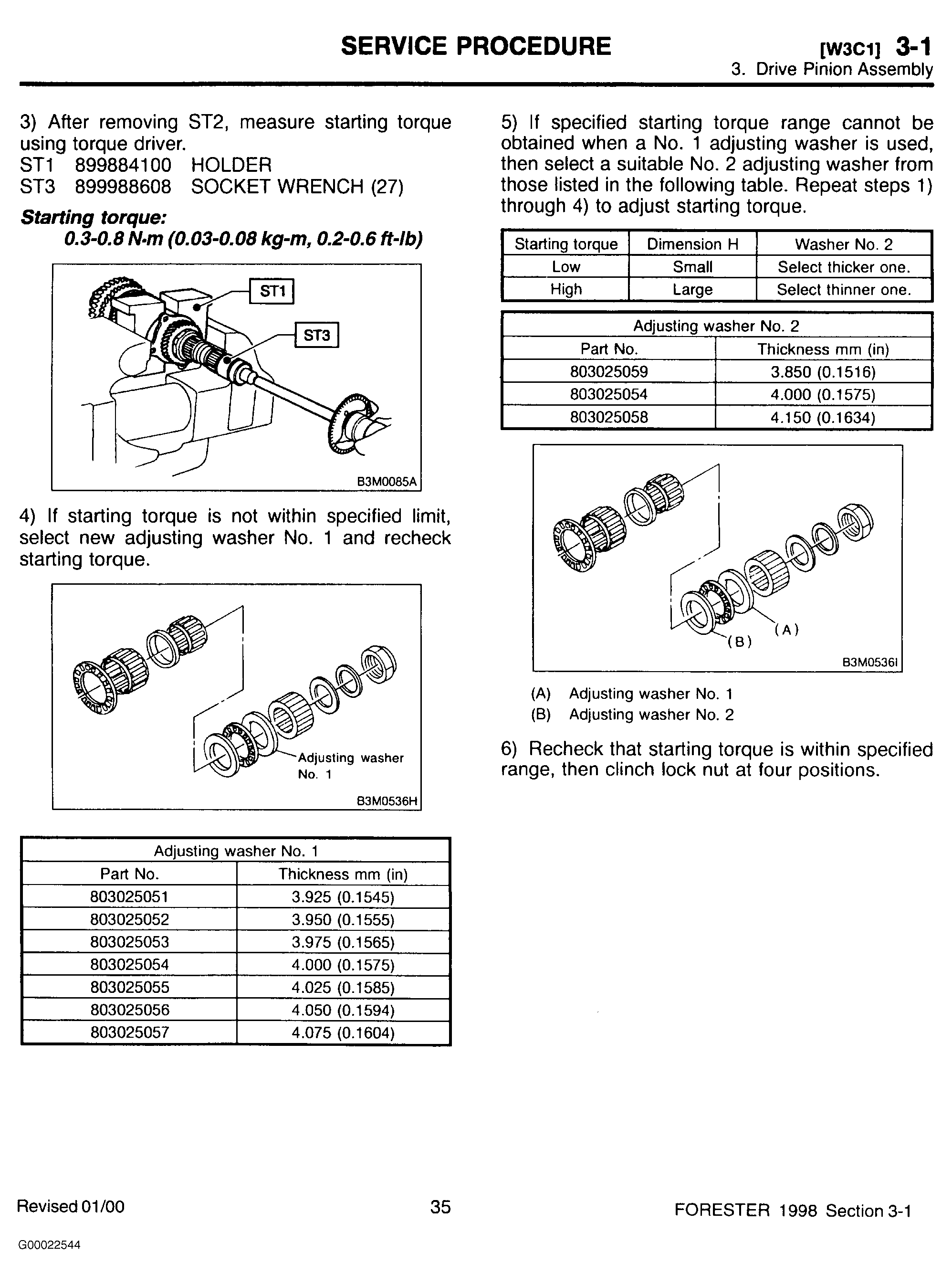

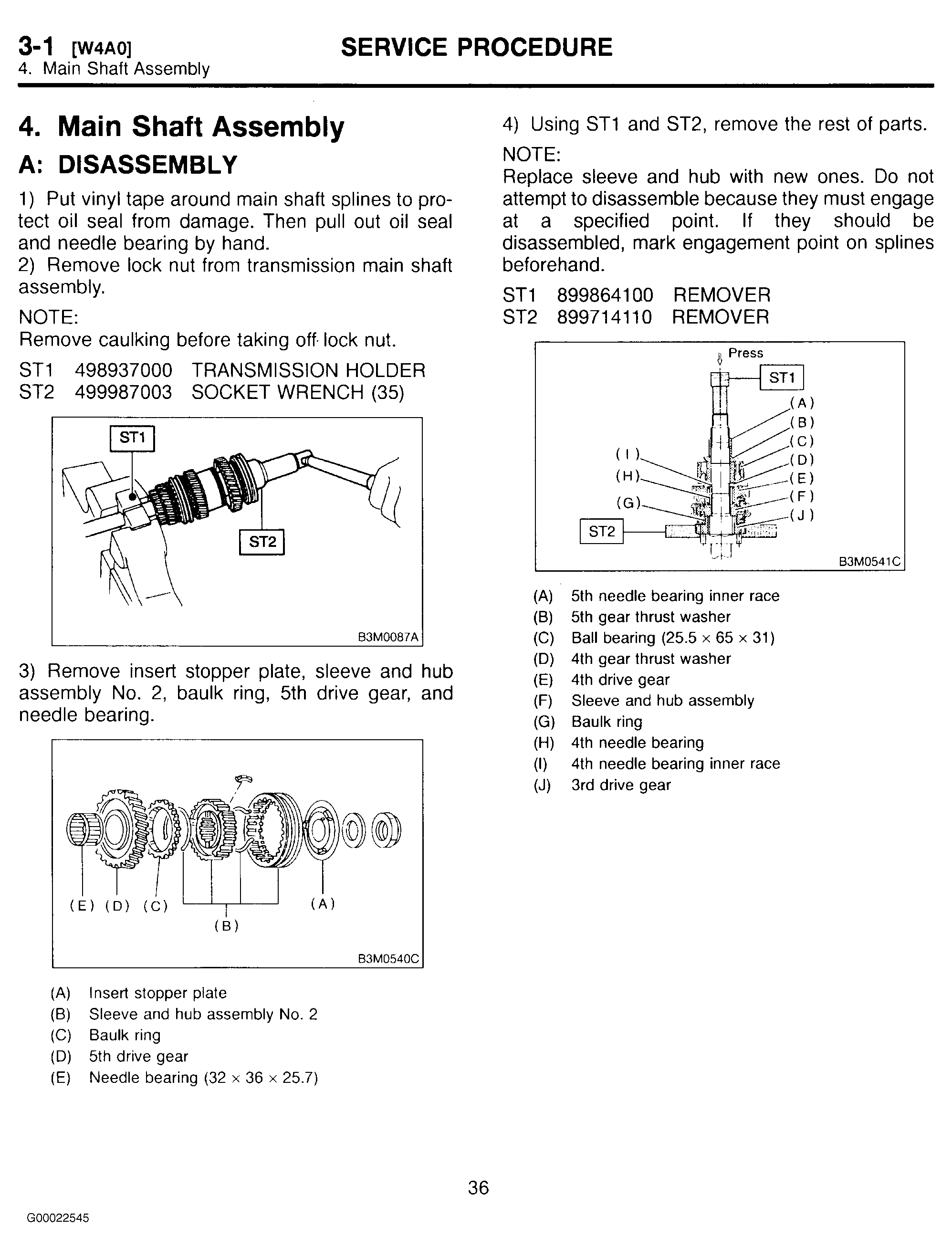

1998	1	MSA5M9711A	3-1	35-36	[W3C1] / [W4A0]

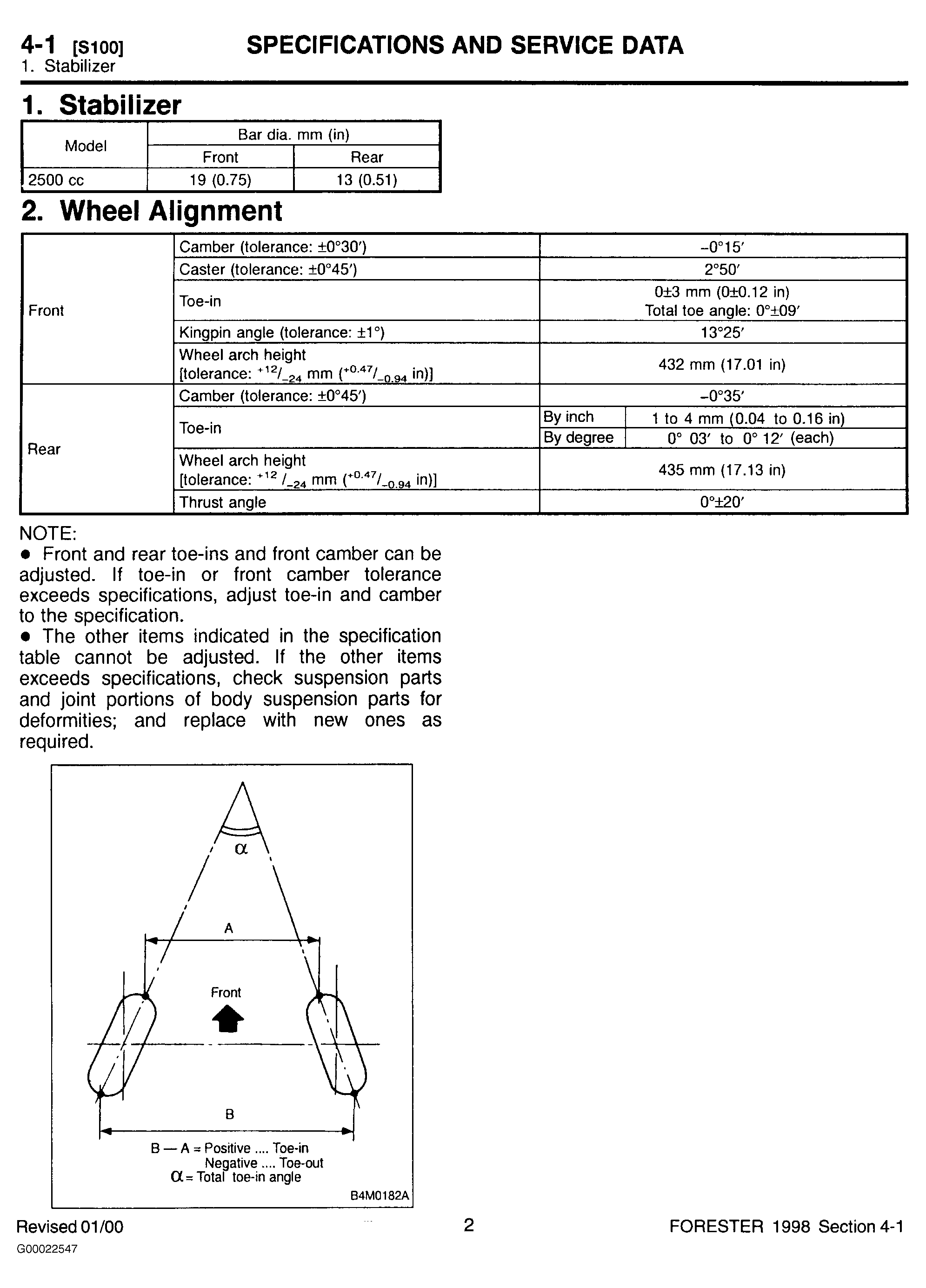

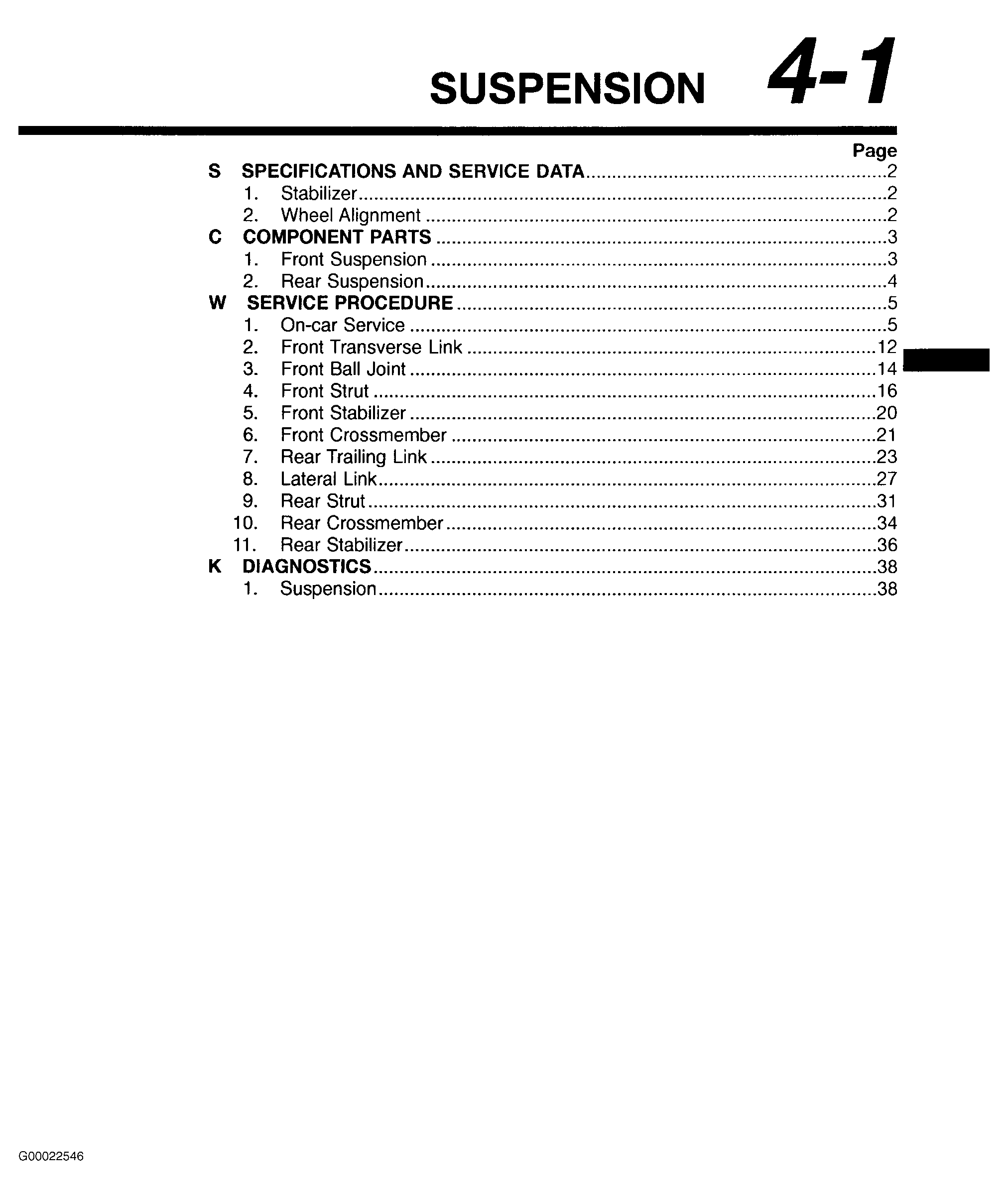

1998	1	MSA5M9711A	4-1	Title-2	[S100]

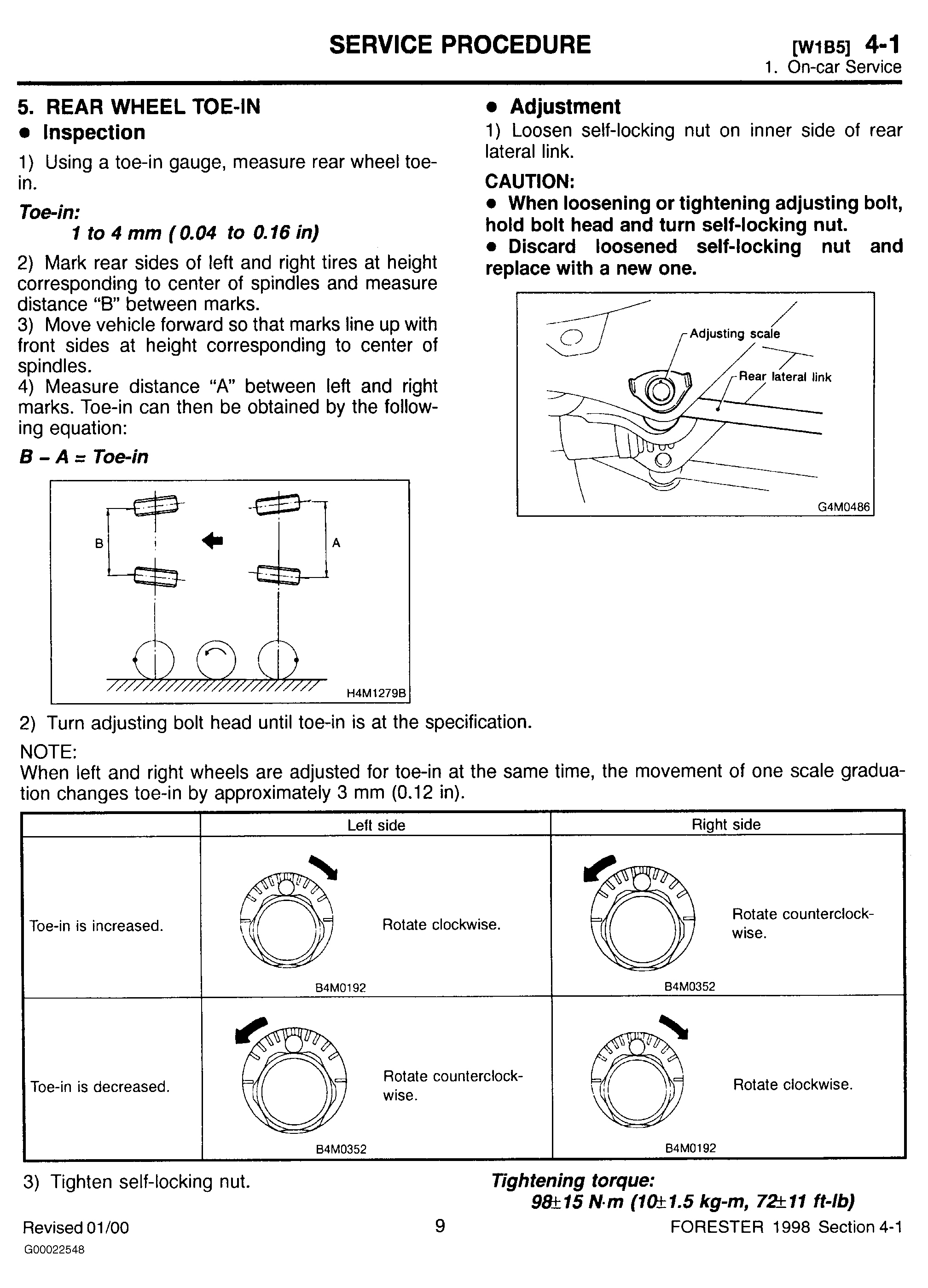

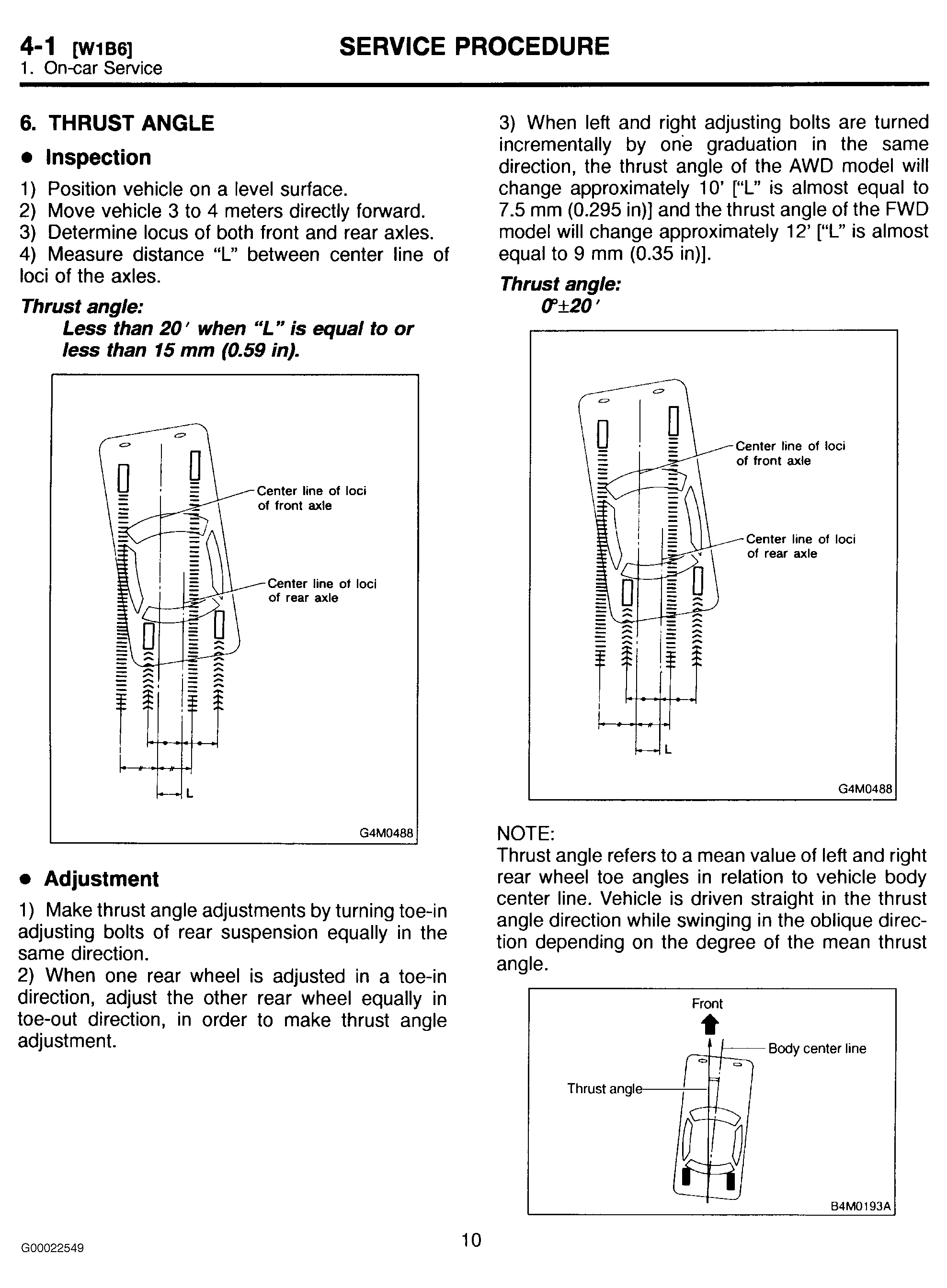

1998	2	MSA5M9711A	4-1	9-10	[W1B5] / [W1B6]

The following pages are revised from your 1999-2000 Forester Service Manuals. Place a revised label on the indicated page in your original Service Manual and then place your corrected page into your Forester Correction Binder. Keep your Service Manuals and Correction Binders together for quick reference.

Refer to Figs. Fig 15 through Fig 25 .

1999-2000 SERVICE MANUAL CORRECTIONS

Year	Book #	MSA #	Section	Pages	Reference

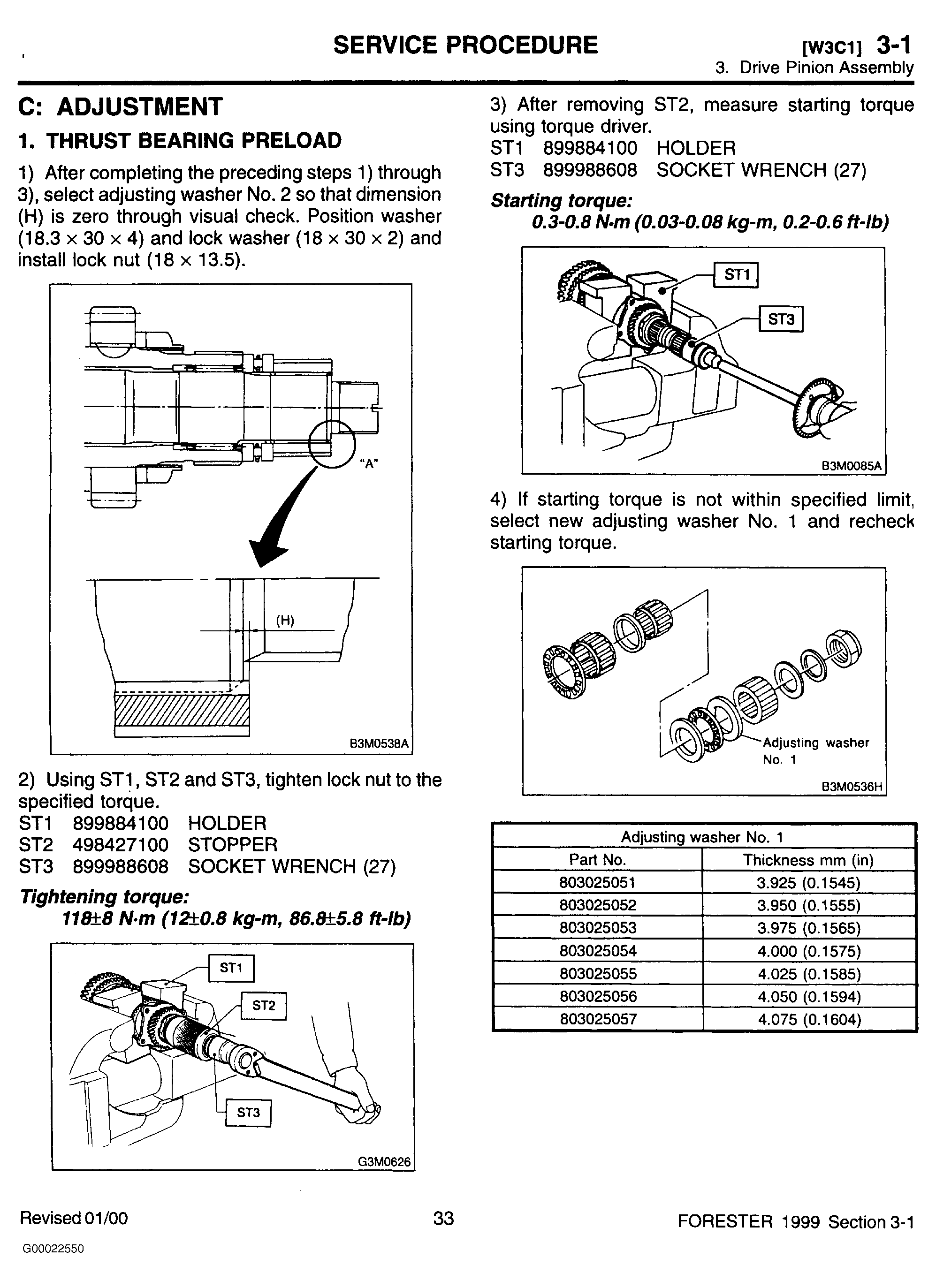

1999	Vol.3	MSA5T9912A	3-1	33	[W3C1]

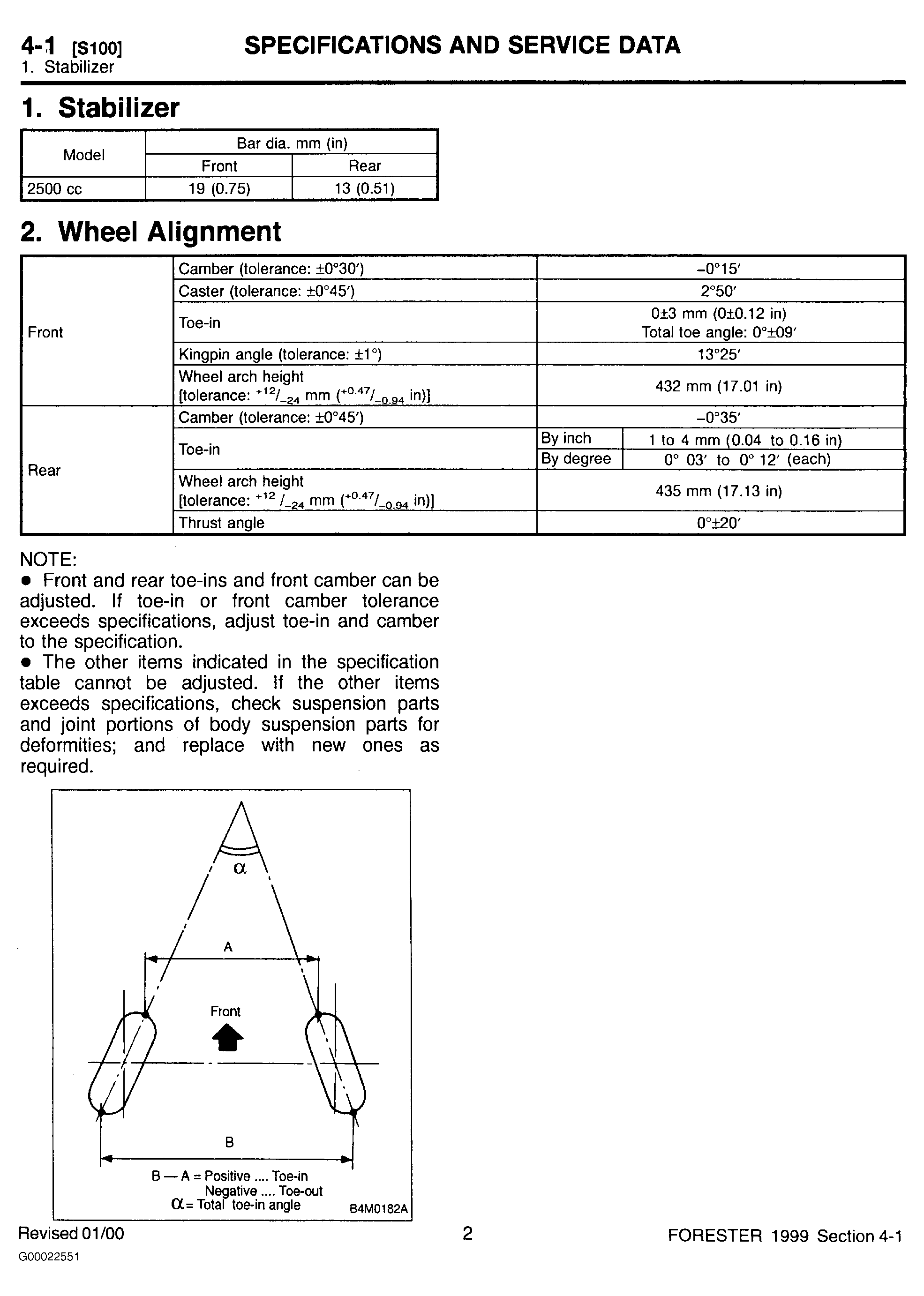

1999	Vol.4	MSA5T9913A	4-1	2	[S100]

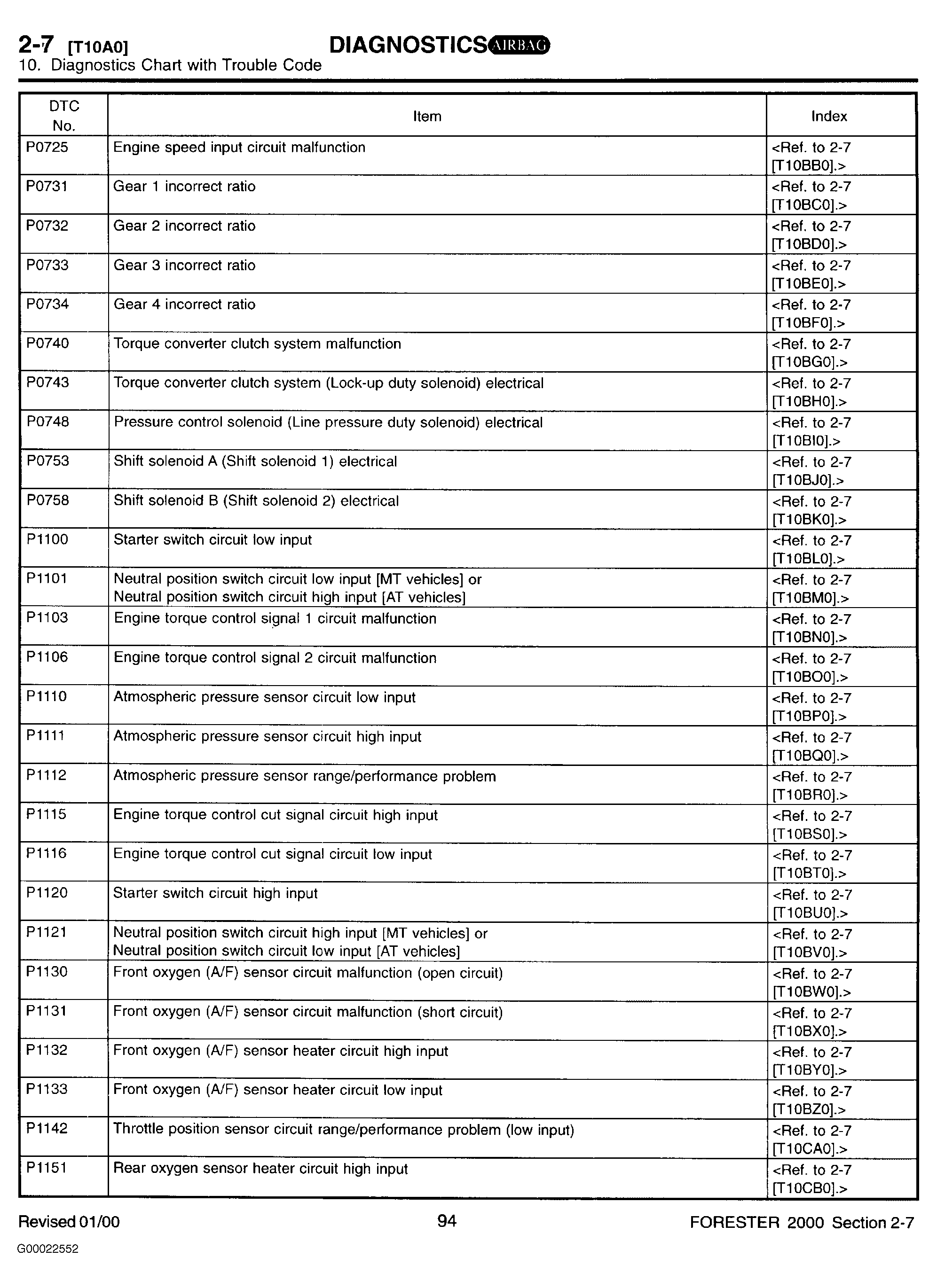

2000	4	MSA5T0023A	2-7	94	[T110A0]

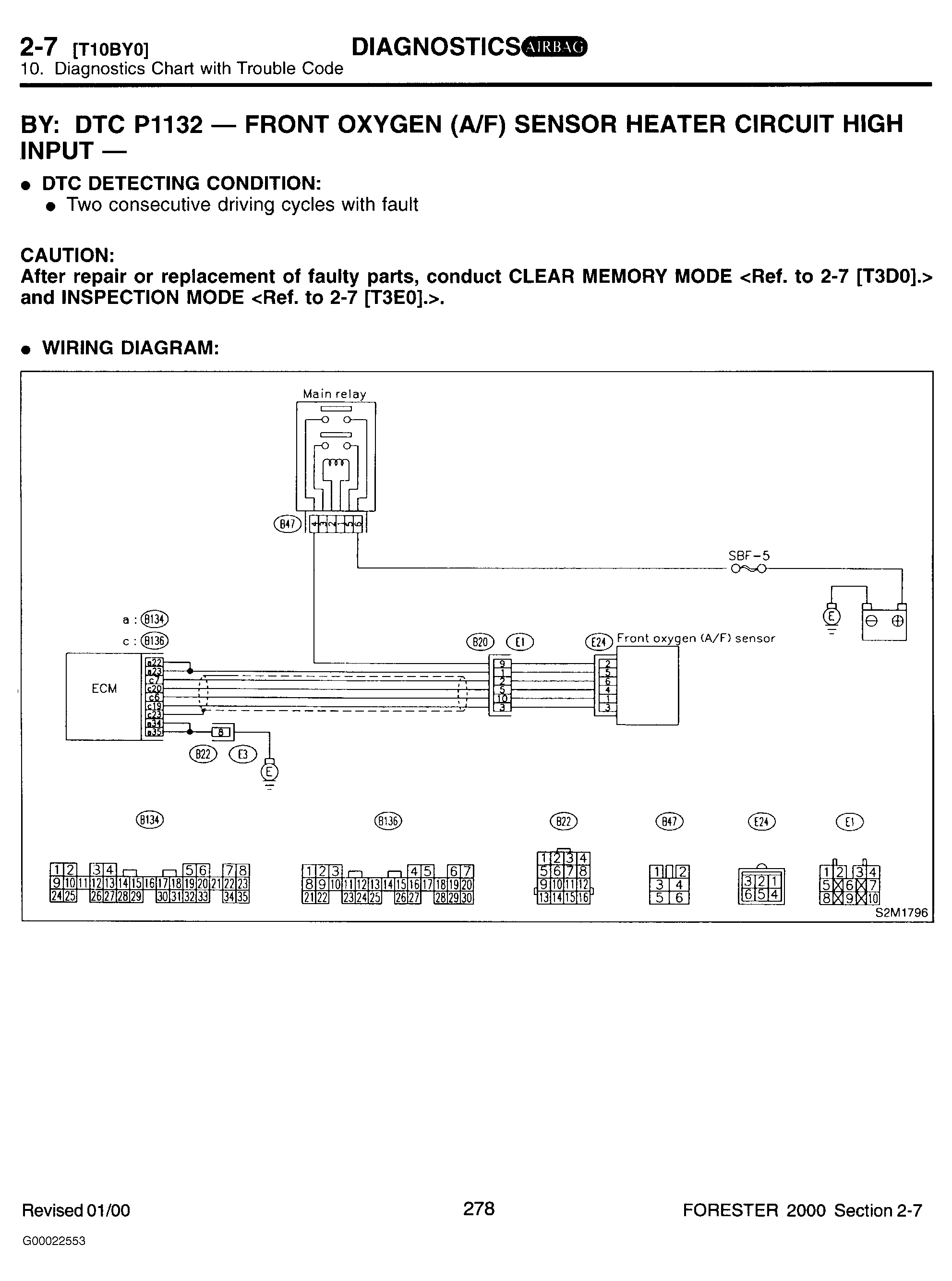

2000	4	MSA5T0023A	2-7	278	[T10BY0]

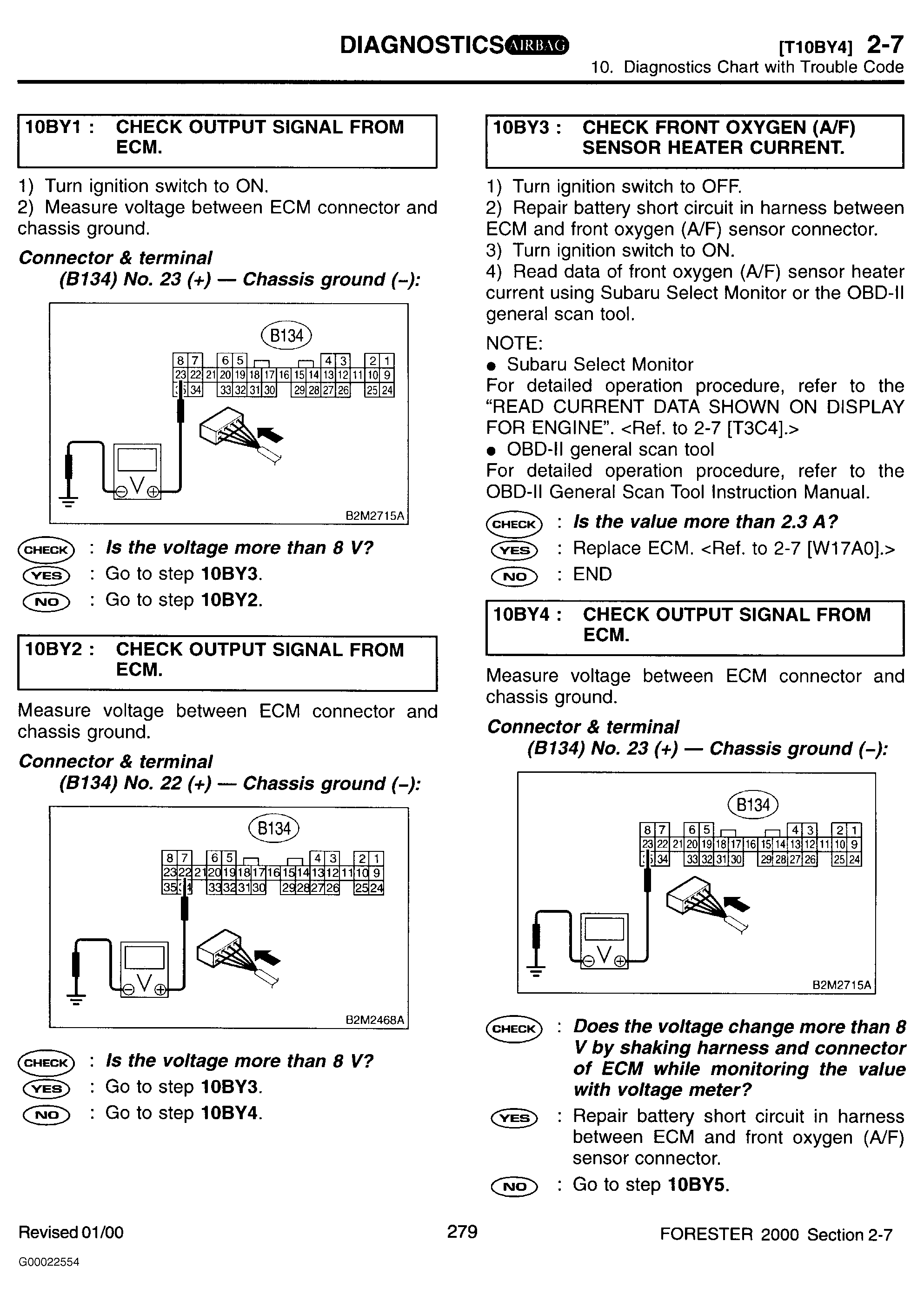

2000	4	MSA5T0023A	2-7	279	[T10BY4]

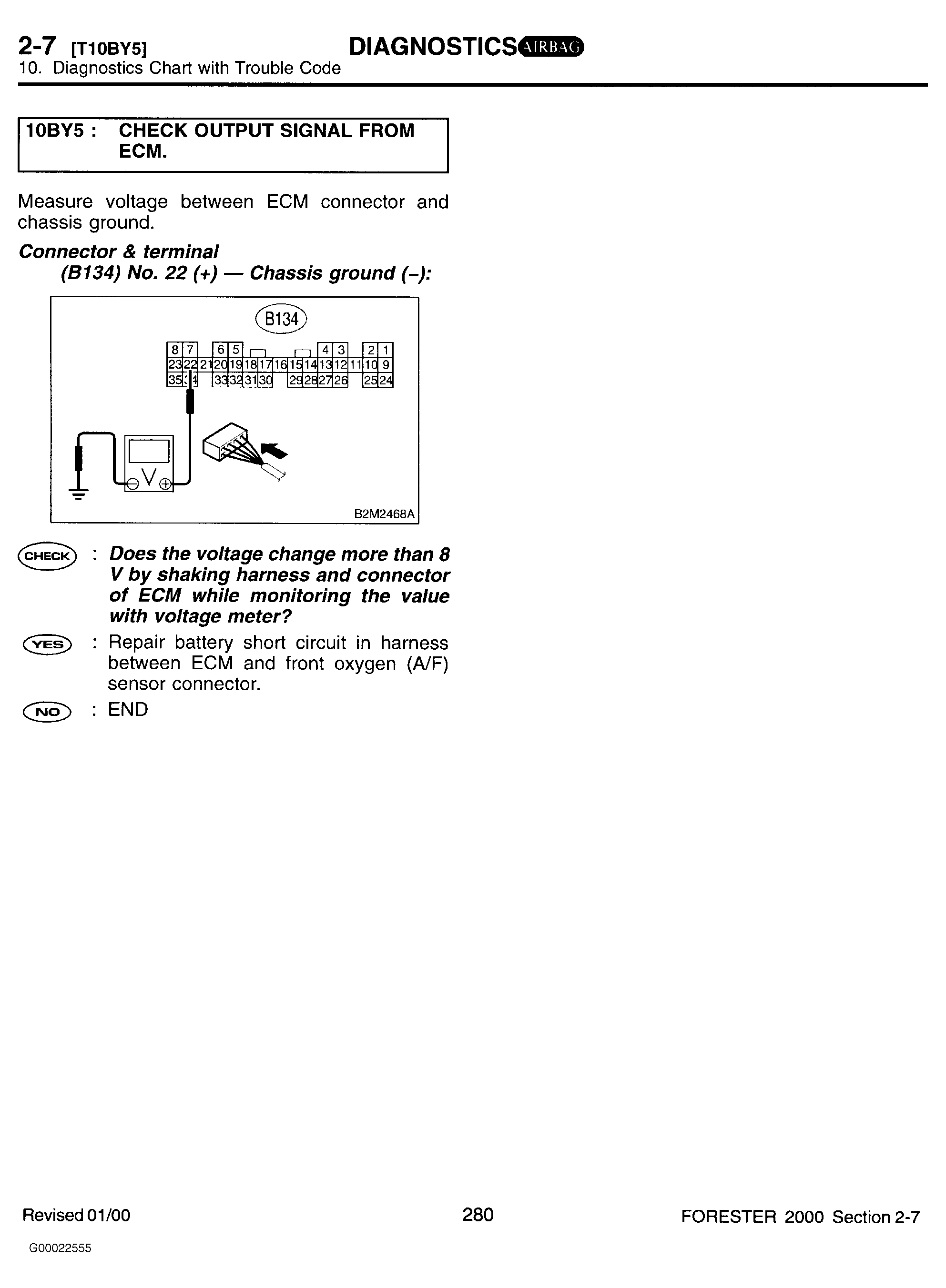

2000	4	MSA5T0023A	2-7	280	[T10BY5]

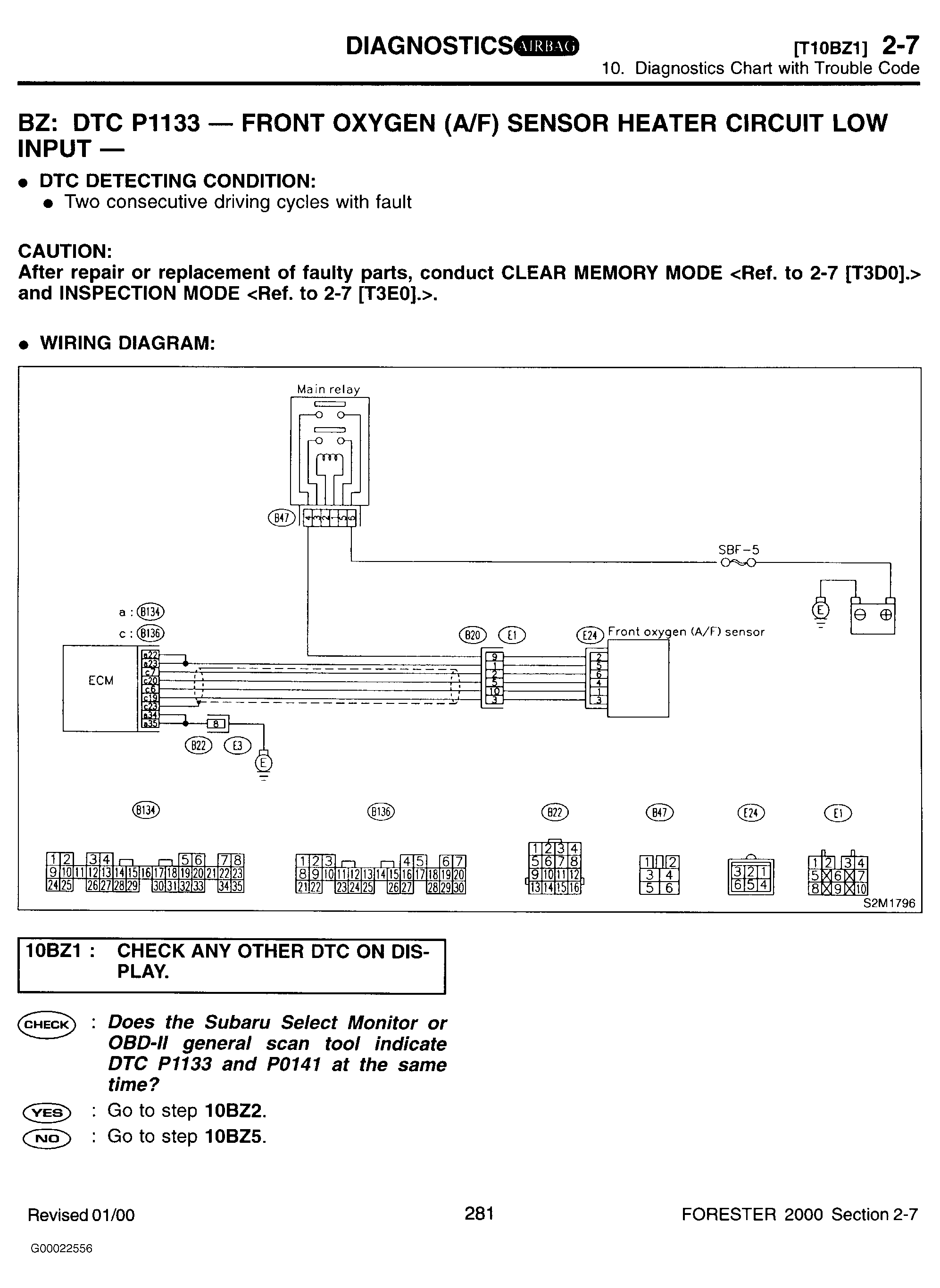

2000	4	MSA5T0023A	2-7	281	[T10BZ1]

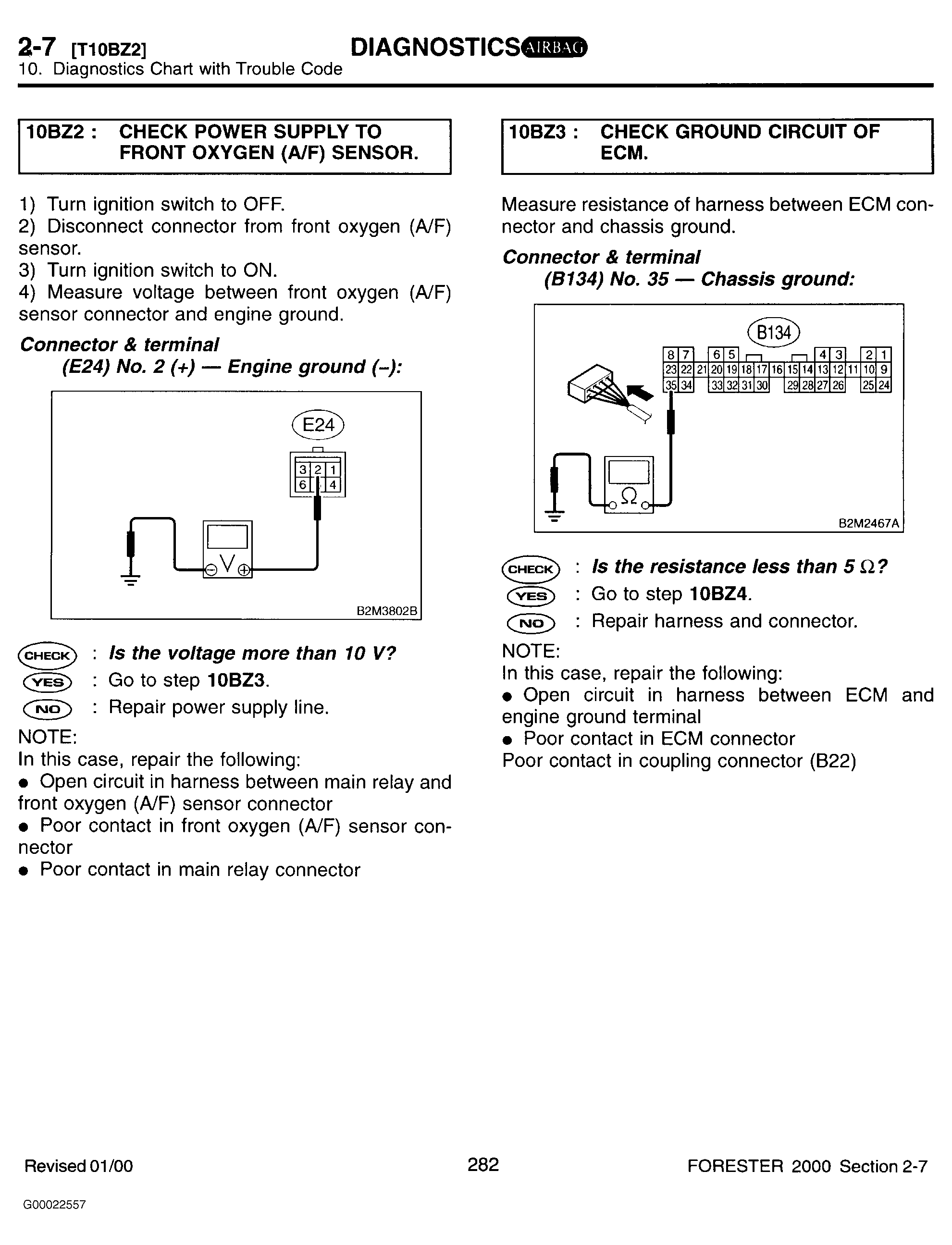

2000	4	MSA5T0023A	2-7	282	[T10BZ2]

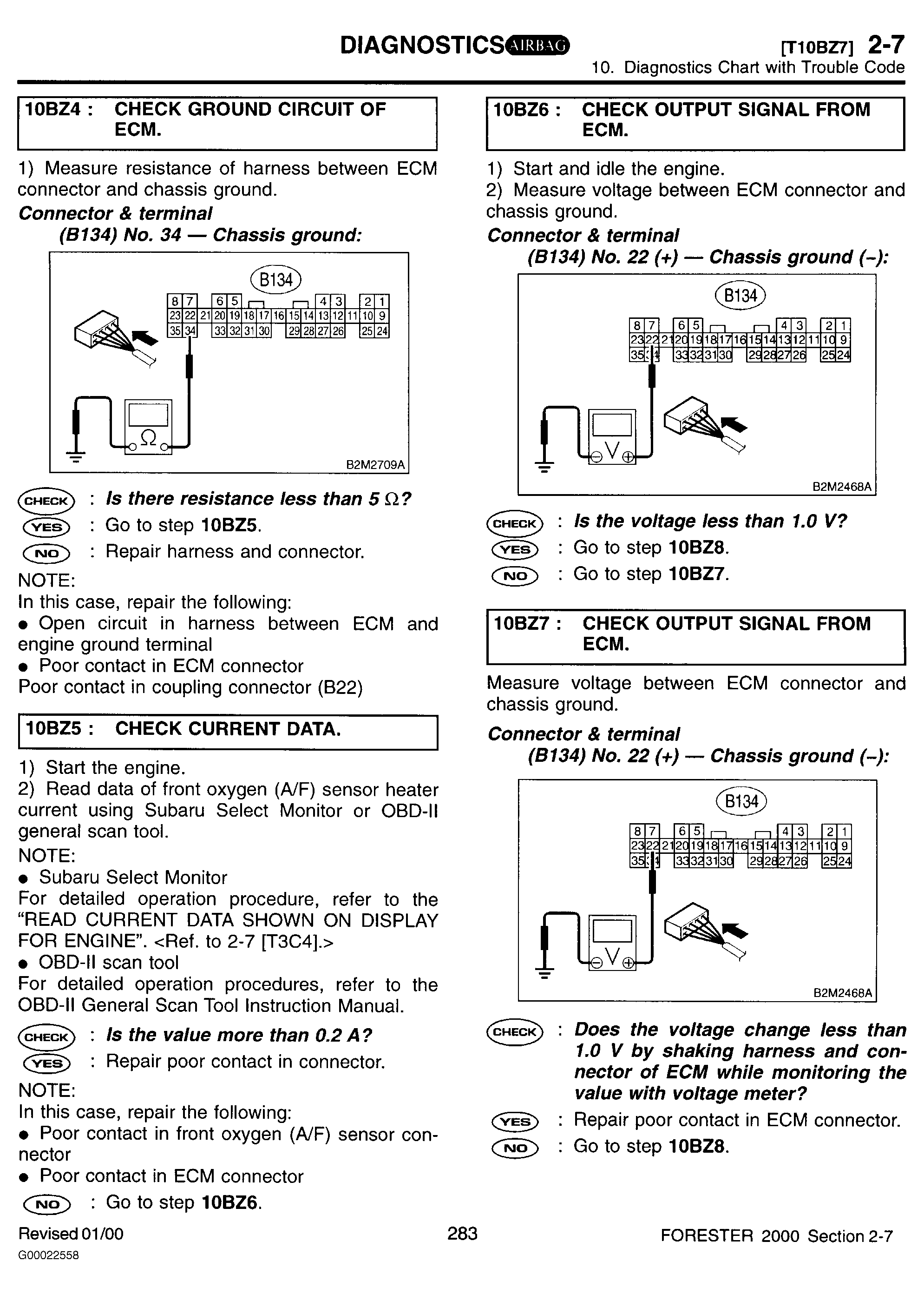

2000	4	MSA5T0023A	2-7	283	[T10BZ7]

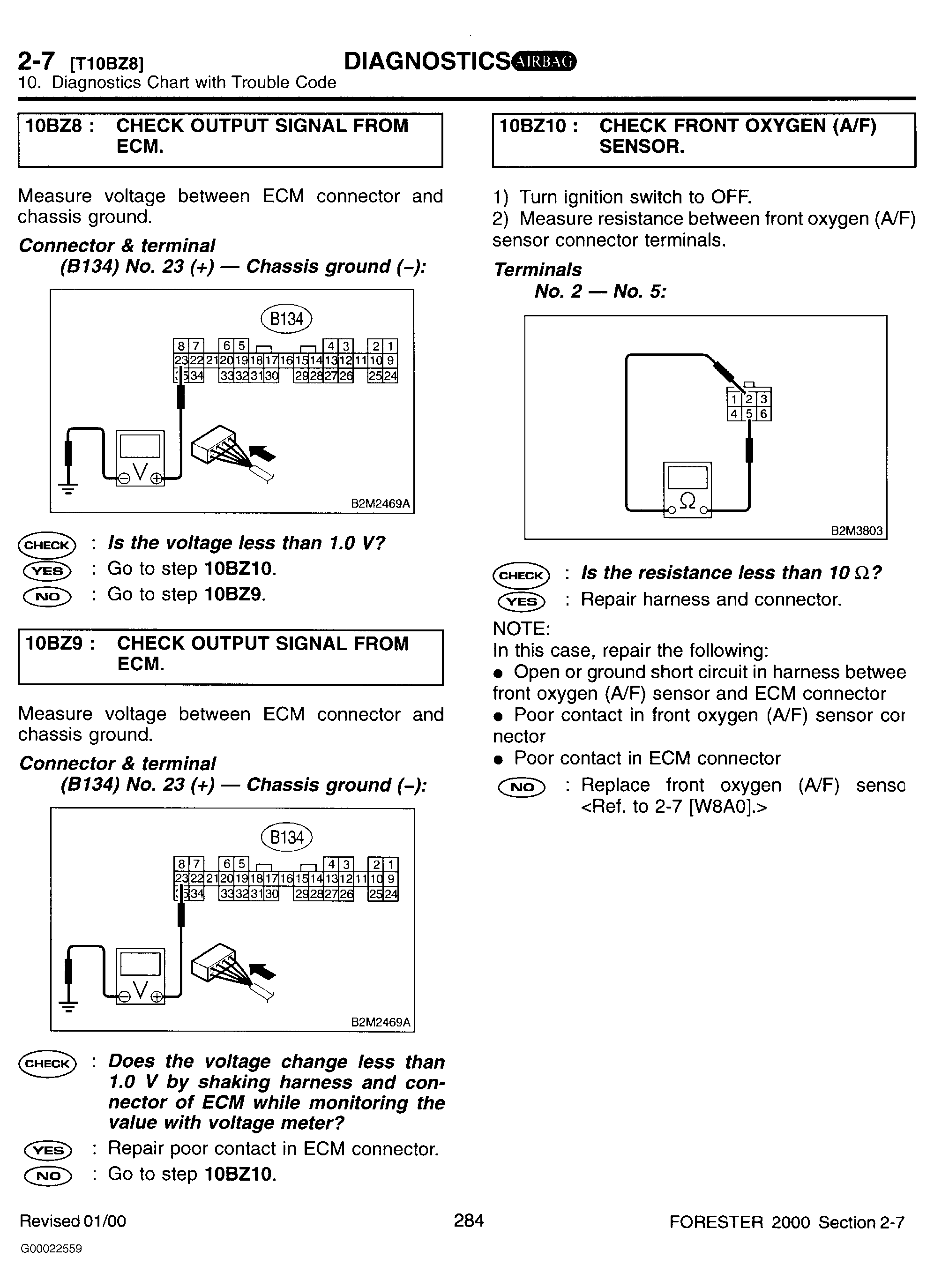

2000	4	MSA5T0023A	2-7	284	[T10BZ8]

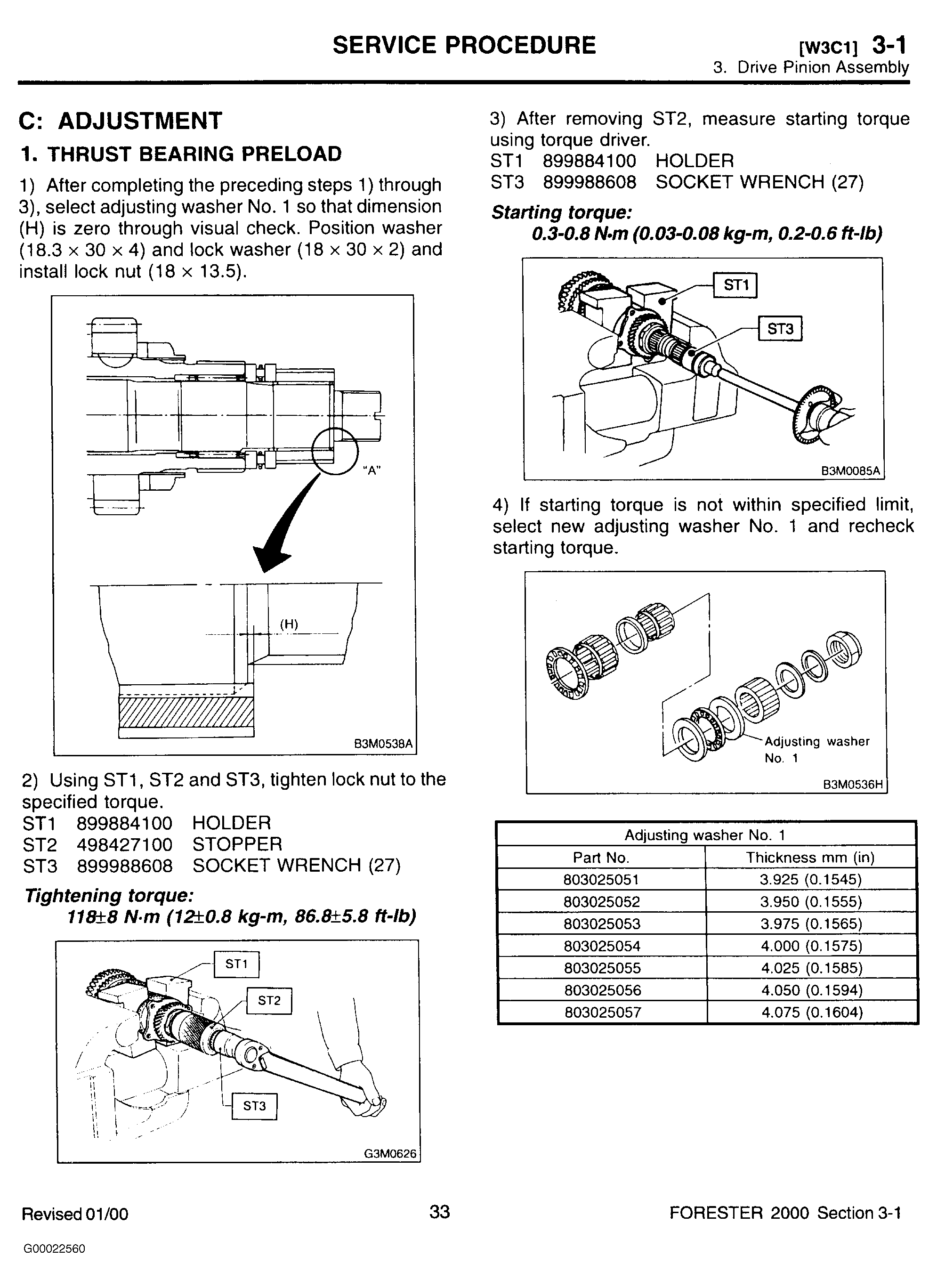

2000	5	MSA5T0024A	3-1	33	[W3C1]
