Electrical Component Locator
›
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

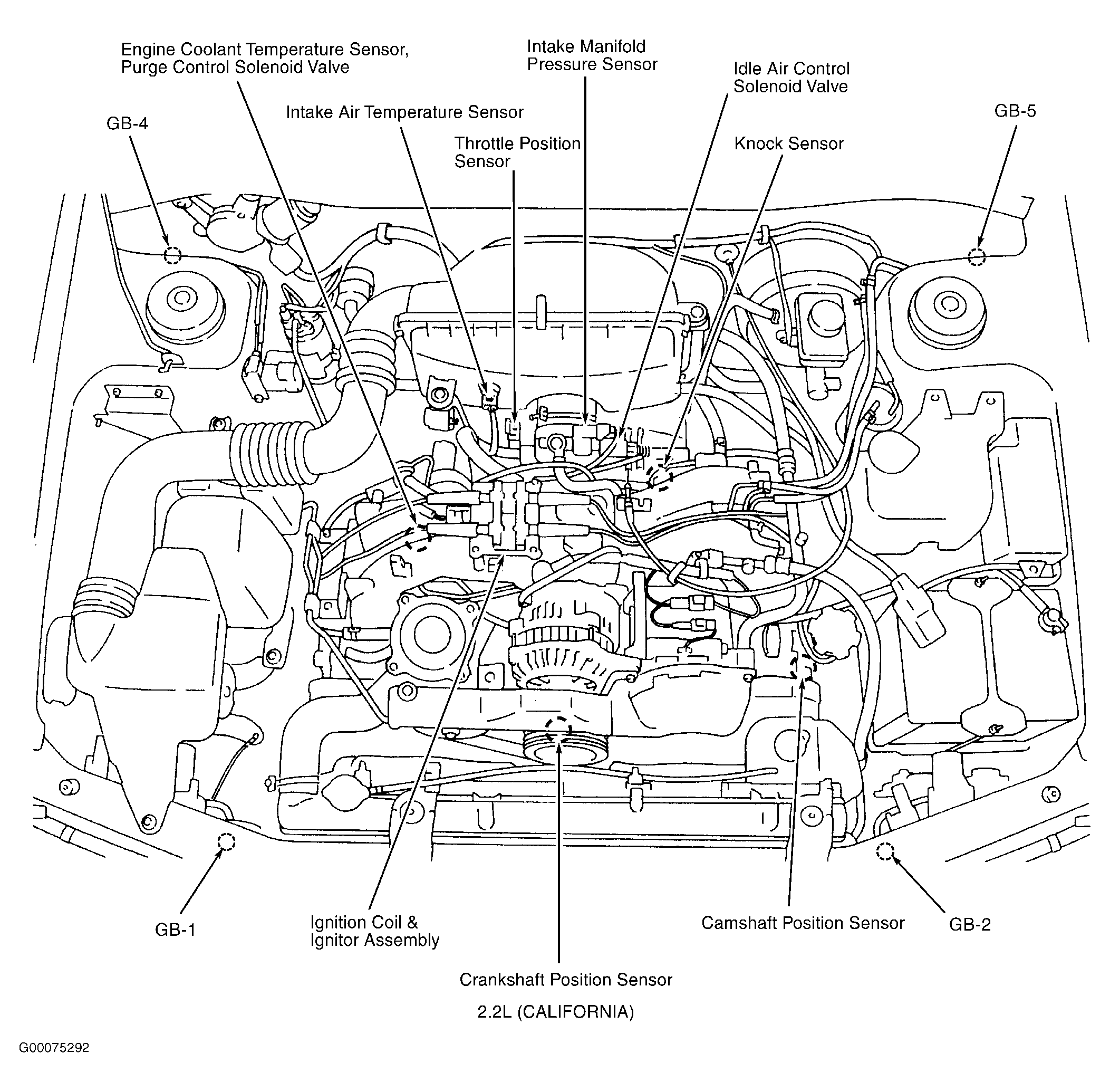

Fig 1: Engine Compartment (2.2L California)

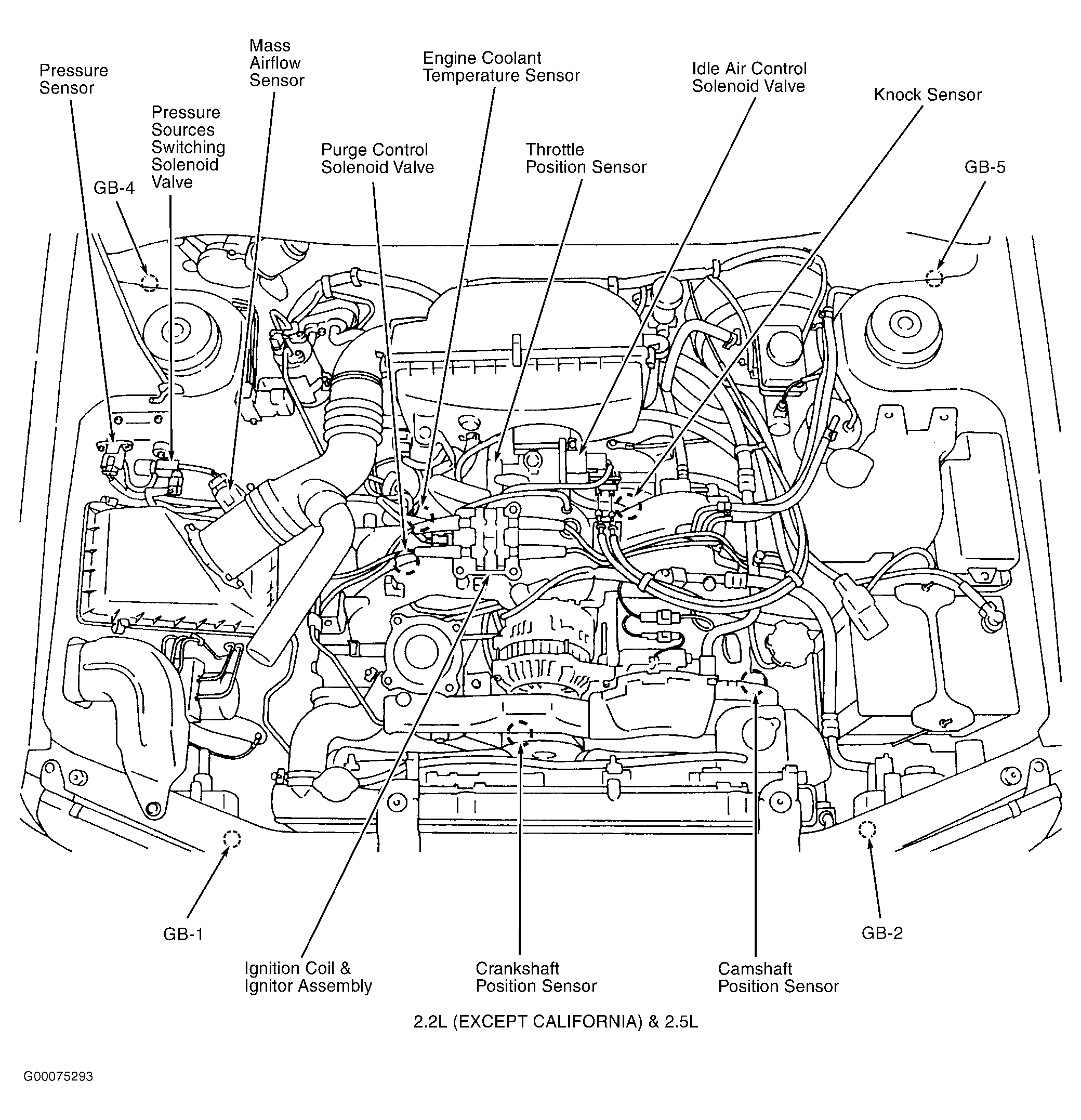

Fig 2: Engine Compartment (2.2L Except California & 2.5L)

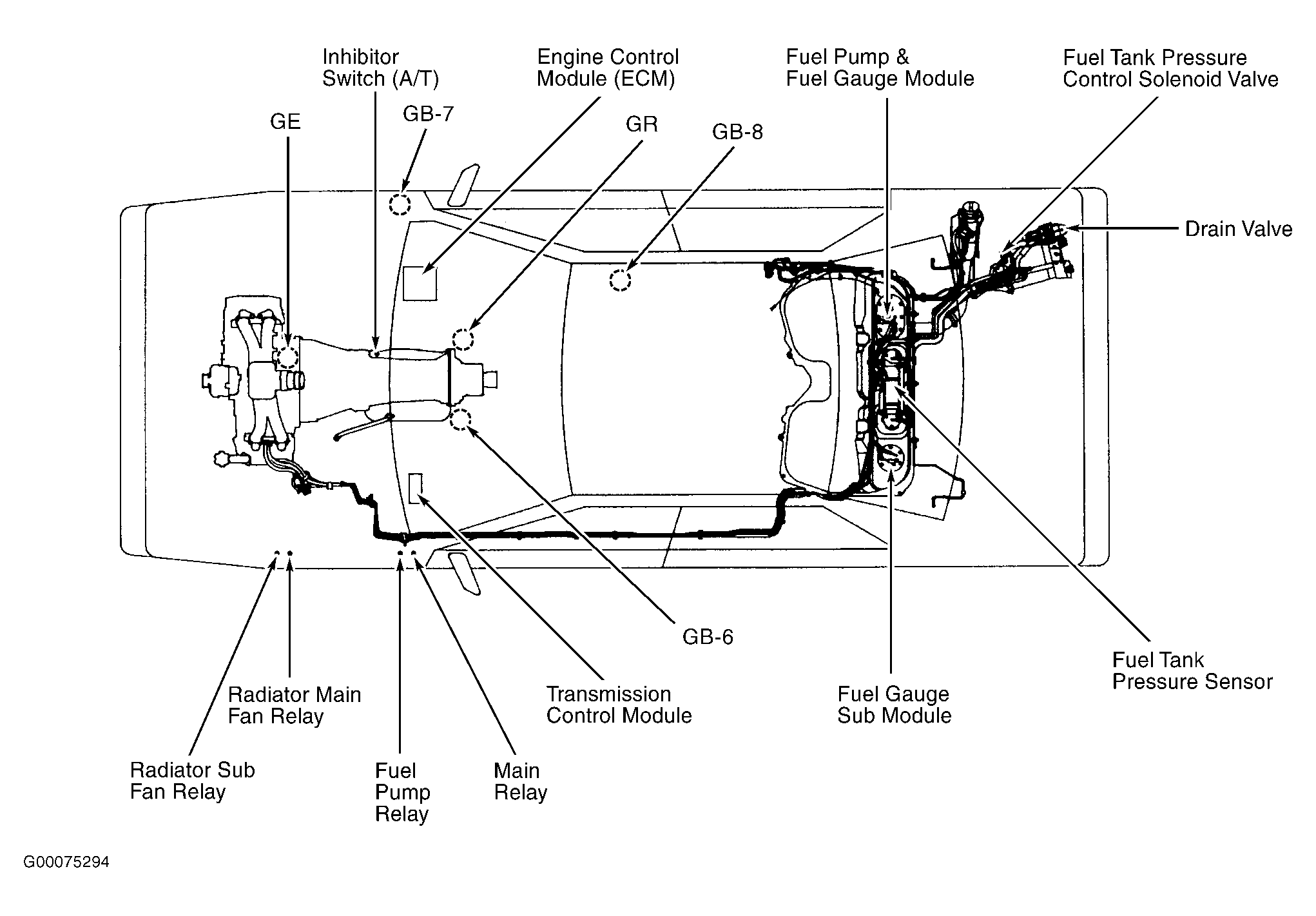

Fig 3: Vehicle Overview
