OBD II CODE P0705

OBD II CODE P0705

TECHNICAL SERVICE BULLETIN

Reference Number(s): 11-60-00, Date of Issue:  April 12, 2000
SUBARU: 1999 Legacy

DESCRIPTION

OBD II Code P0705

Should you encounter a vehicle with a "Check Engine Light" indicator illuminated, and Code "P0705" stored in the Emission Control Unit (ECU), please perform the following procedure:

  1. Confirm that all inhibitor switch circuit connections are secure.
  2. Confirm that all inhibitor switch circuit connections are clean and free of moisture.
  3. Insure that the inhibitor switch and shifter cable are properly adjusted.

If the above diagnostic procedures do not indicate any wiring or connection problems, the condition could be caused by an internal Transmission Control Unit (TCU) concern.

BULLETIN CONTENT

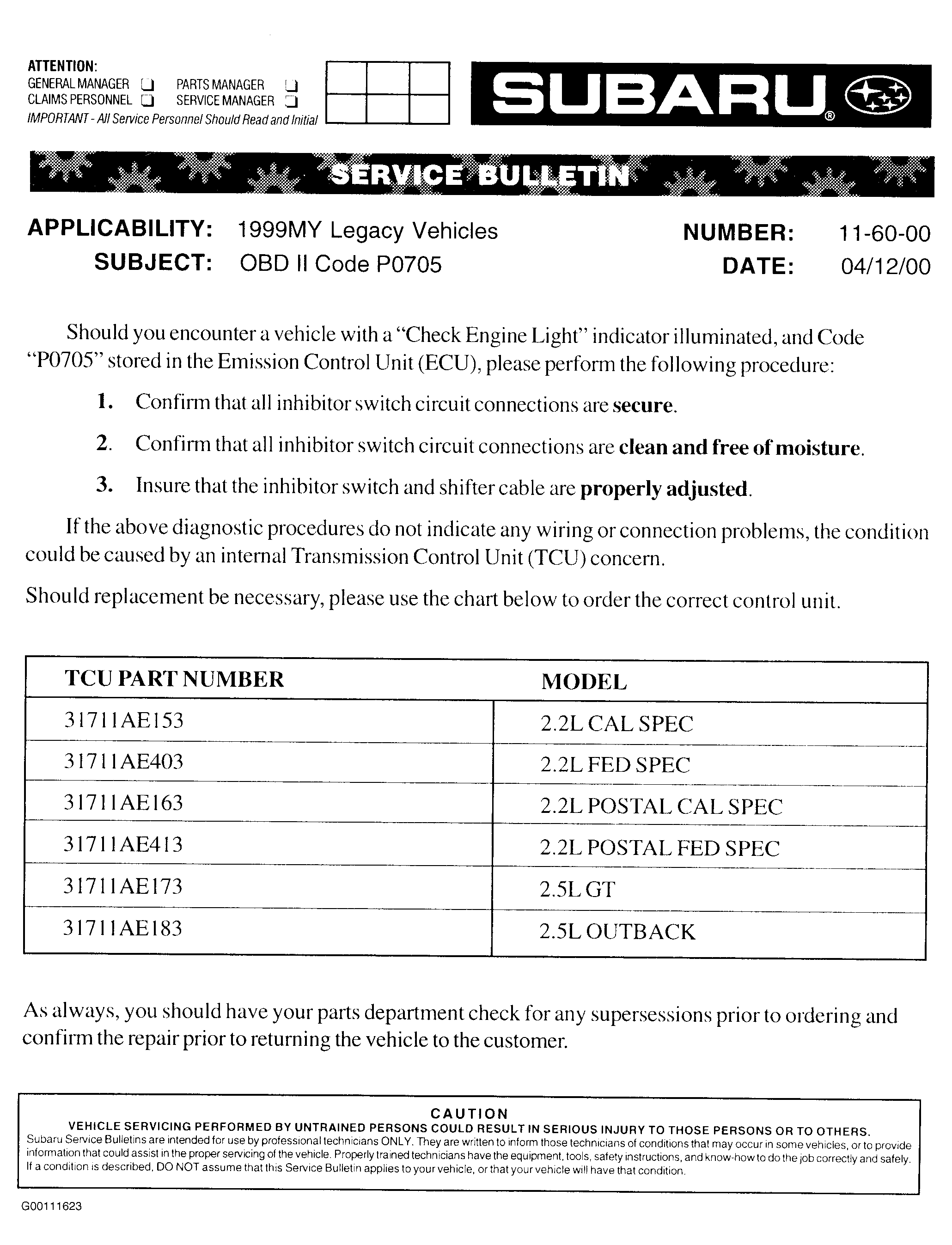

Fig 1: Page 1 of Bulletin
G00111623
