Basic Inspection

Clean the disassembled parts with a cloth, and check for wear, damage, or any other faults. If necessary, repair or replace faulty parts.

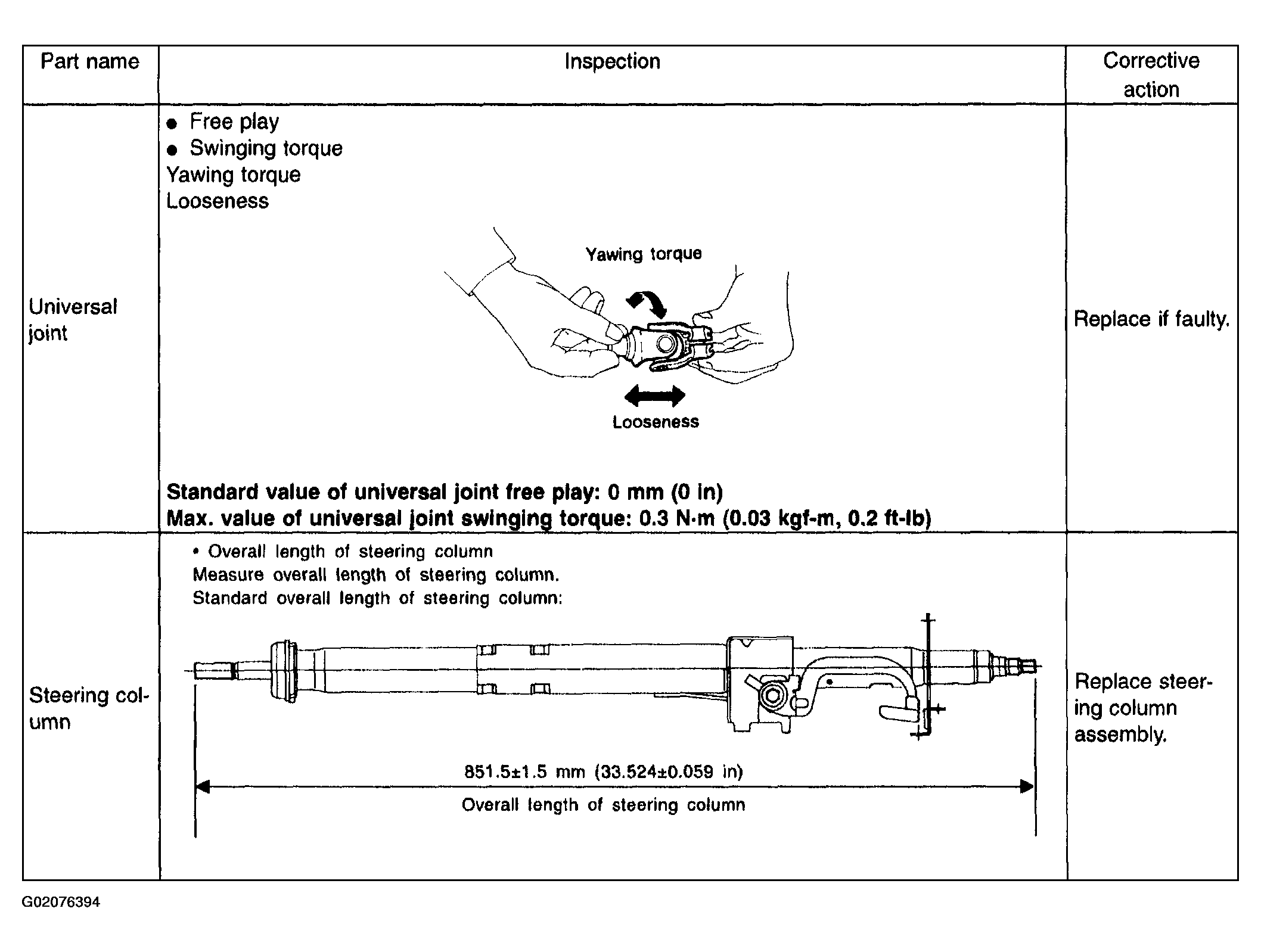

Fig 1: Performing Basic Inspection

Measurement of folding torque of universal joint is as shown in the figures.

Fig 2: Measuring Folding Torque Of Universal Joint (1 Of 2 - Long Yoke As Shown)

Fig 3: Measuring Folding Torque Of Universal Joint (2 Of 2 - Long Yoke As Shown)

Fig 4: Measuring Folding Torque Of Universal Joint (1 Of 2 - Short Yoke As Shown)

Fig 5: Measuring Folding Torque Of Universal Joint (2 Of 2 - Short Yoke As Shown)
