Console Box: Removal

  1. Remove shift knob (A) (MT model) and front cover (B).
    Fig 1: Removing Shift Knob (A) (MT) & Front Cover (B)
    G02098552

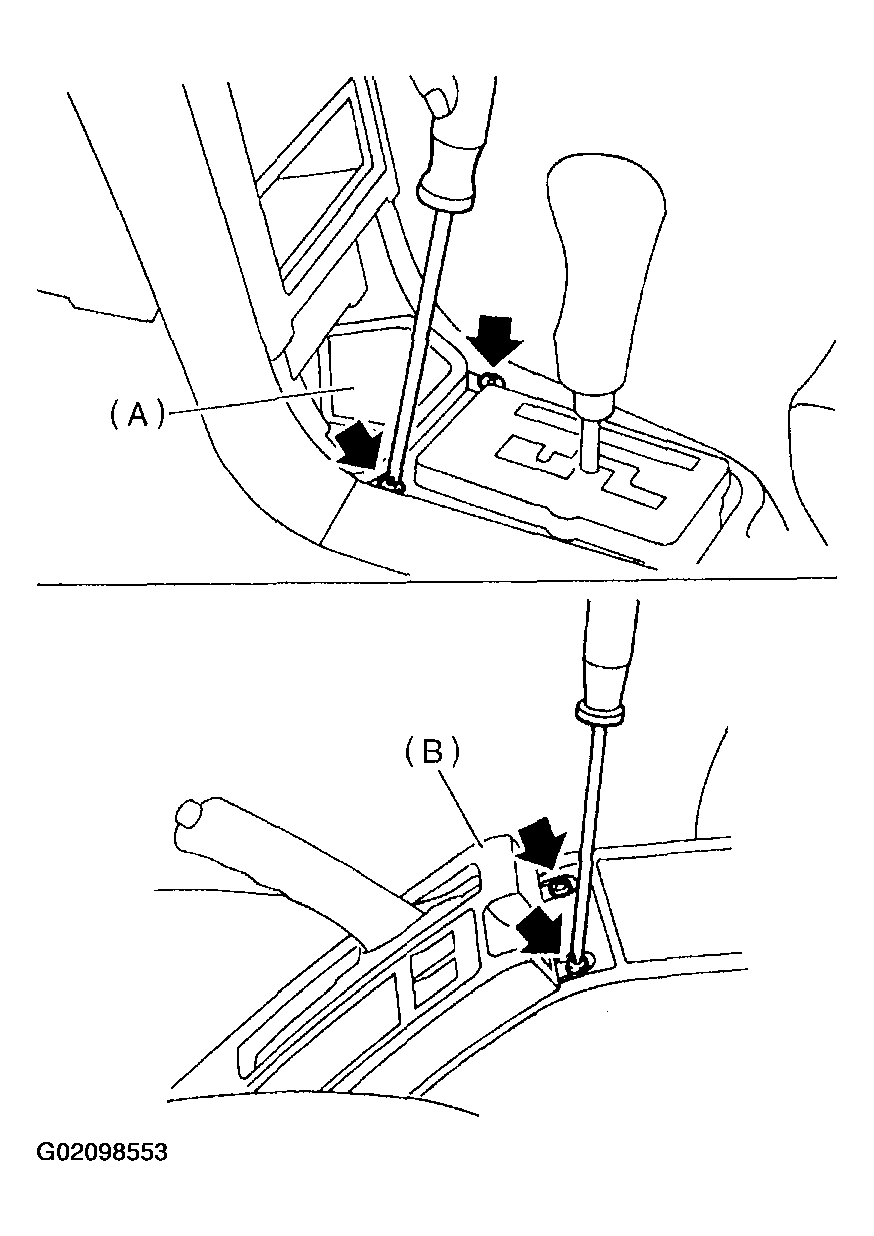

  2. Remove tray (A) and console cover (B).
    Fig 2: Removing Tray (A) And Console Cover (B)
    G02098553
  3. Remove console box (A).
    Fig 3: Removing Console Box (A)
    G02098554
