Removal & Installation (Front)

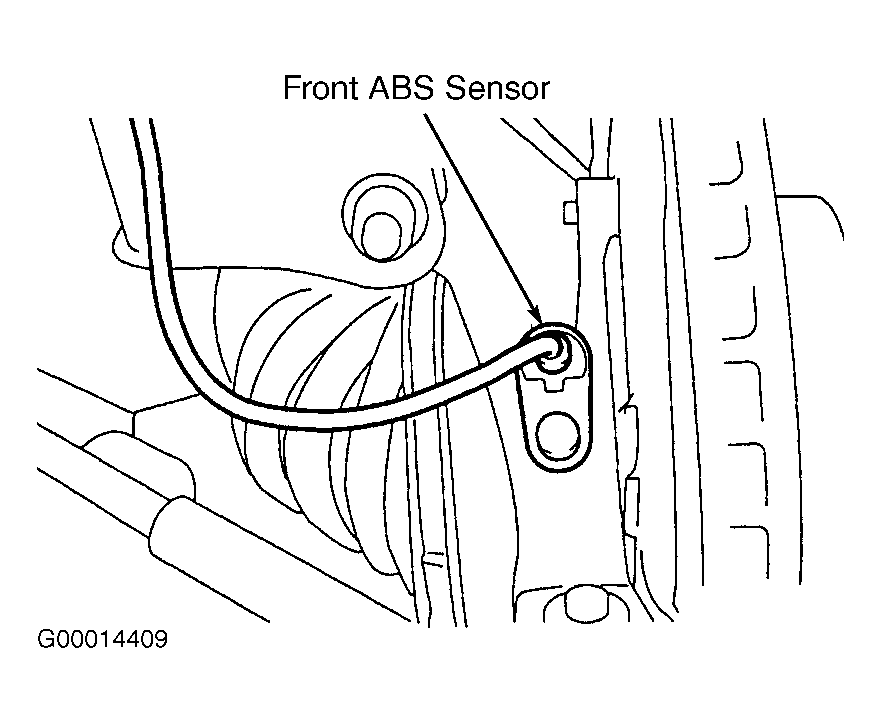

Unplug front wheel speed sensor connector. Connector is located in engine compartment next to front strut mounting. Remove bolt retaining wheel speed sensor and wiring harness. Remove wheel speed sensor. See Fig 1. To install, reverse removal procedure. Tighten sensor retaining bolt to specification. See TORQUE SPECIFICATIONS . Adjust speed sensor air gap. See WHEEL SPEED SENSOR AIR GAP under ADJUSTMENTS.
