Trouble Shooting: Notes
NOTE:

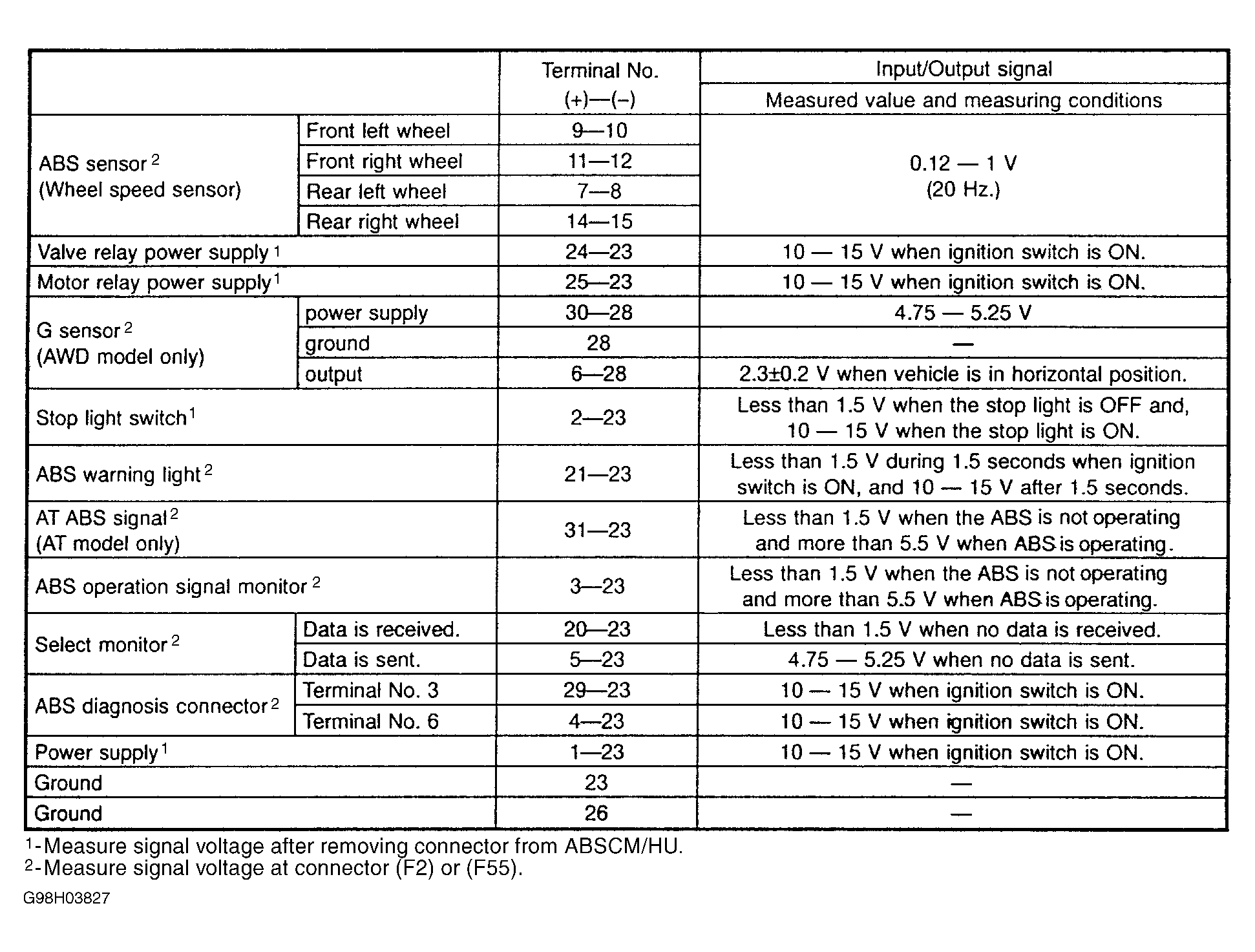

For additional voltage specifications, see ABS control module pin voltage chart. See
Figure
. To identify ABS control module and hydraulic unit terminals, see
Figure
.
