Mode 6 - SUBARU: 1996-2001

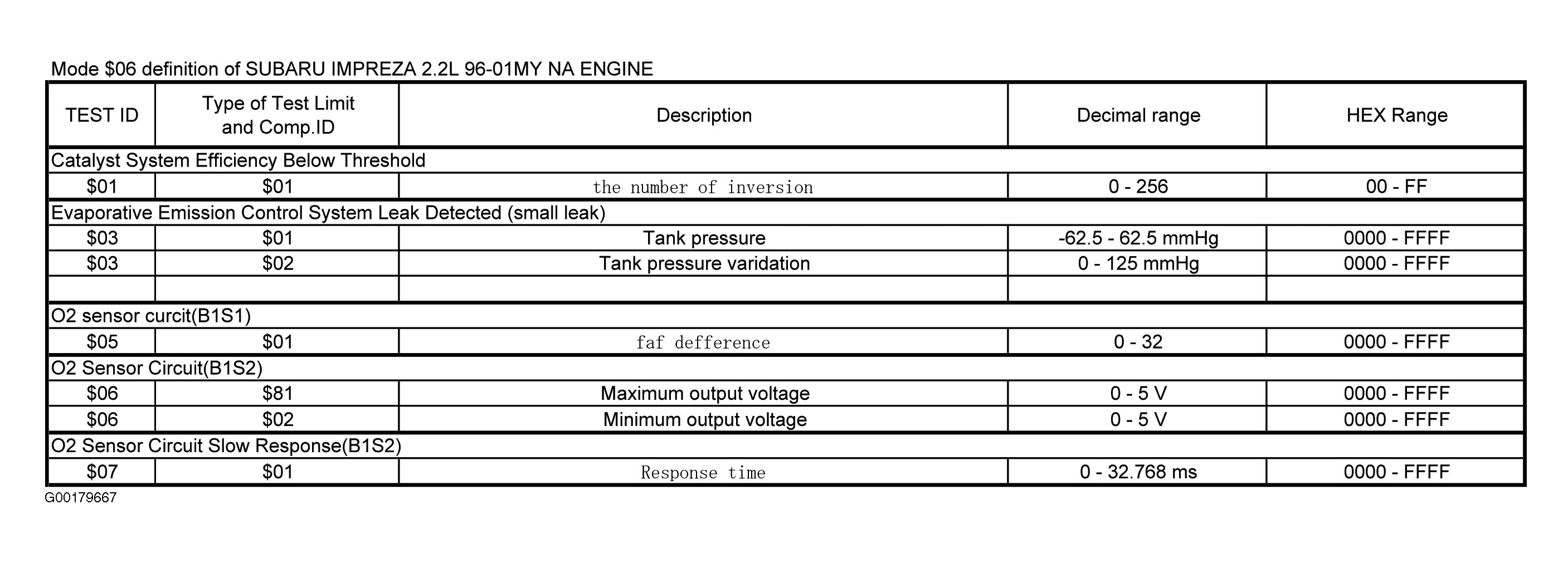

Fig 1: Mode $06 Data For '96-'01 2.2L

Courtesy of SUBARU OF AMERICA, INC.

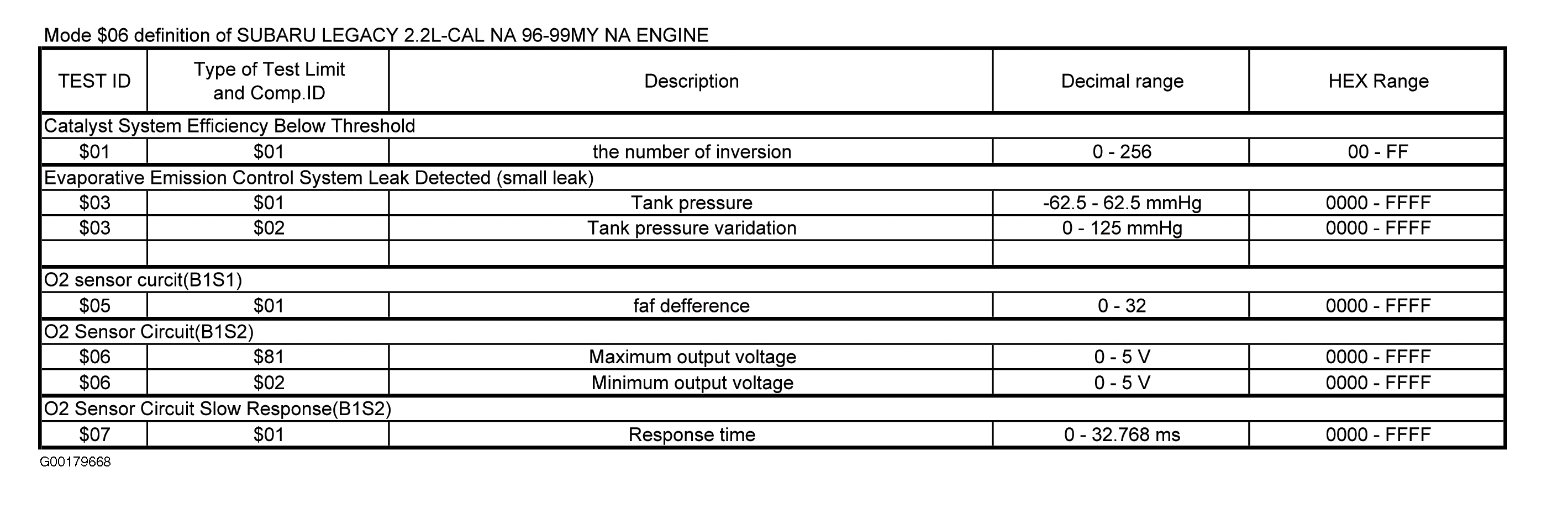

Fig 2: Mode $06 Data For '96-'99 2.2L CAL.

Courtesy of SUBARU OF AMERICA, INC.

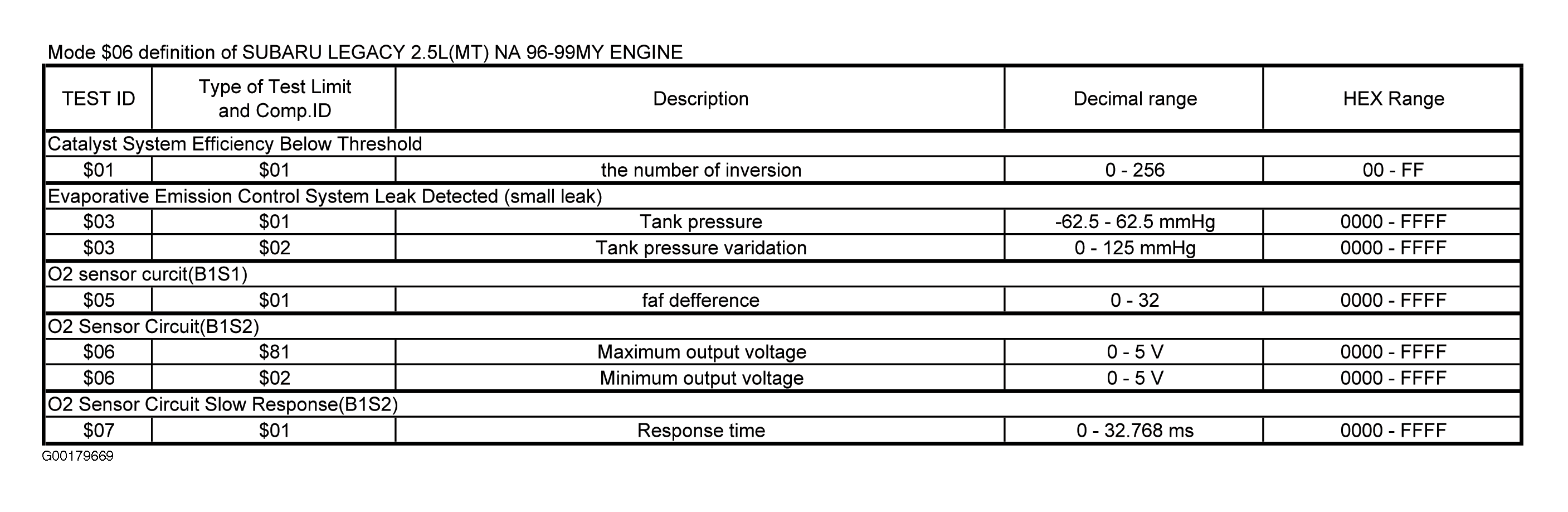

Fig 3: Mode $06 Data For '96-'99 2.5L

Courtesy of SUBARU OF AMERICA, INC.

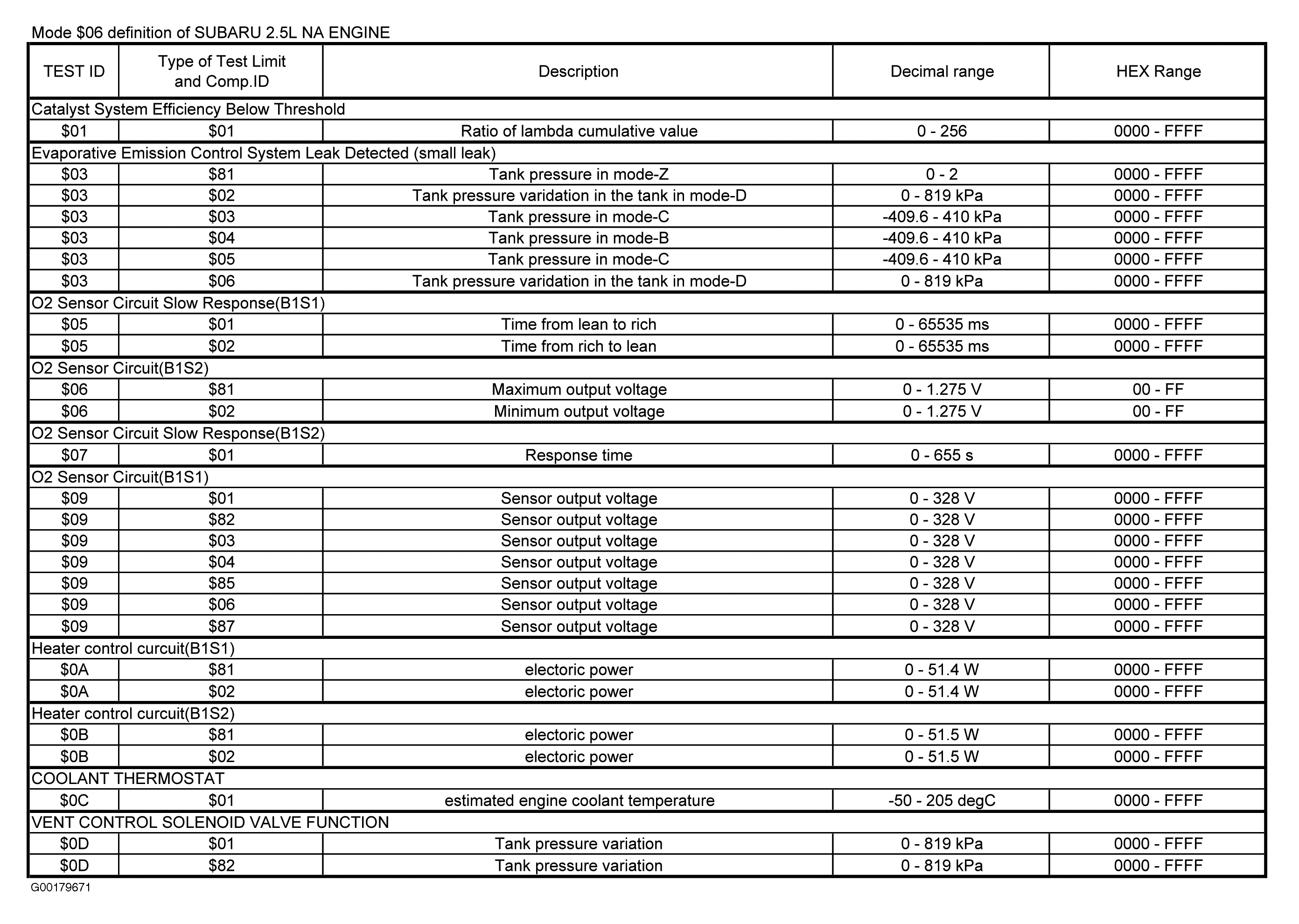

Fig 4: Mode $06 Data For '00-'01 2.5L

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Mode $06 Data For '01 2.5L

Courtesy of SUBARU OF AMERICA, INC.
