Mode 6 - SUBARU: 2004-2007

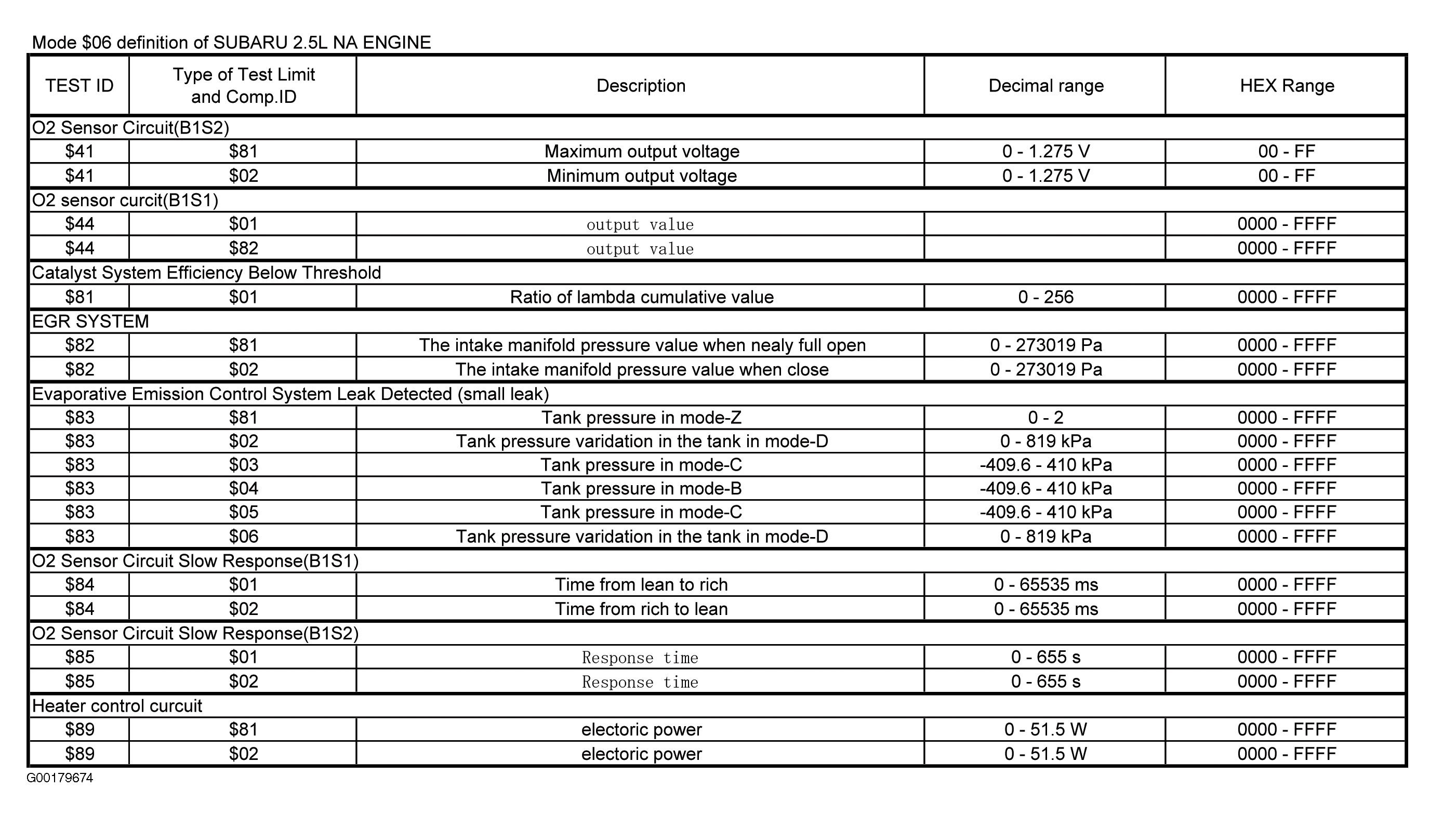

Fig 1: Mode $06 Data For '04-'07 2.5L

Courtesy of SUBARU OF AMERICA, INC.

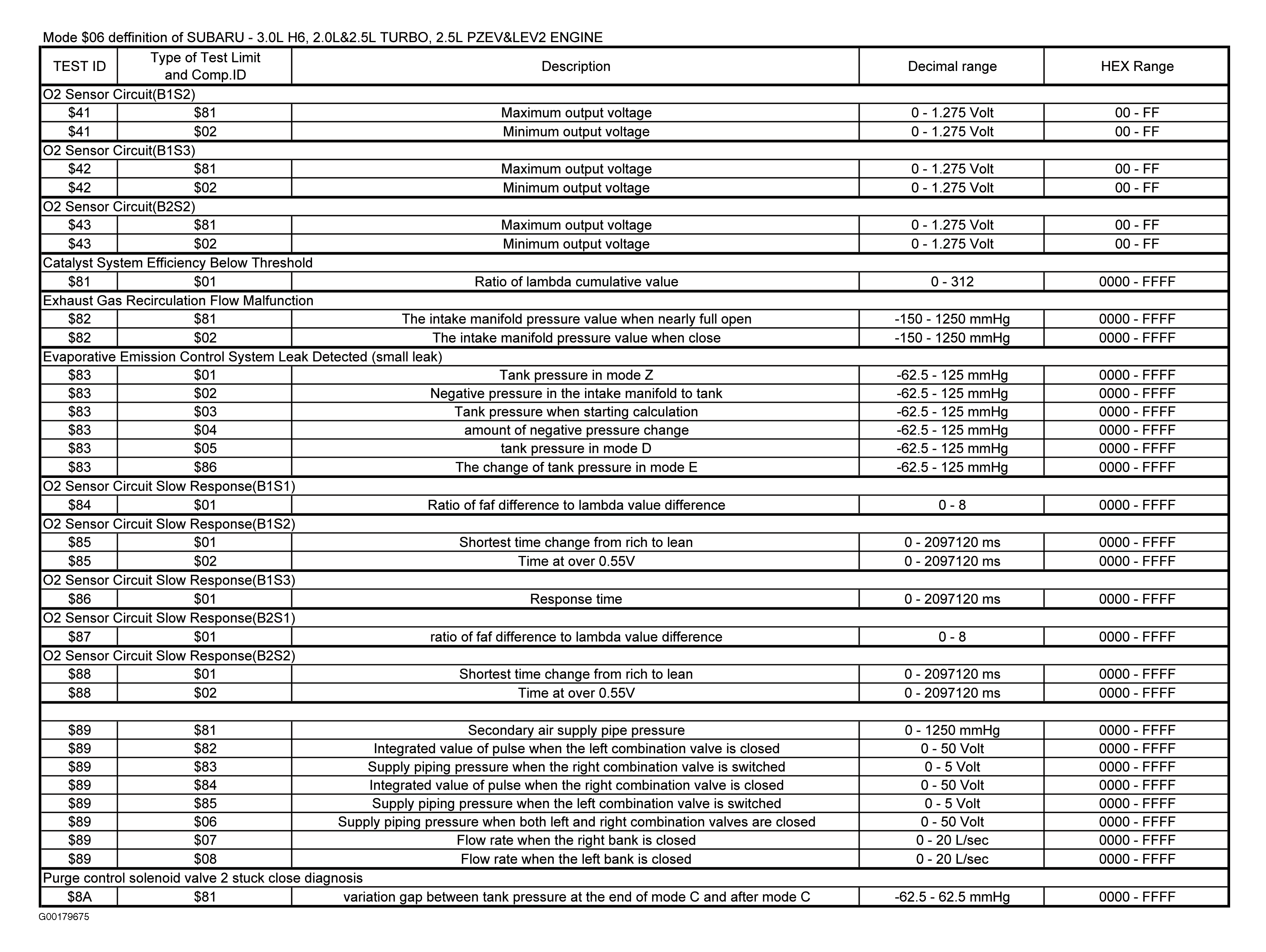

Fig 2: Mode $06 Data For '04-'07 3.0L, 2.0L & 2.5L Turbo, 2.5L PZEV & LEV2

Courtesy of SUBARU OF AMERICA, INC.
