Leak Test - Low-Pressure Side
WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

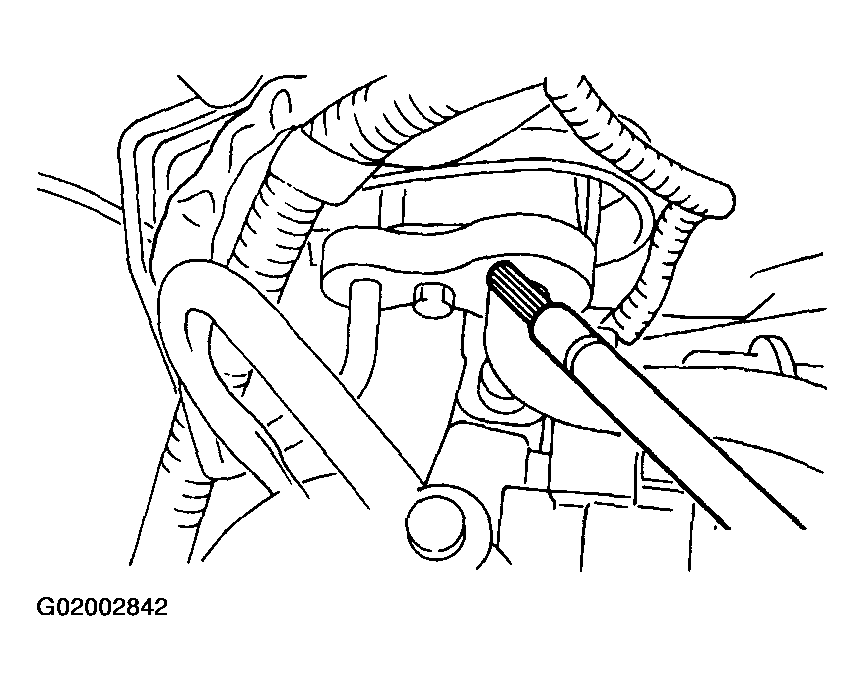

- Begin at the connection of the low-pressure tube to the evaporator, and work your way along the low-pressure of the system to the compressor. There are three places to check on each tube connection.
- Check the area:
- Check the area where the fitting joins the tube.
- Check the area where the two parts of the fitting join each other.
