HFC-134a Air Conditioning System

WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Component parts of the cooling system, refrigerant, compressor oil, and other parts are not the same for the HFC-134a system and the older CFC-12 system. Do not interchange parts or liquid. Vehicles with HFC-134a air conditioning systems, use only HFC-134a parts that are indicated on a label (A) attached to the vehicle. Before performing any maintenance, verify the type of air conditioning system installed in the vehicle.

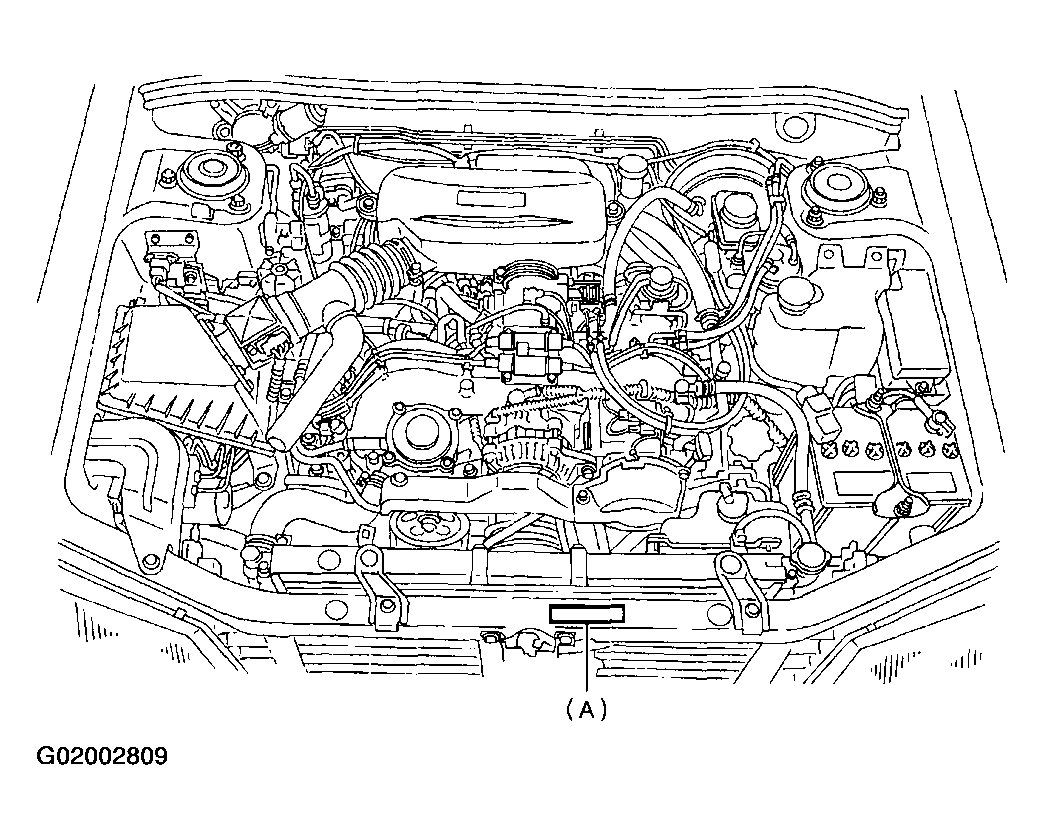

Fig 1: Identifying Air Conditioning System Type
G02002809
