Rear Combination Light Assembly: Removal: Sedan

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove clips and then detach trunk rear trim.
    Fig 1: Removing Clips & Detaching Trunk Rear Trim (Sedan)
    G02098026
  2. Remove hook (A) and then turn over the trunk side trim of rear portion.
    Fig 2: Removing Hook & Turning Over Trunk Side Trim Of Rear Portion (Sedan)
    G02098027
  3. Remove harness clip (A).
  4. Remove three nuts and then detach rear combination light while disconnecting connector.

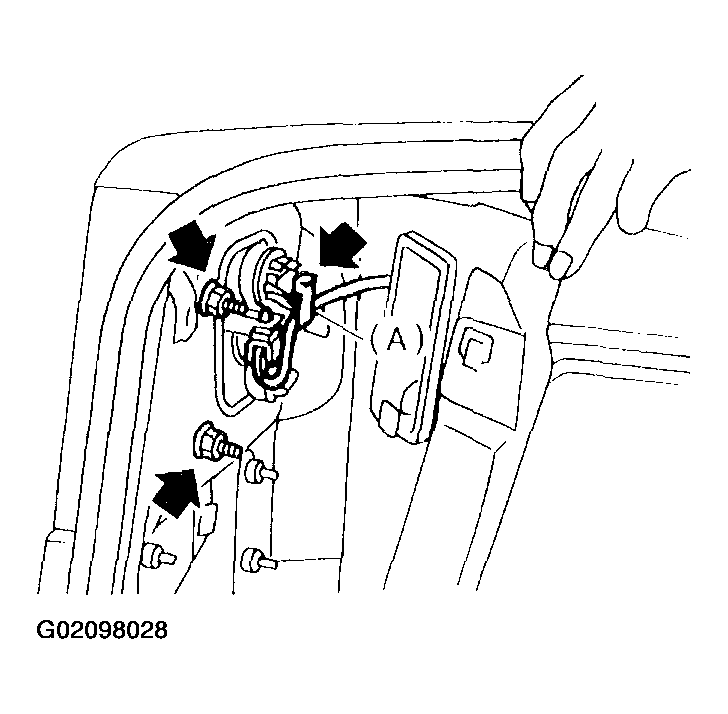

    Fig 3: Removing Nuts & Rear Combination Light (Sedan)
    G02098028
