Section 22 (Engine Cooling System (2.5L)): Radiator: Installation

WARNING: This page is about a different car, the 2001 Subaru Outback and 2001 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Attach radiator mounting cushions to holes on the vehicle.

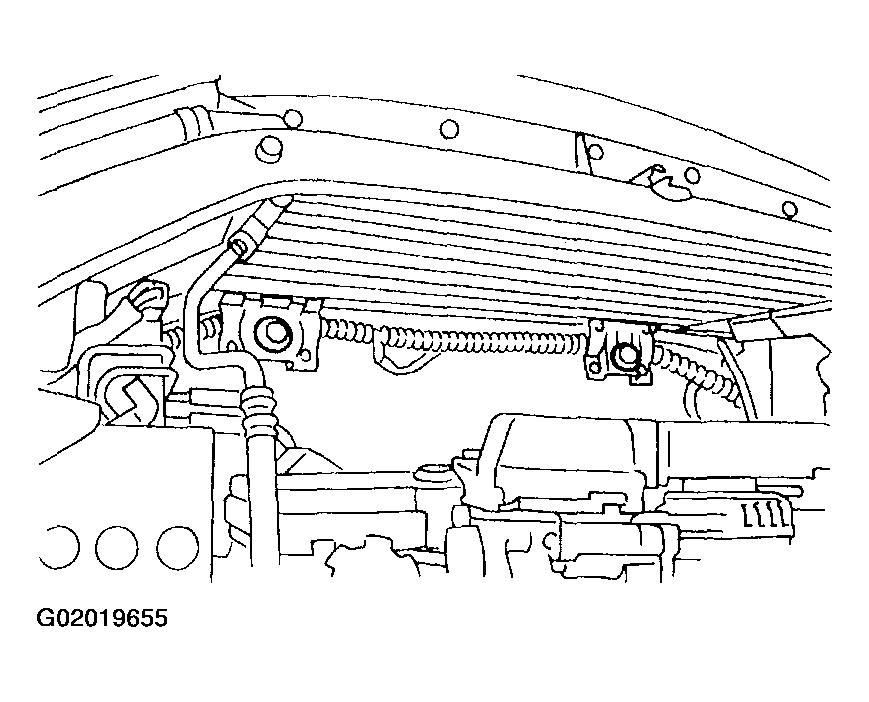

Fig 1: Attaching Radiator Mounting Cushions
Install radiator while fitting radiator pins to cushions.
NOTE: Fit pins on lower side of radiator into cushions on body side.

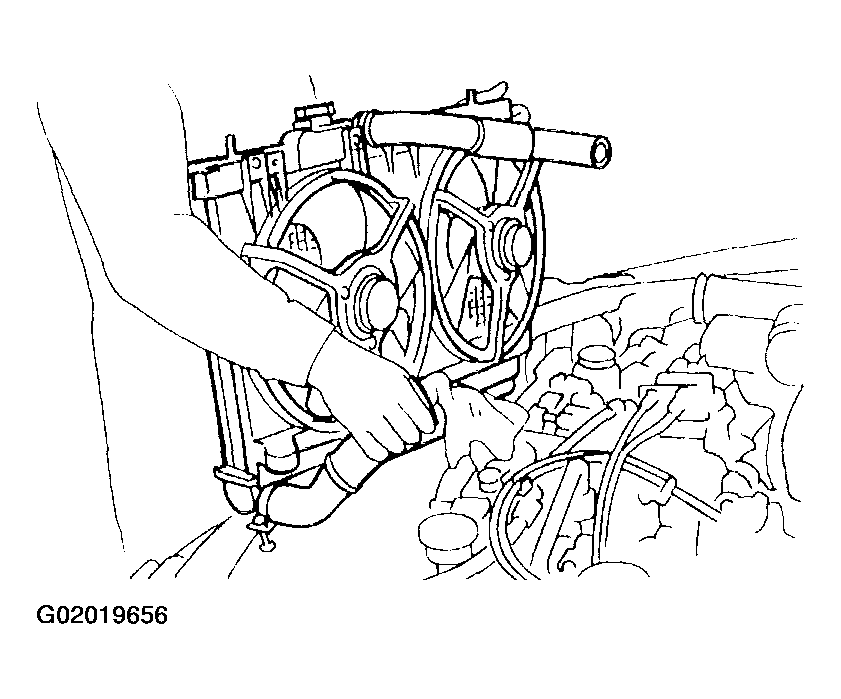

Fig 2: Installing Radiator
Install radiator brackets and tighten bolts.
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

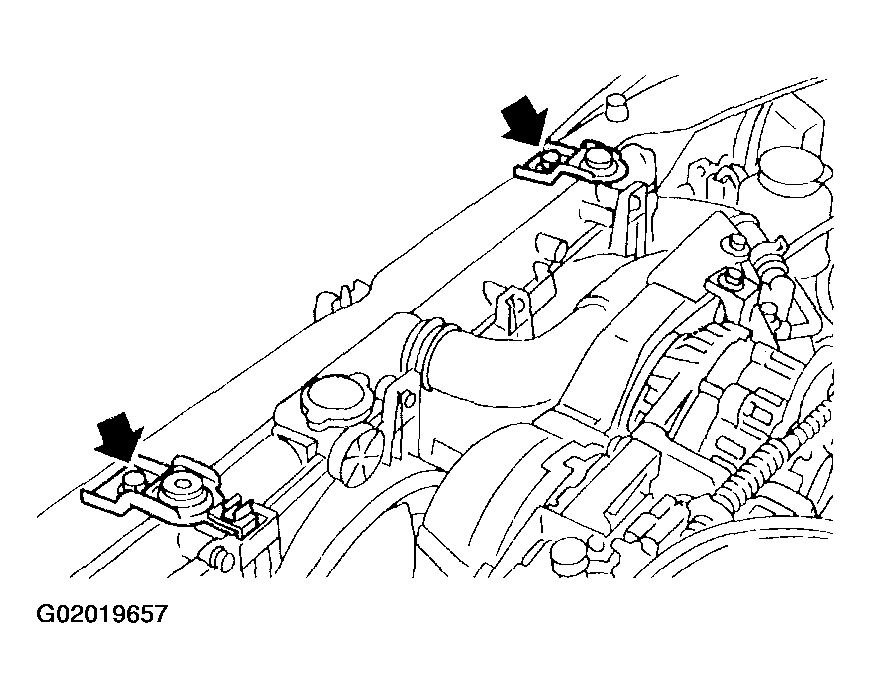

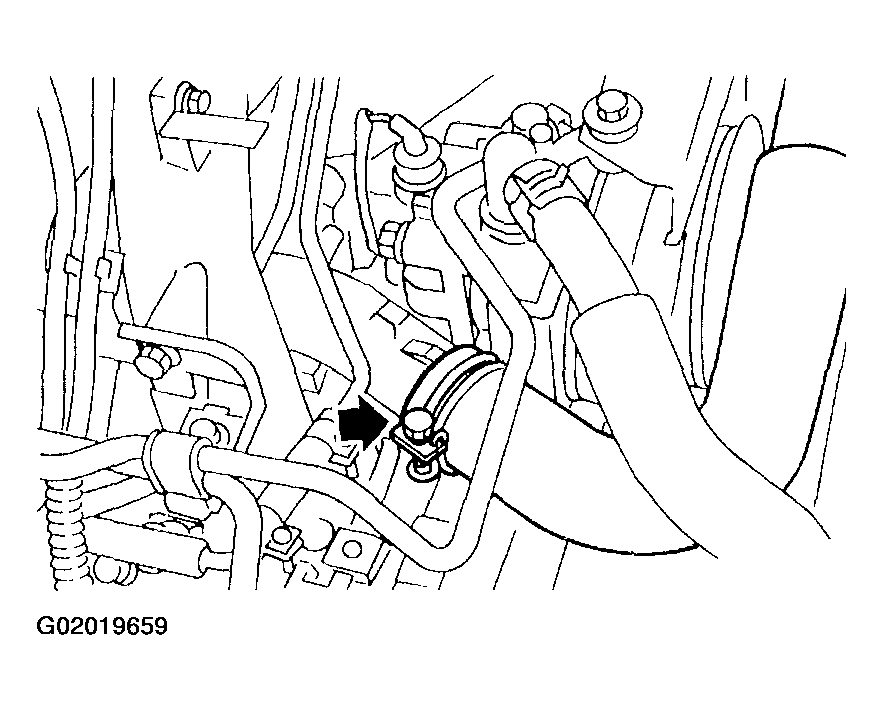

Fig 3: Installing Radiator Brackets
Attach power steering hose to the radiator.

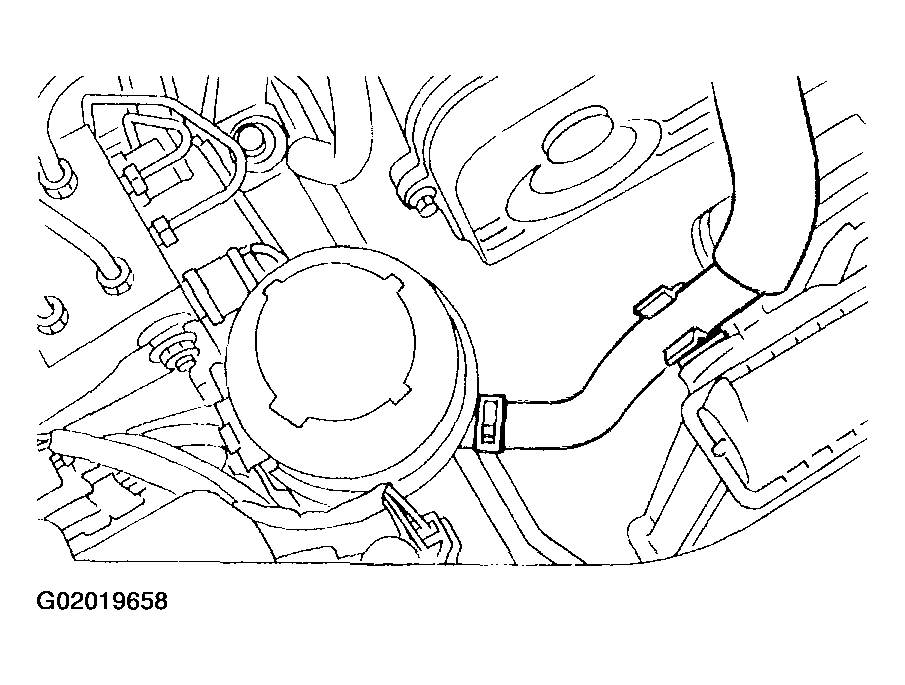

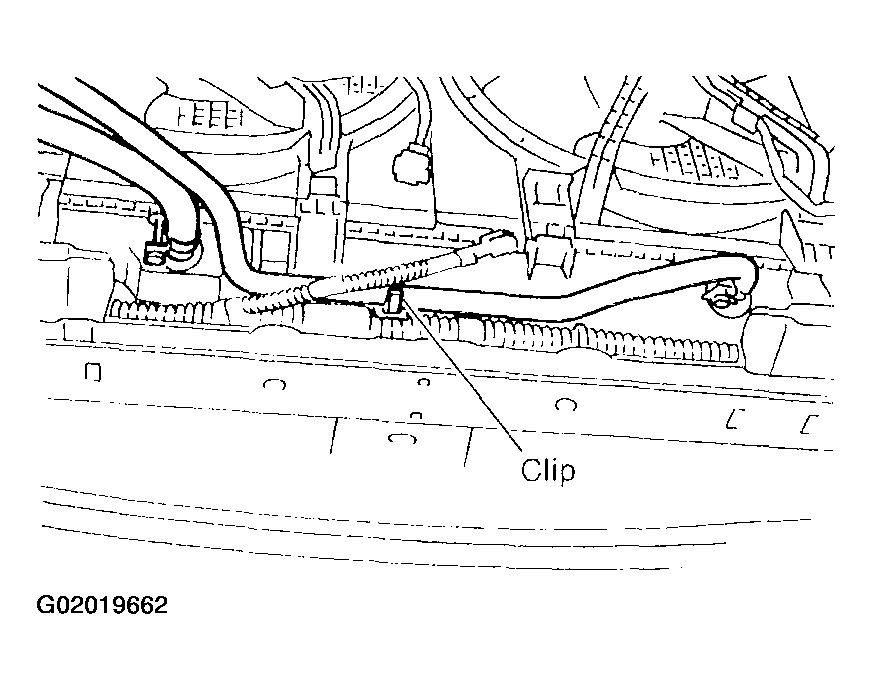

Fig 4: Attaching Power Steering Hose To Radiator Clip
Connect radiator inlet hose.

Fig 5: Connecting Radiator Inlet Hose
Install reservoir tank.
1. Tightening torque: 4.9 N.m (0.50 kgf-m, 3.6 ft-lb)

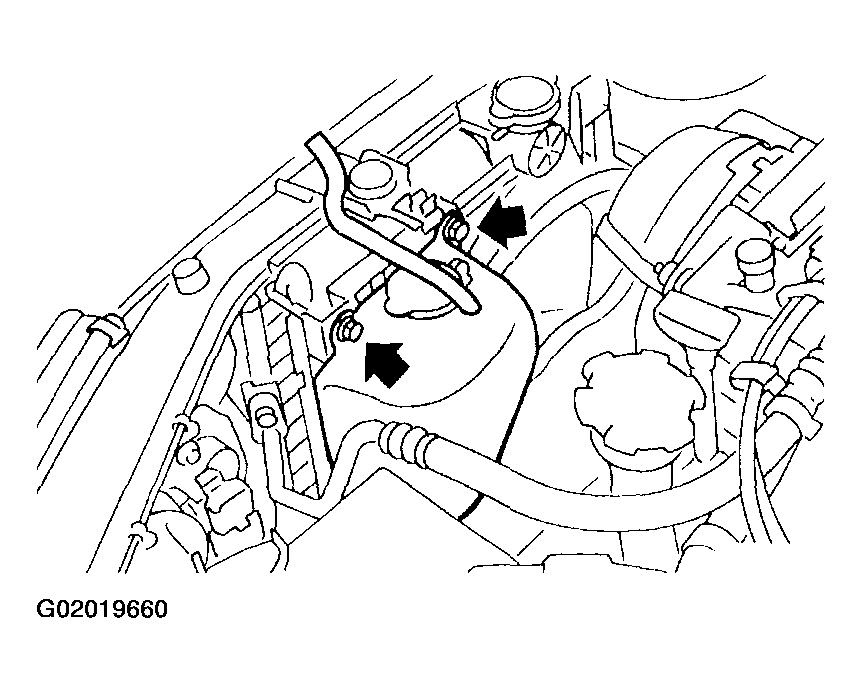

Fig 6: Installing Reservoir Tank
Install air intake duct.

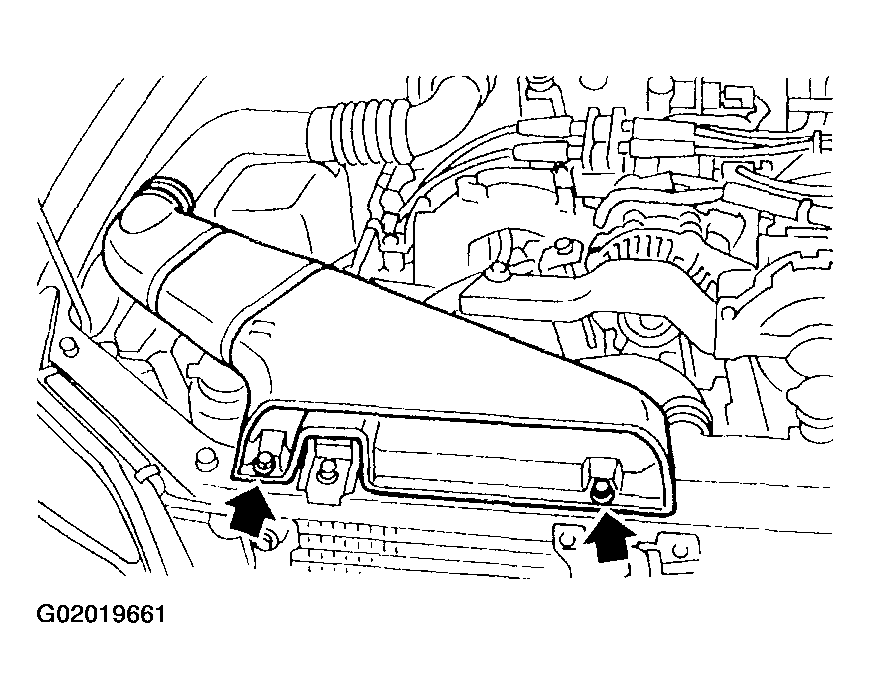

Fig 7: Installing Air Intake Duct
Lift-up the vehicle.
Connect ATF cooler hoses. (AT vehicles only)

Fig 8: Connecting ATF Cooler Hoses
Connect connectors to radiator main fan motor and sub fan motor.

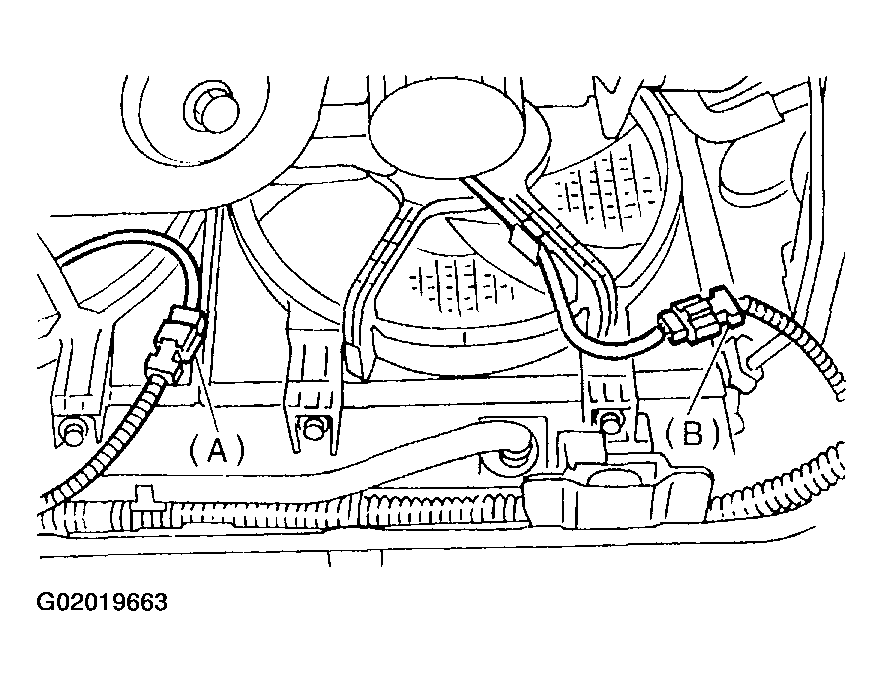

Fig 9: Connecting Main Fan & Sub Fan Connectors
Connect radiator outlet hose.

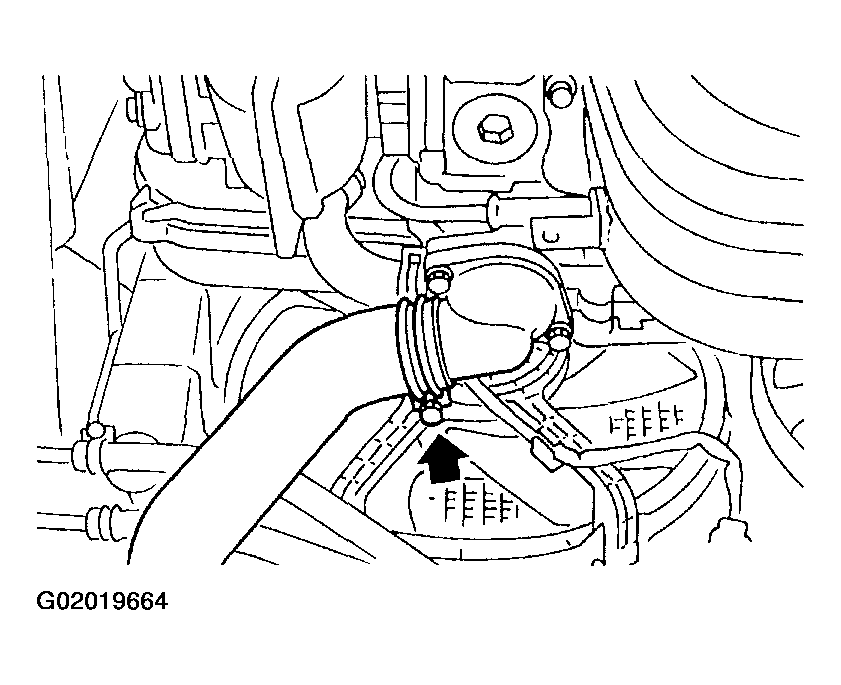

Fig 10: Connecting Radiator Outlet Hose
Install under cover.

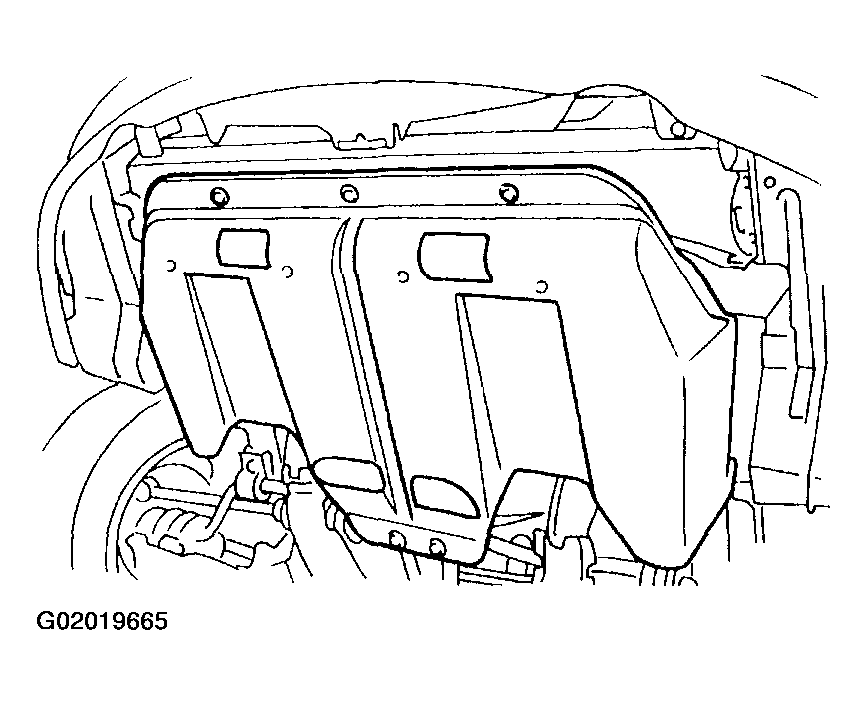

Fig 11: Installing Under Cover
Lower the vehicle.
Connect battery ground cable.

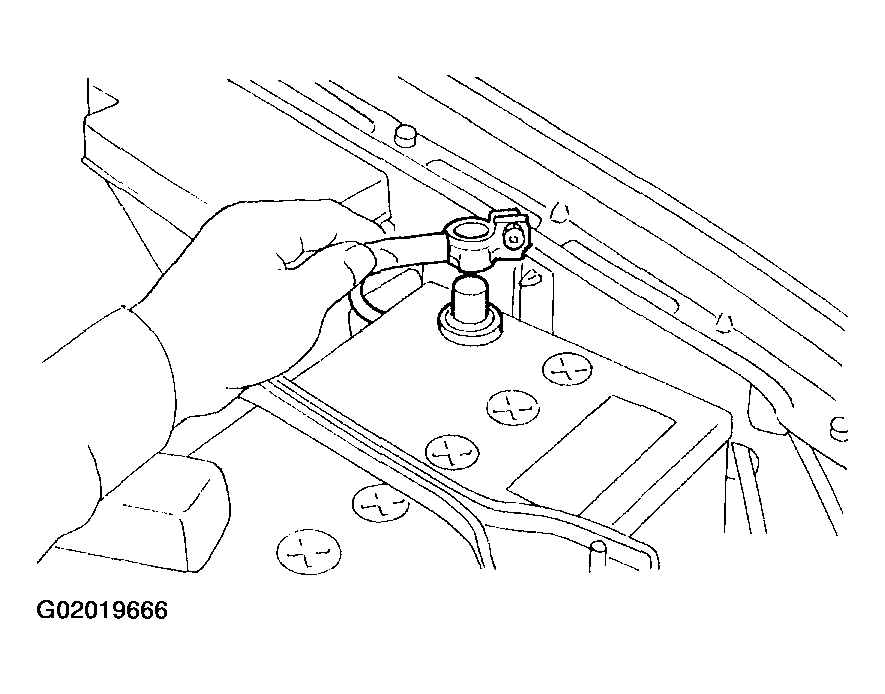

Fig 12: Connecting Battery Ground Cable
Fill coolant. See FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Check ATF level. See REPLACEMENT , Automatic Transmission Fluid.
