Service Manual Corrections (18-74-04)

Publication date: 2004-01-14
Reference number: 18-74-04

SERVICE MANUAL CORRECTIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 18-74-04, Date of Issue: January 15, 2004

SUBARU:

1999-2004 MY Subaru Vehicles

INTRODUCTION

Place a REVISED label on the appropriate pages of the noted effected Service Manuals and update the appropriate Service Manual Correction Binder(s) with the following pages:

INTRODUCTION

Year	Model	Book/Vol#	MSA#	Section	Page	Reference
1999	Forester	Sect. 1	MSA5T9910A	1-3	13	G5C0
1999	Forester	Sect. 1	MSA5T9910A	1-3	15	G5G0
1999	Forester	Sect. 1	MSA5T9910A	1-5	14	G6A1
1999	Forester	Sect. 2	MSA5T9911A	2-2	11	W8B0
1999	Impreza	Sect. 1	MSA5T9901A	1-3	6	G5C0
1999	Impreza	Sect. 1	MSA5T9901A	1-3	8	G5E0
1999	Impreza	Sect. 1	MSA5T9901A	1-5	13	G6A1
1999	Impreza	Sect. 2	MSA5T9902A	2-5	6	W1A0
2000	Forester	Sect. 1	MSA5T0020A	1-3	13	G5C0
2000	Forester	Sect. 1	MSA5T0020A	1-3	15	G5G0
2000	Forester	Sect. 1	MSA5T0020A	1-5	12	G6A1
2000	Forester	Sect. 3	MSA5T0022A	2-5	25	W9B1
2000	Impreza	Sect. 1	MSA5T0010A	1-3	13	G5C0
2000	Impreza	Sect. 1	MSA5T0010A	1-3	15	G5G0
2000	Impreza	Sect. 1	MSA5T0010A	1-5	12	G6A1
2000	Impreza	Sect. 3	MSA5T0012A	2-5	22	W9A0
2000	Legacy	Sect. 1	MSA5T0001A	1-3	13	G5C0
2000	Legacy	Sect. 1	MSA5T0001A	1-3	15	G5G0
2000	Legacy	Sect. 1	MSA5T0001A	1-5	11	G6A2
2000	Legacy	Sect. 3	MSA5T0003A	2-5	23	W9B1
2001	Forester	Sect. 1	MSA5T0120A	1-3	13	G5C0
2001	Forester	Sect. 1	MSA5T0120A	1-5	12	G6A1
2001	Forester	Sect. 1	MSA5T0120A	1-3	15	G5G0
2001	Forester	Sect. 3	MSA5T0122A	2-5	24	W9B0
2001	Impreza	Sect. 2	MSA5T0111A	-	CO-6	-
2001	Impreza	Sect. 1	MSA5T0110A	-	PM-18	-
2001	Impreza	Sect. 1	MSA5T0110A	-	RM-4	-
2001	Legacy	Sect. 2	MSA5T0102A	-	CO(H4)-6	-
2001	Legacy	6 Cyl. Sup.	MSA5T0109A	-	CO(H6)-18	-
2001	Legacy	6 Cyl. Sup.	MSA5T0109A	-	PM-19	-
2001	Legacy	6 Cyl. Sup.	MSA5T0109A	-	RM-4	-
2001	Legacy	Sect. 1	MSA5T0101A	-	PM-18	-
2001	Legacy	Sect. 1	MSA5T0101A	-	RM-4	-
2002	Forester	Sect. 3	MSA5T0222A	-	CO-12	-
2002	Forester	Sect. 3	MSA5T0222A	-	CO-13	-
2002	Forester	Sect. 1	MSA5T0220A	-	PM-14	-
2002	Forester	Sect. 1	MSA5T0220A	-	RM-4	-
2002	Impreza	Sect. 2	MSA5T0211A	-	CO-25	-
2002	Impreza	Sect. 1	MSA5T0210A	-	PM-18	-
2002	Impreza	Sect. 1	MSA5T0210A	-	RM-4	-
2002	Legacy	Sect. 3	MSA5T0203A	-	CO(H6)-18	-
2002	Legacy	Sect. 2	MSA5T0202A	-	CO-12	-
2002	Legacy	Sect. 1	MSA5T0201A	-	PM-18	-
2002	Legacy	Sect. 1	MSA5T0201A	-	RM-5	-
2003	Forester	Sect. 3	MSA5T0322A	-	CO(SOHC)-14	-
2003	Forester	Sect. 1	MSA5T0320A	-	PM-17	-
2003	Forester	Sect. 1	MSA5T0320A	-	RM-4	-
2003	Impreza	Sect. 2	MSA5T0311A	-	CO(H4SO)-29	-
2003	Impreza	Sect. 1	MSA5T0310A	-	PM-19	-
2003	Impreza	Sect. 1	MSA5T0310A	-	RM-5	-
2003	Legacy	Sect. 2	MSA5T0302A	-	CO(H4SO)-14	-
2003	Legacy	Sect. 3	MSA5T0303A	-	CO(H6DO)-22	-
2003	Legacy	Sect. 1	MSA5T0301A	-	PM-19	-
2003	Legacy	Sect. 1	MSA5T0301A	-	RM-4	-
2004	Forester	Sect. 2	MSA5T0421A	-	CO(H4SO)-17	-
2004	Forester	Sect. 1	MSA5T0420A	-	PM-19	-
2004	Forester	Sect. 1	MSA5T0420A	-	RM-4	-
2004	Impreza	Sect. 3	MSA5T0412A	-	CO(H4DOTC)-17	-
2004	Impreza	Sect. 2	MSA5T0411A	-	CO(H4SO)-12	-
2004	Impreza	Sect. 1	MSA5T0410A	-	PM-20	-
2004	Impreza	Sect. 1	MSA5T0410A	-	RM-6	-
2004	Legacy	Sect. 4	MSA5T0403A	-	CO(H4DOTC)-13	-
2004	Legacy	Sect. 2	MSA5T0401A	-	CO(H4SO)-12	-
2004	Legacy	Sect. 5	MSA5T0404A	-	CO(H6DO)-18	-
2004	Legacy	Sect. 1	MSA5T0400A	-	PM-22	-
2004	Legacy	Sect. 1	MSA5T0400A	-	RM-4	-

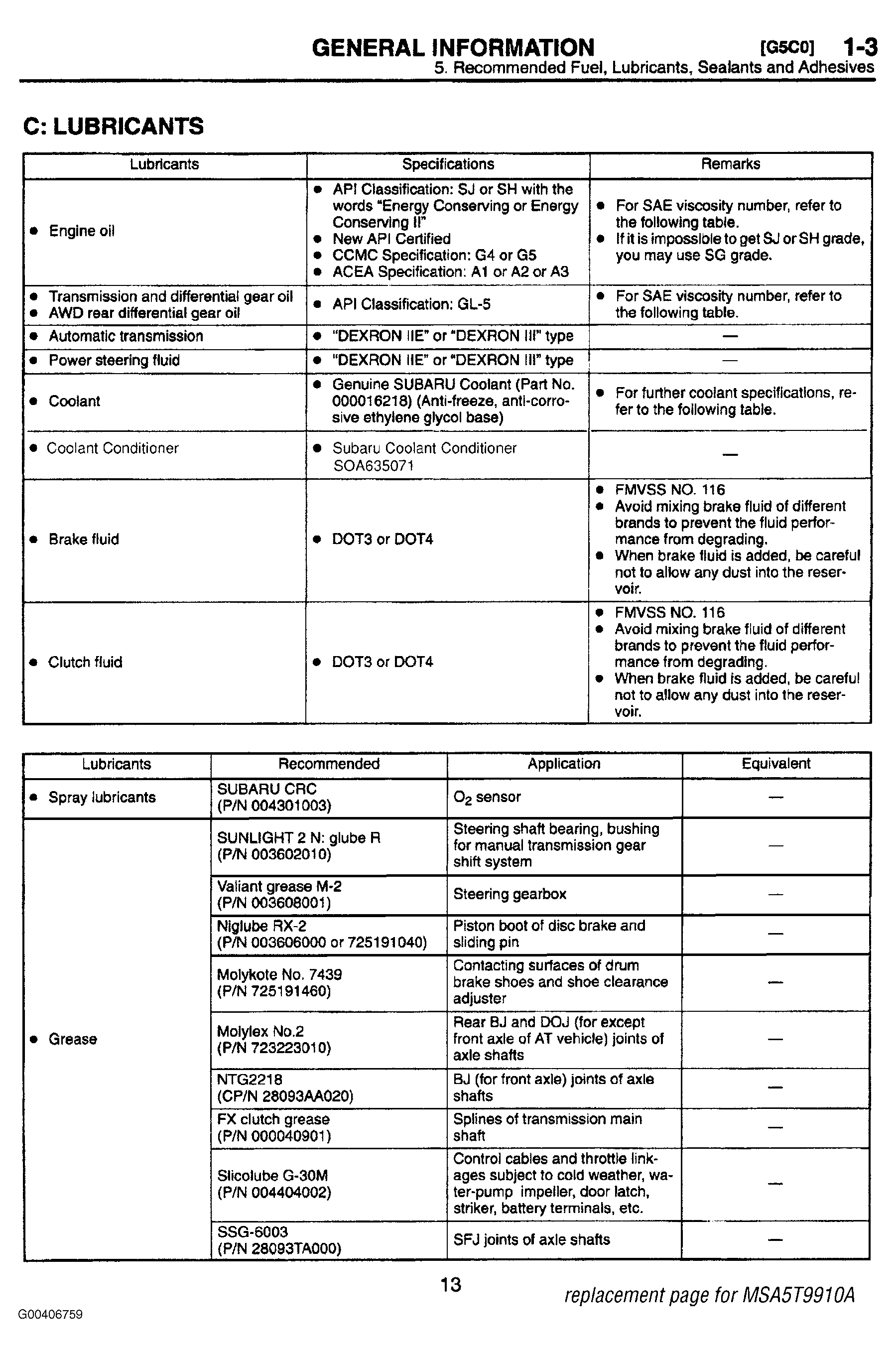

Fig 1: Replacement Page For MSA5T9910A, Section 1-3, Page 13

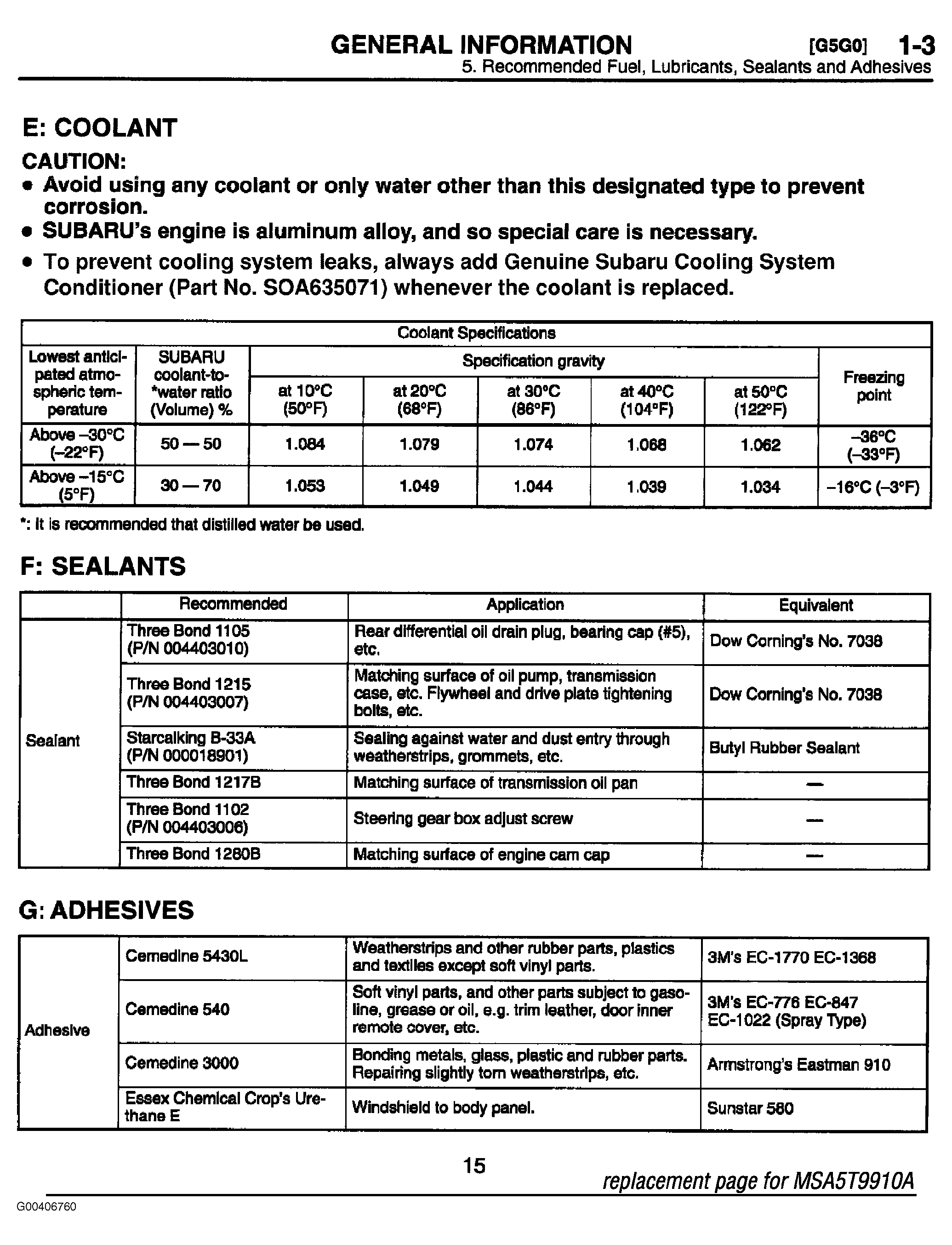

Fig 2: Replacement Page For MSA5T9910A, Section 1-3, Page 15

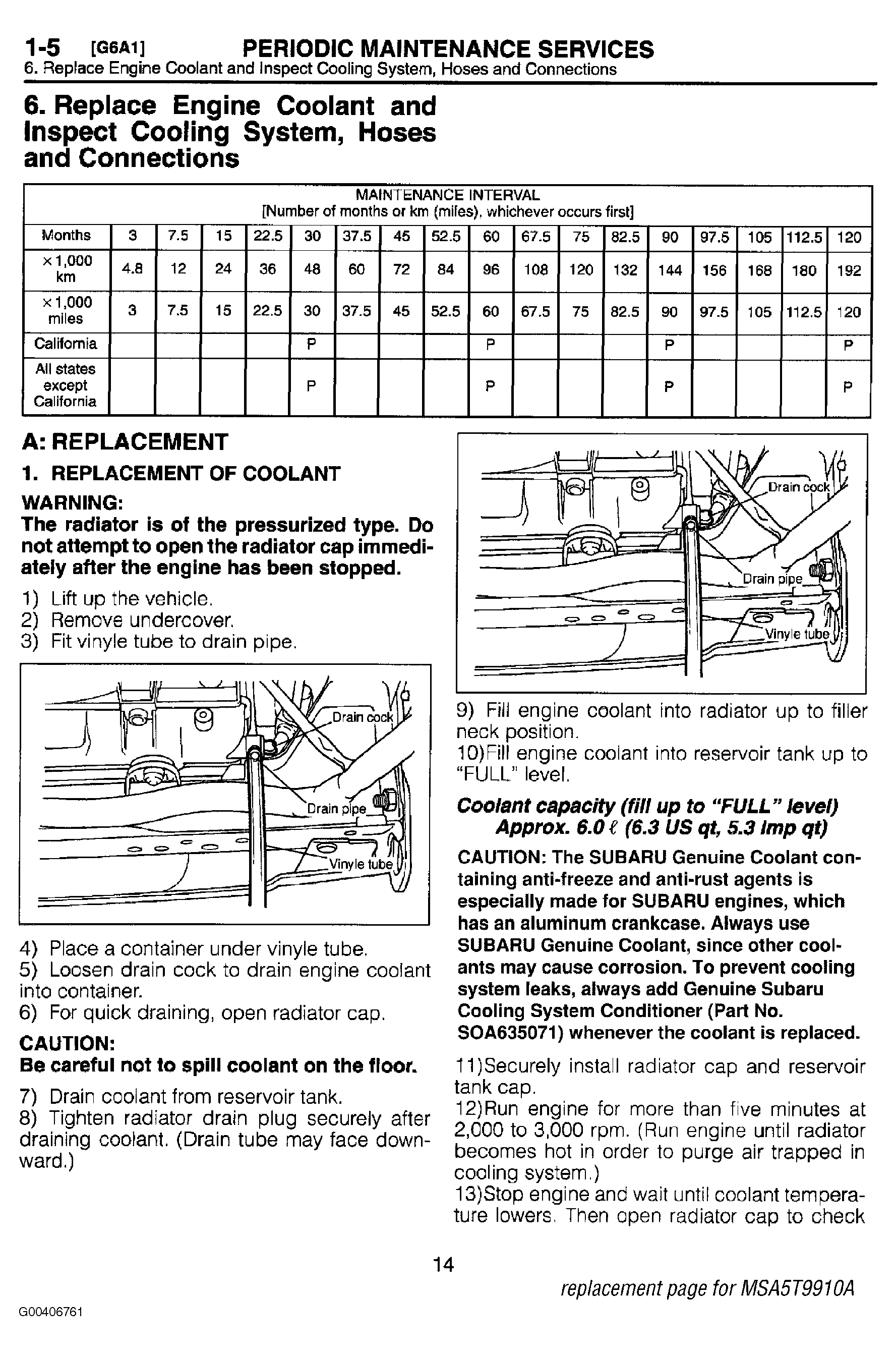

Fig 3: Replacement Page For MSA5T9910A, Section 1-5, Page 14

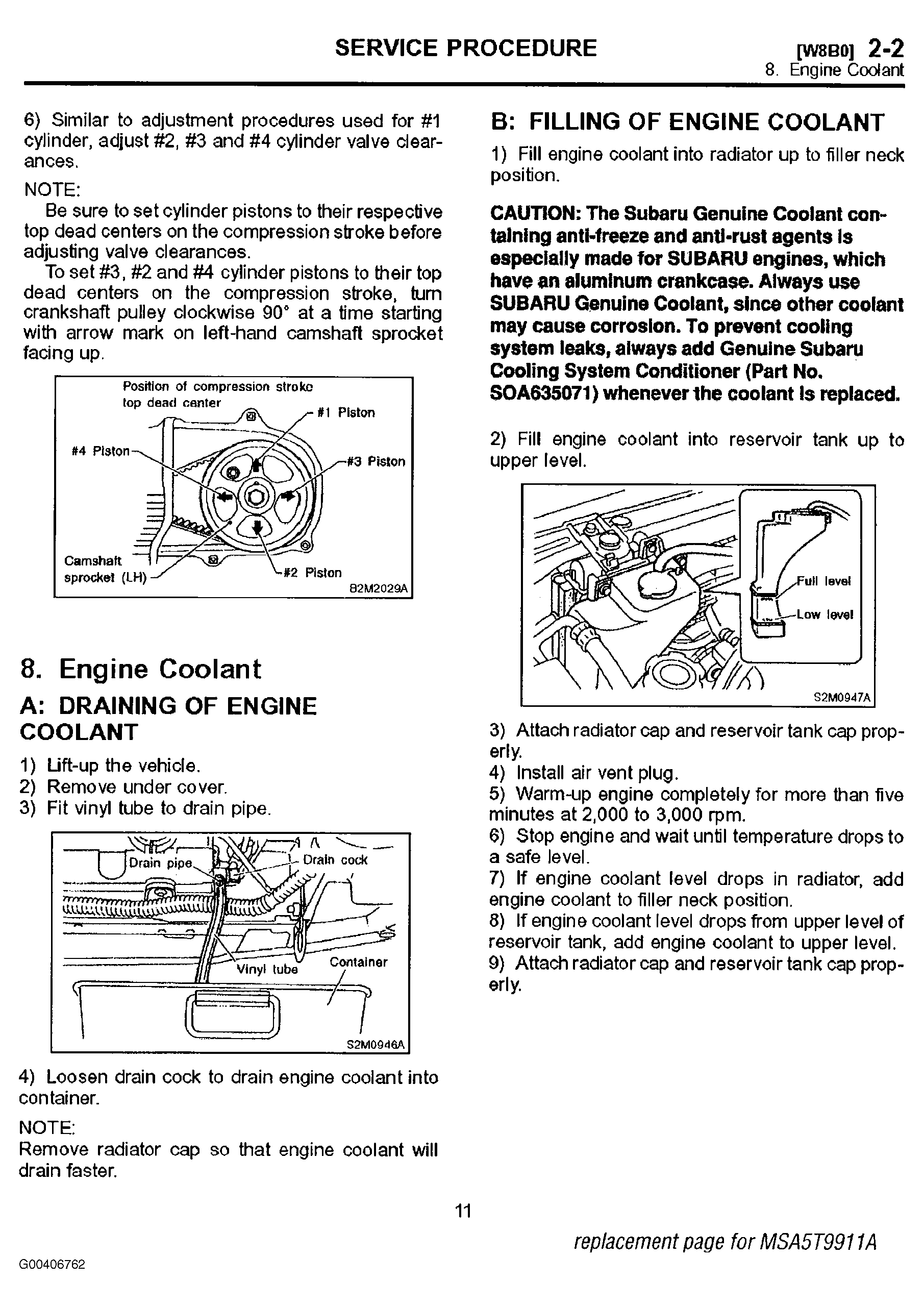

Fig 4: Replacement Page For MSA5T9911A, Section 2-2, Page 11

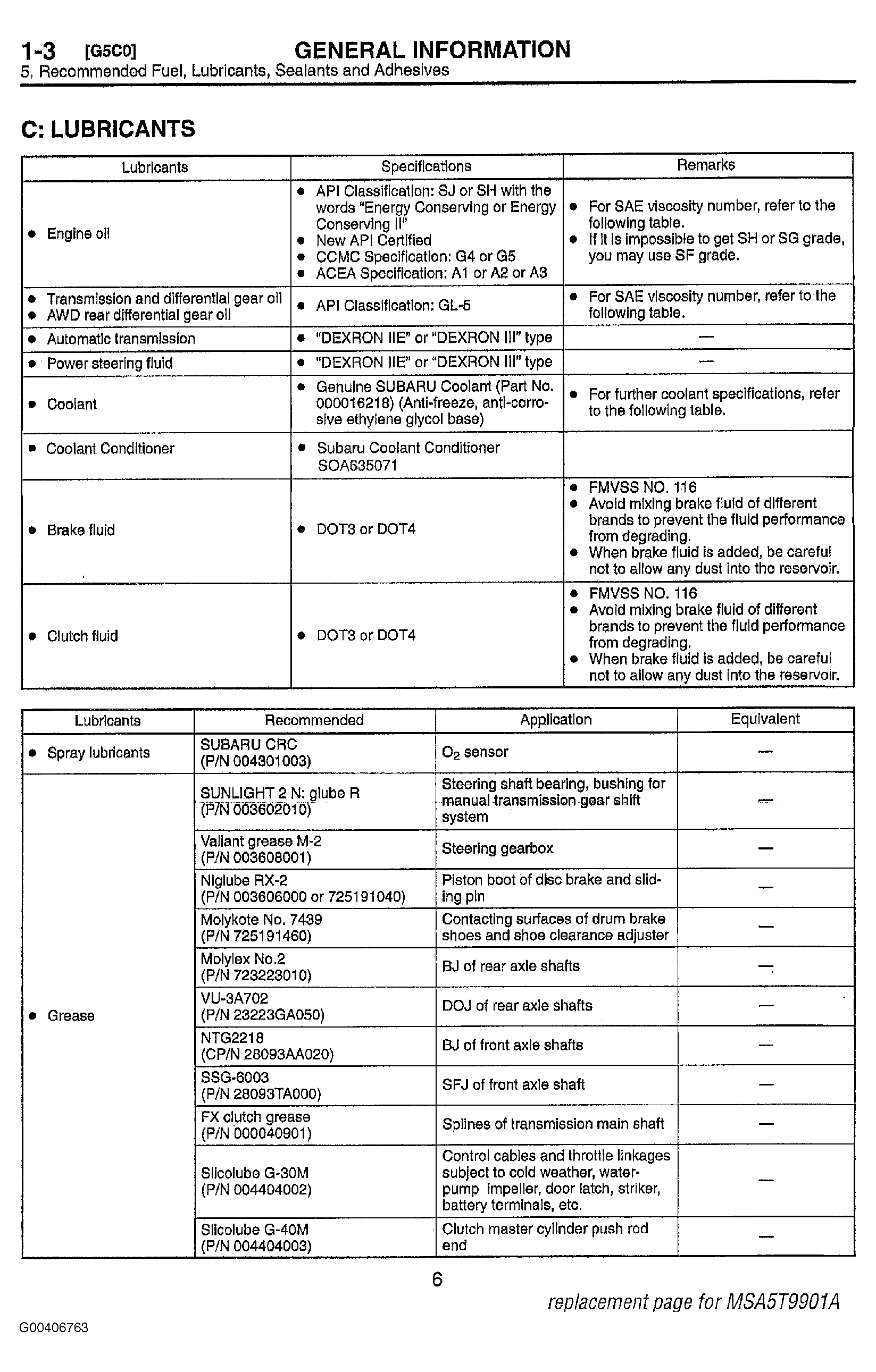

Fig 5: Replacement Page For MSA5T9901A, Section 1-3, Page 6

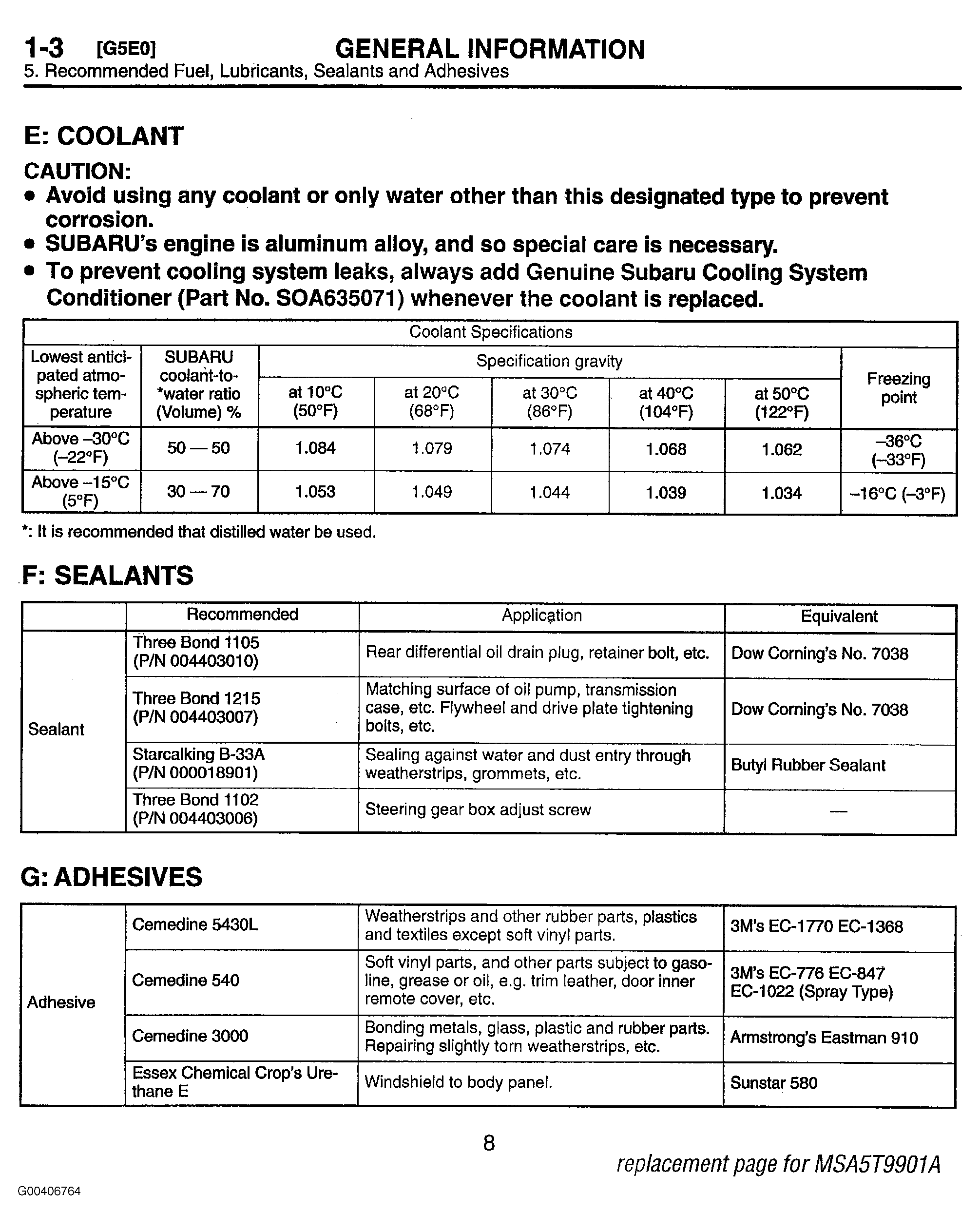

Fig 6: Replacement Page For MSA5T9901A, Section 1-3, Page 8

Fig 7: Replacement Page For MSA5T9901A, Section 1-5, Page 13

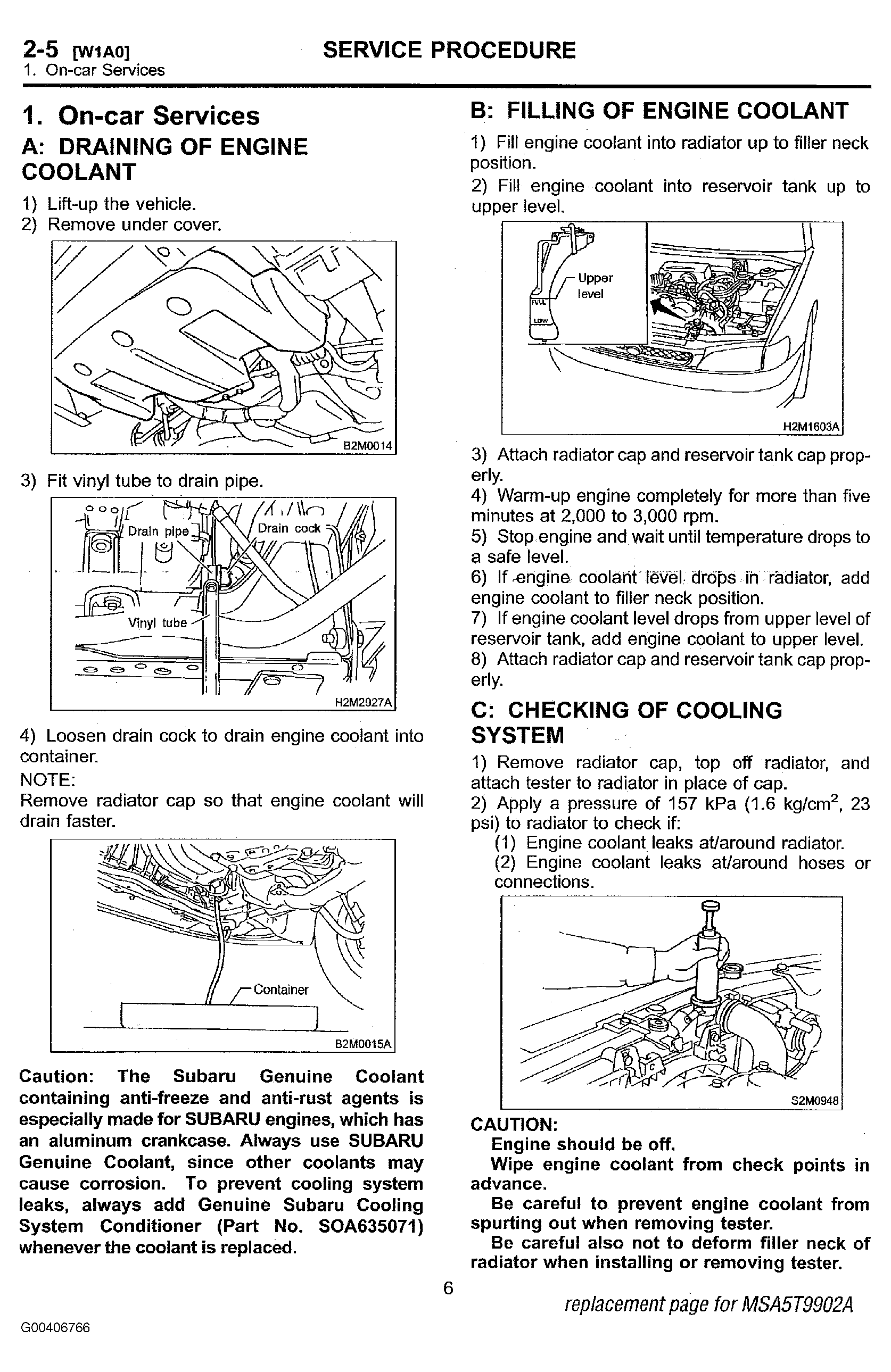

Fig 8: Replacement Page For MSA5T9902A, Section 2-5, Page 6

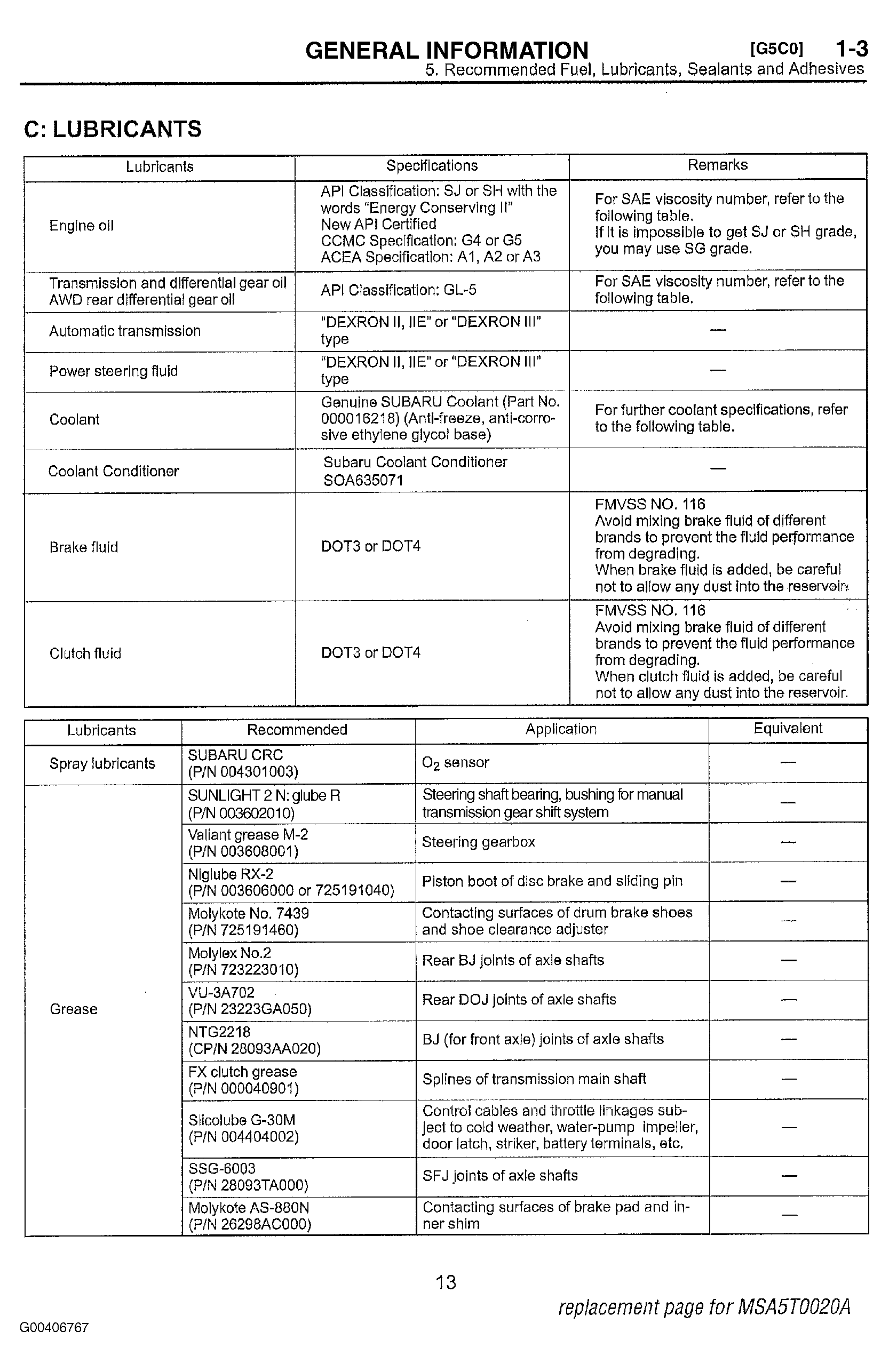

Fig 9: Replacement Page For MSA5T0020A, Section 1-3, Page 13

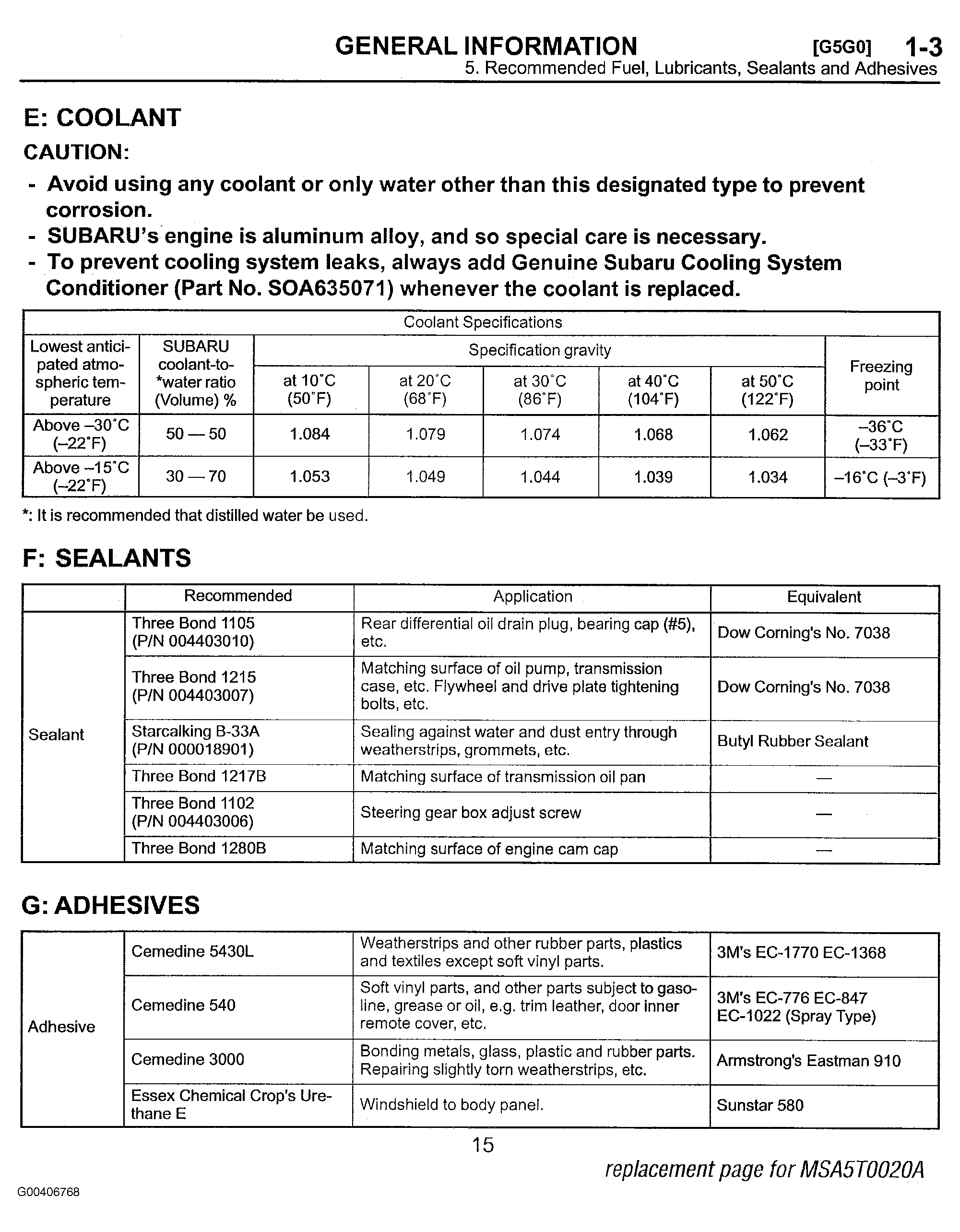

Fig 10: Replacement Page For MSA5T0020A, Section 1-3, Page 15

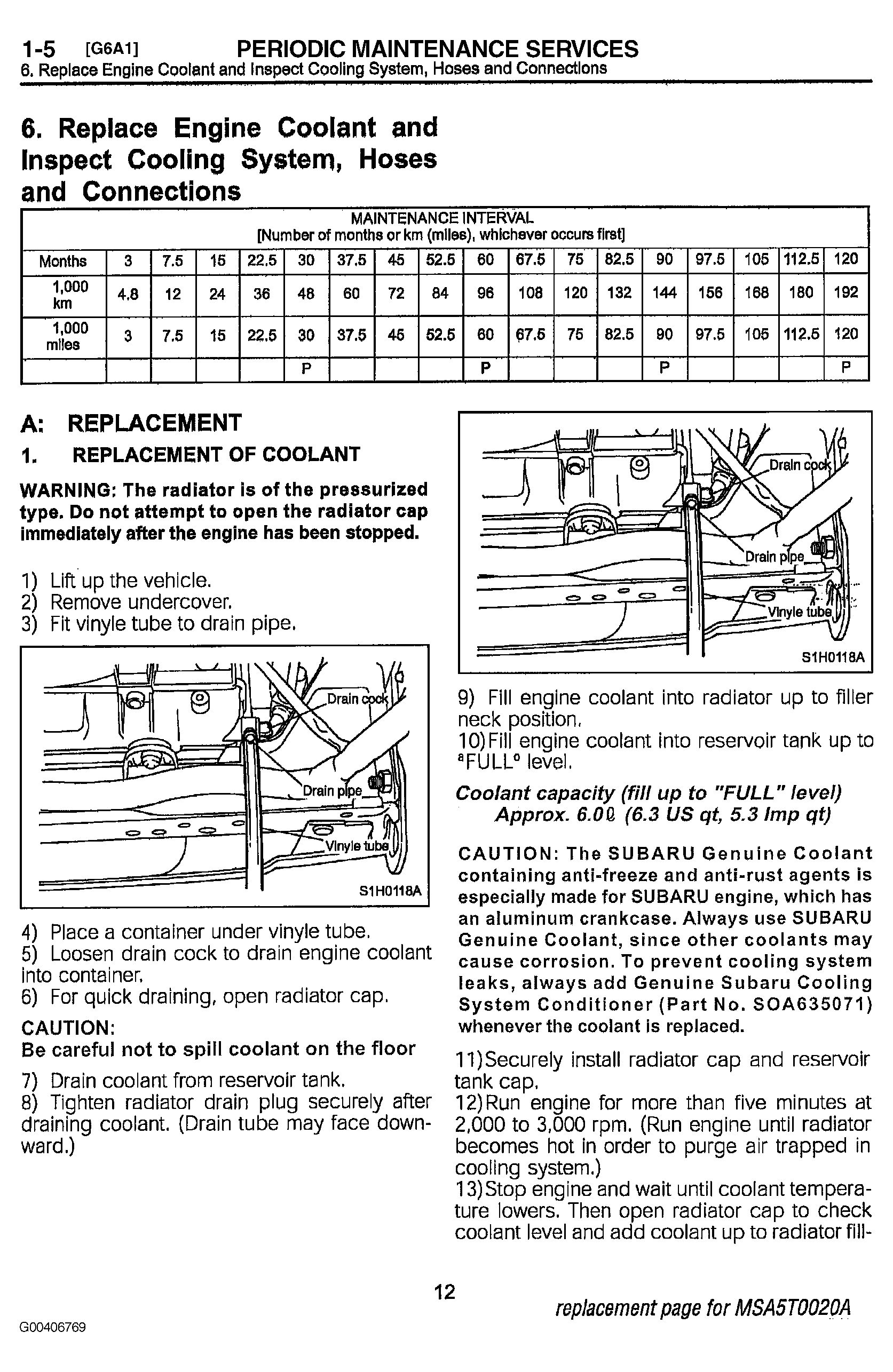

Fig 11: Replacement Page For MSA5T0020A, Section 1-5, Page 12

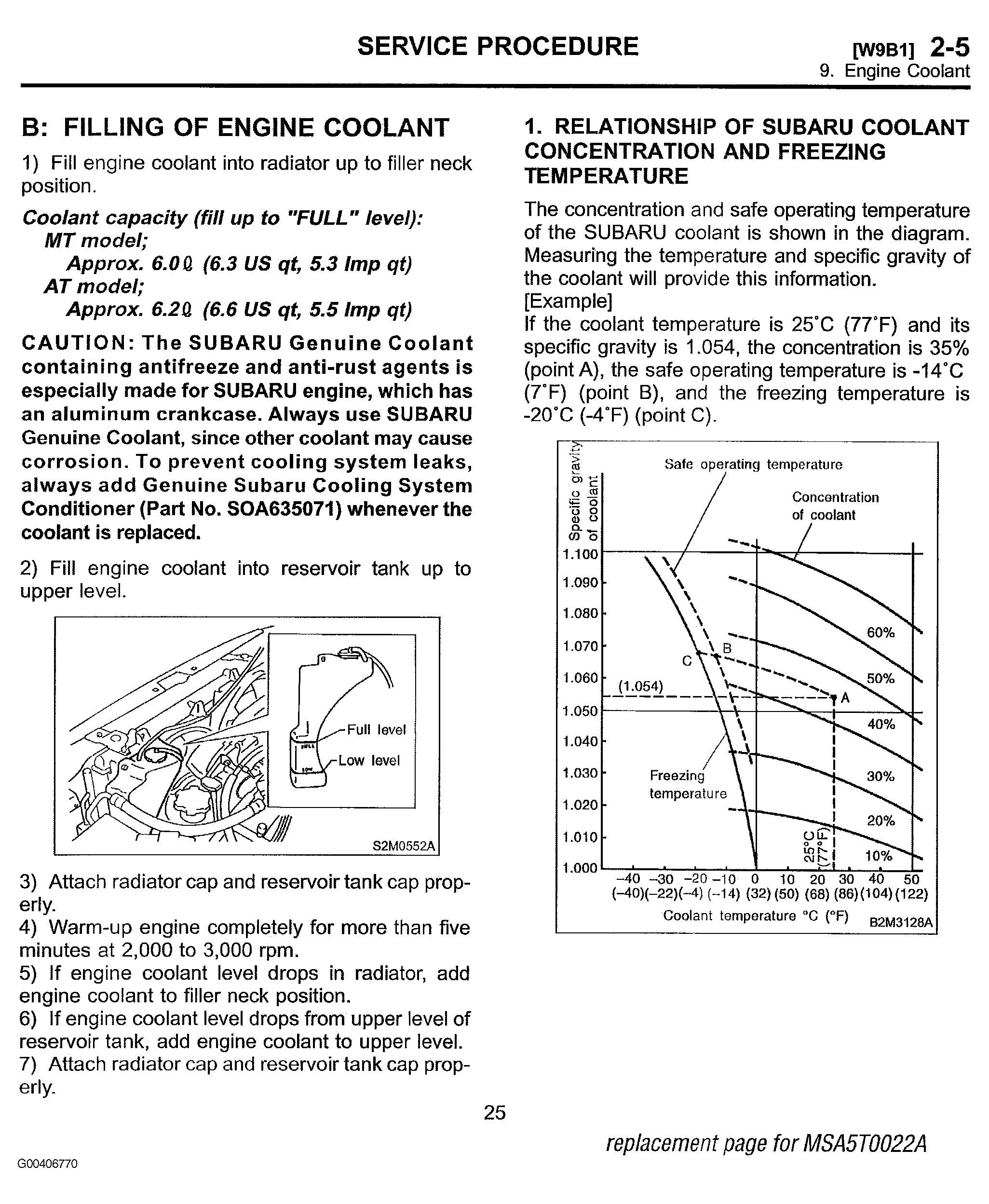

Fig 12: Replacement Page For MSA5T0022A, Section 2-5, Page 25

Fig 13: Replacement Page For MSA5T0010A, Section 1-3, Page 13

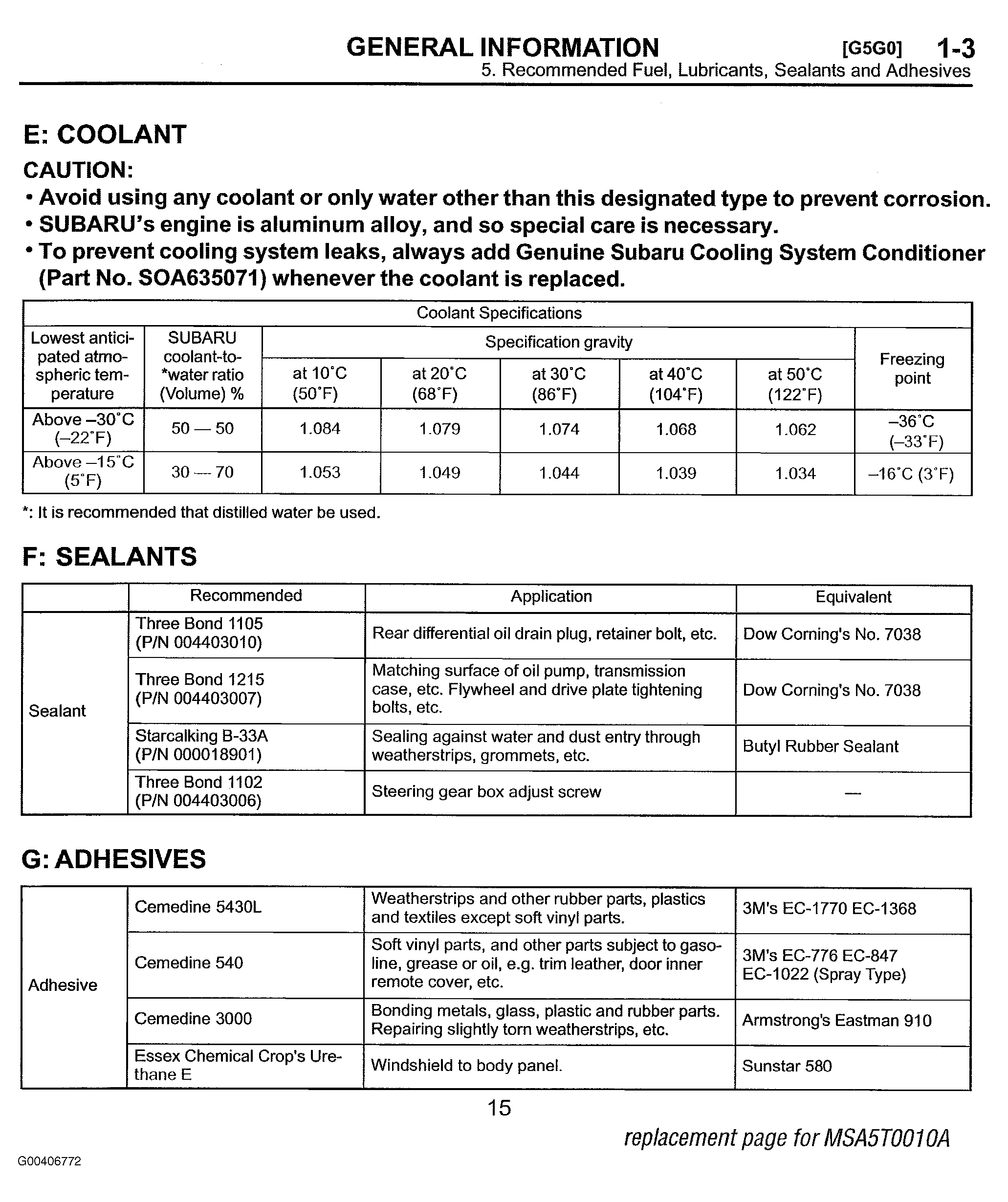

Fig 14: Replacement Page For MSA5T0010A, Section 1-3, Page 15

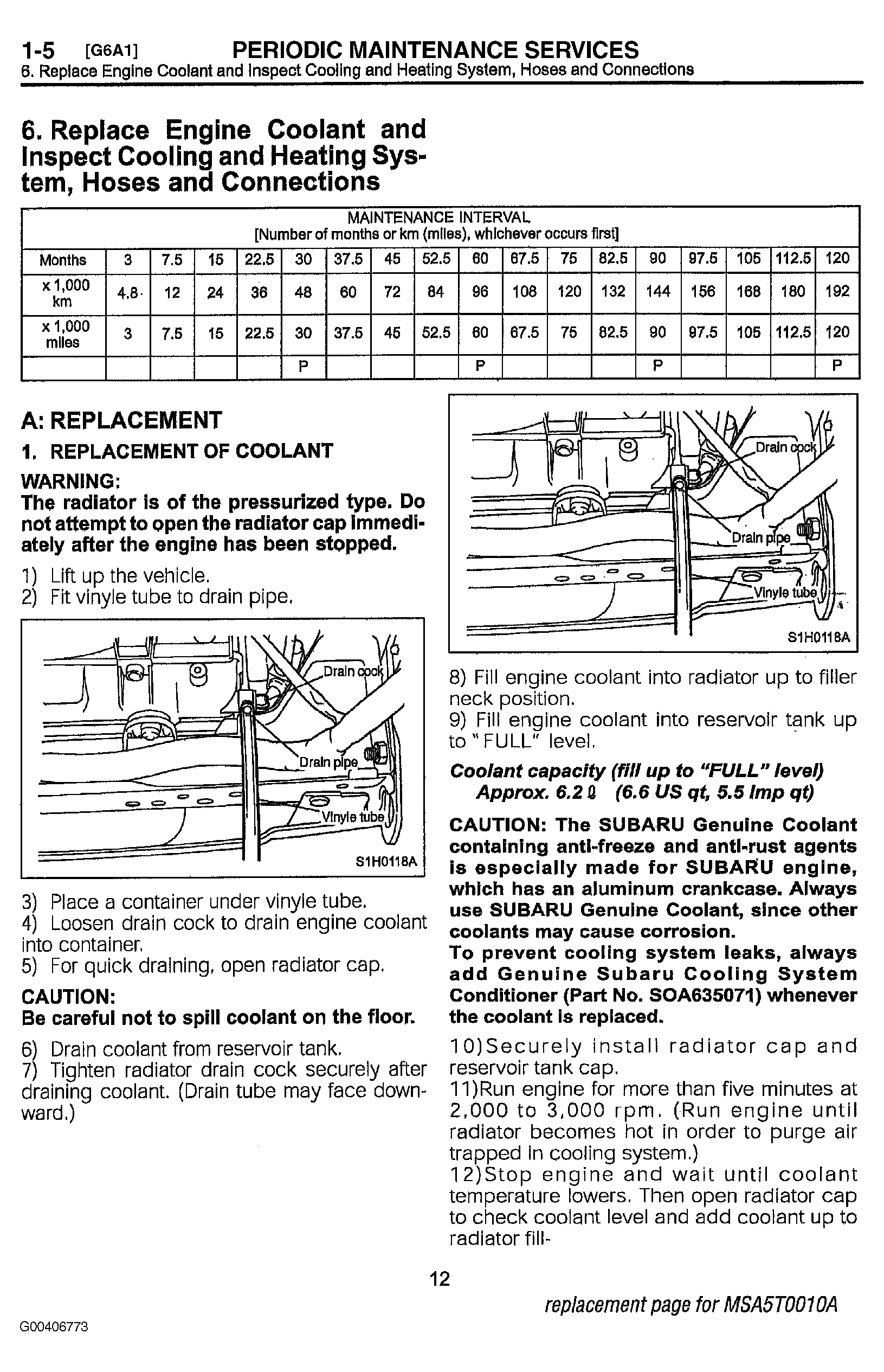

Fig 15: Replacement Page For MSA5T0010A, Section 1-5, Page 12

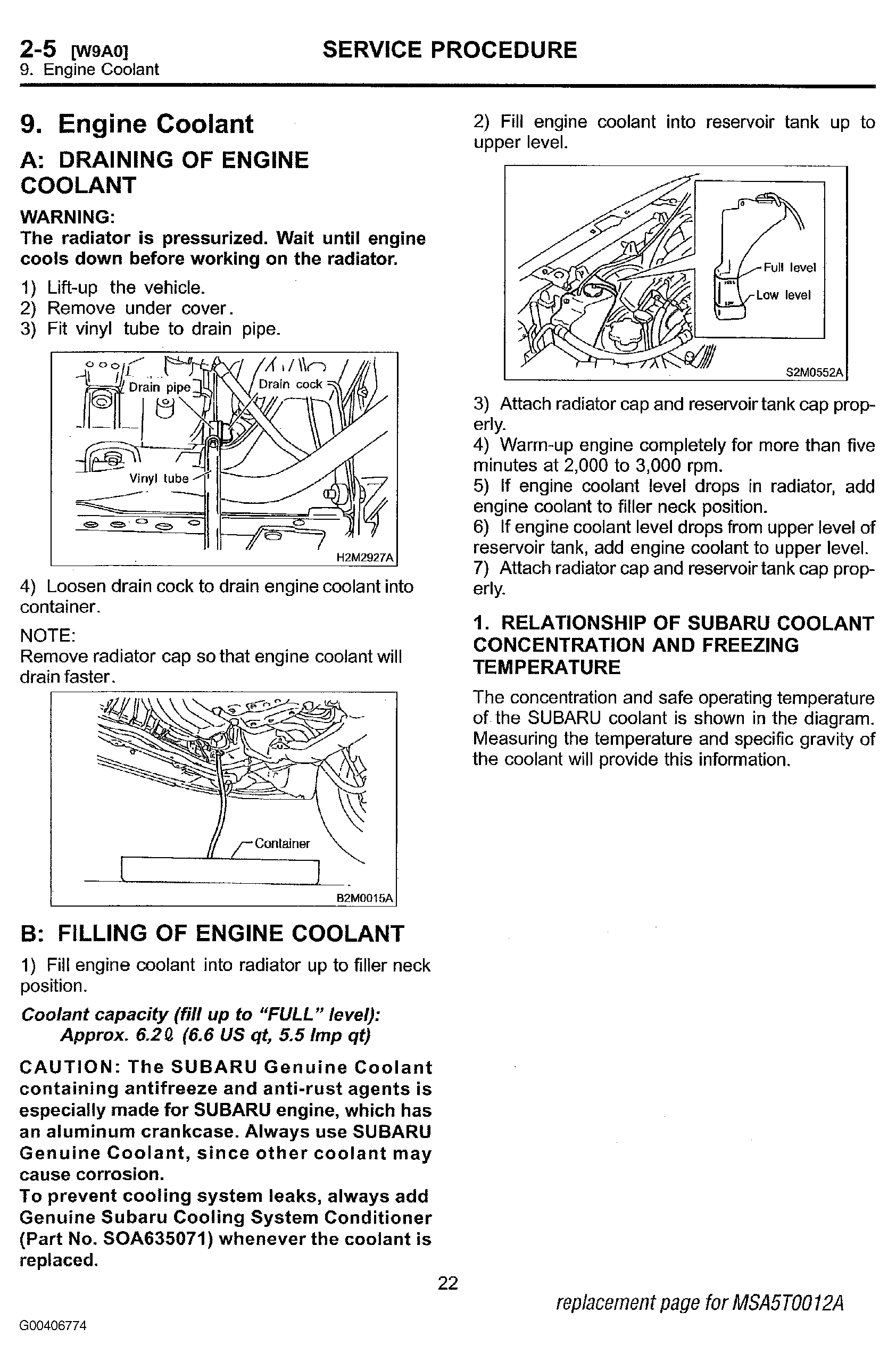

Fig 16: Replacement Page For MSA5T0012A, Section 2-5, Page 22

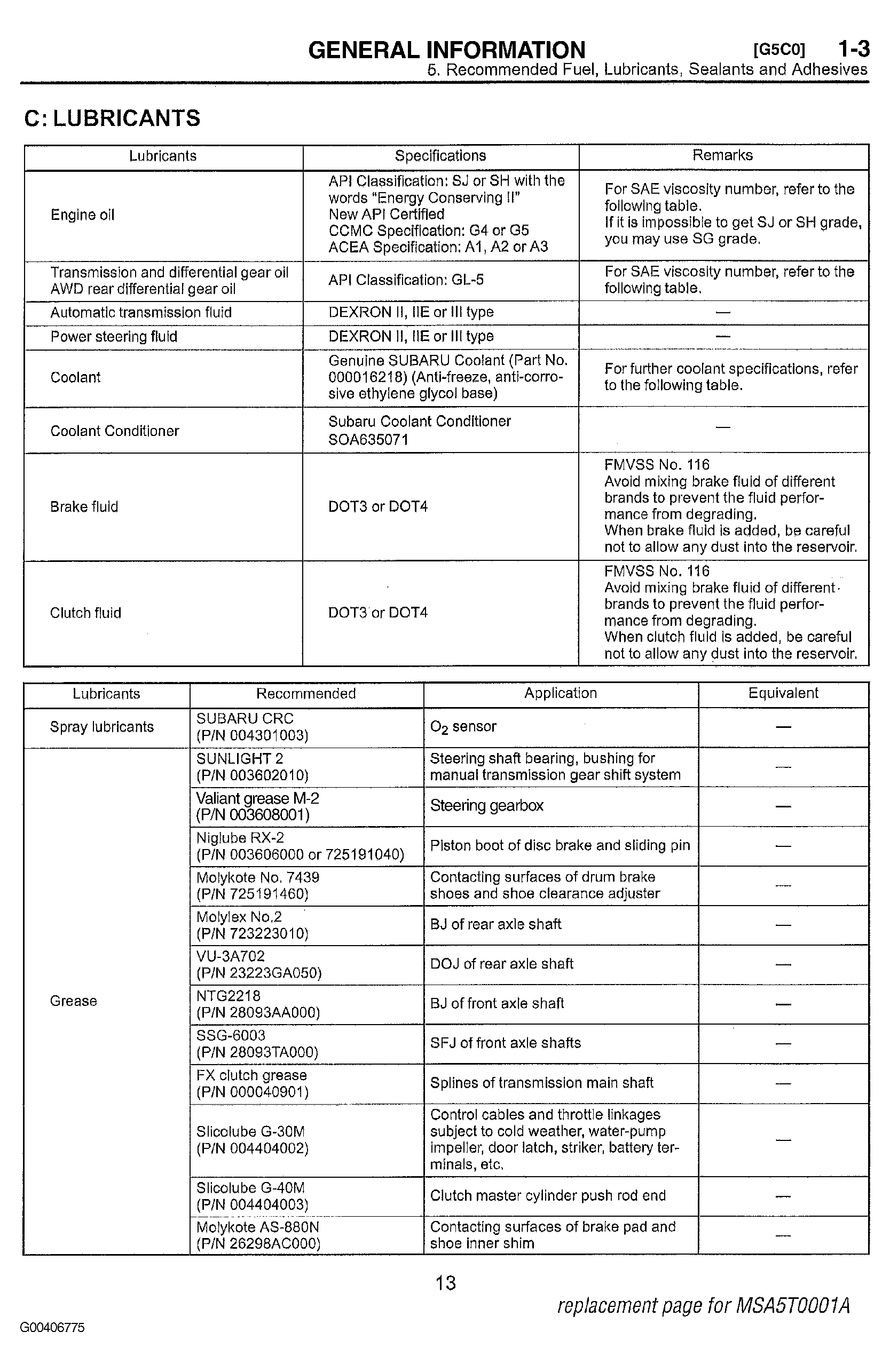

Fig 17: Replacement Page For MSA5T0001A, Section 1-3, Page 13

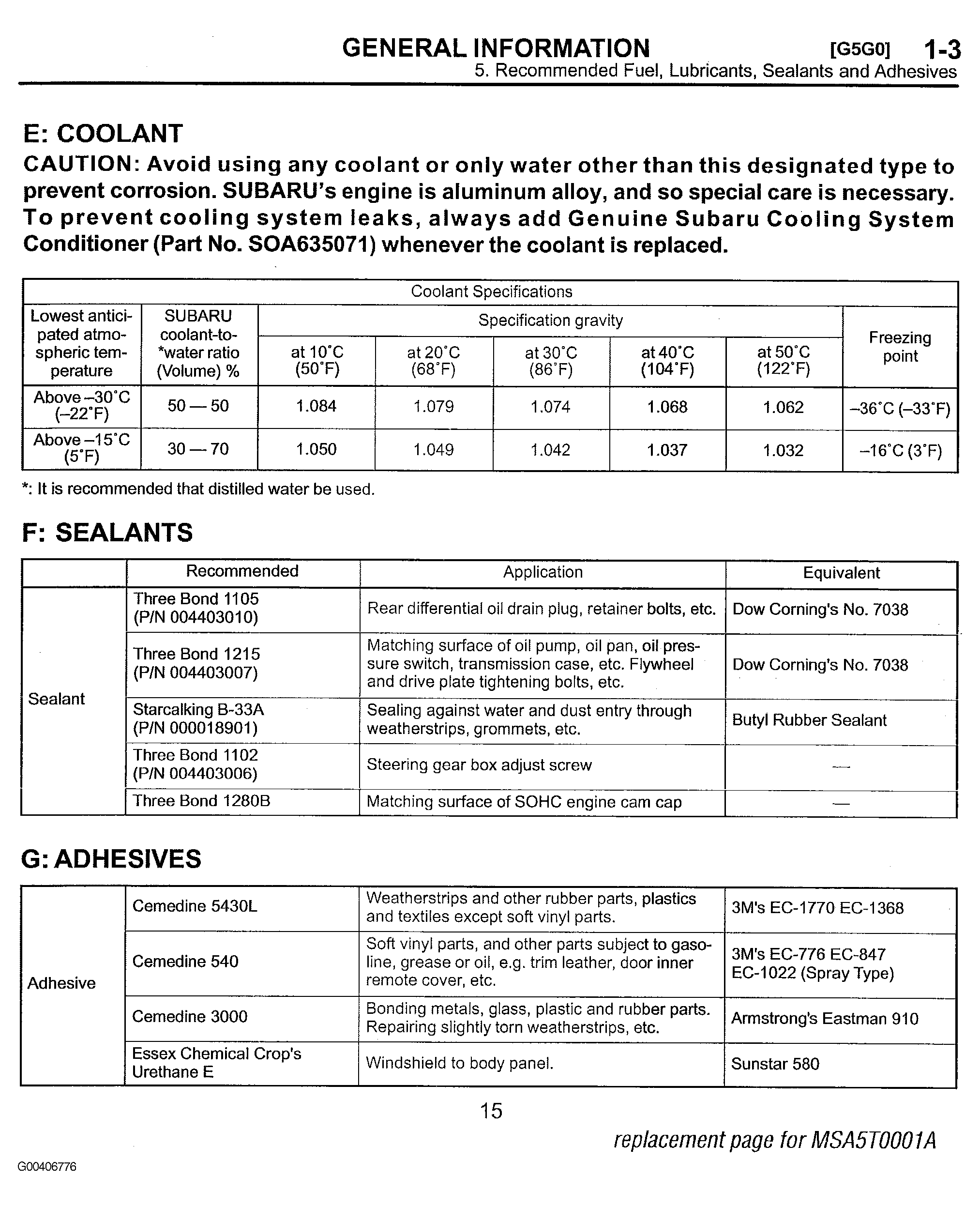

Fig 18: Replacement Page For MSA5T0001A, Section 1-3, Page 15

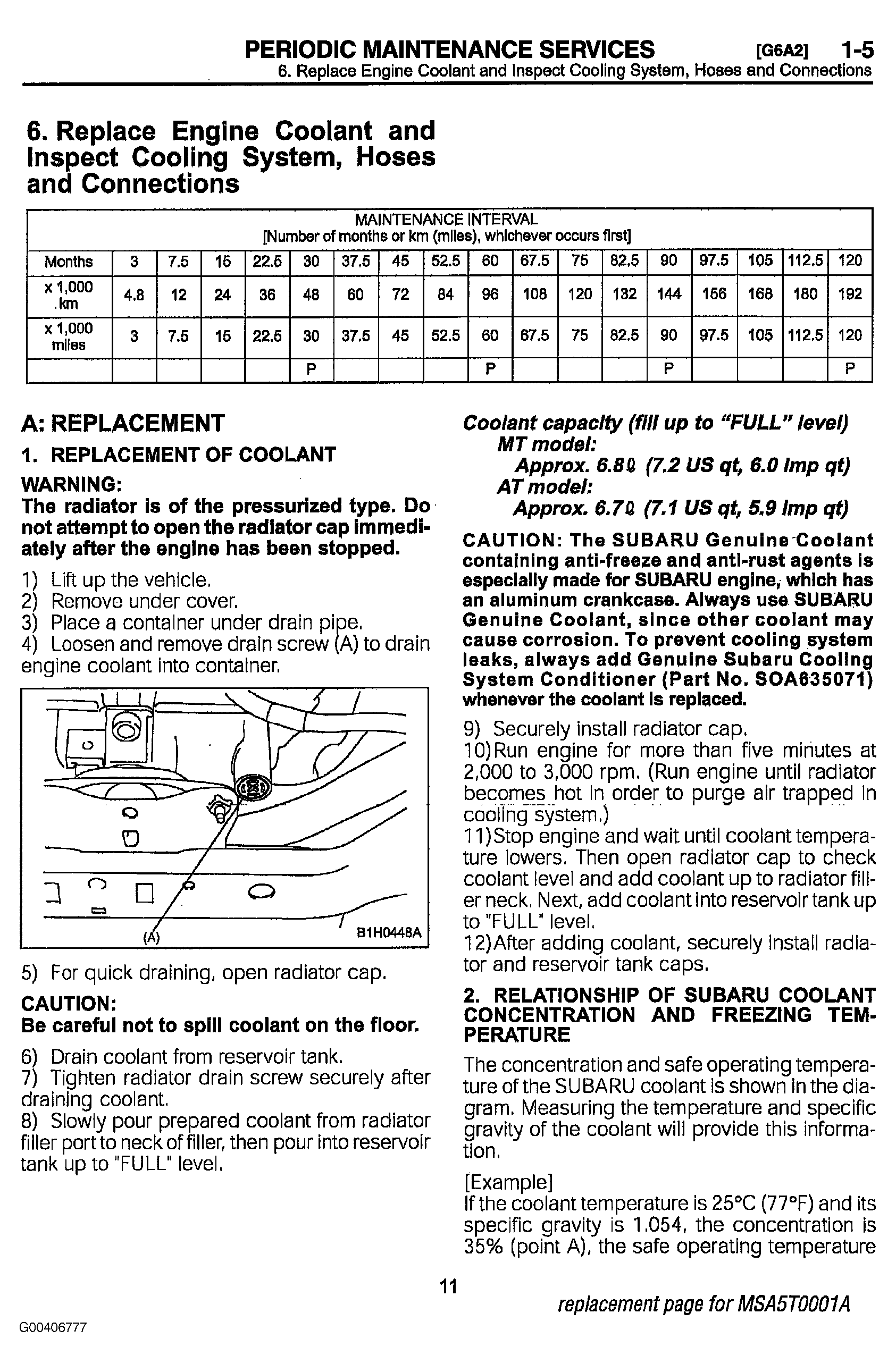

Fig 19: Replacement Page For MSA5T0001A, Section 1-5, Page 11

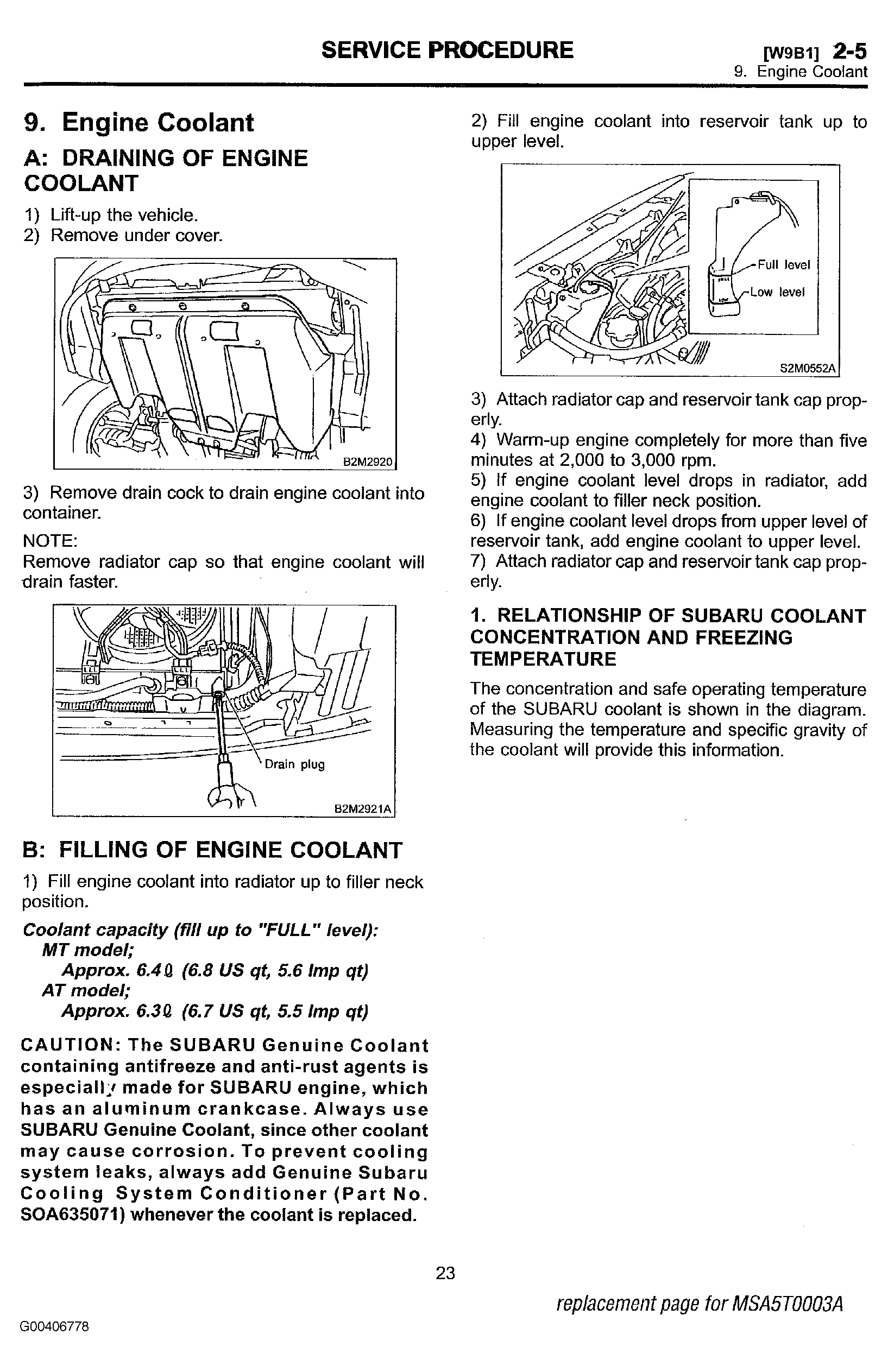

Fig 20: Replacement Page For MSA5T0003A, Section 2-5, Page 23

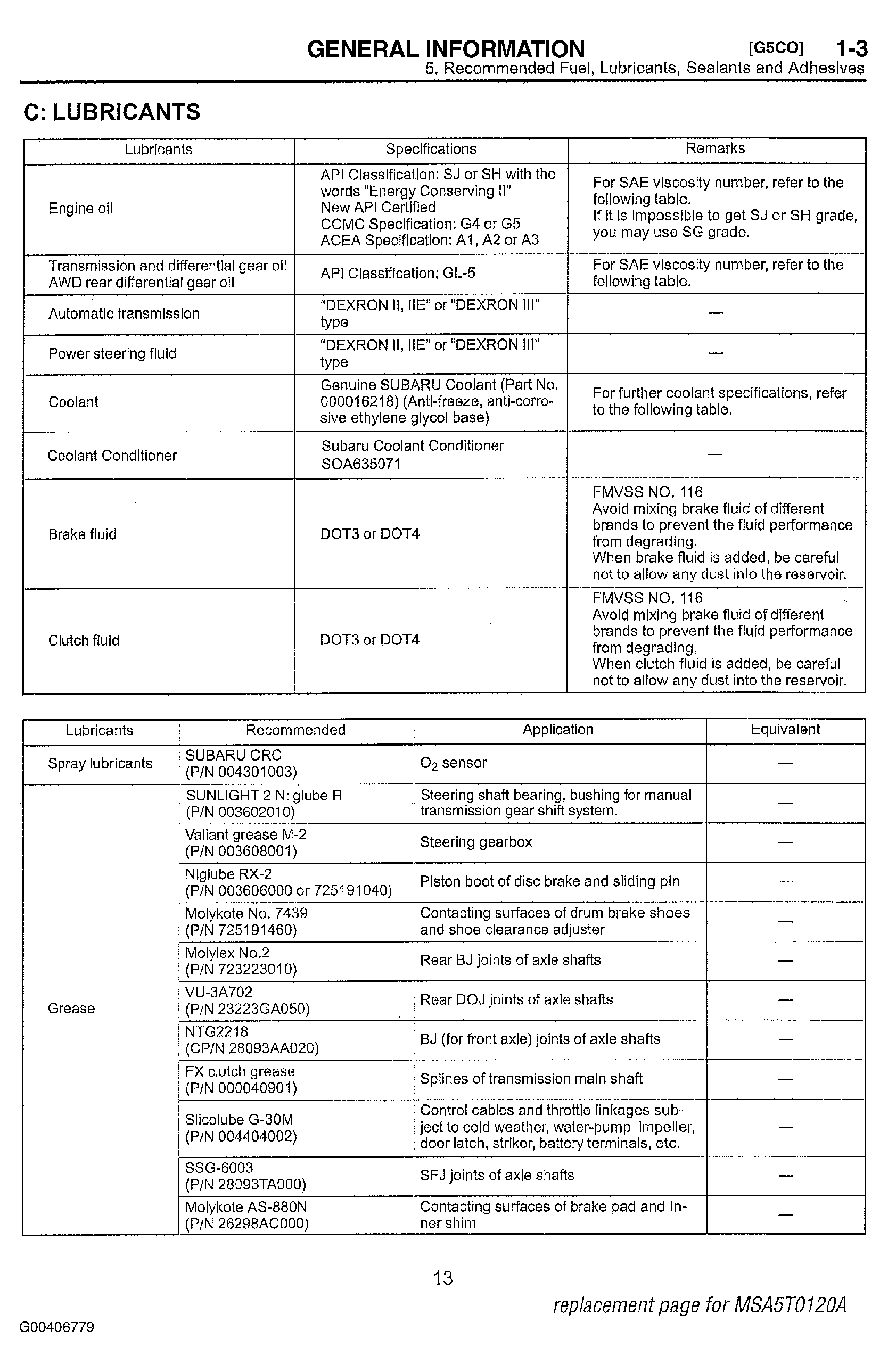

Fig 21: Replacement Page For MSA5T0120A, Section 1-3, Page 13

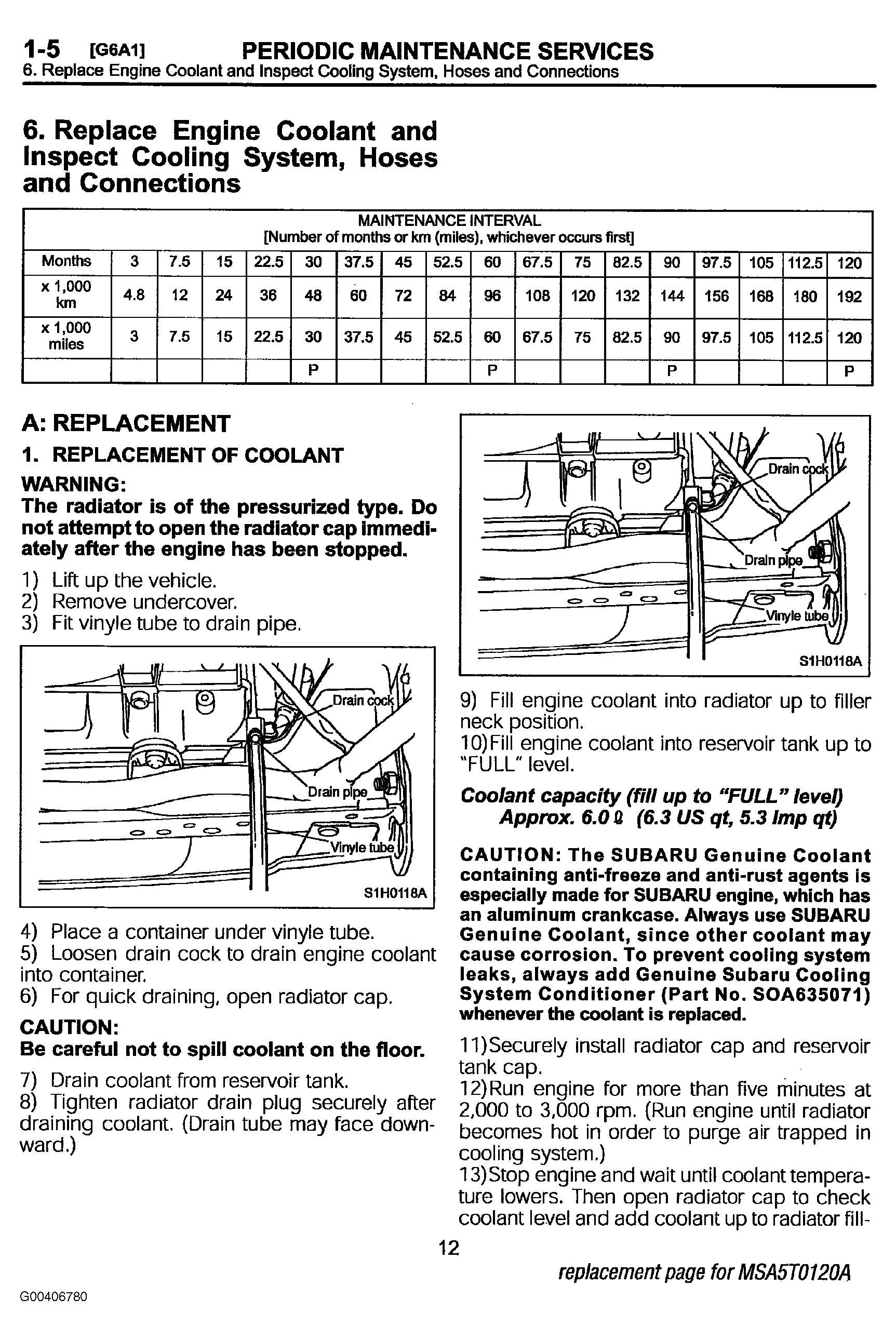

Fig 22: Replacement Page For MSA5T0120A, Section 1-5, Page 12

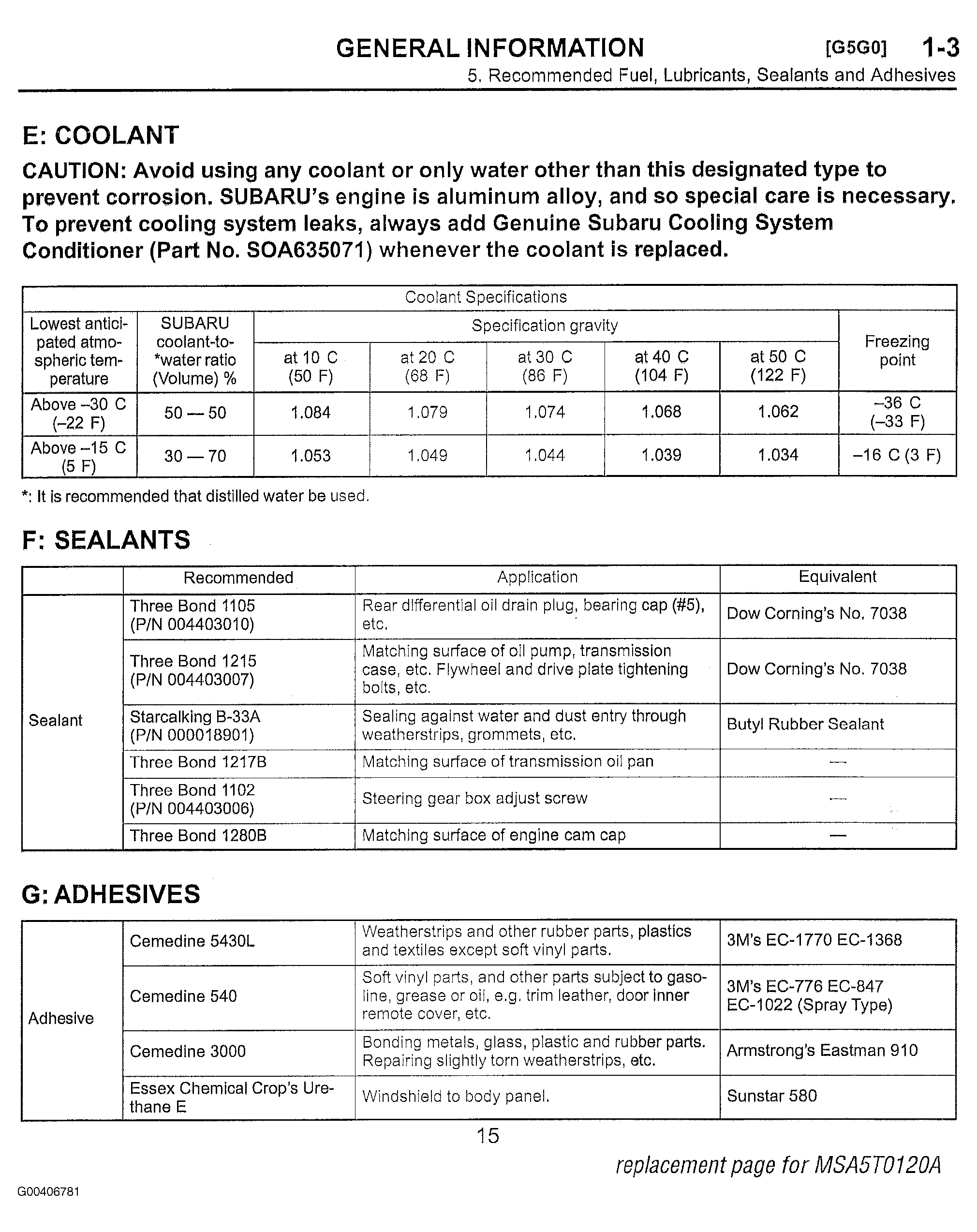

Fig 23: Replacement Page For MSA5T0120A, Section 1-3, Page 15

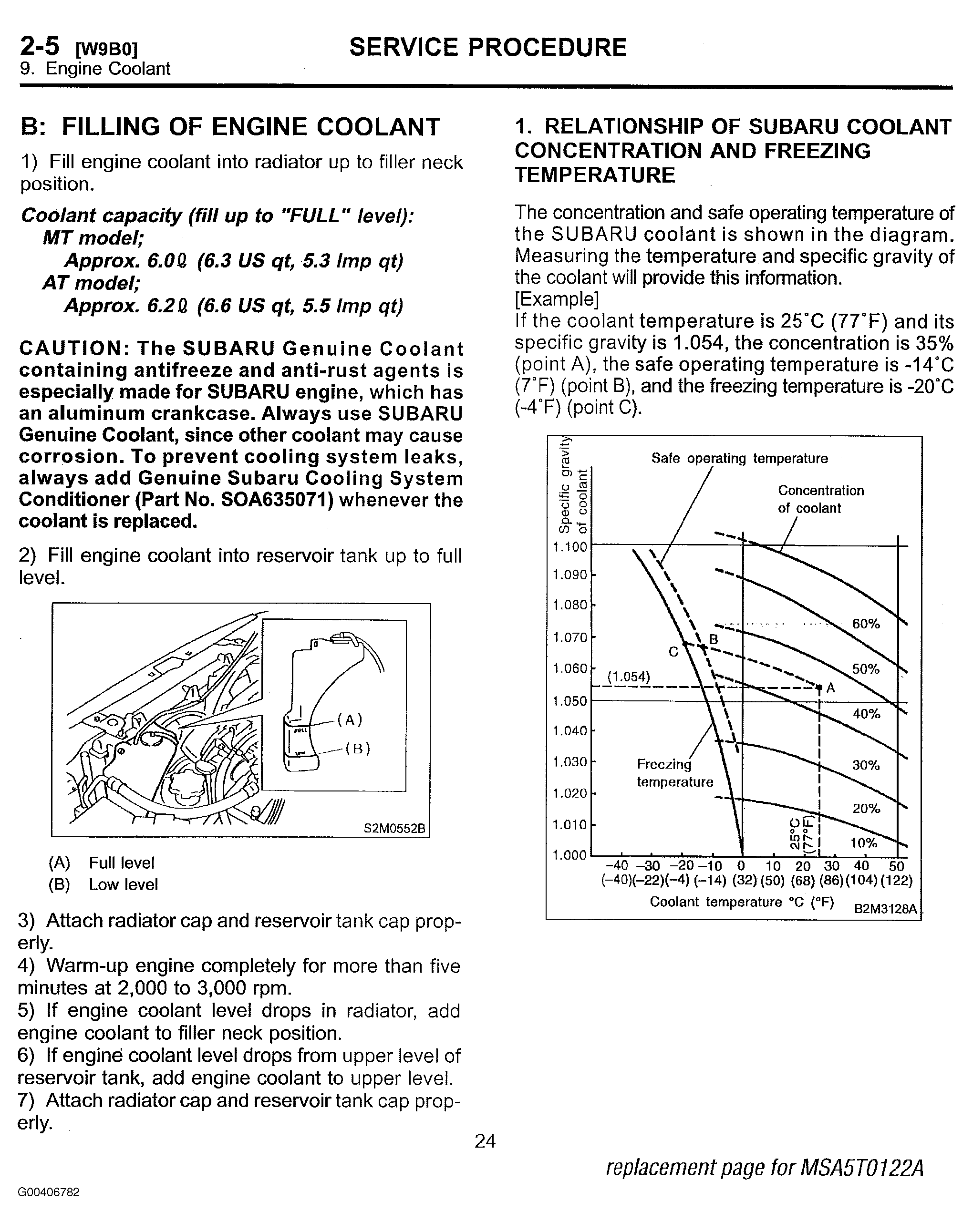

Fig 24: Replacement Page For MSA5T0122A, Section 2-5, Page 24

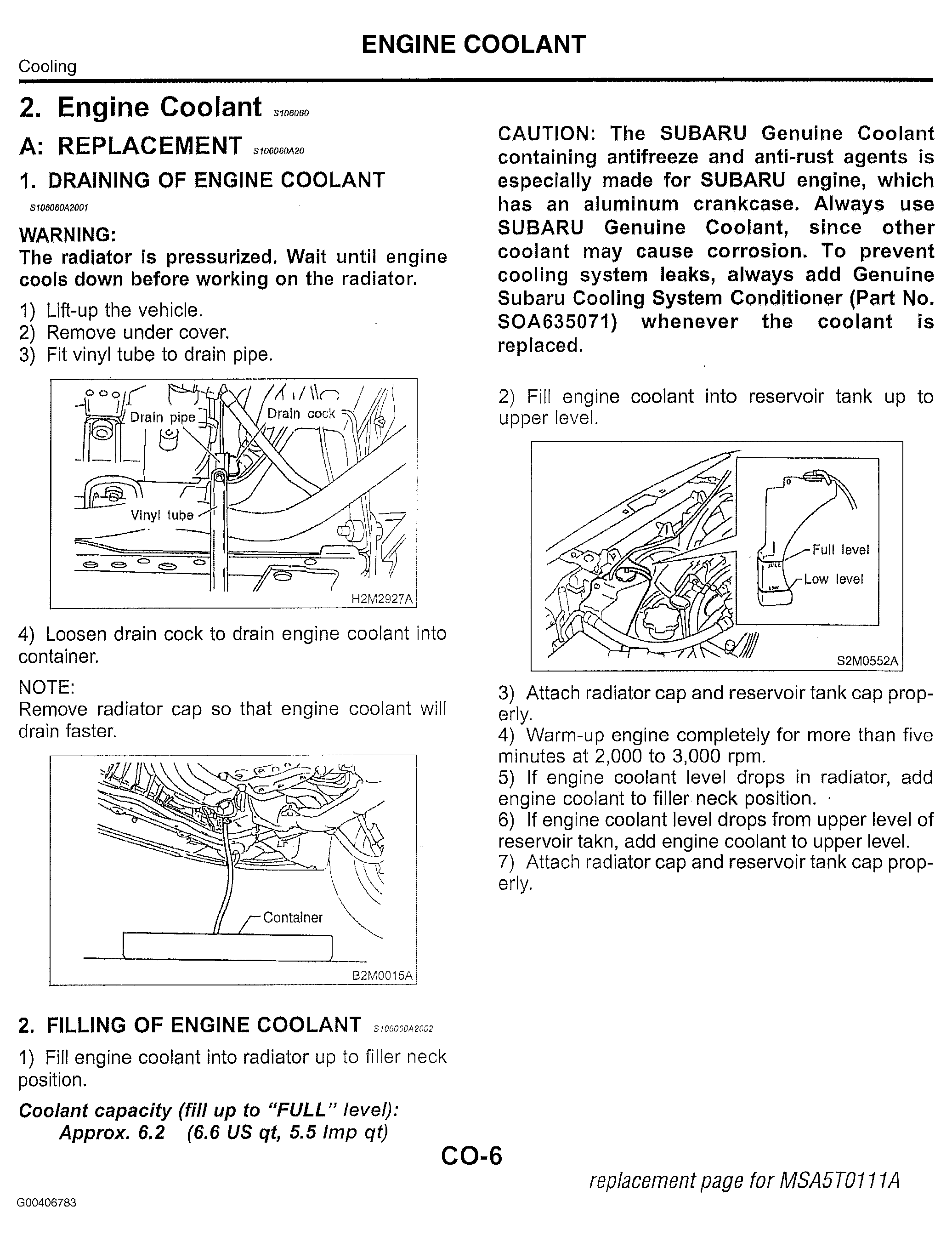

Fig 25: Replacement Page For MSA5T0111A, Page CO-6

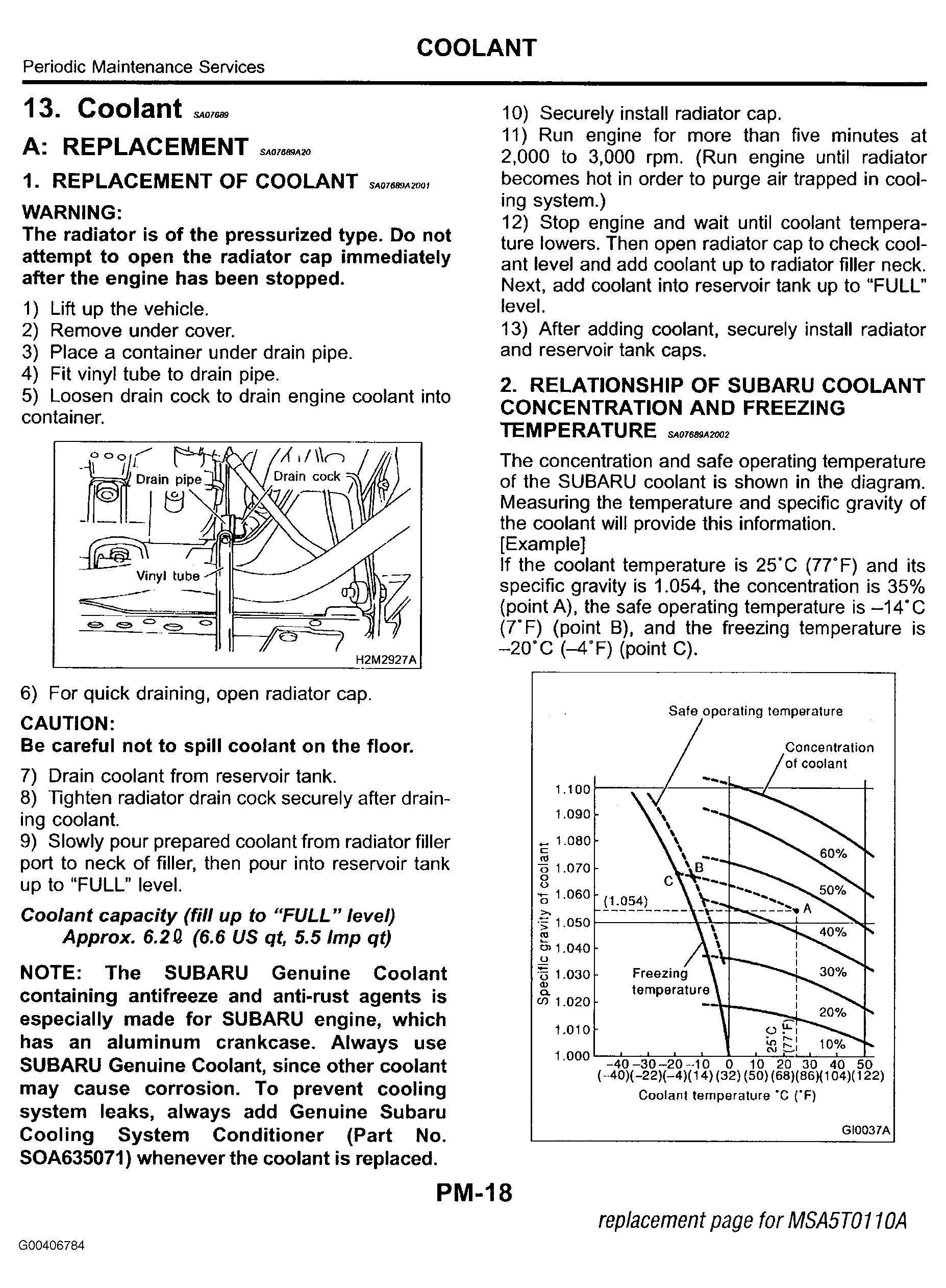

Fig 26: Replacement Page For MSA5T0110A, Page PM-18

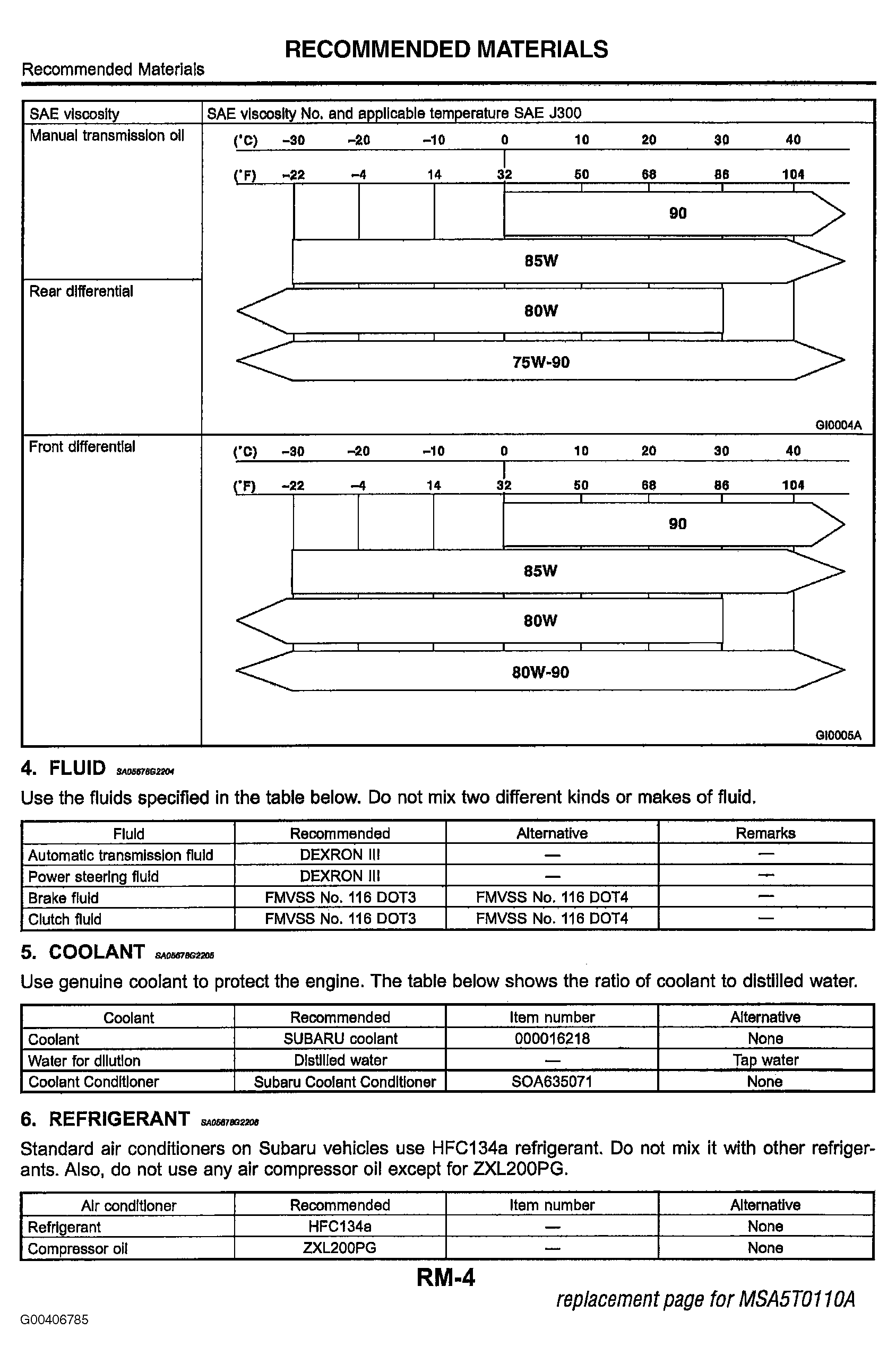

Fig 27: Replacement Page For MSA5T0110A, Page RM-4

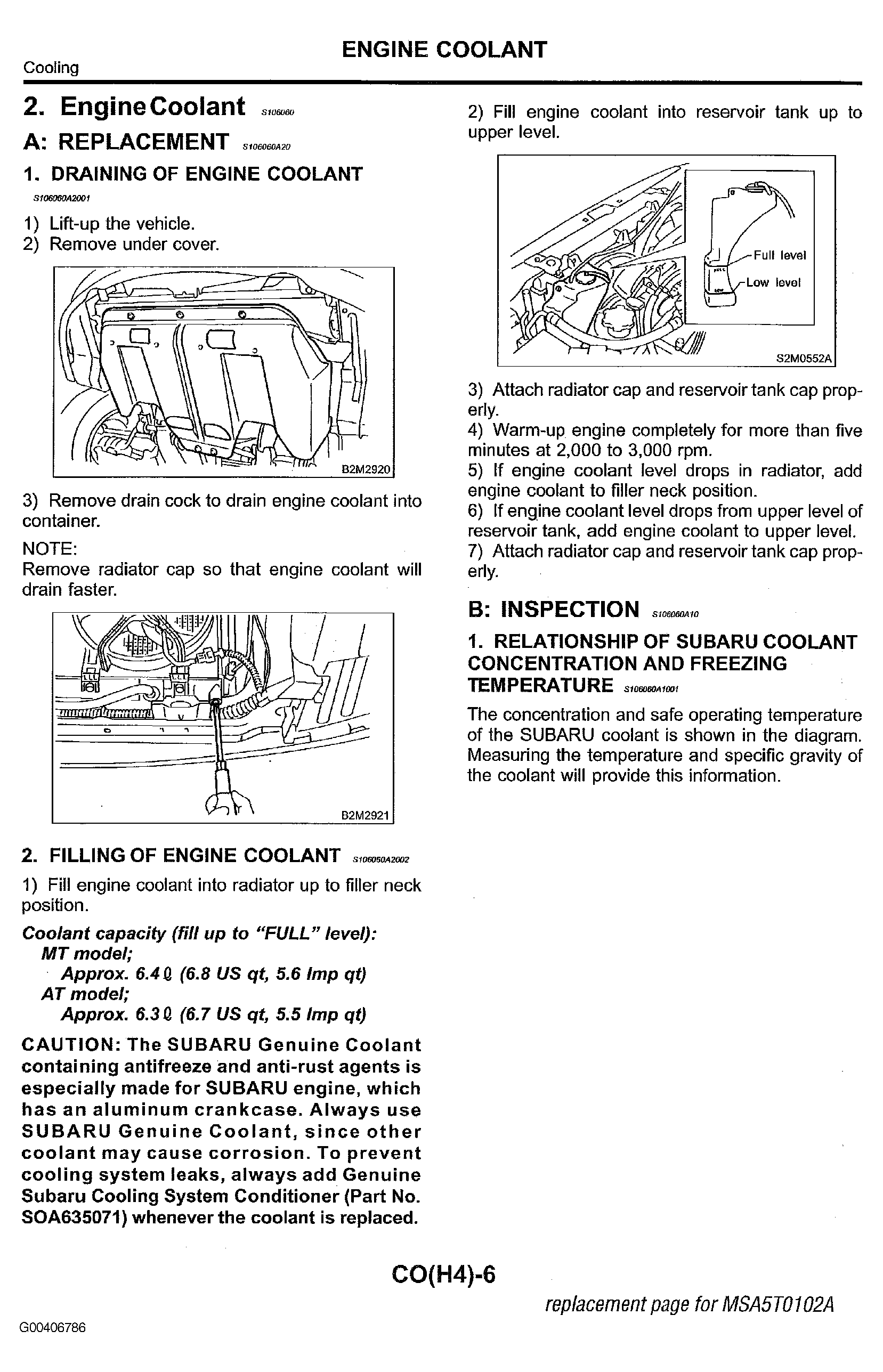

Fig 28: Replacement Page For MSA5T0102A, Page CO(H4)-6

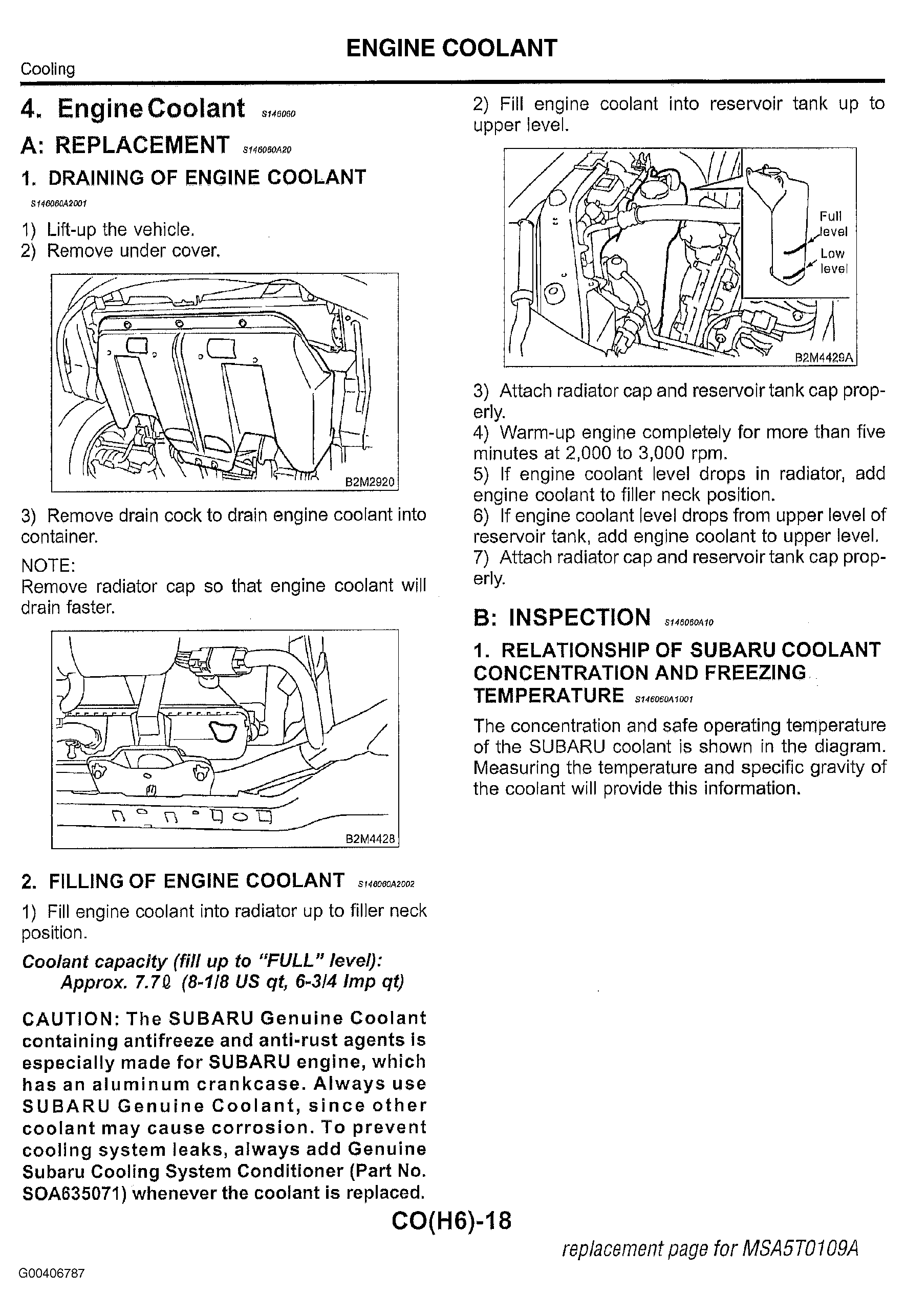

Fig 29: Replacement Page For MSA5T0109A, Page CO(H6)-18

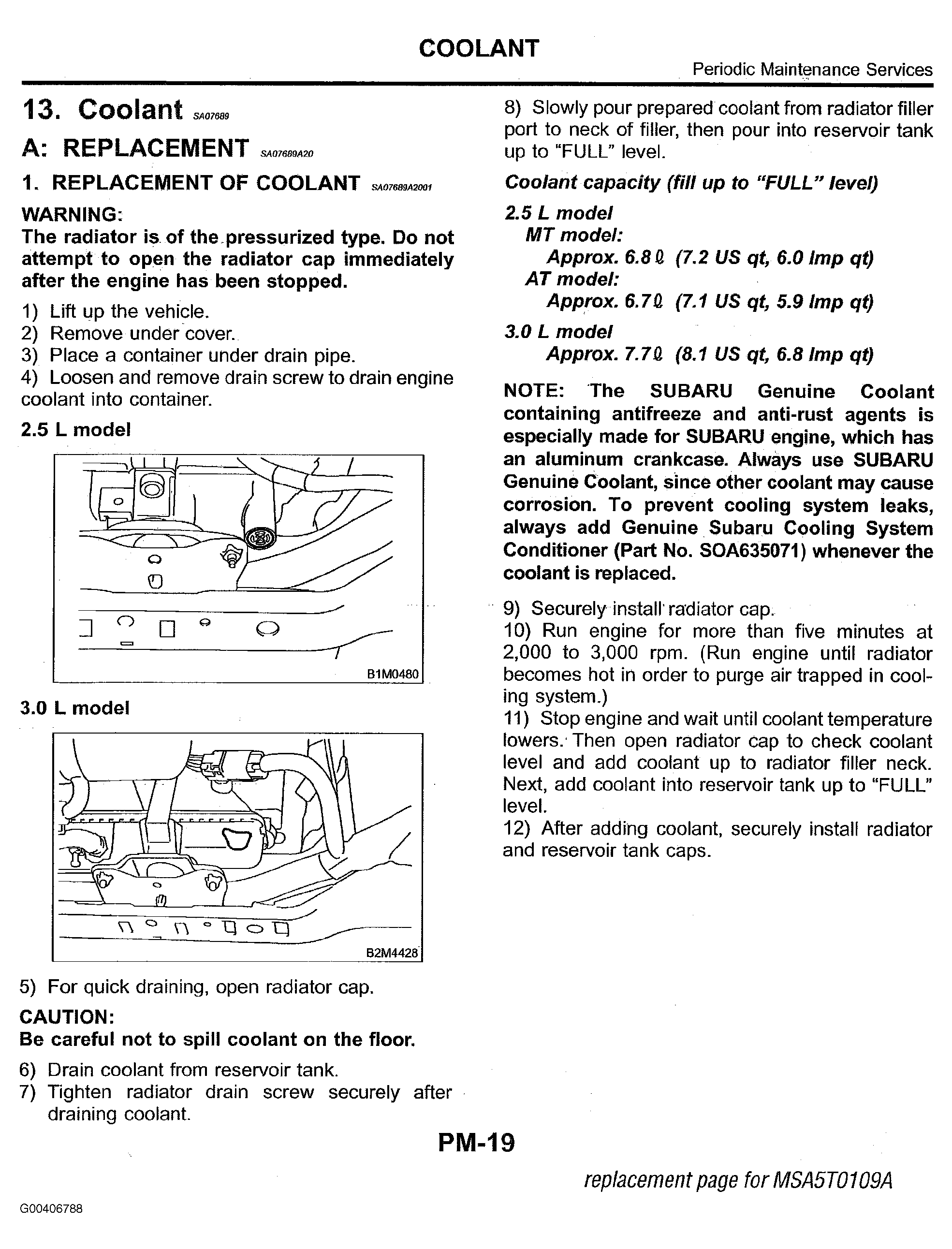

Fig 30: Replacement Page For MSA5T0109A, Page PM-19

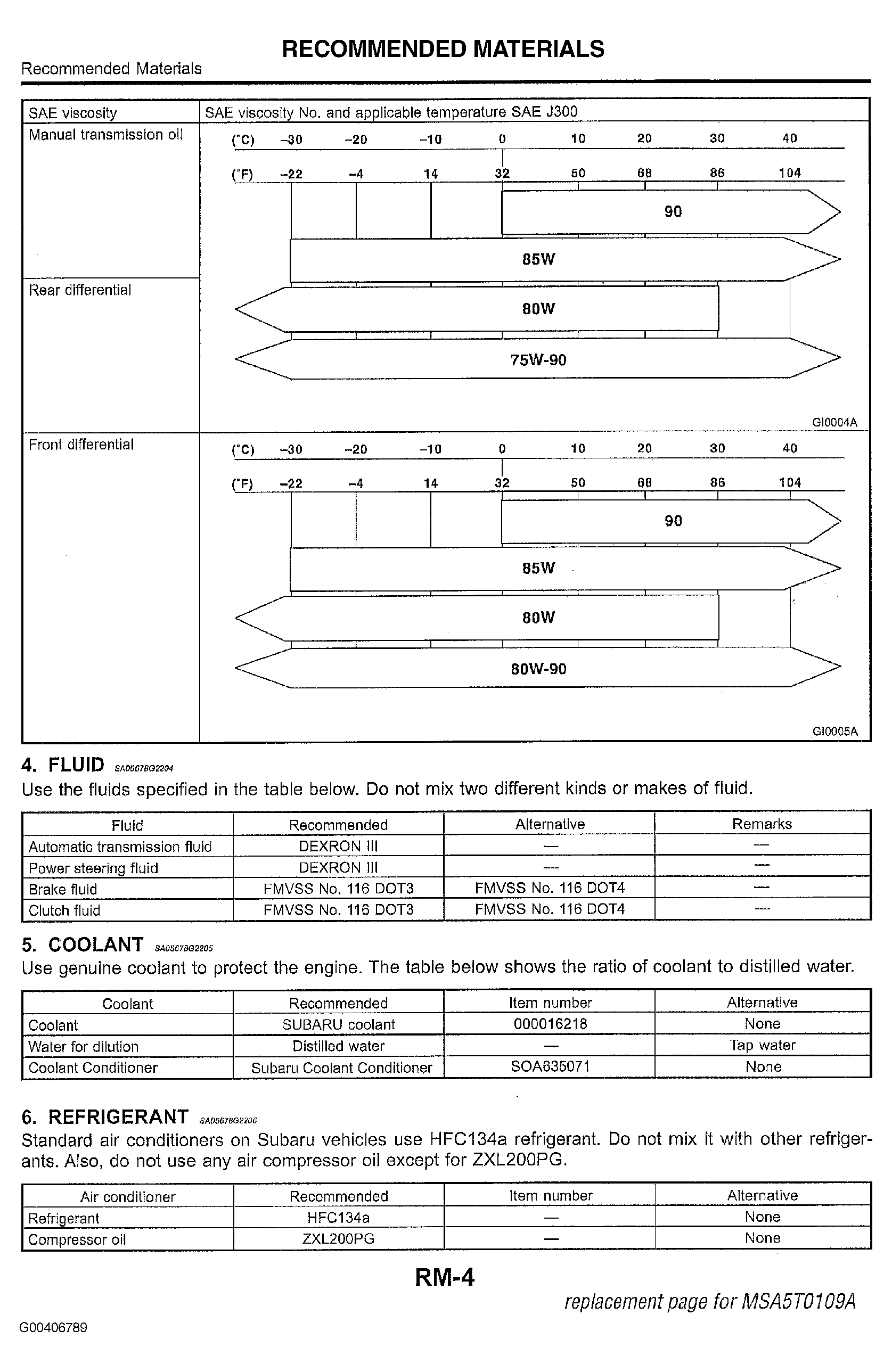

Fig 31: Replacement Page For MSA5T0109A, Page RM-4

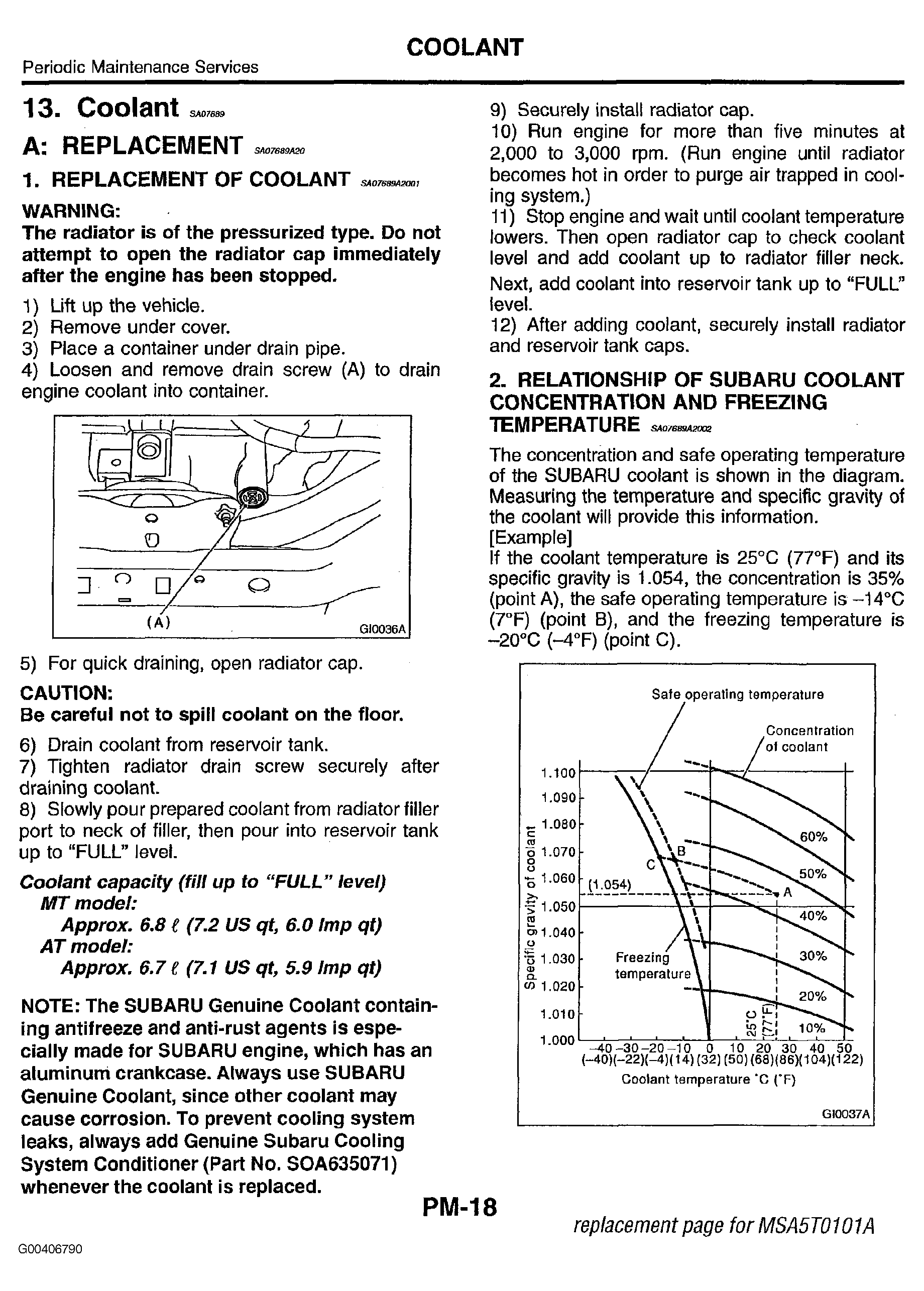

Fig 32: Replacement Page For MSA5T0101A, Page PM-18

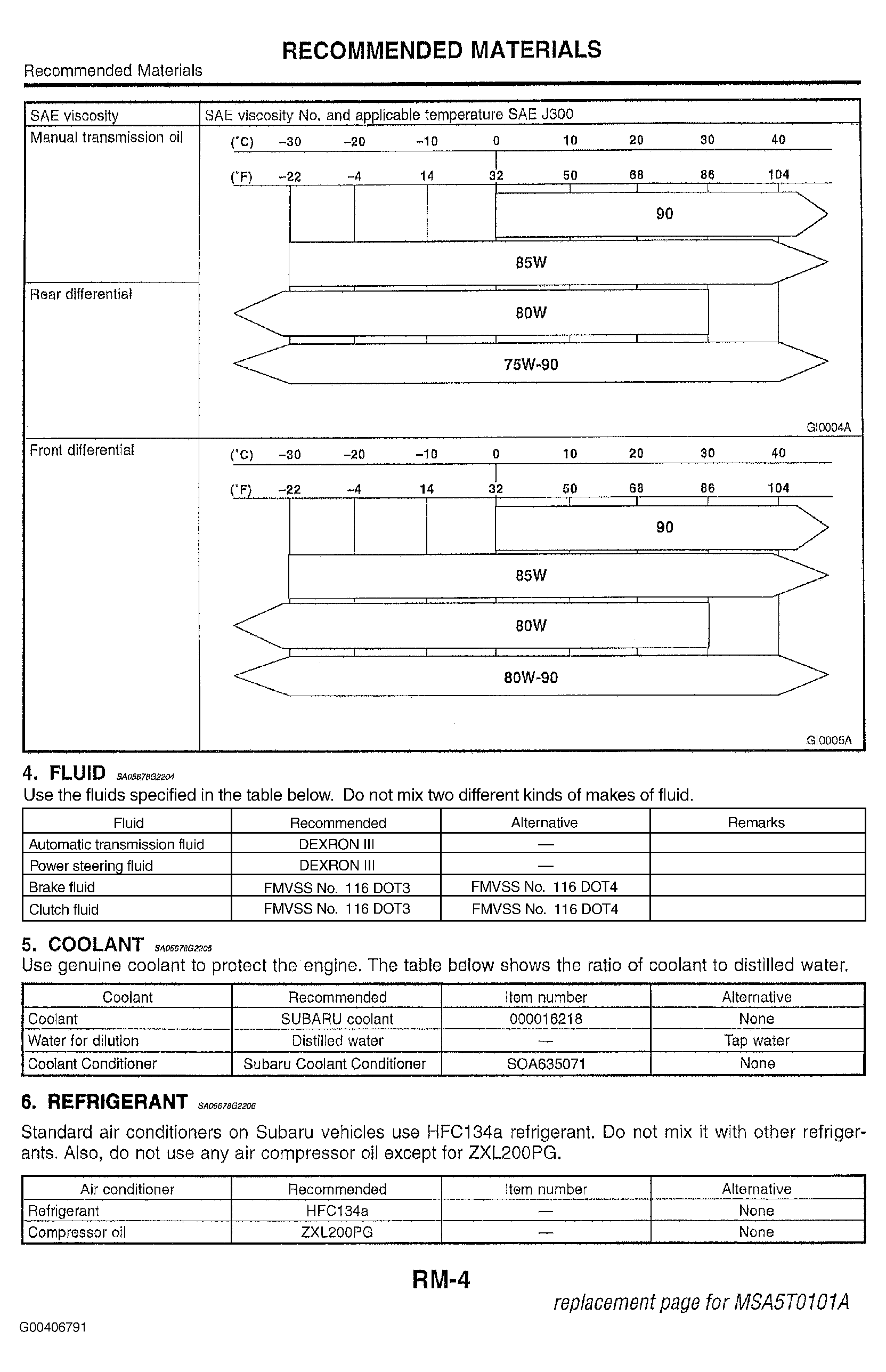

Fig 33: Replacement Page For MSA5T0101A, Page RM-4

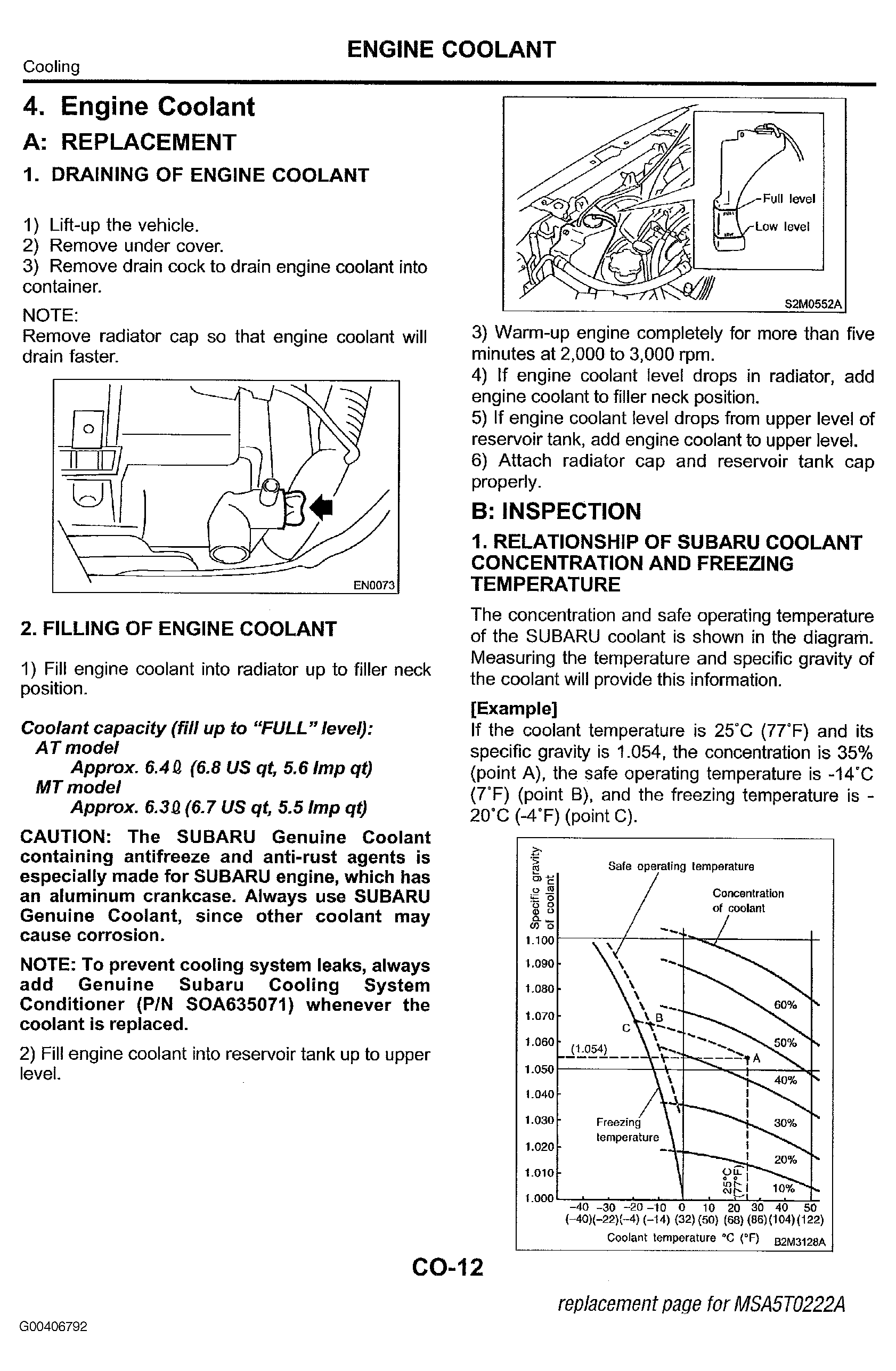

Fig 34: Replacement Page For MSA5T0222A, Page CO-12

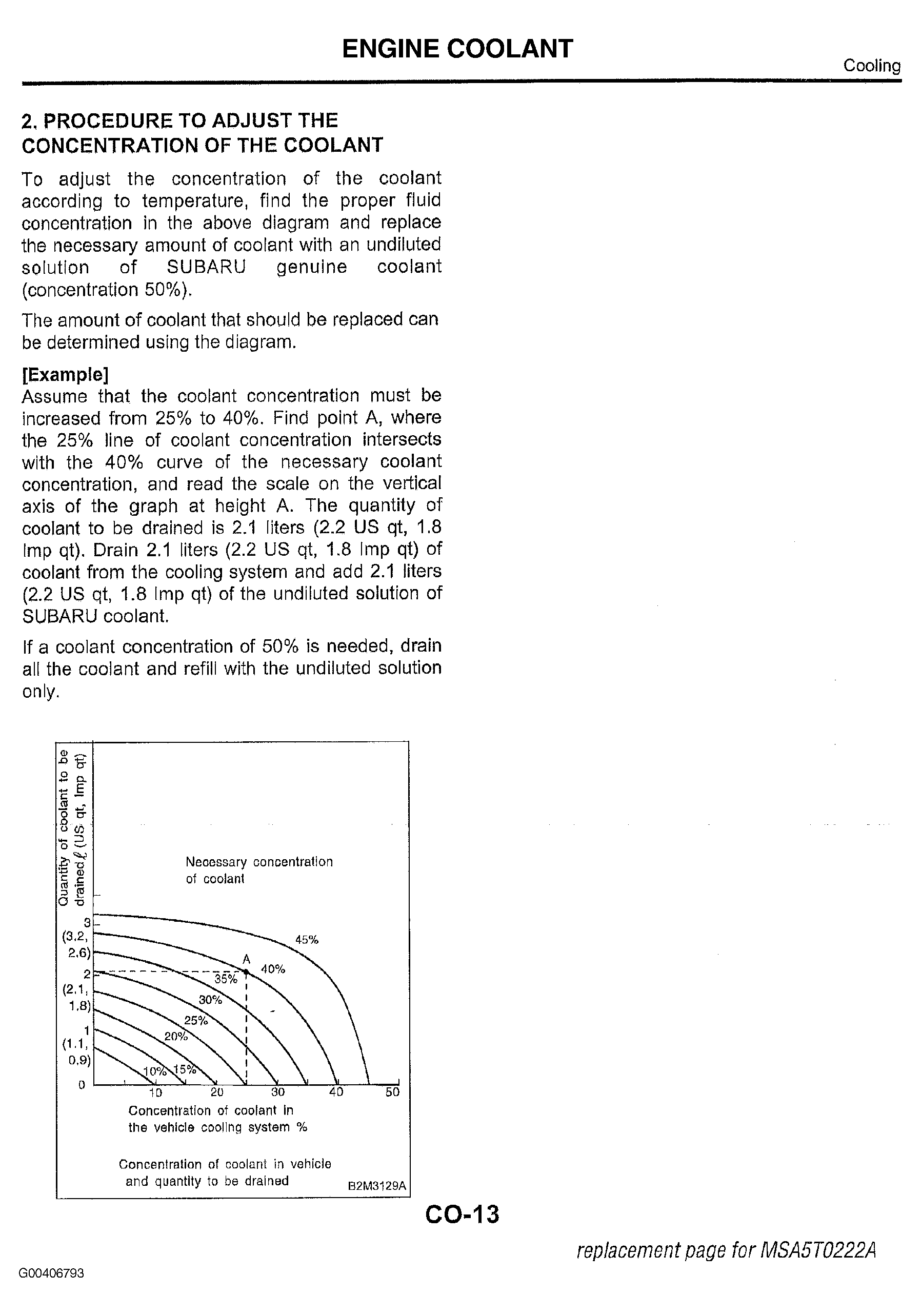

Fig 35: Replacement Page For MSA5T0222A, Page CO-13

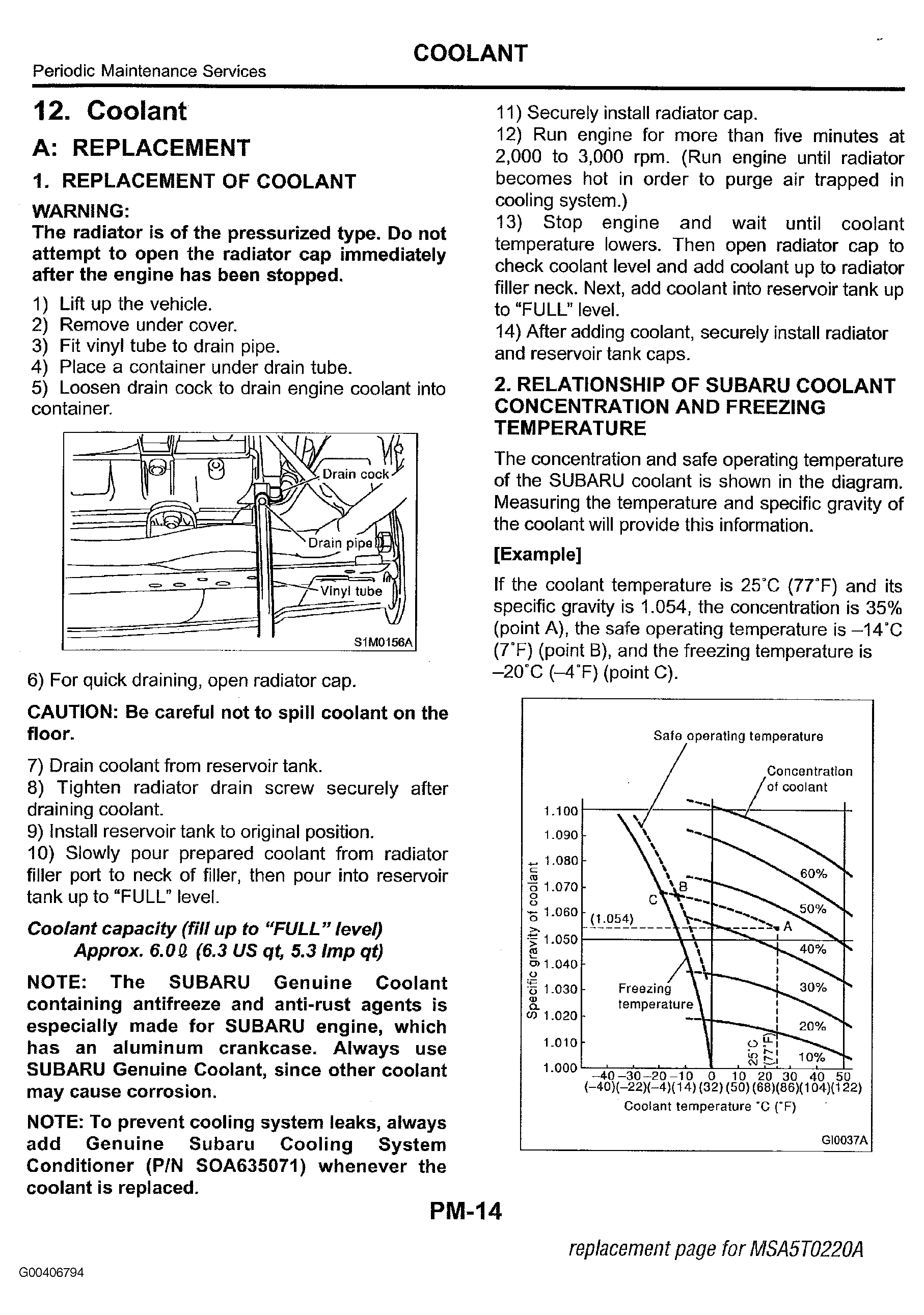

Fig 36: Replacement Page For MSA5T0220A, Page PM-14

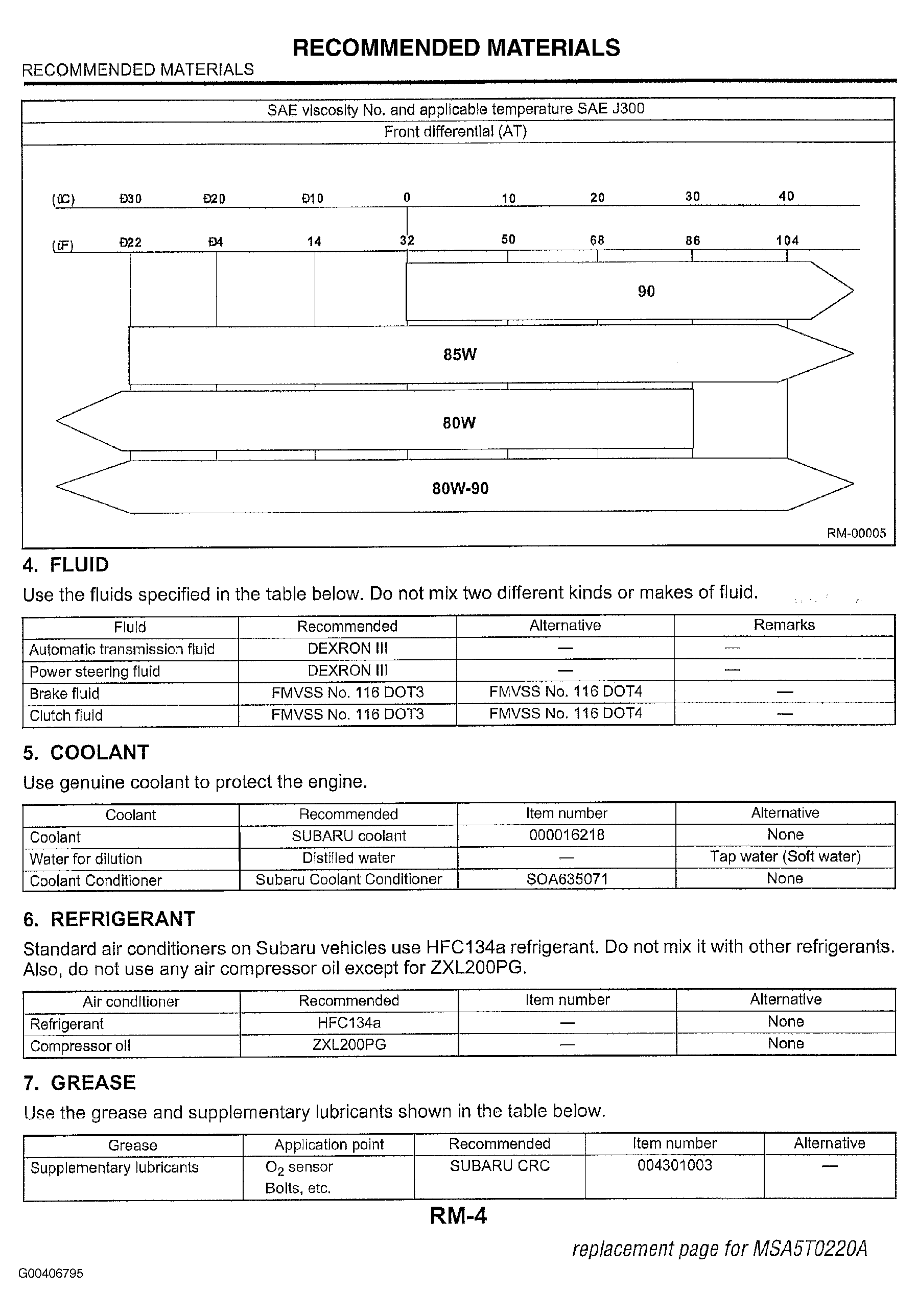

Fig 37: Replacement Page For MSA5T0220A, Page RM-4

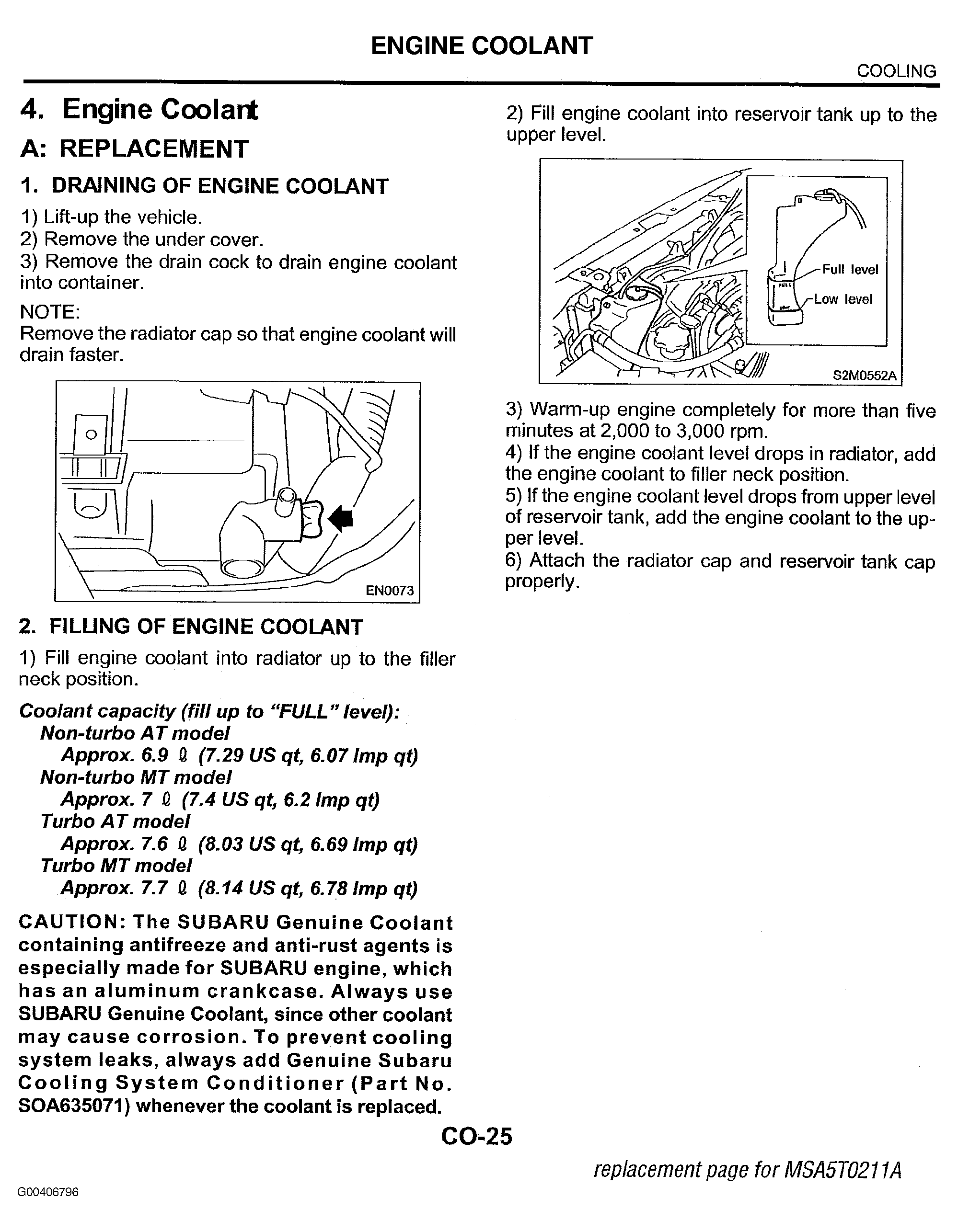

Fig 38: Replacement Page For MSA5T0211A, Page CO-25

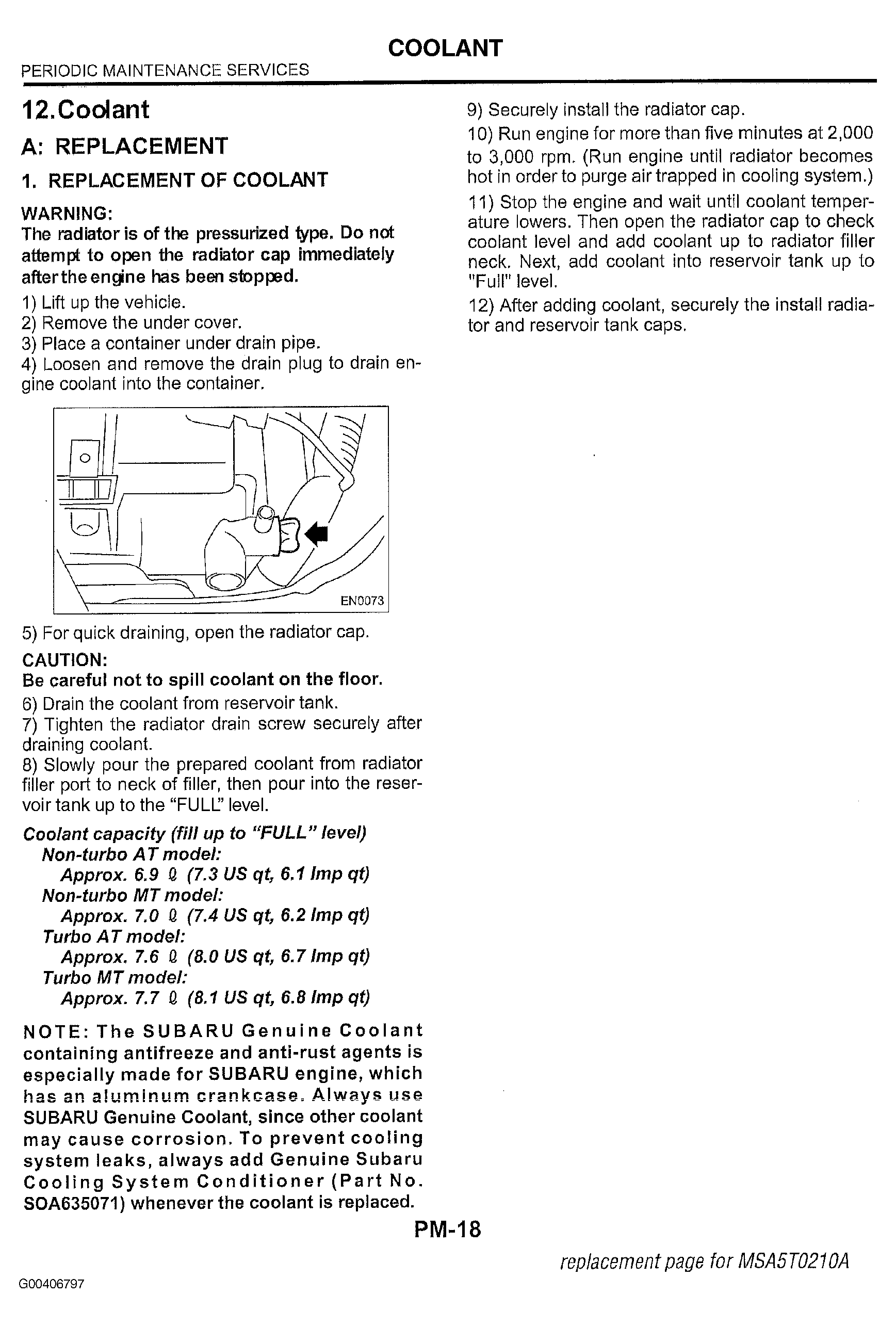

Fig 39: Replacement Page For MSA5T0210A, Page PM-18

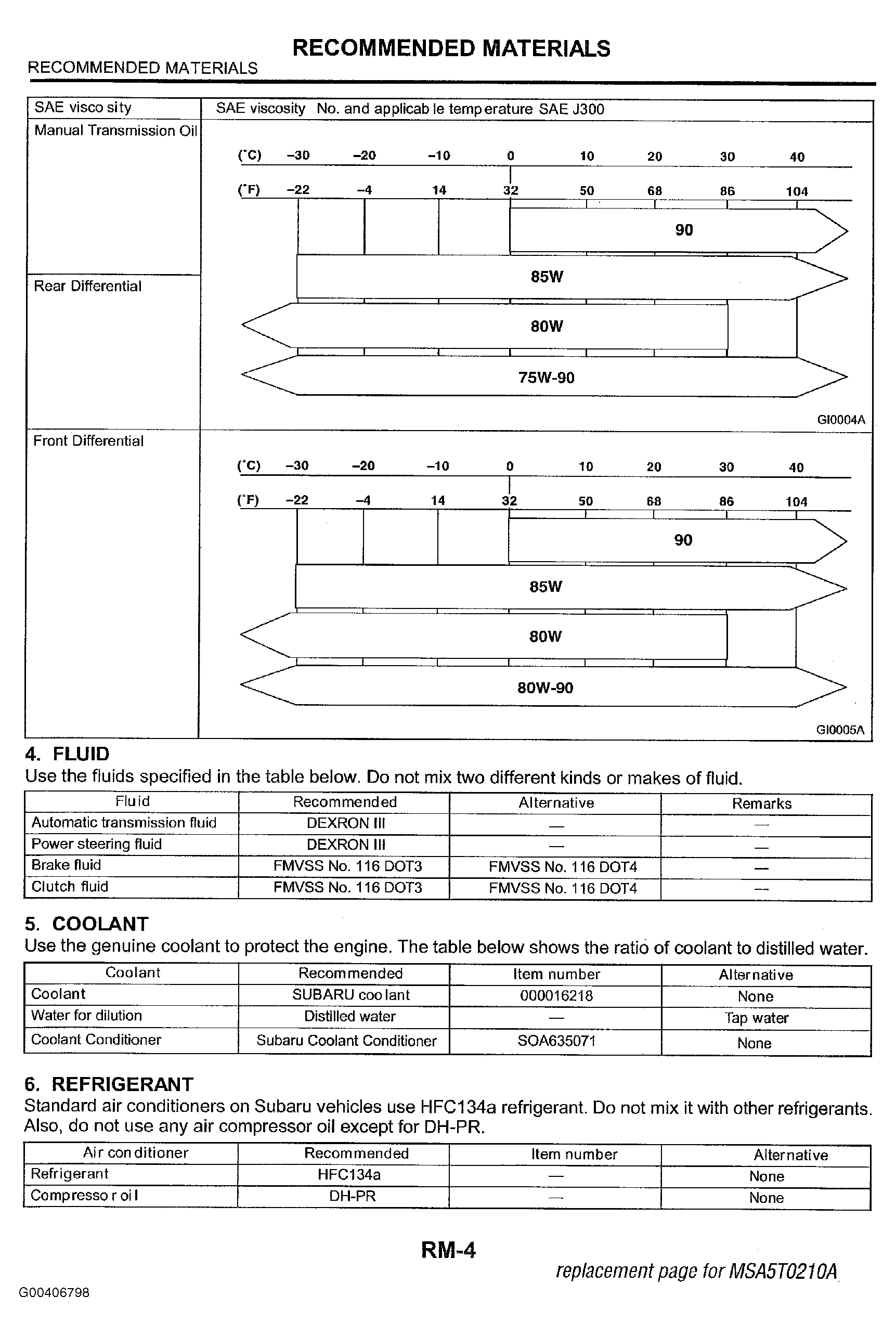

Fig 40: Replacement Page For MSA5T0210A, Page RM-4

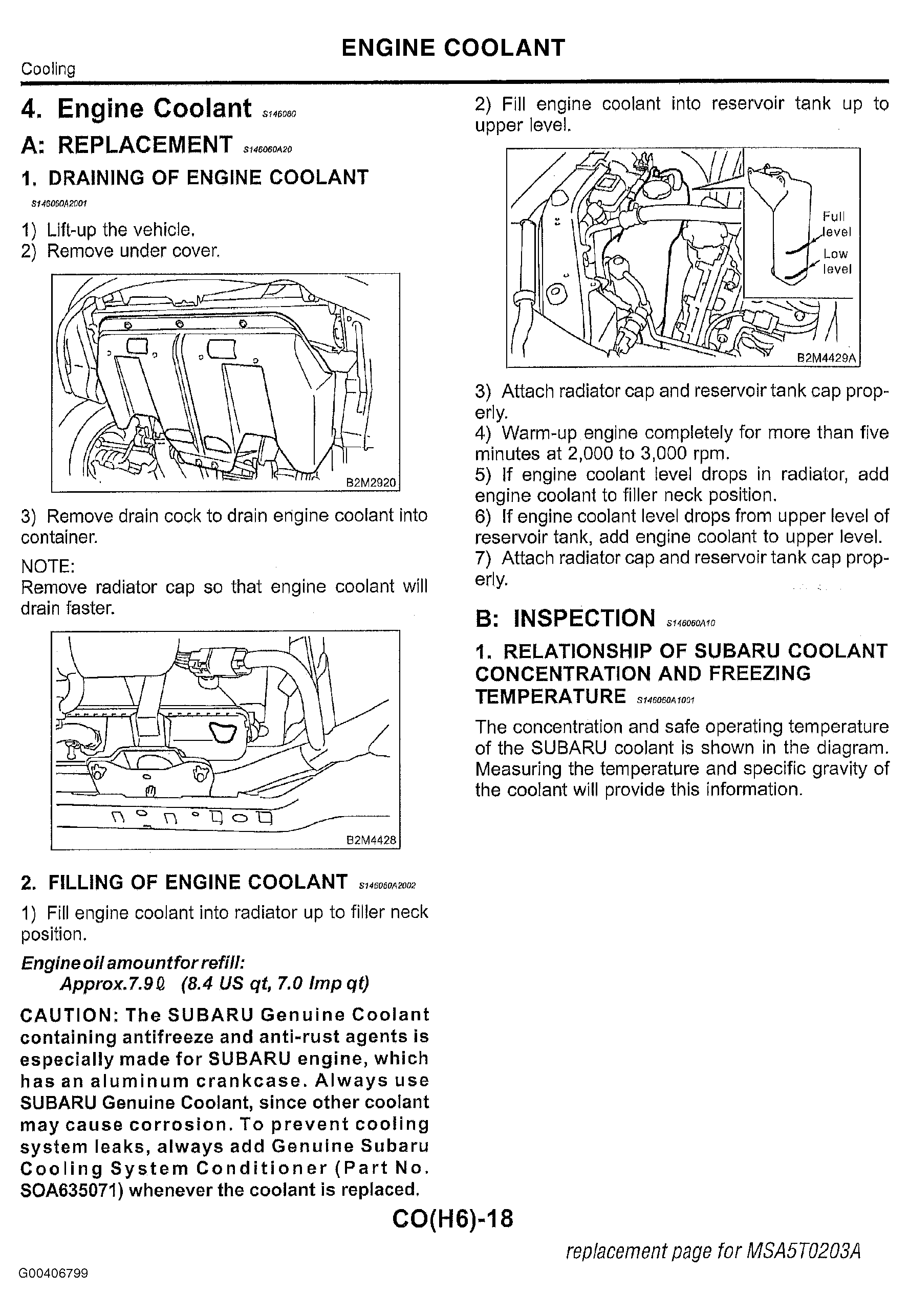

Fig 41: Replacement Page For MSA5T0203A, Page CO(H6)-18

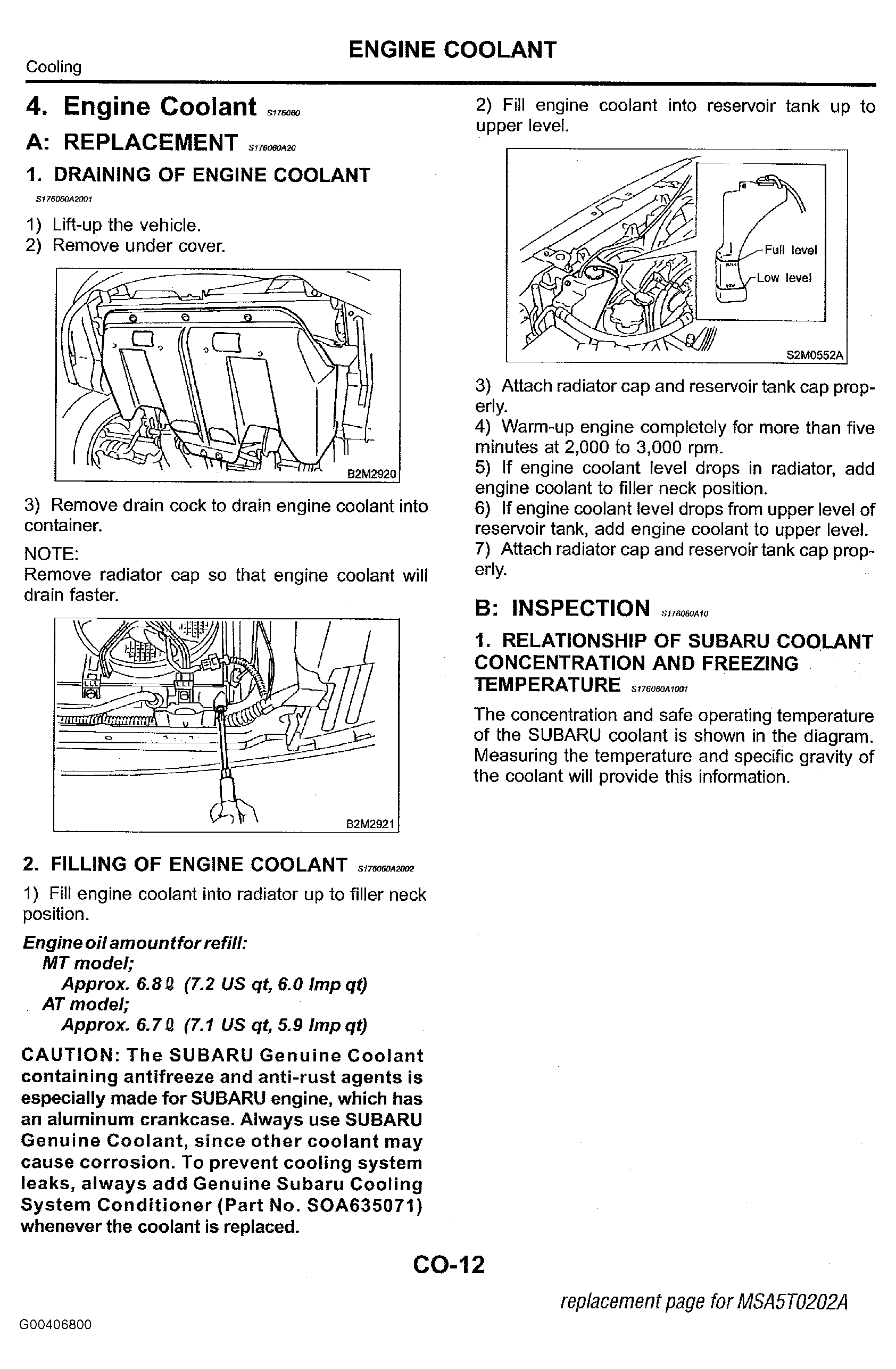

Fig 42: Replacement Page For MSA5T0202A, Page CO-12

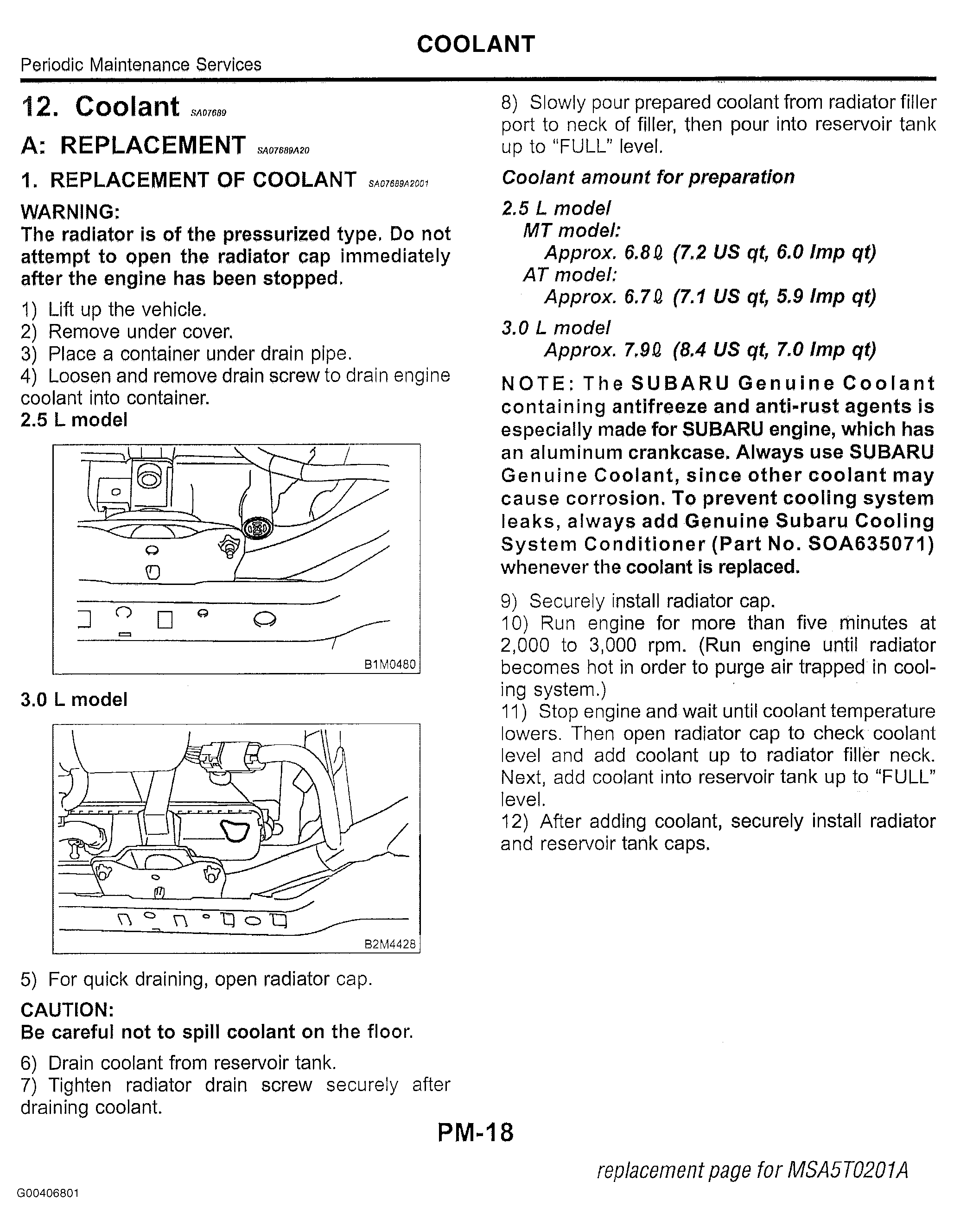

Fig 43: Replacement Page For MSA5T0201A, Page PM-18

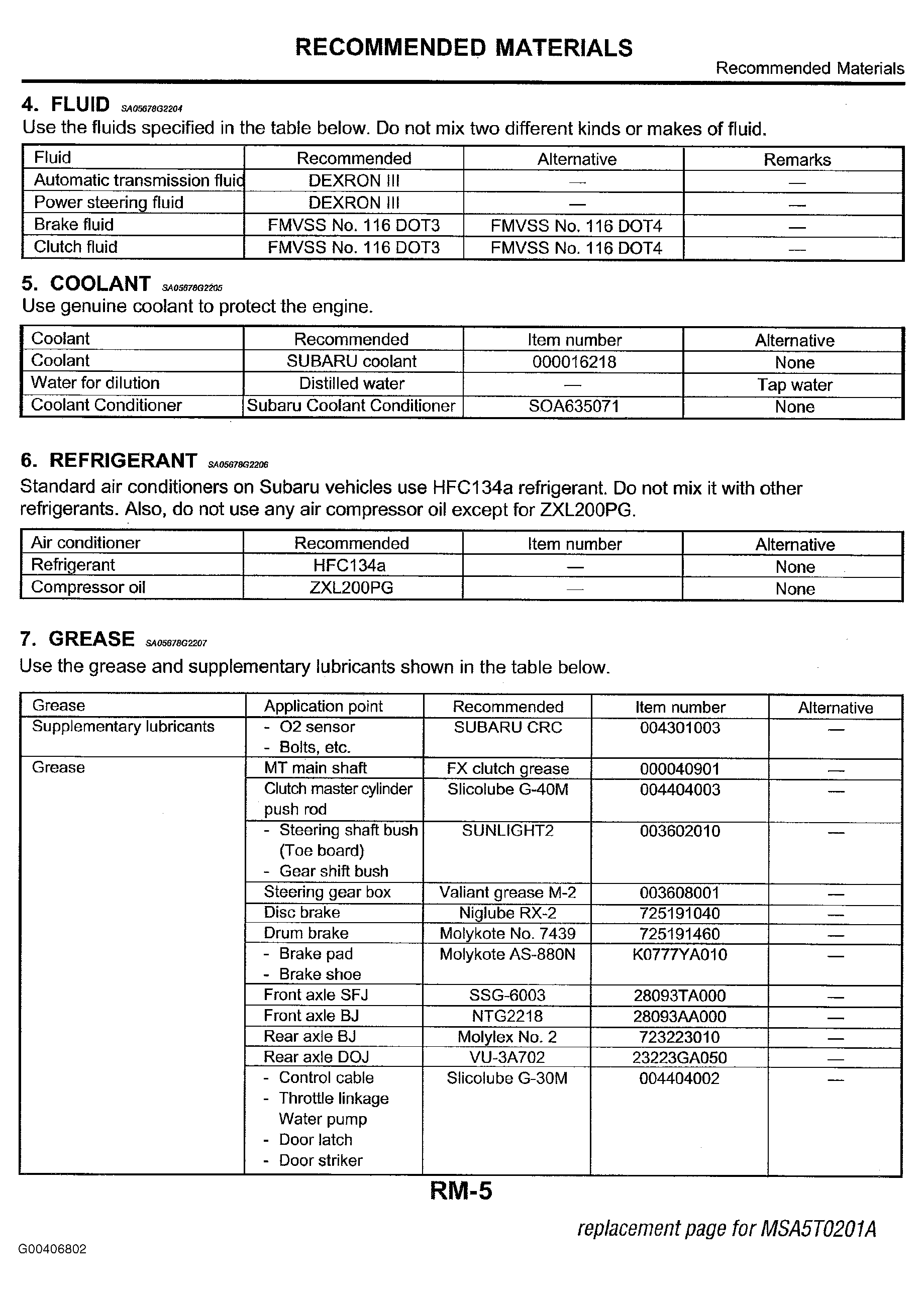

Fig 44: Replacement Page For MSA5T0201A, Page RM-5

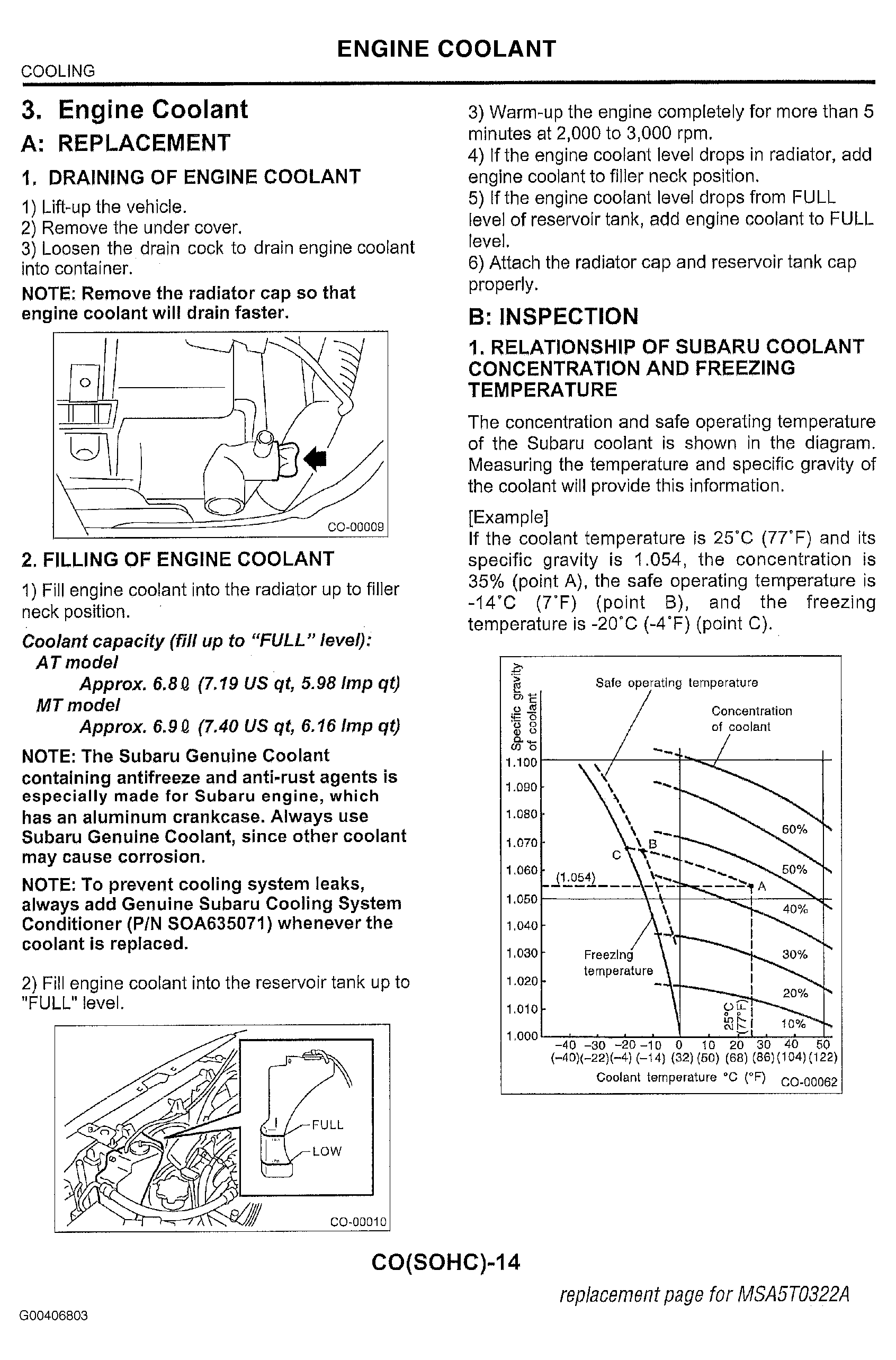

Fig 45: Replacement Page For MSA5T0322A, Page CO(SOHC)-14

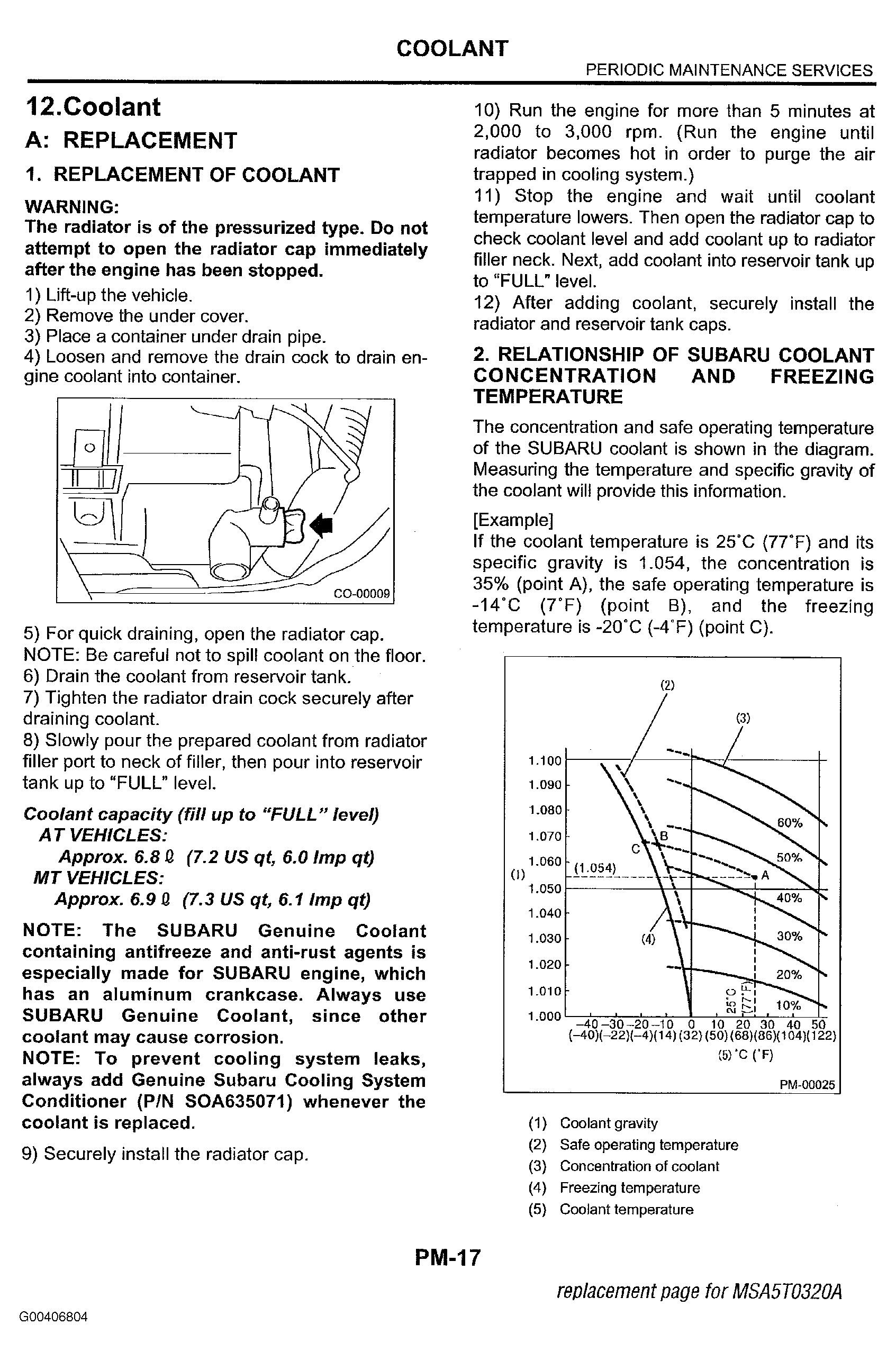

Fig 46: Replacement Page For MSA5T0320A, Page PM-17

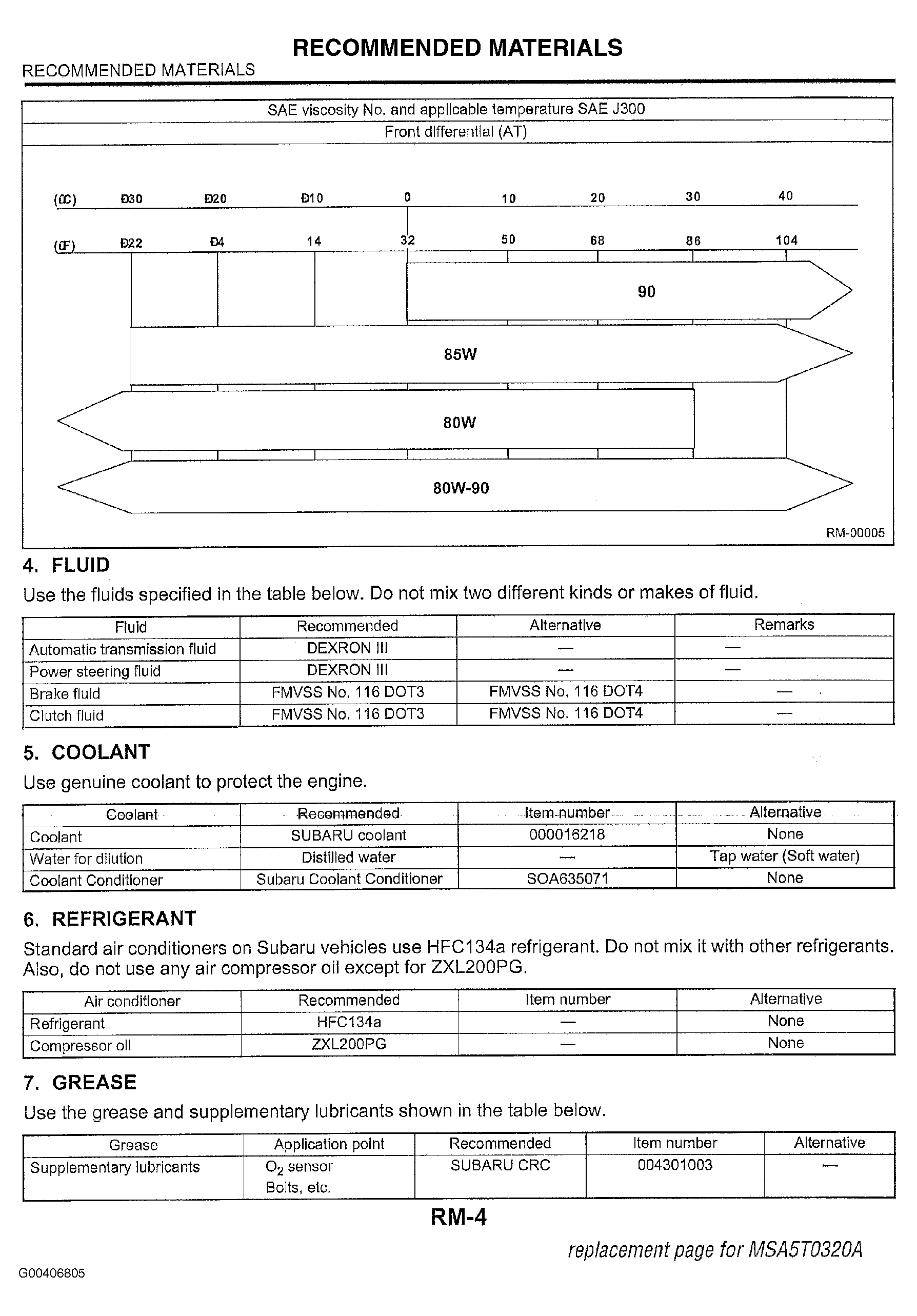

Fig 47: Replacement Page For MSA5T0320A, Page RM-4

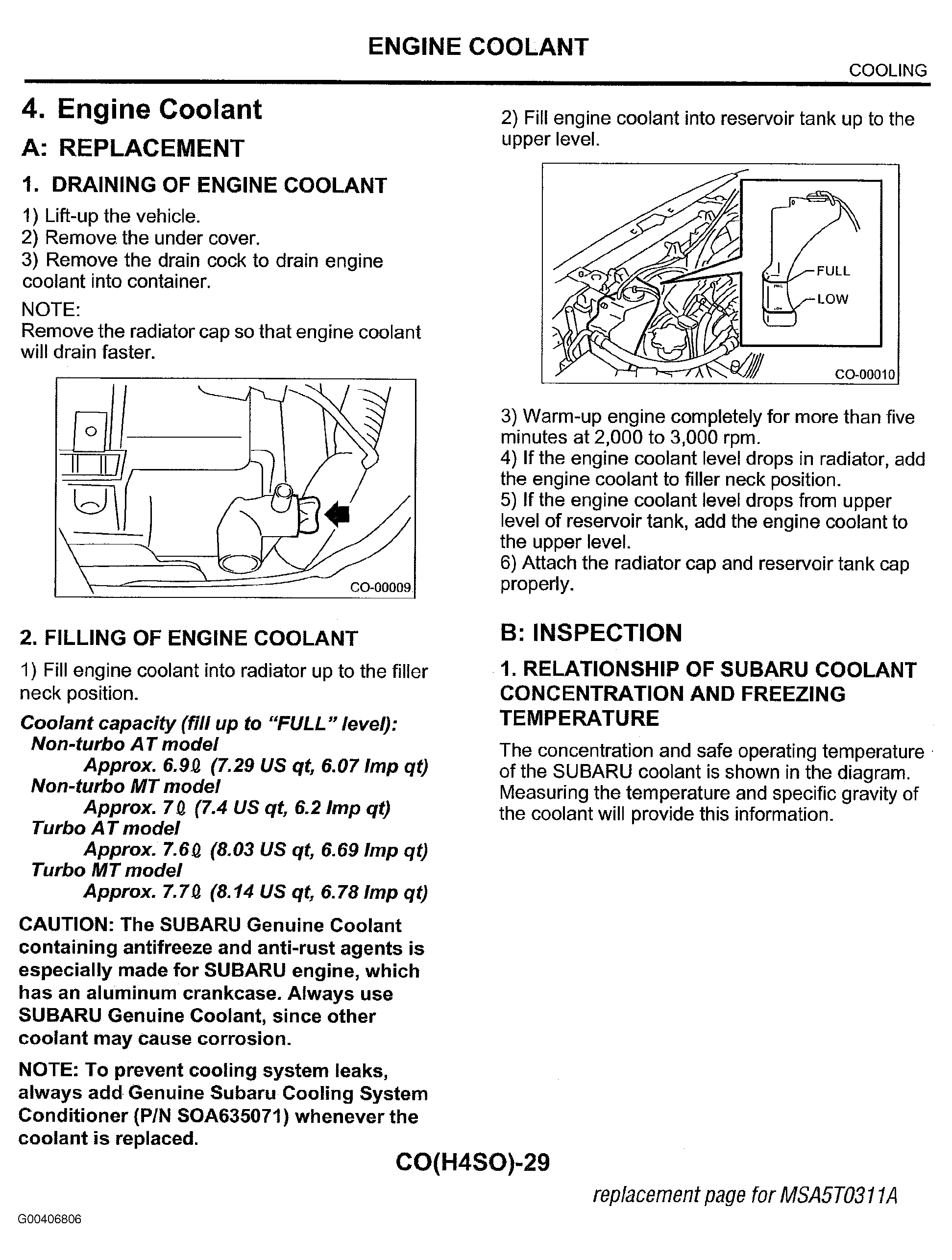

Fig 48: Replacement Page For MSA5T0311A, Page CO(H4SO)-29

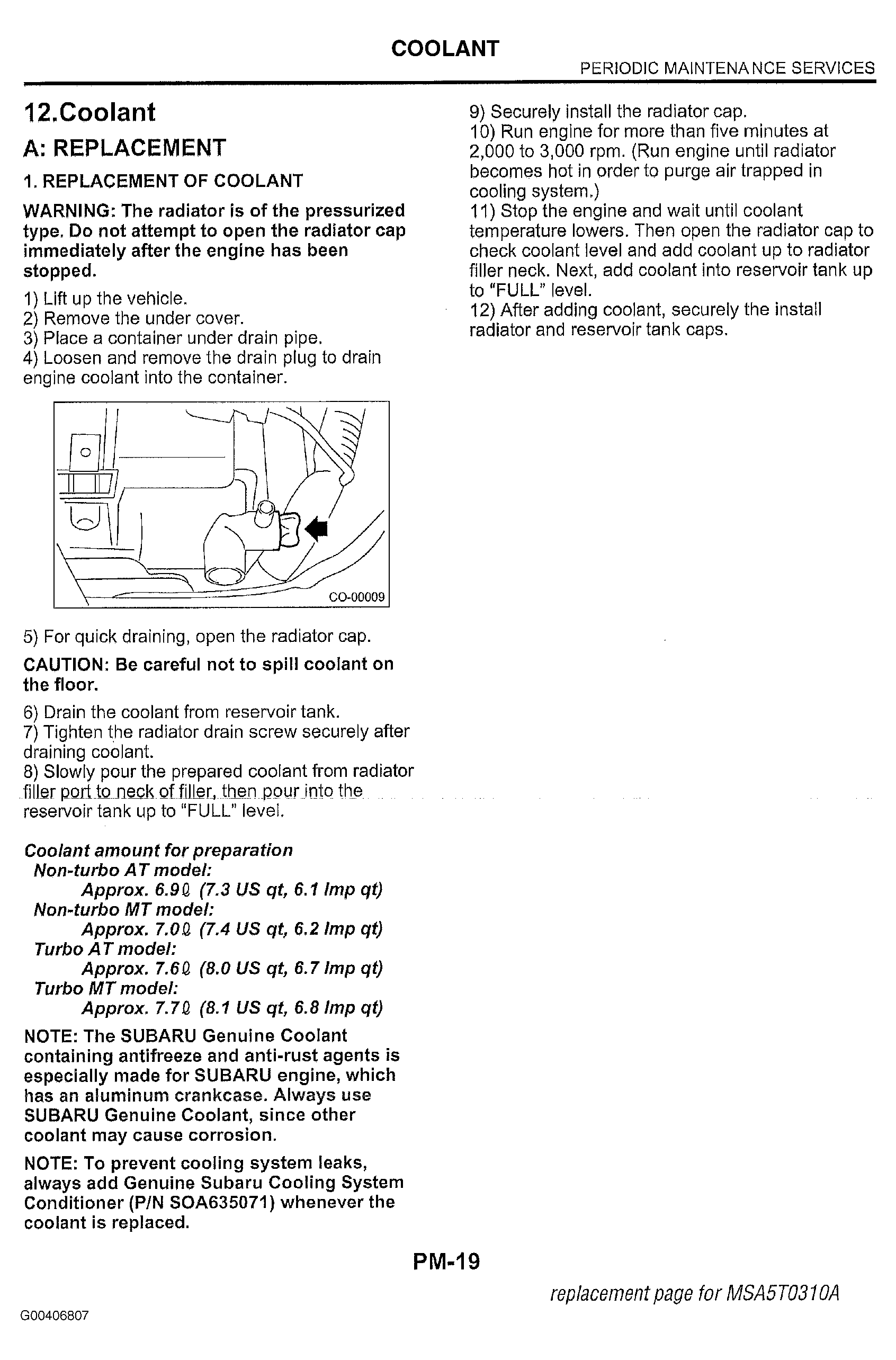

Fig 49: Replacement Page For MSA5T0310A, Page PM-19

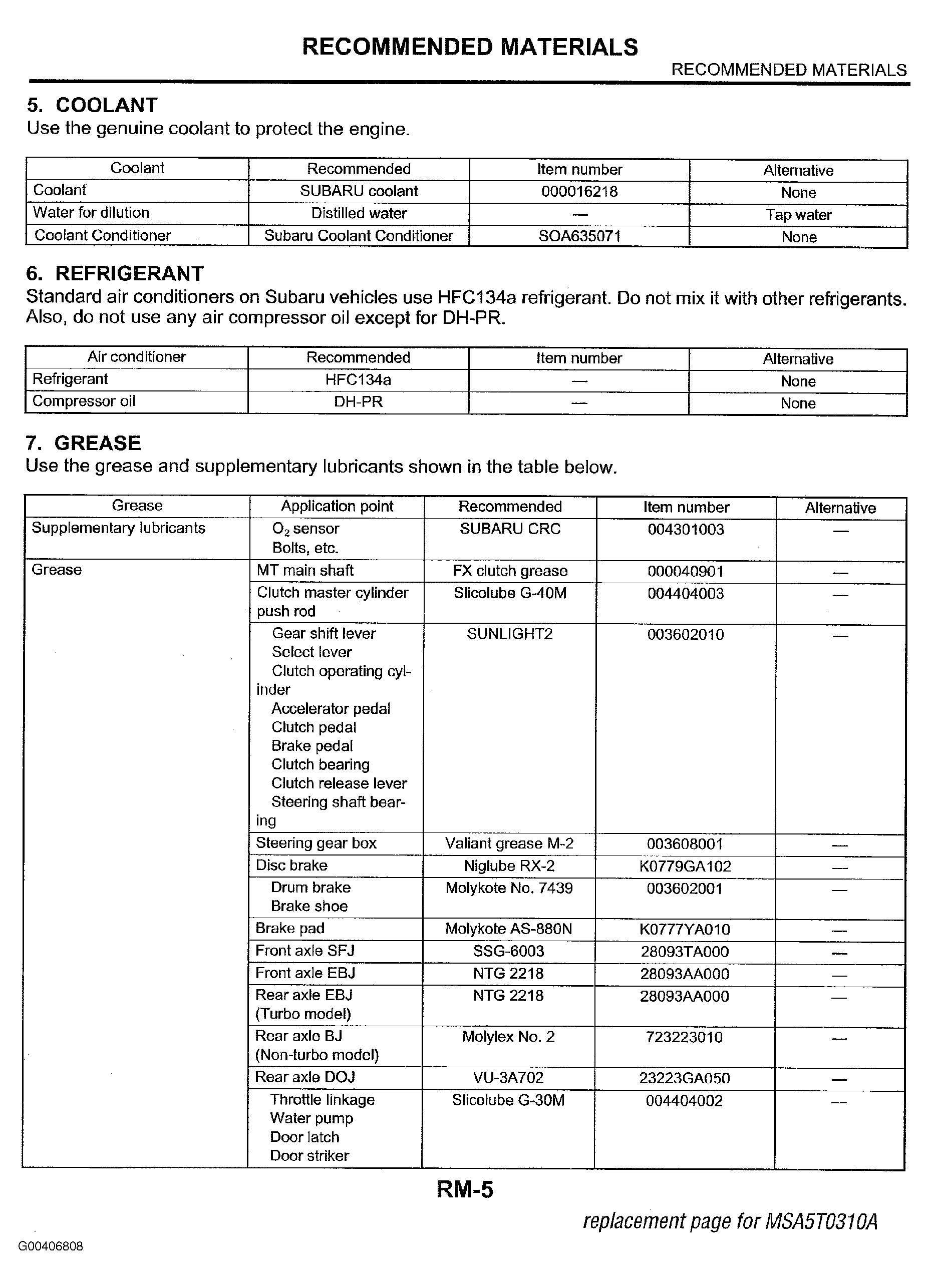

Fig 50: Replacement Page For MSA5T0310A, Page RM-5

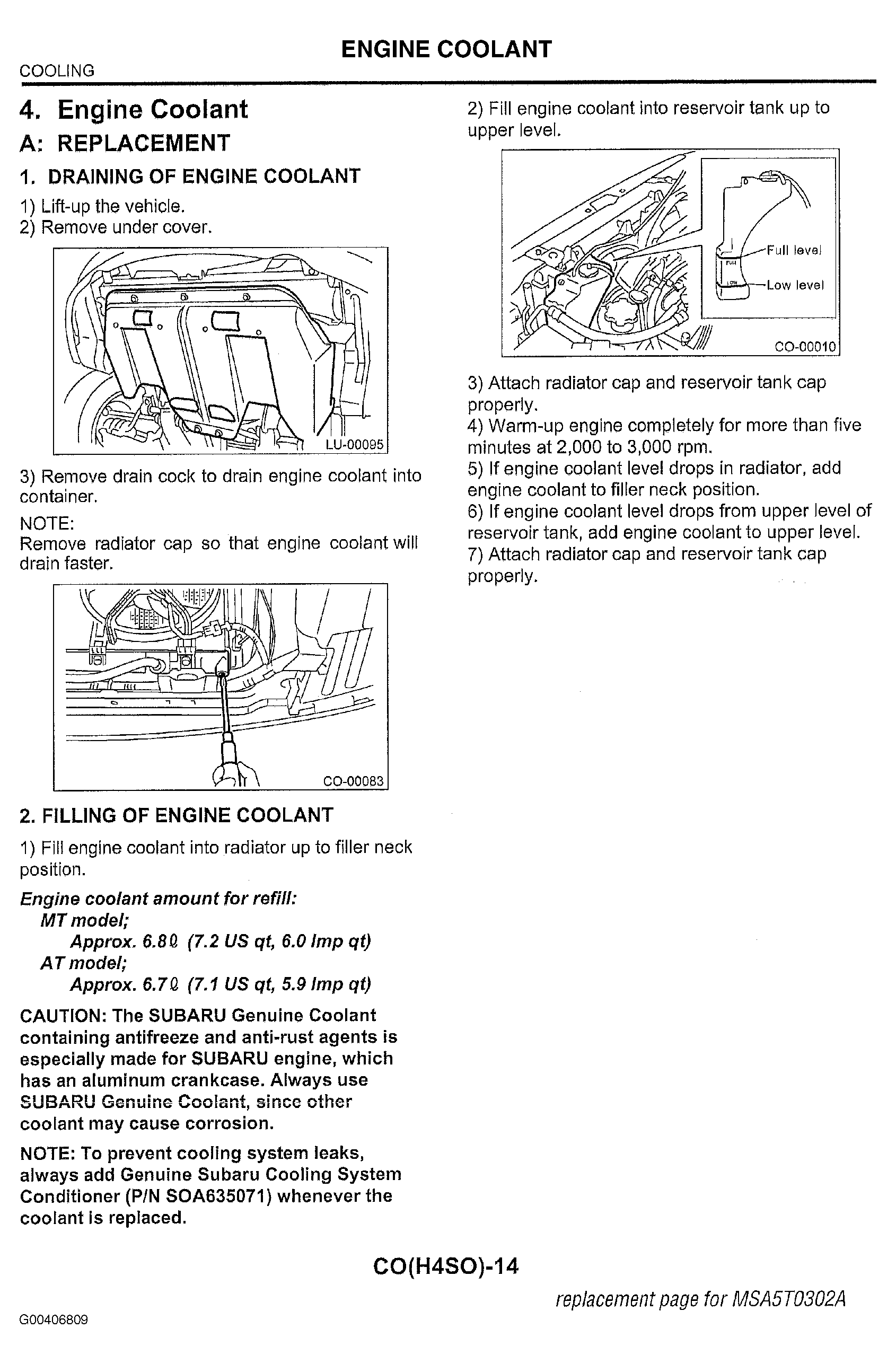

Fig 51: Replacement Page For MSA5T0302A, Page CO(H4SO)-14

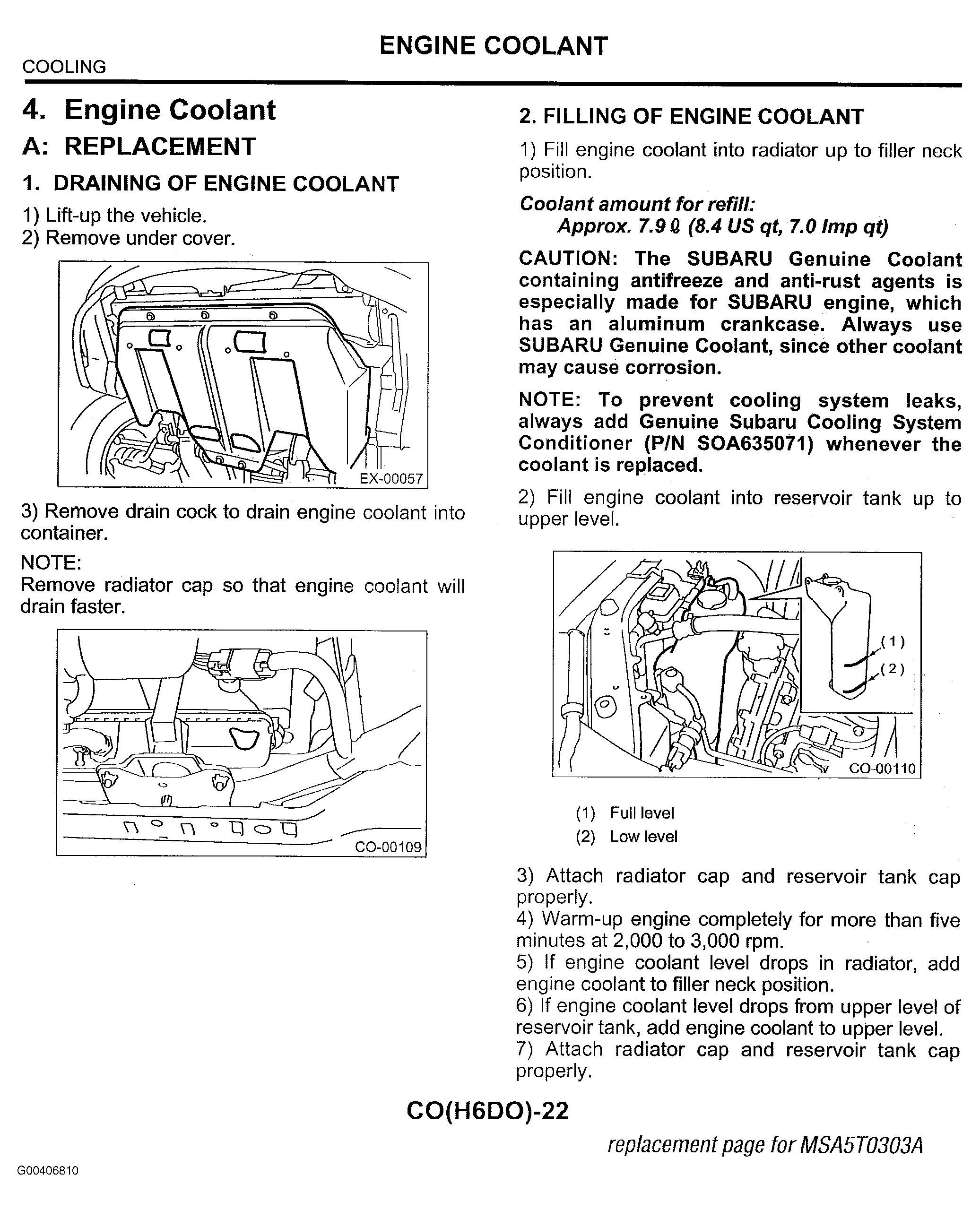

Fig 52: Replacement Page For MSA5T0303A, Page CO(H6DO)-22

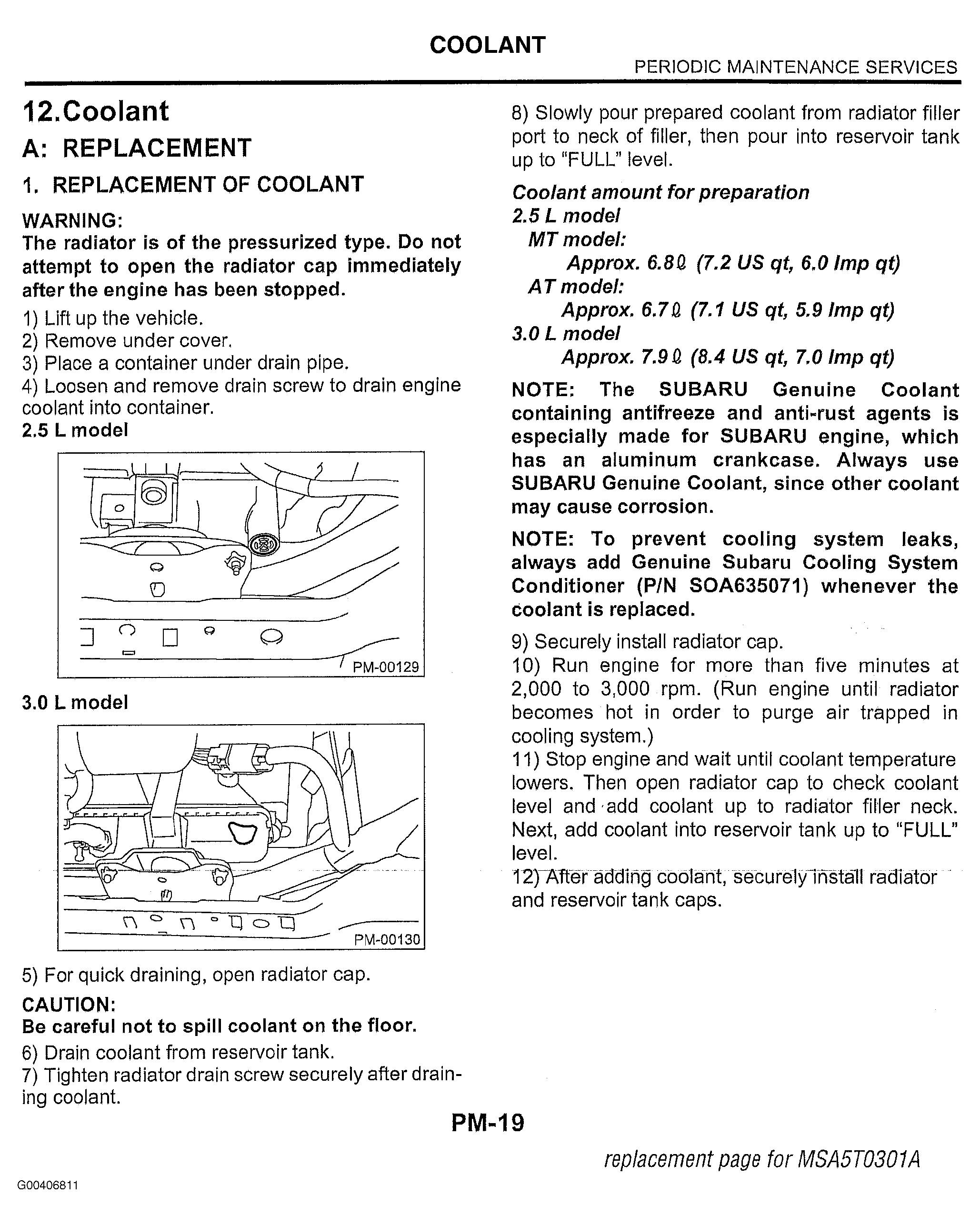

Fig 53: Replacement Page For MSA5T0301A, Page PM-19

Fig 54: Replacement Page For MSA5T0301A, Page RM-4

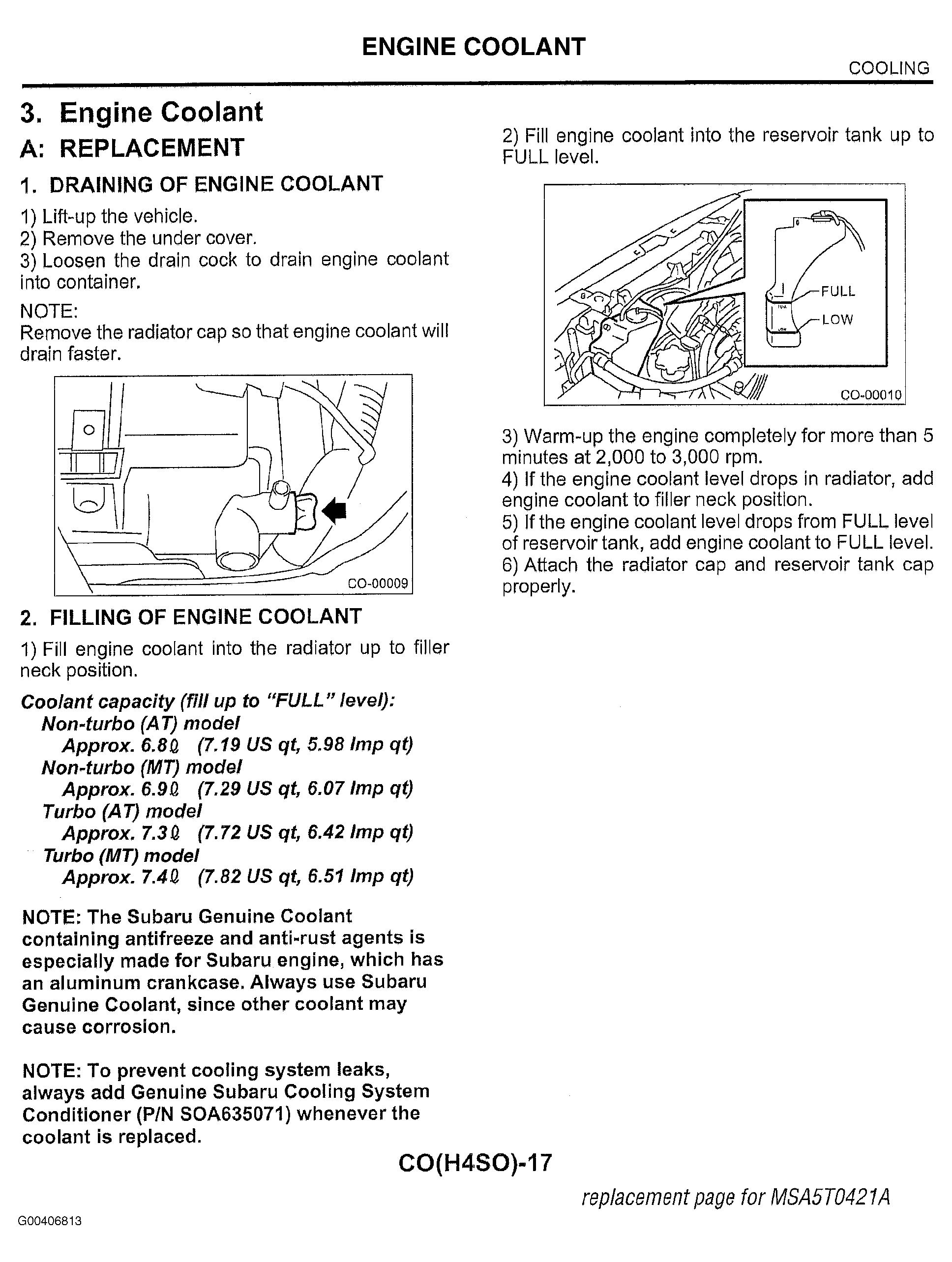

Fig 55: Replacement Page For MSA5T0421A, Page CO(H4SO)-17

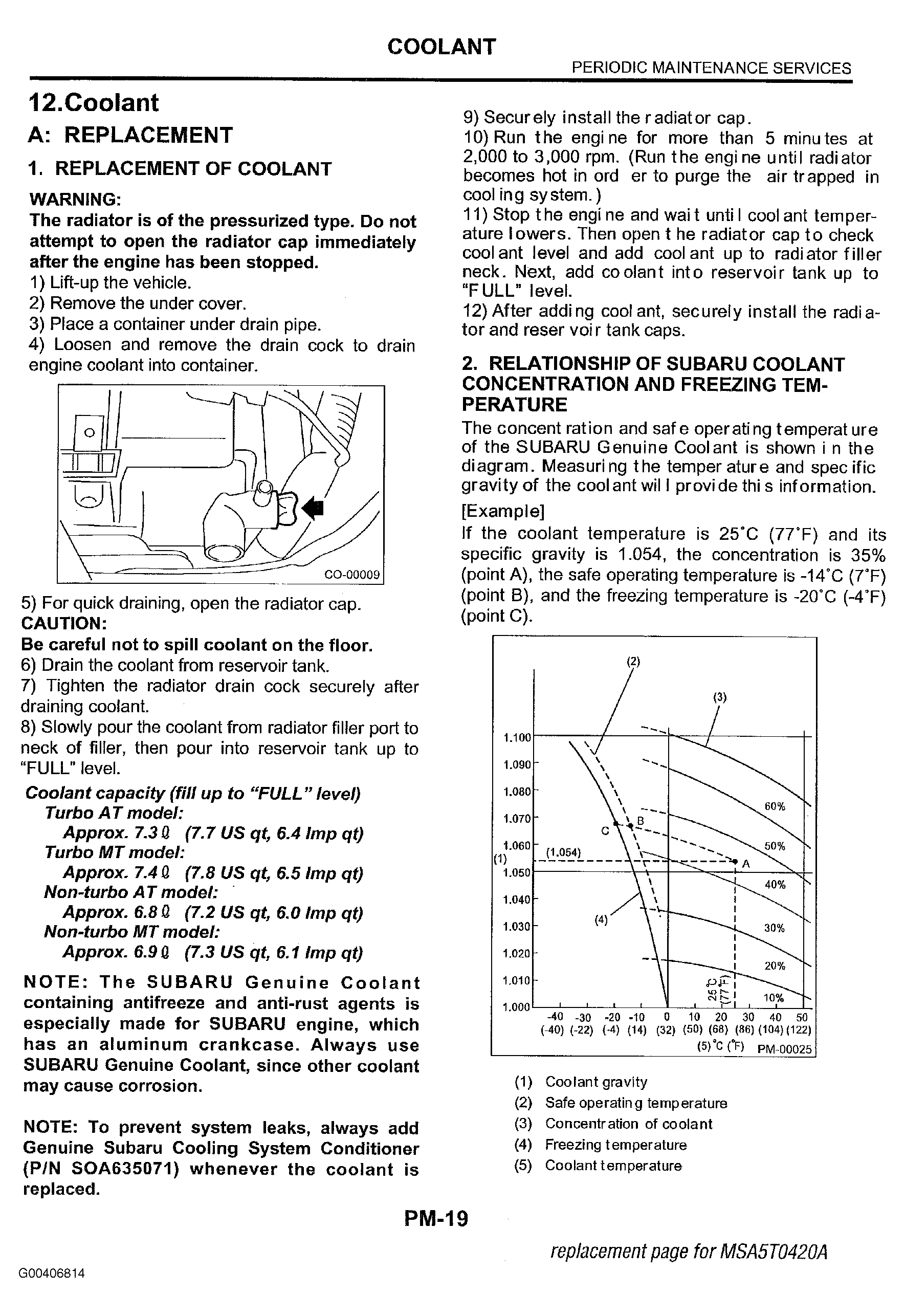

Fig 56: Replacement Page For MSA5T0420A, Page PM-19

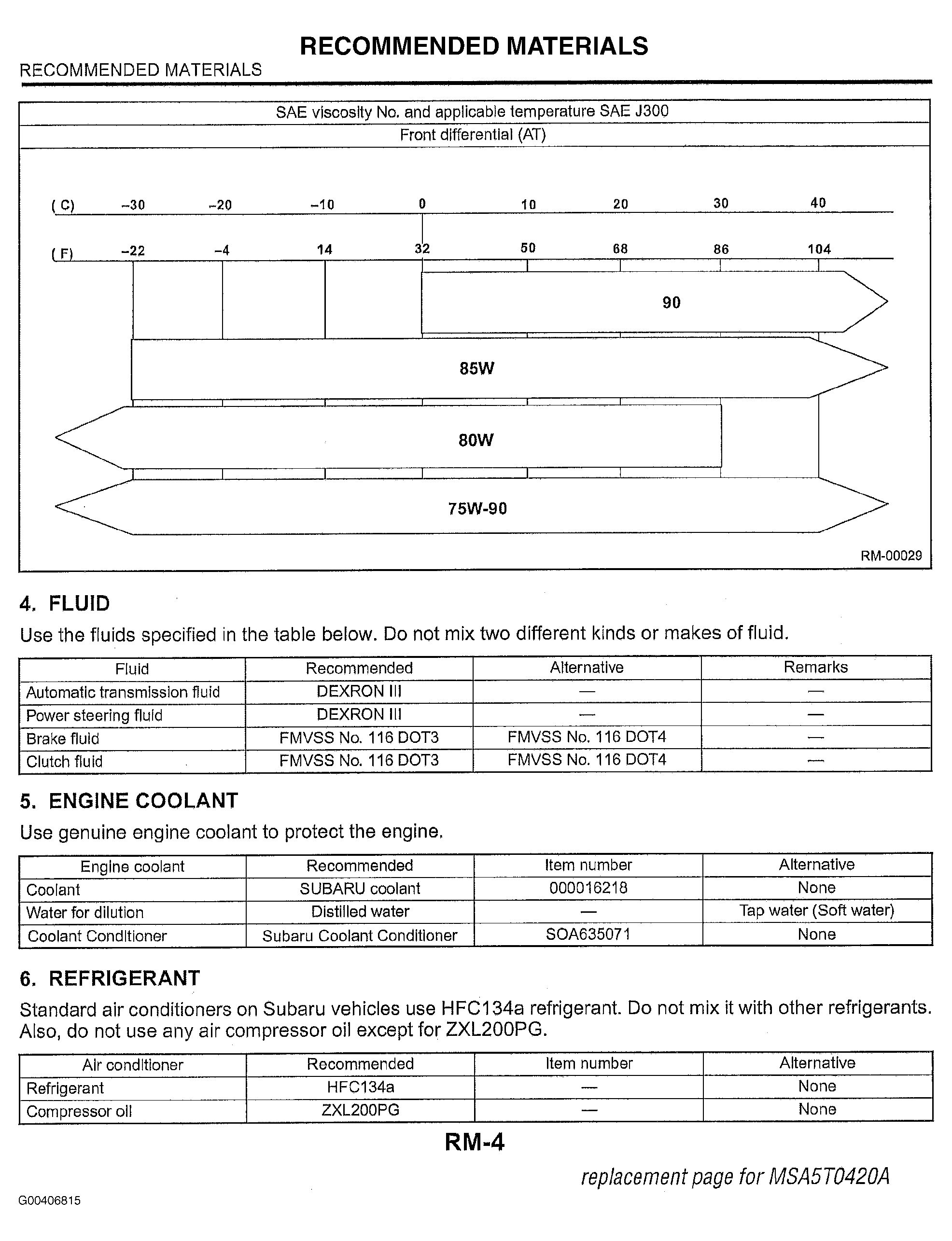

Fig 57: Replacement Page For MSA5T0420A, Page RM-4

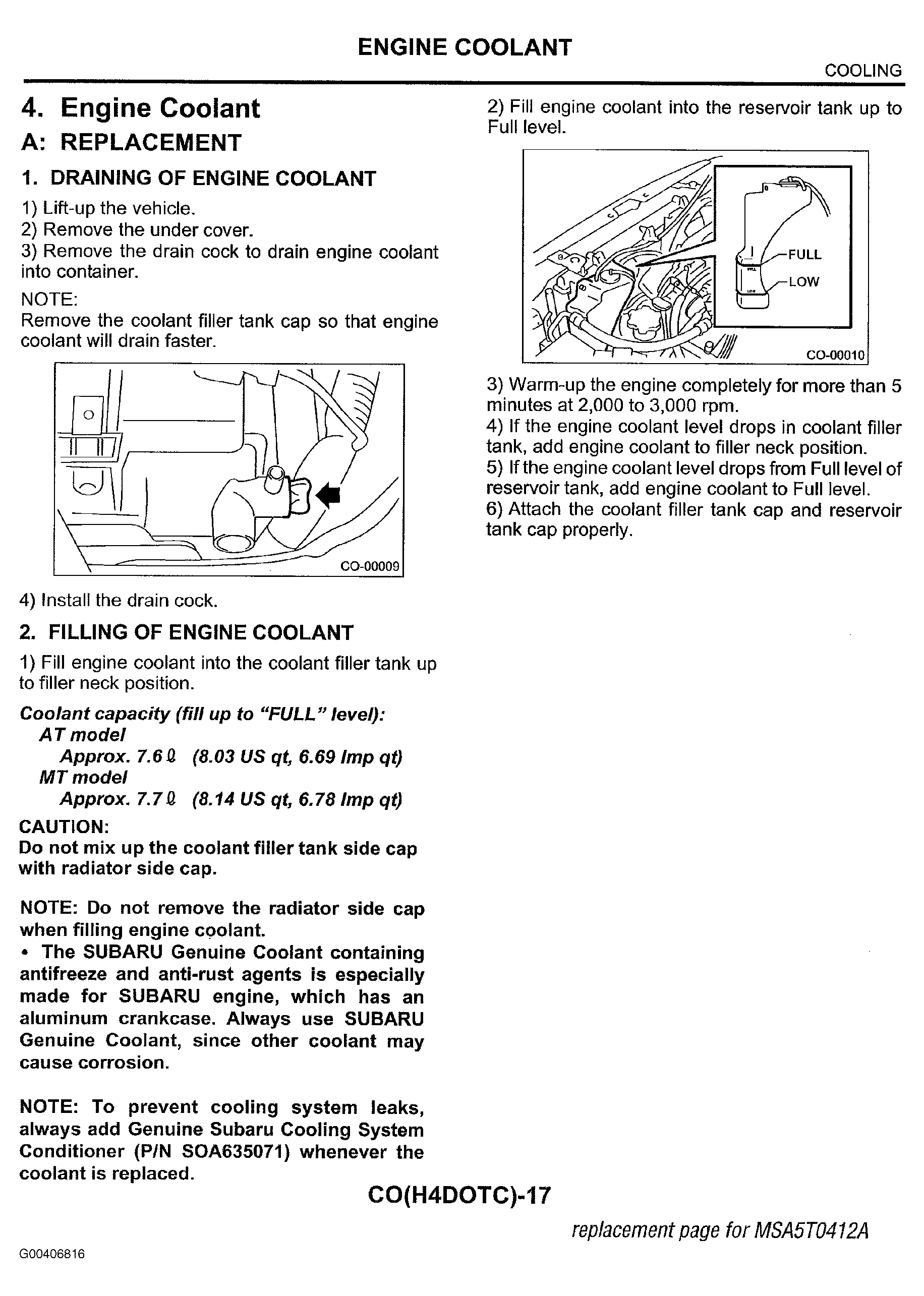

Fig 58: Replacement Page For MSA5T0412A, Page CO(H4DOTC)-17

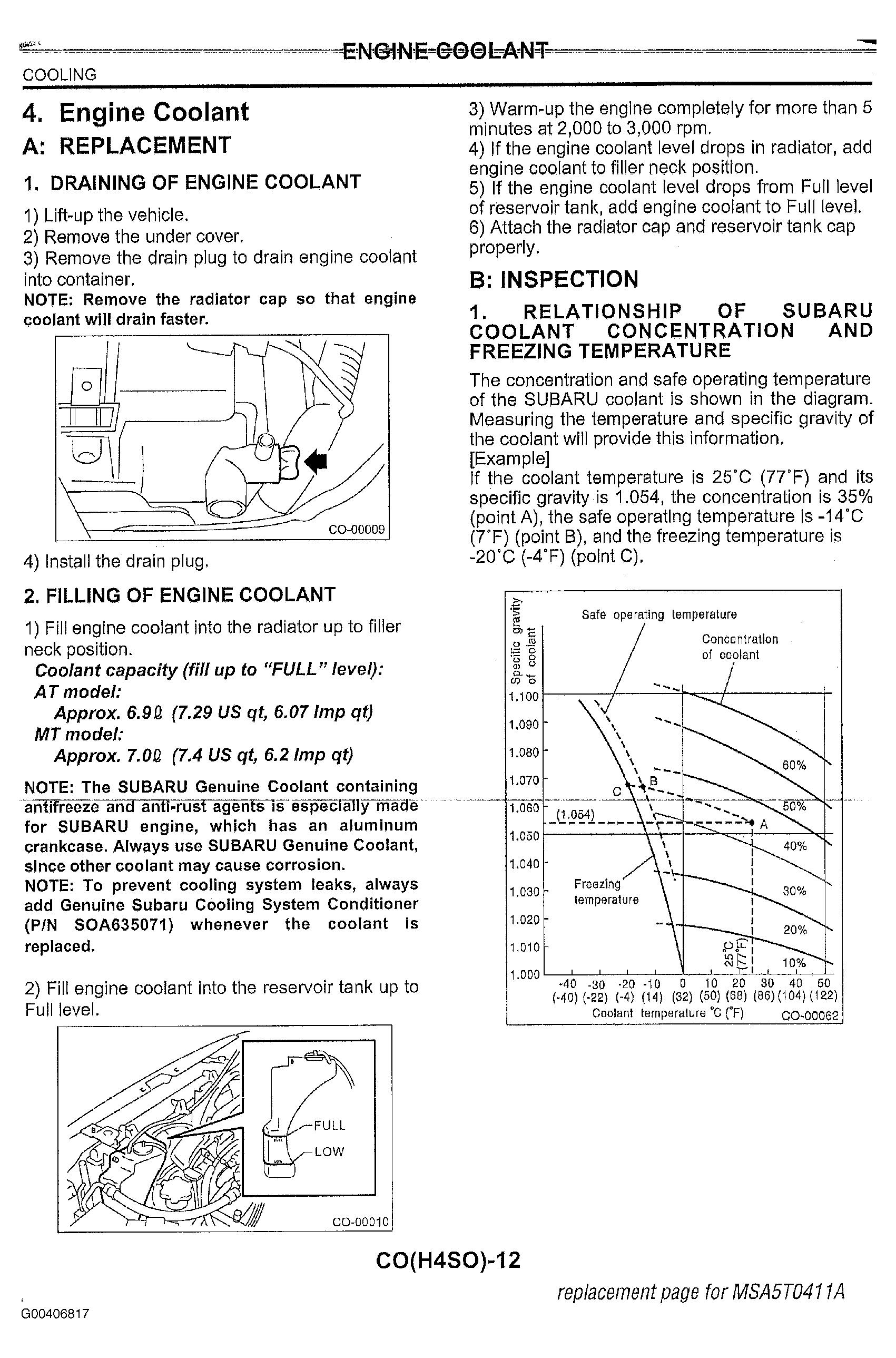

Fig 59: Replacement Page For MSA5T0411A, Page CO(H4SO)-12

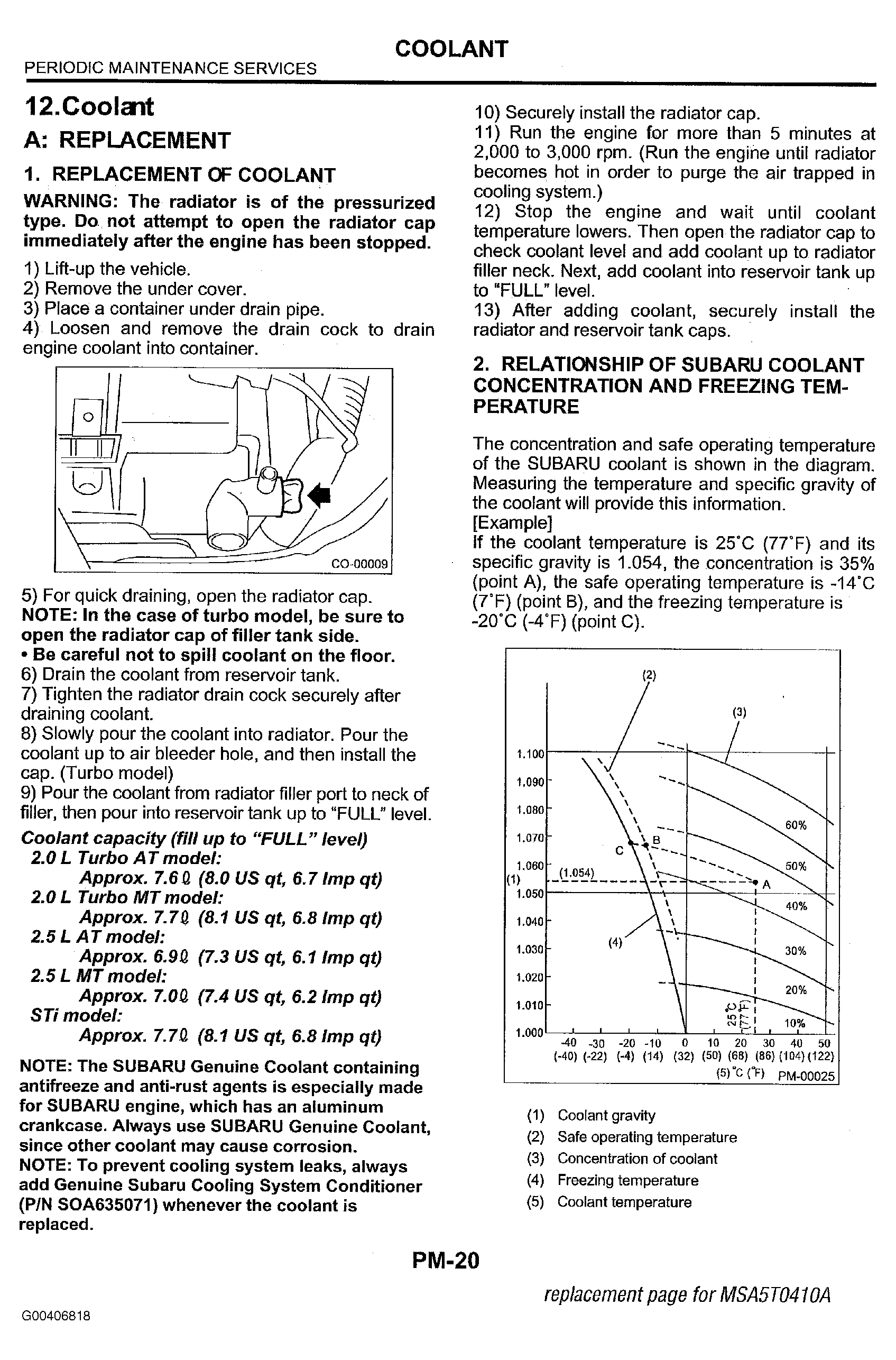

Fig 60: Replacement Page For MSA5T0410A, Page PM-20

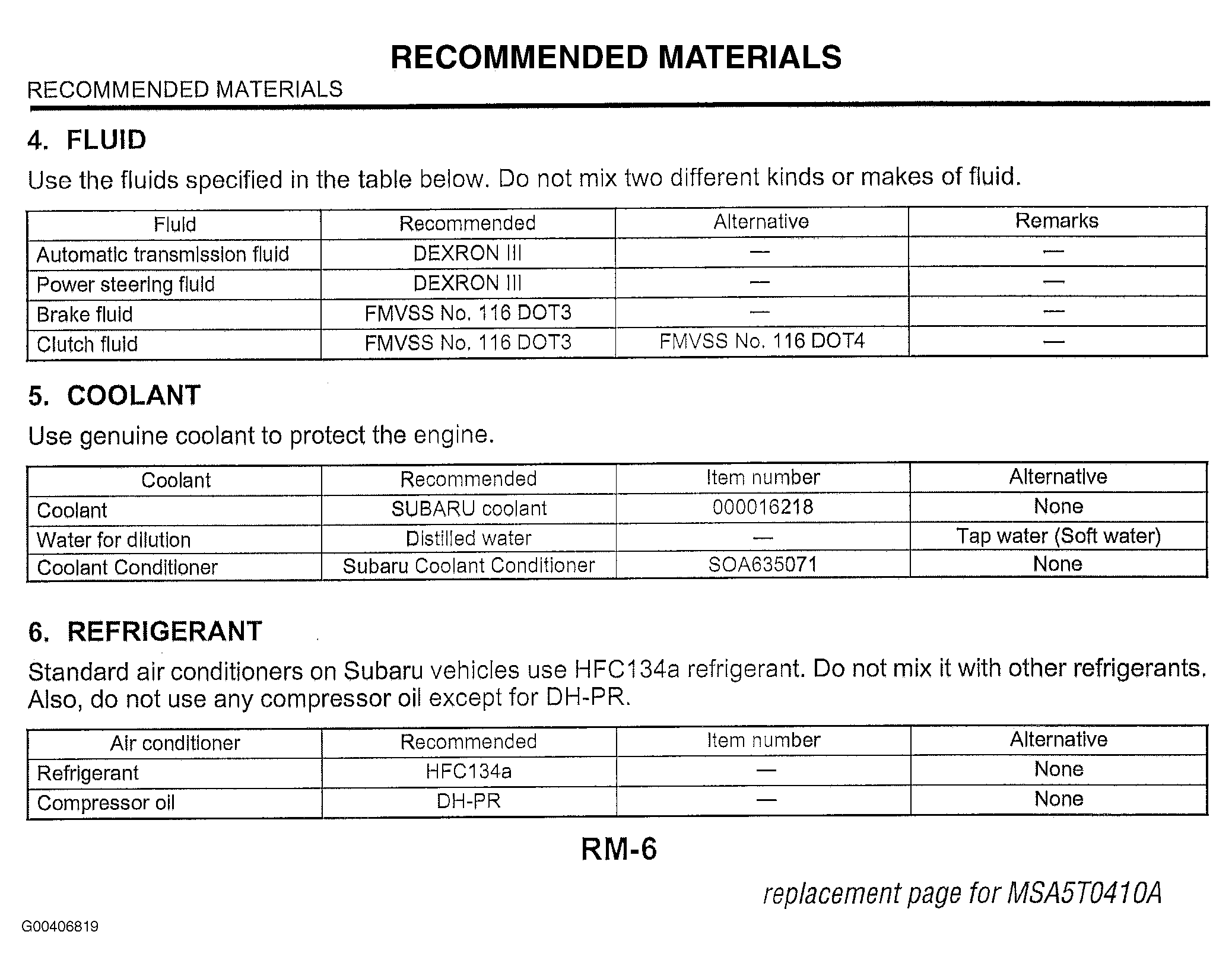

Fig 61: Replacement Page For MSA5T0410A, Page RM-6

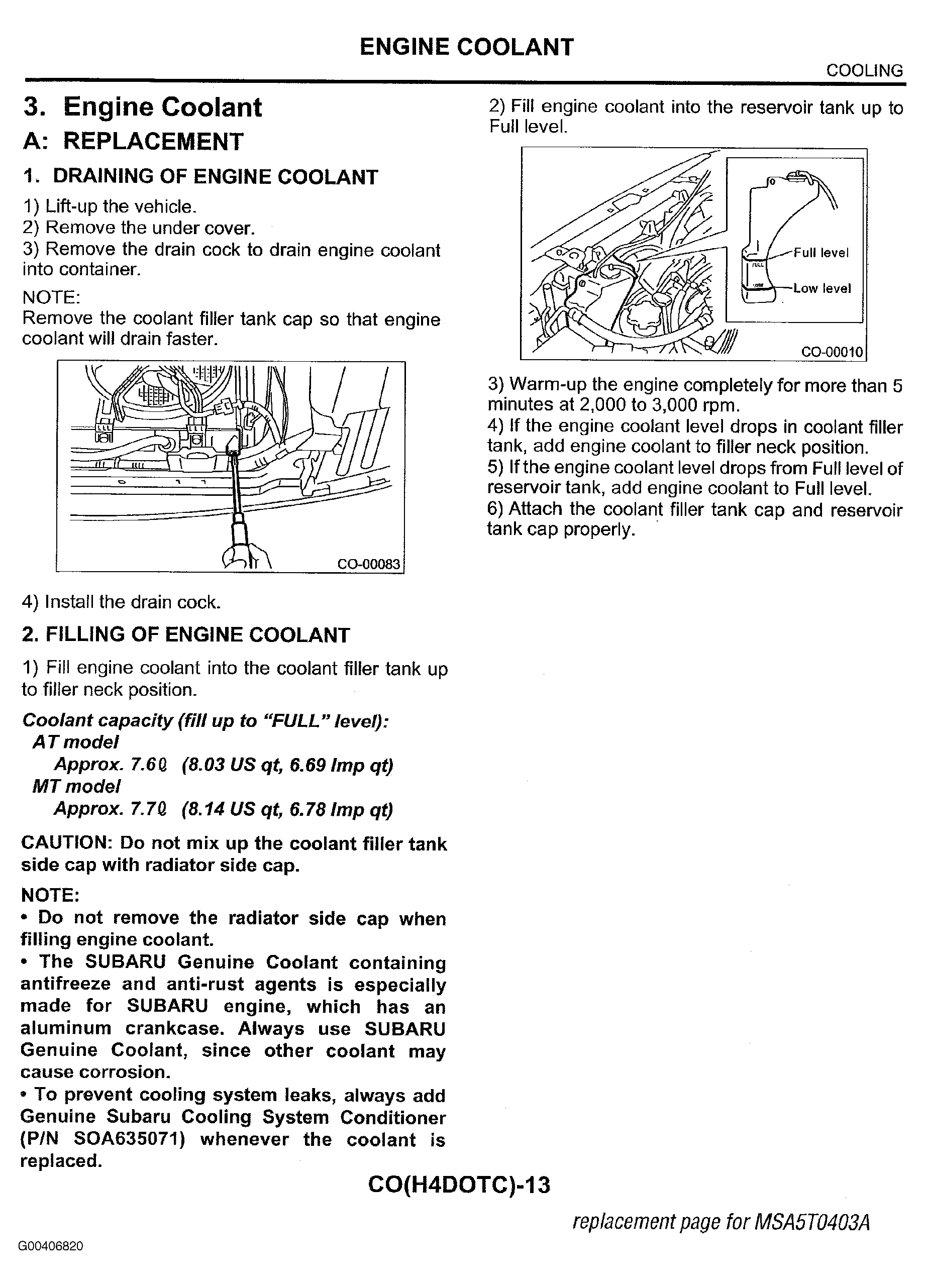

Fig 62: Replacement Page For MSA5T0403A, Page CO(H4DOTC)-13

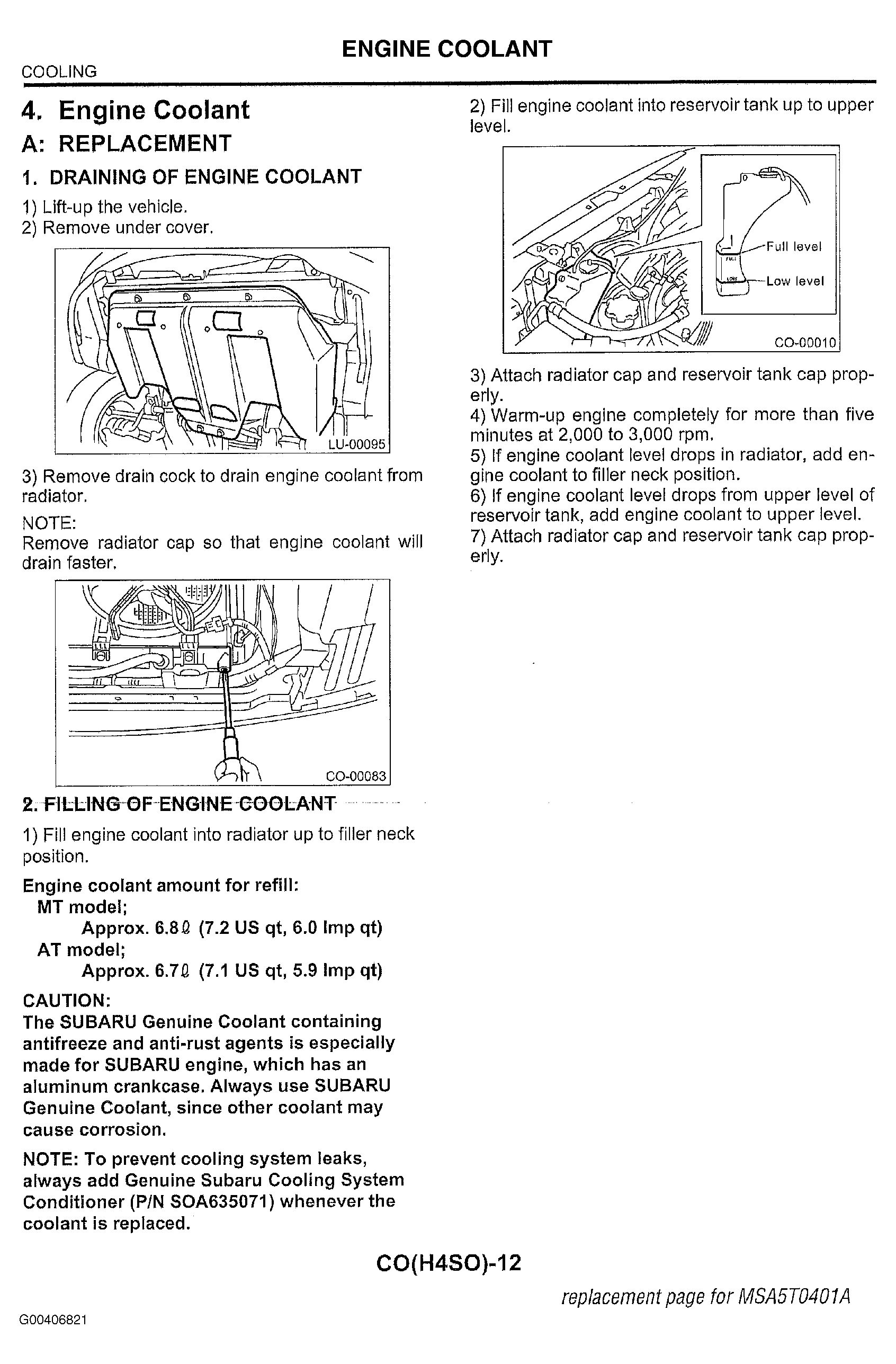

Fig 63: Replacement Page For MSA5T0401A, Page CO(H4SO)-12

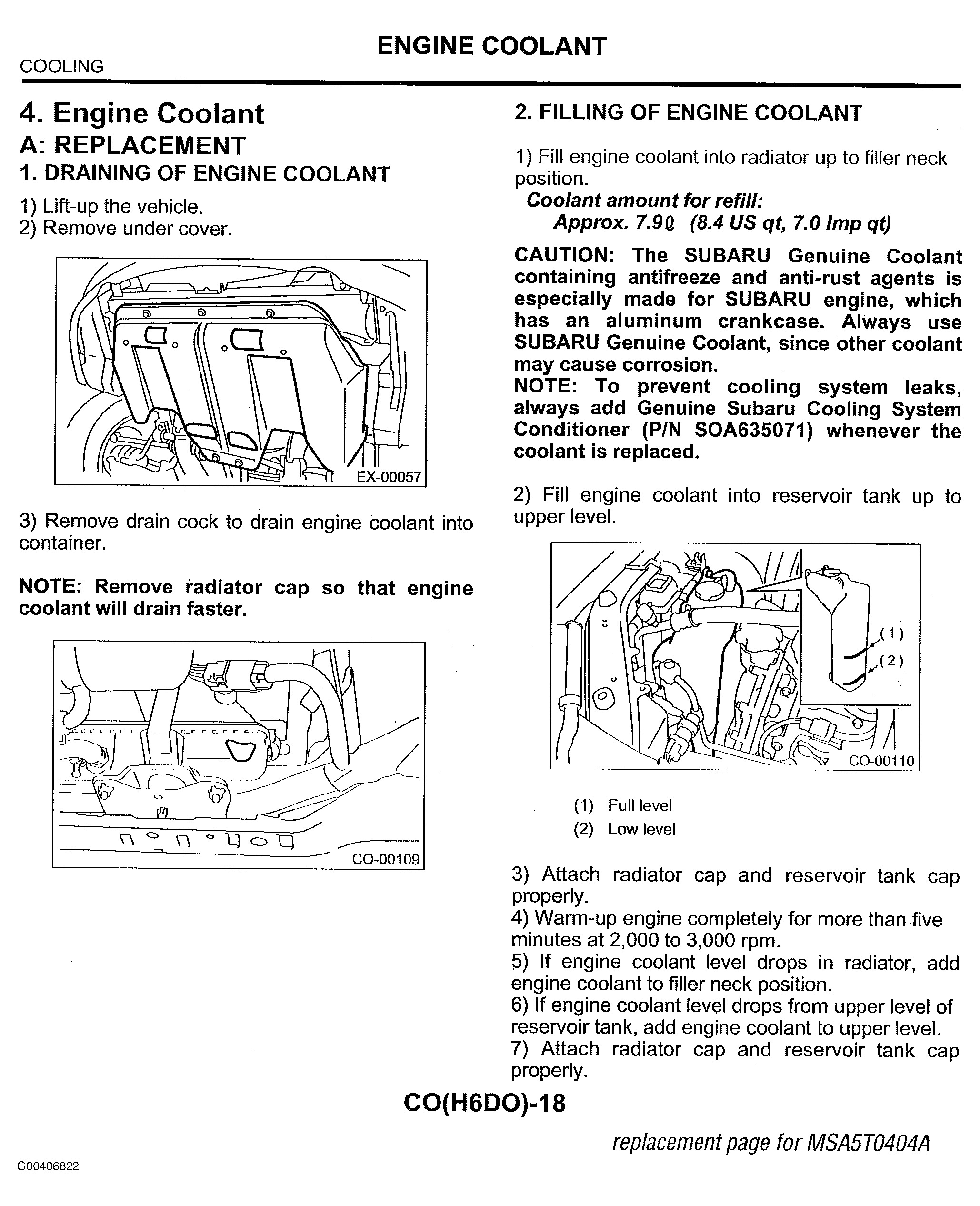

Fig 64: Replacement Page For MSA5T0404A, Page CO(H6DO)-18

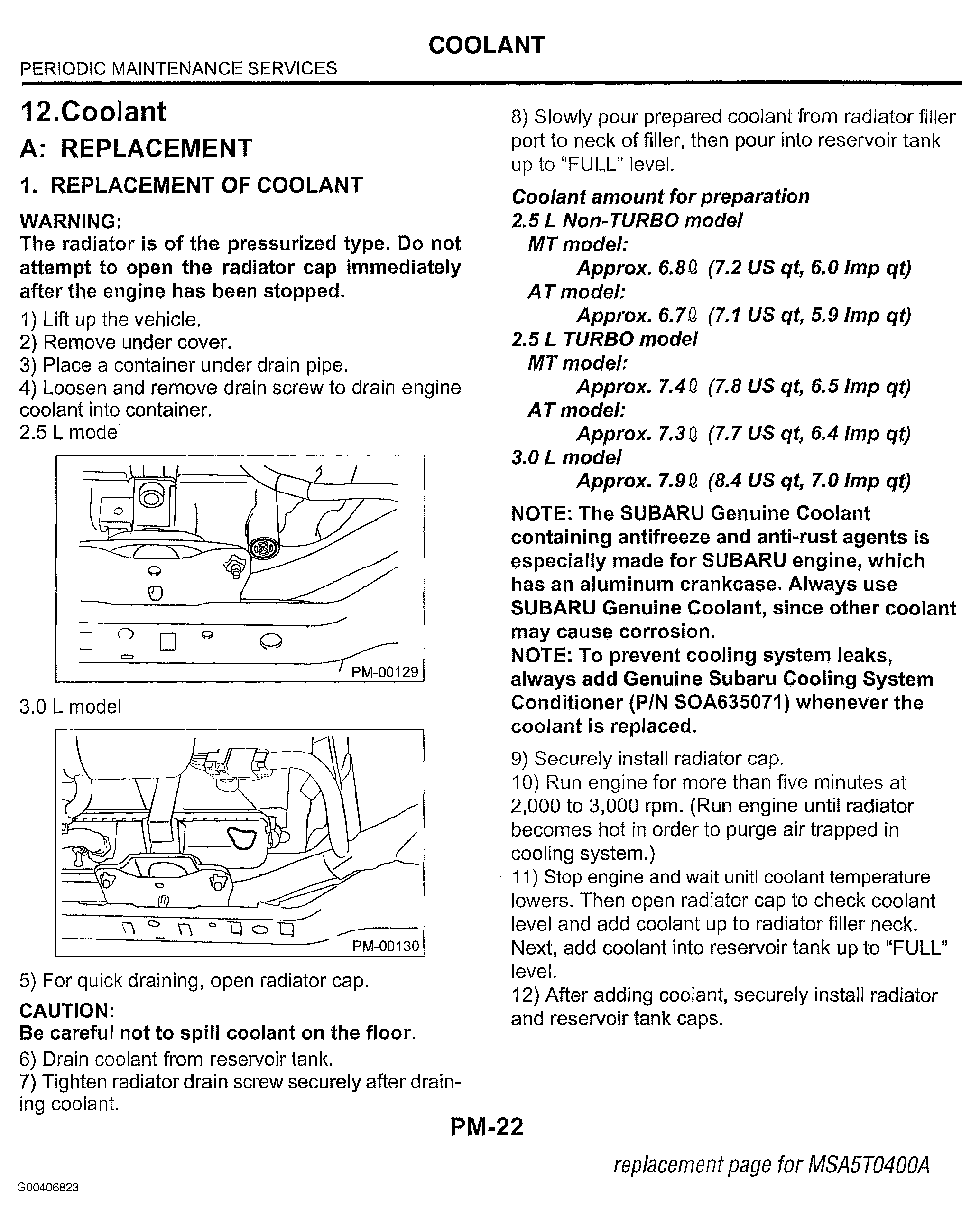

Fig 65: Replacement Page For MSA5T0400A, Page PM-22

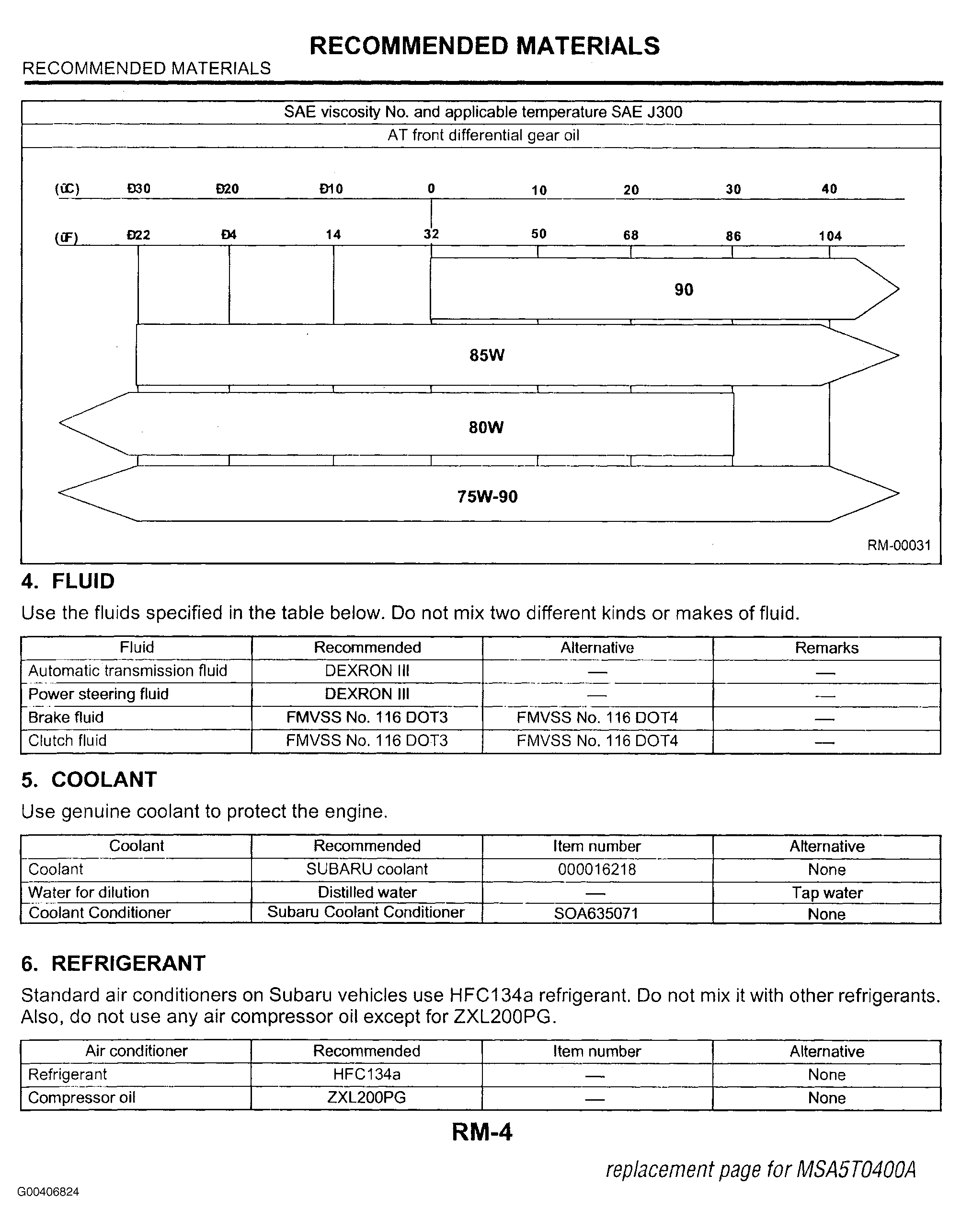

Fig 66: Replacement Page MSA5T0400A, Page RM-4
