Section 21 (Axle Shafts - Front): Description

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

For exploded view of axle shaft assembly, see Fig 1.

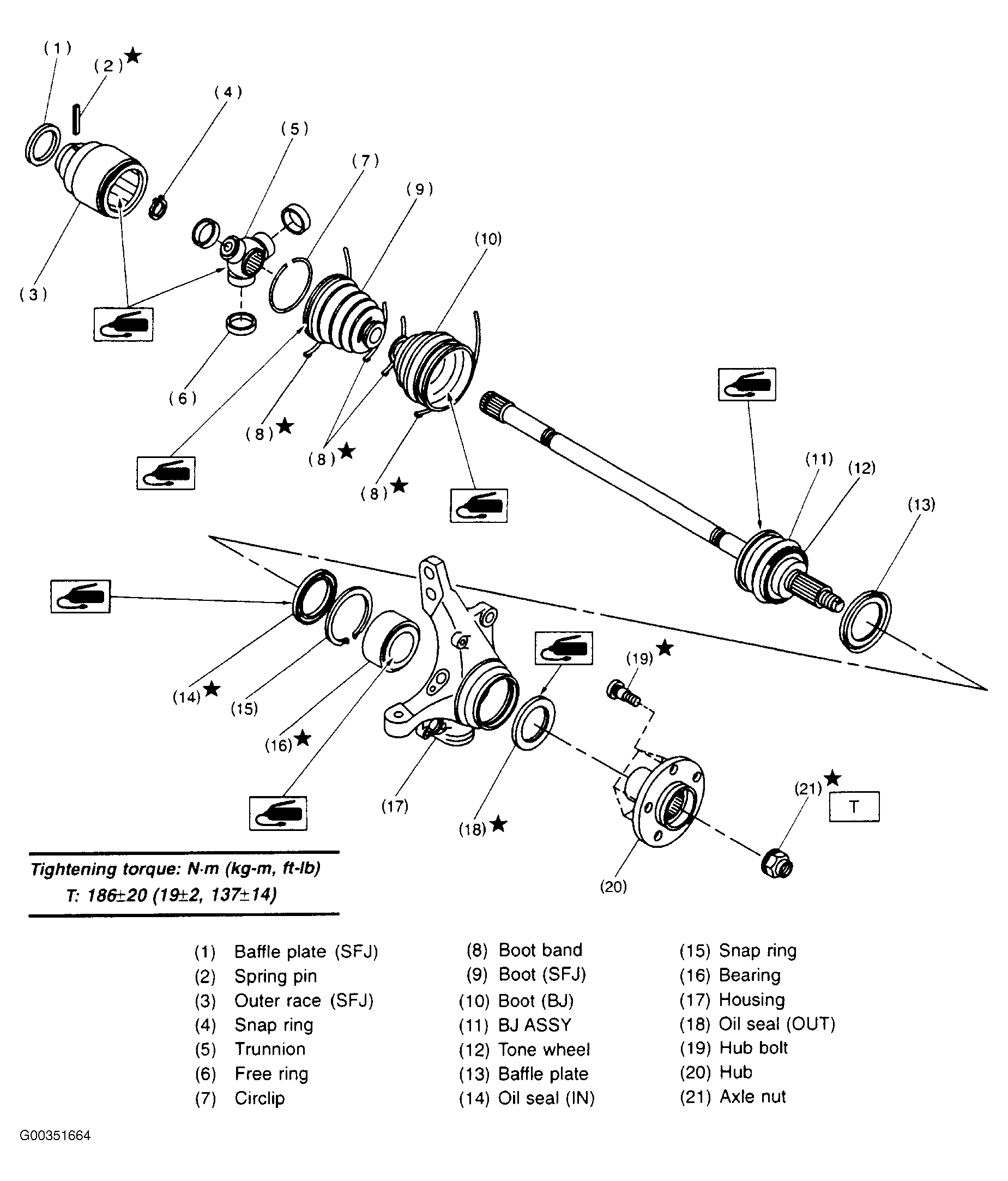

Fig 1: Identifying Front Axle Shaft

Courtesy of SUBARU OF AMERICA, INC.
