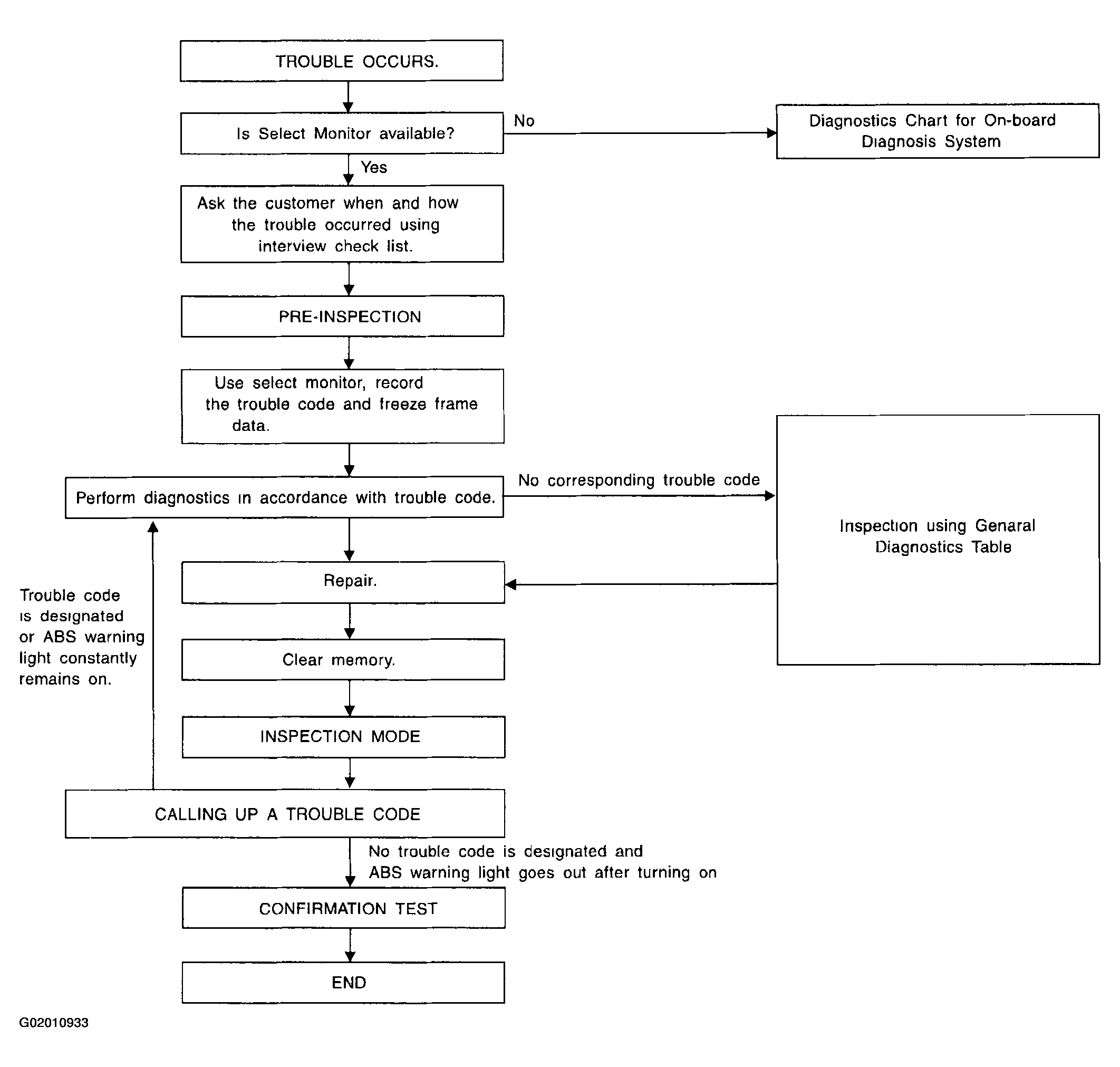

Basic Diagnostic Chart
WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Remove foreign matter (dust, water, etc.) from the ABSCM & H/U connector during removal and installation.
NOTE:
To check harness for broken wires or short circuits, shake it while holding it or the connector.
