Front And Center Exhaust Pipe Assembly: Removal

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Set the vehicle on the lift.
Disconnect battery ground cable.

Fig 1: Removing Ground Cable From Battery
Disconnect front oxygen (A/F) sensor connector.

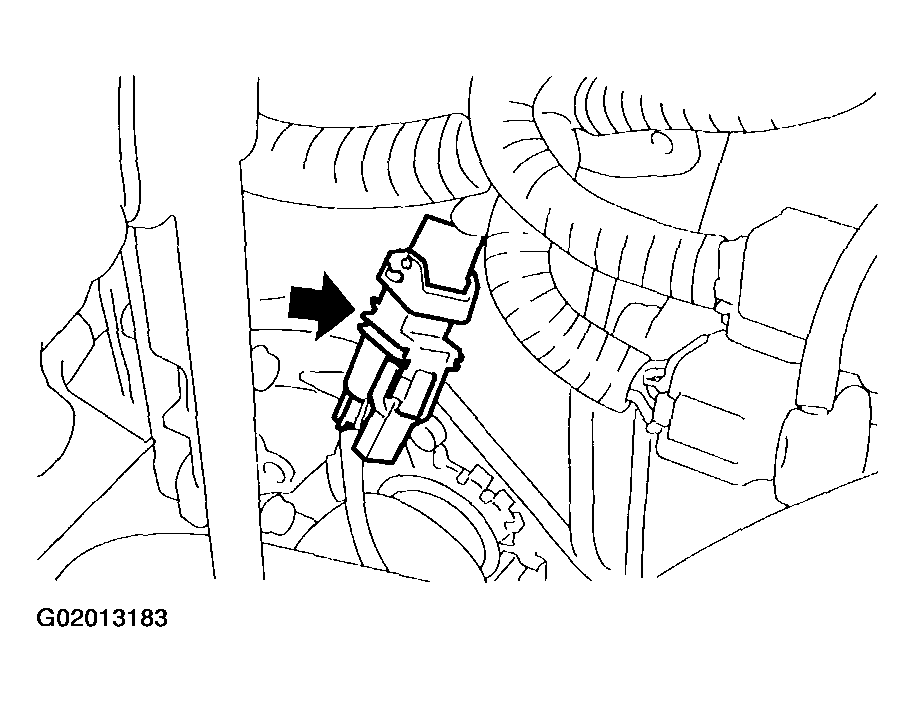

Fig 2: Disconnecting Front Oxygen (A/F) Sensor Connector
Lift-up the vehicle.
Remove under cover.
Disconnect rear oxygen sensor connector.

Fig 3: Disconnecting Rear Oxygen Sensor Connector
Separate front and center exhaust pipe assembly from rear exhaust pipe.
WARNING: Be careful, exhaust pipe is hot.

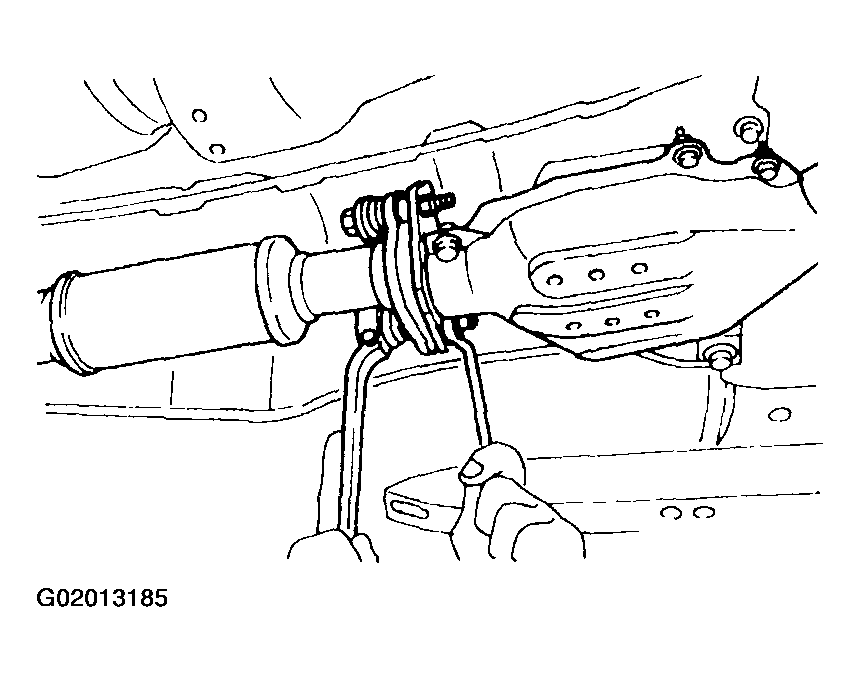

Fig 4: Separating Front & Center Exhaust Pipe Assembly From Rear Exhaust Pipe
Remove bolts which hold front exhaust pipe onto cylinder heads.
CAUTION: Be careful not to pull down front and center exhaust pipe assembly.

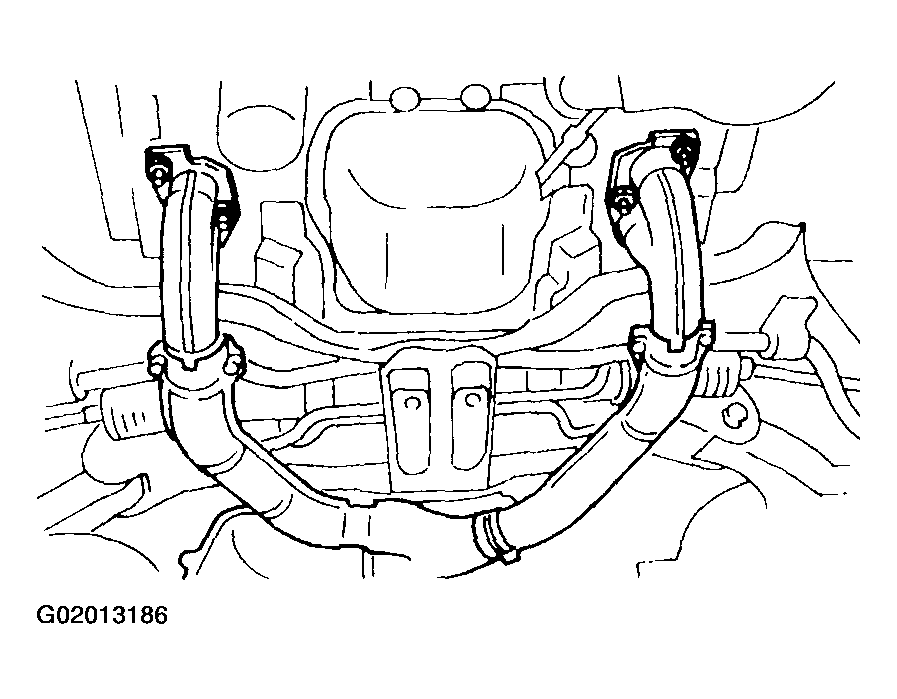

Fig 5: Identifying Bolts Which Hold Front Exhaust Pipe Onto Cylinder Heads
Remove bolt which installs front and center exhaust pipe assembly to hanger bracket.

Fig 6: Identifying Hanger Bracket Bolt
Remove front and center exhaust pipe assembly from the vehicle.
CAUTION:
- Be careful not to let front and center exhaust pipe assembly fall off when removing as it is quite heavy.
- After removing front and center exhaust assembly, do not apply excessive pulling force on rear exhaust pipe.
Separate front exhaust pipe from front catalytic converter and center exhaust pipe assembly.

Fig 7: Separating Front Exhaust Pipe From Front Catalytic Converter
