2500 cc Model

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

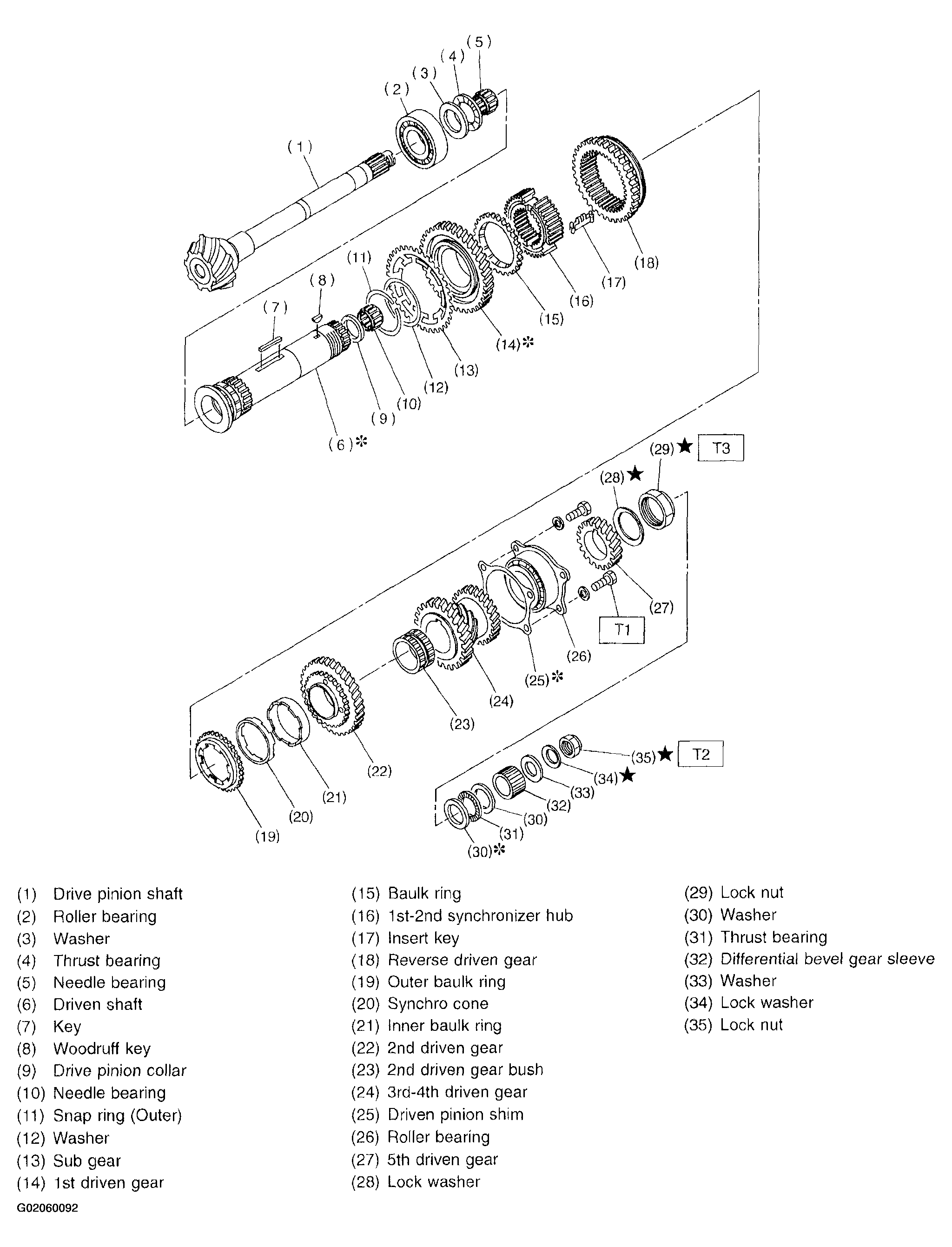

Fig 1: Identifying Drive Pinion Assembly Components (2500 cc Model)
G02060092

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  29 (3.0, 21.7)
  2. T2:  118 (12.0, 86.8)
  3. T3:  265 (27, 195)
