Transmission Mounting

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

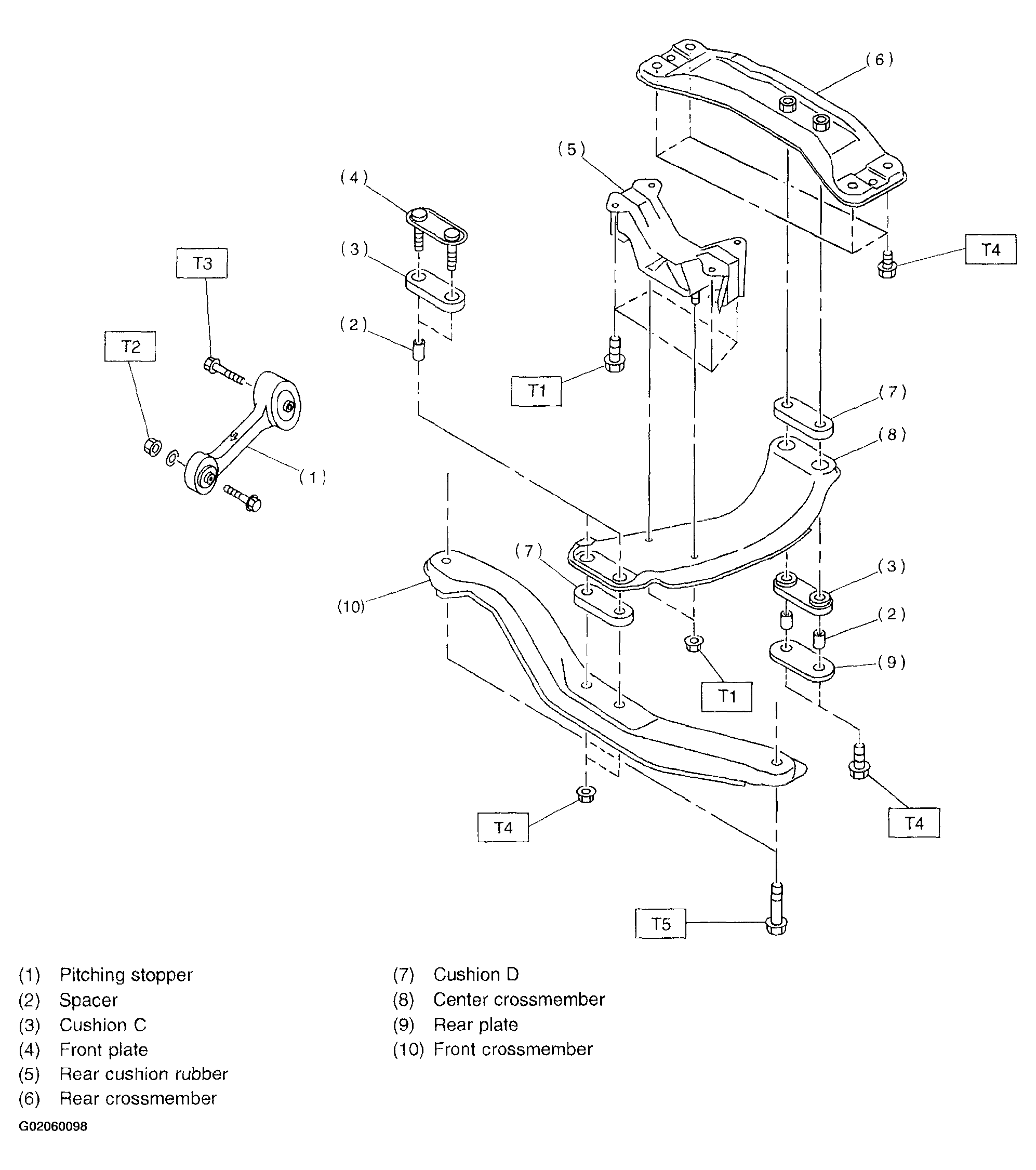

Fig 1: Identifying Transmission Mounting Components
G02060098

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  34 (3.5, 25.3)
  2. T2:  49 (5.0, 36.2)
  3. T3:  57 (5.8, 42)
  4. T4:)  69 (7.0, 51
  5. T5:  137 (14, 101)
