Air Cleaner Case: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza and 2000 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery ground cable.

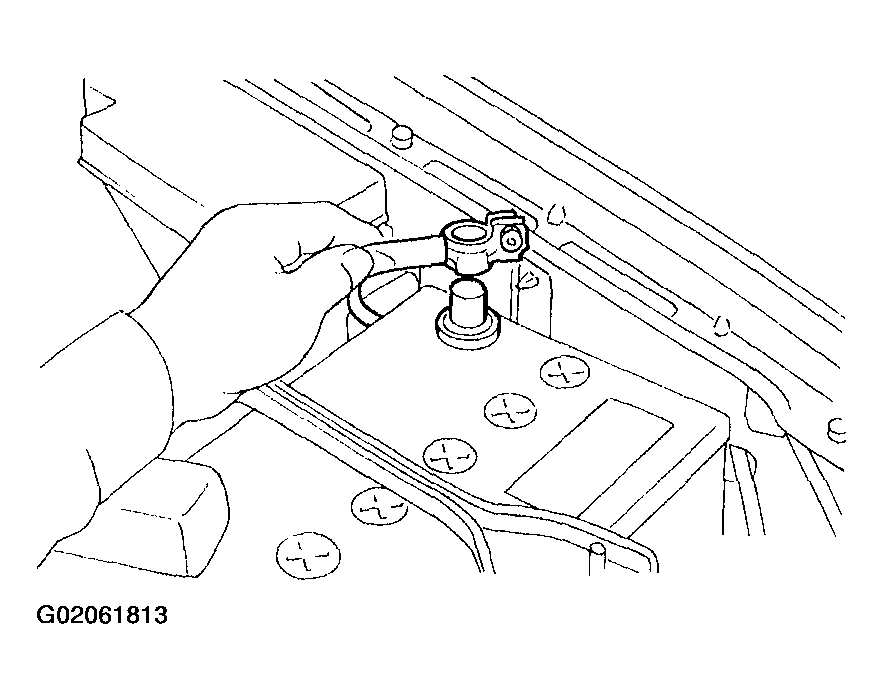

Fig 1: Disconnecting Battery Ground Cable
Disconnect connector from intake air temperature sensor (2200 cc models).

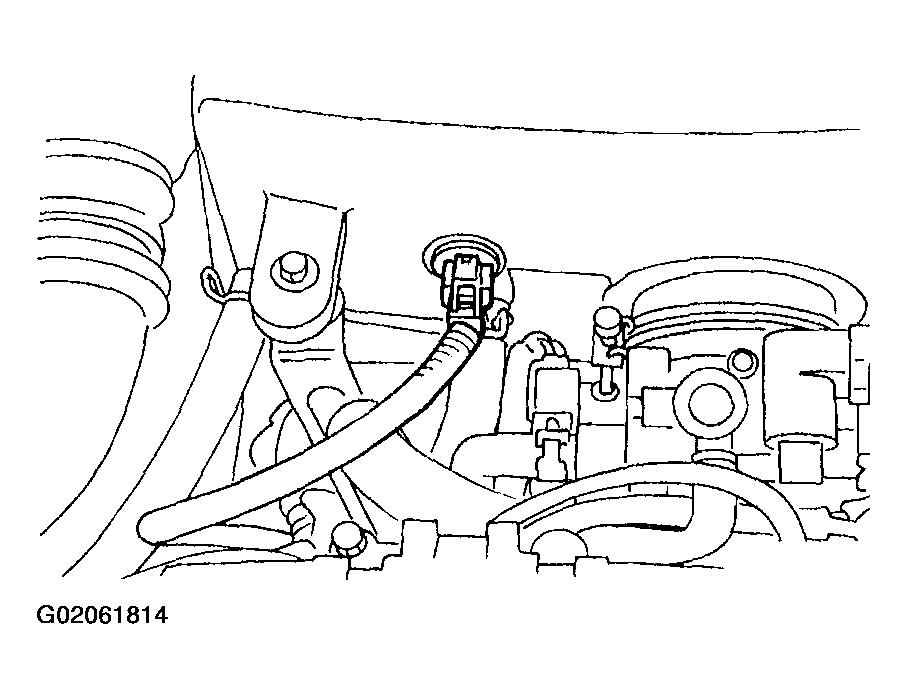

Fig 2: Disconnecting Connector From Intake Air Temperature Sensor (2200cc Models)
Loosen clamp which connects air cleaner case to throttle body.

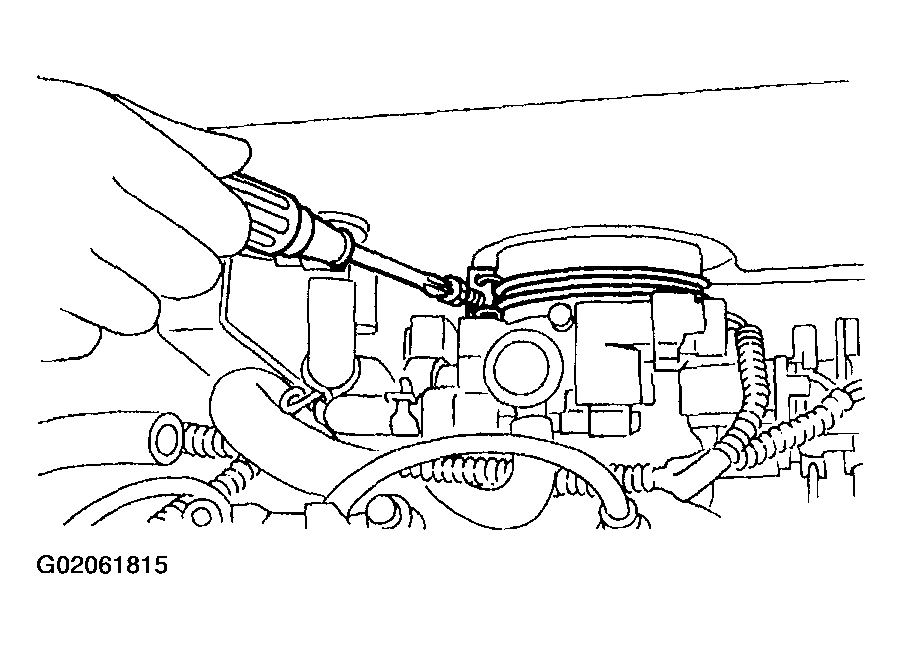

Fig 3: Loosening Clamp Connecting Air Cleaner Case To Throttle Body
Disconnect hoses from air cleaner case.
Remove bolts which install air cleaner case to stays.
Remove air cleaner case.

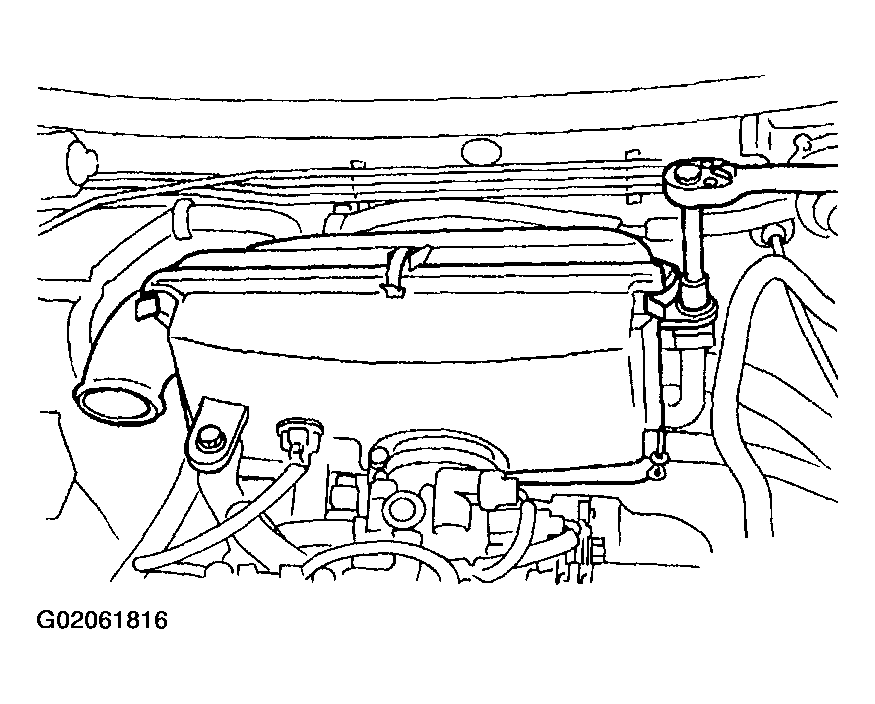

Fig 4: Removing Bolts From Air Cleaner Case
