Description & Operation

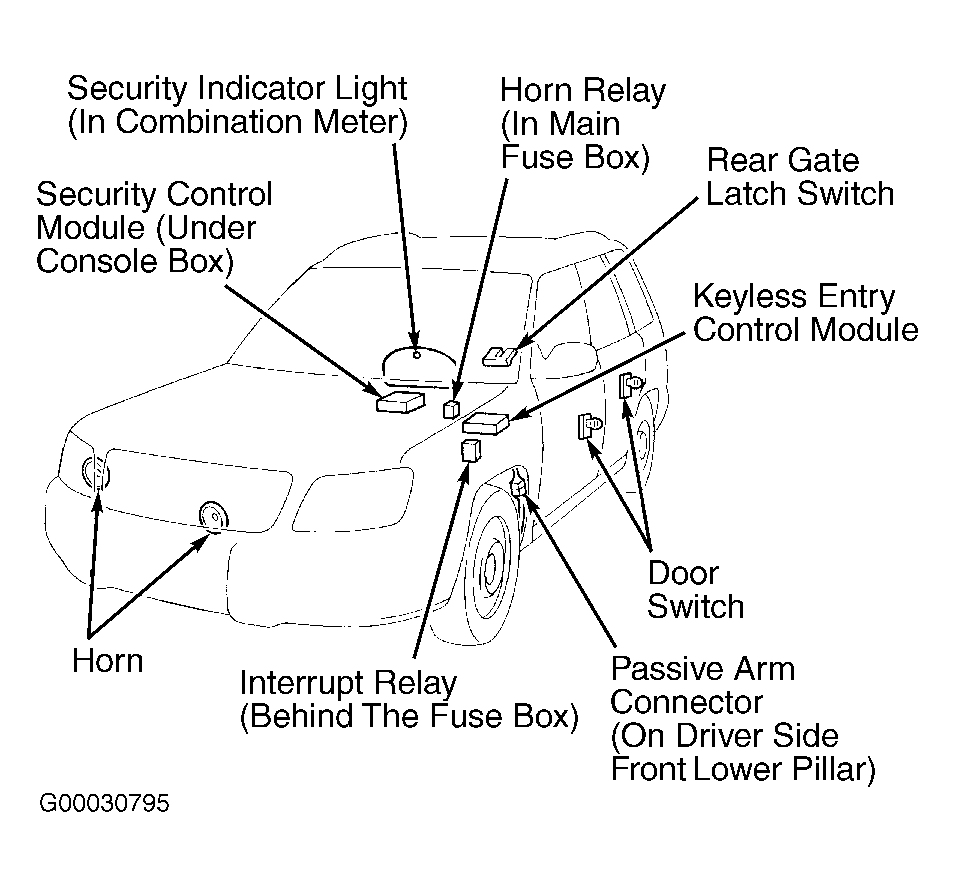

When anti-theft system is set (armed), system will lock all doors, flash clearance lights, and sound alarm if one of the following conditions occur: any door, liftgate or hood is opened without the key, battery cable is disconnected and reconnected without the key in the ignition lock cylinder, or the system receives panic signal from remote keyless entry system. System consists of a keyless entry control module, security control module, SECURITY indicator light in instrument cluster, 2 relays, door and liftgate latch switches and a passive arming connector. See Fig 1 .
