Component Locations

WARNING: This page is about a different car, the 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

For restraint system component locations, see Fig 1.

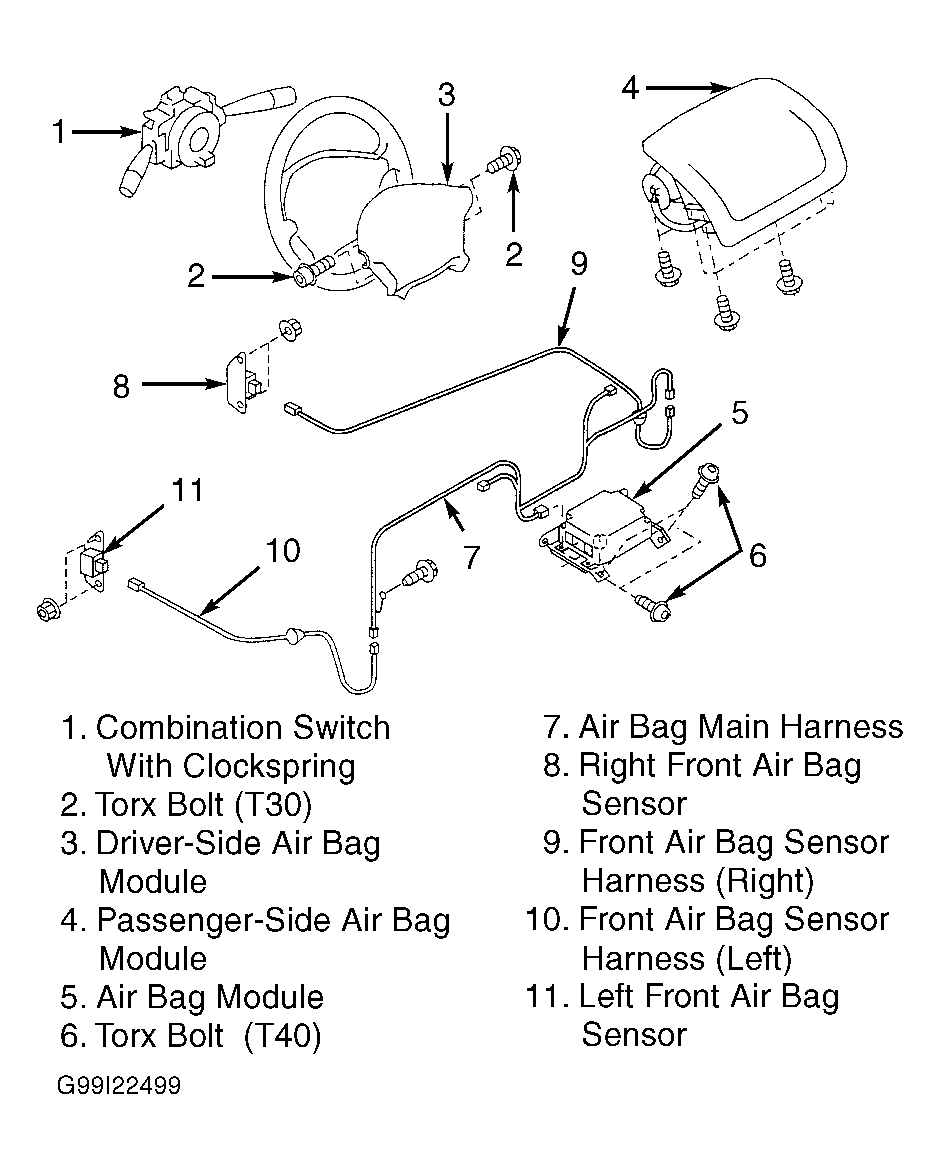

Fig 1: Locating Restraint System Components

Courtesy of SUBARU
