Energy-Absorbing Mechanism

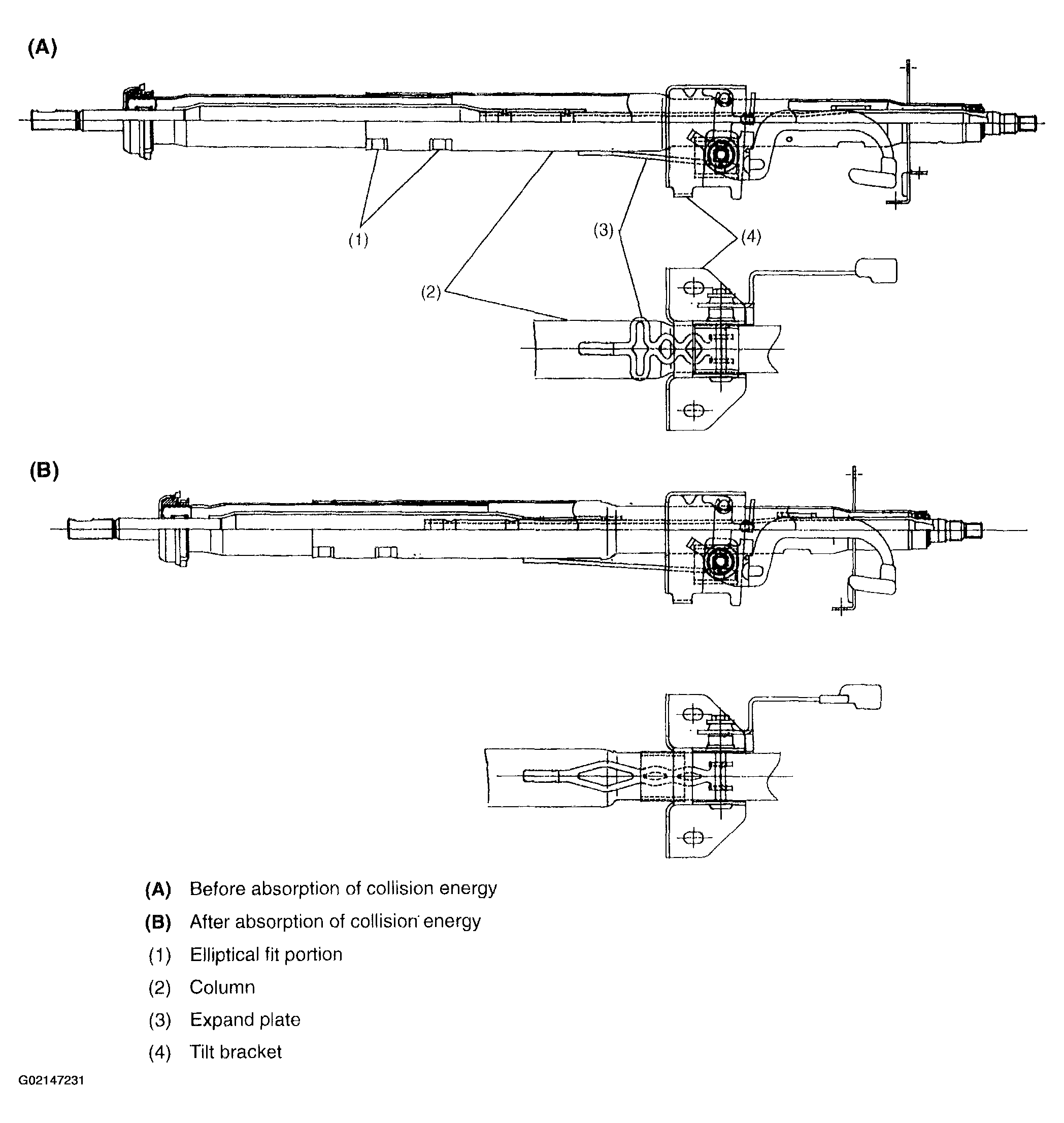

- To absorb the engine backward energy in the event of a collision, an elliptical fit type column pipe has been adopted. The energy is absorbed by collapse of the elliptical fit portions as their surfaces come in contact with each other and receive the bend load.
- To absorb the energy of shock on the drive in the event of a collision, an expand plate has been adopted between the tilt bracket to be secured to the steering support beam and the column. The expand plate is deformed as it is expanded, and continues to stably absorb the energy.
