Removal & Installation: Strut: Installation

Install strut mount at upper side of strut to body and tighten with nuts. See TORQUE SPECIFICATIONS .
Install ABS sensor harness to strut.
CAUTION:
- While holding head of adjusting bolt, tighten self-locking nut.
- Be sure to use new self-locking nut.
Position aligning mark on camber adjustment bolt with aligning mark on lower side of strut.
Install brake hose at lower side of strut with clamp.
CAUTION: Be sure to bleed air from brake system.

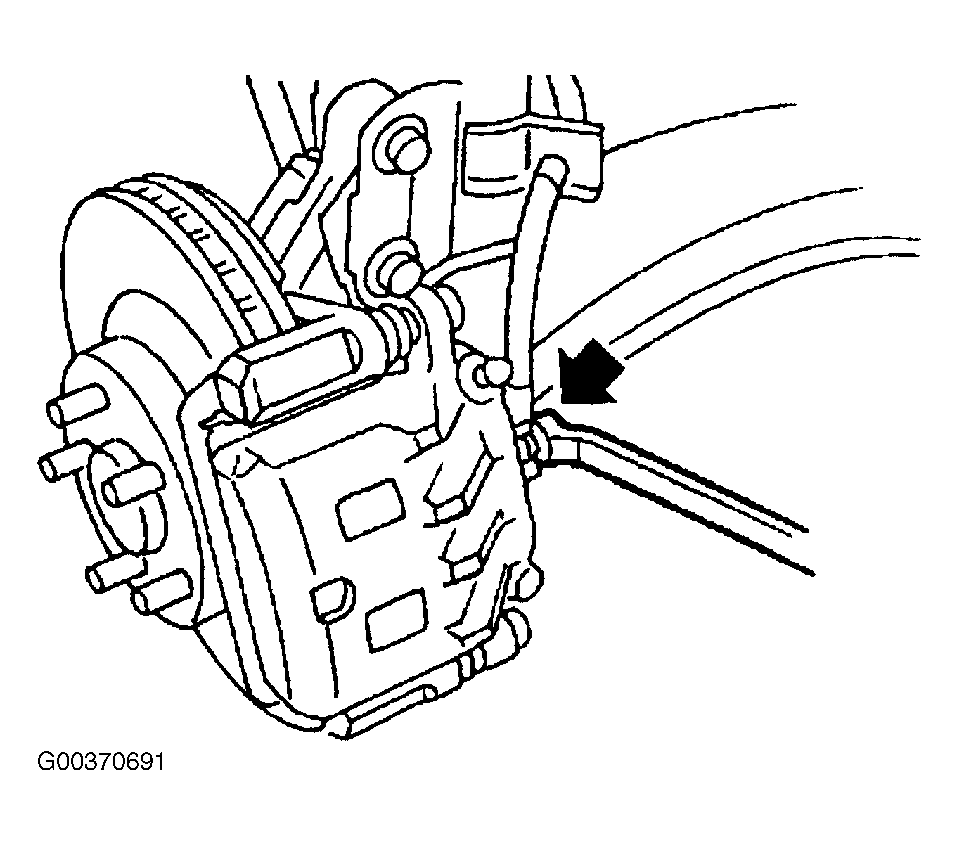

Install union bolts which secure brake caliper to brake hose. See Figure .
NOTE: Check wheel alignment and adjust if necessary.
Install wheels.
