Removal & Installation: Strut: Notes

For exploded view of front strut assembly, see

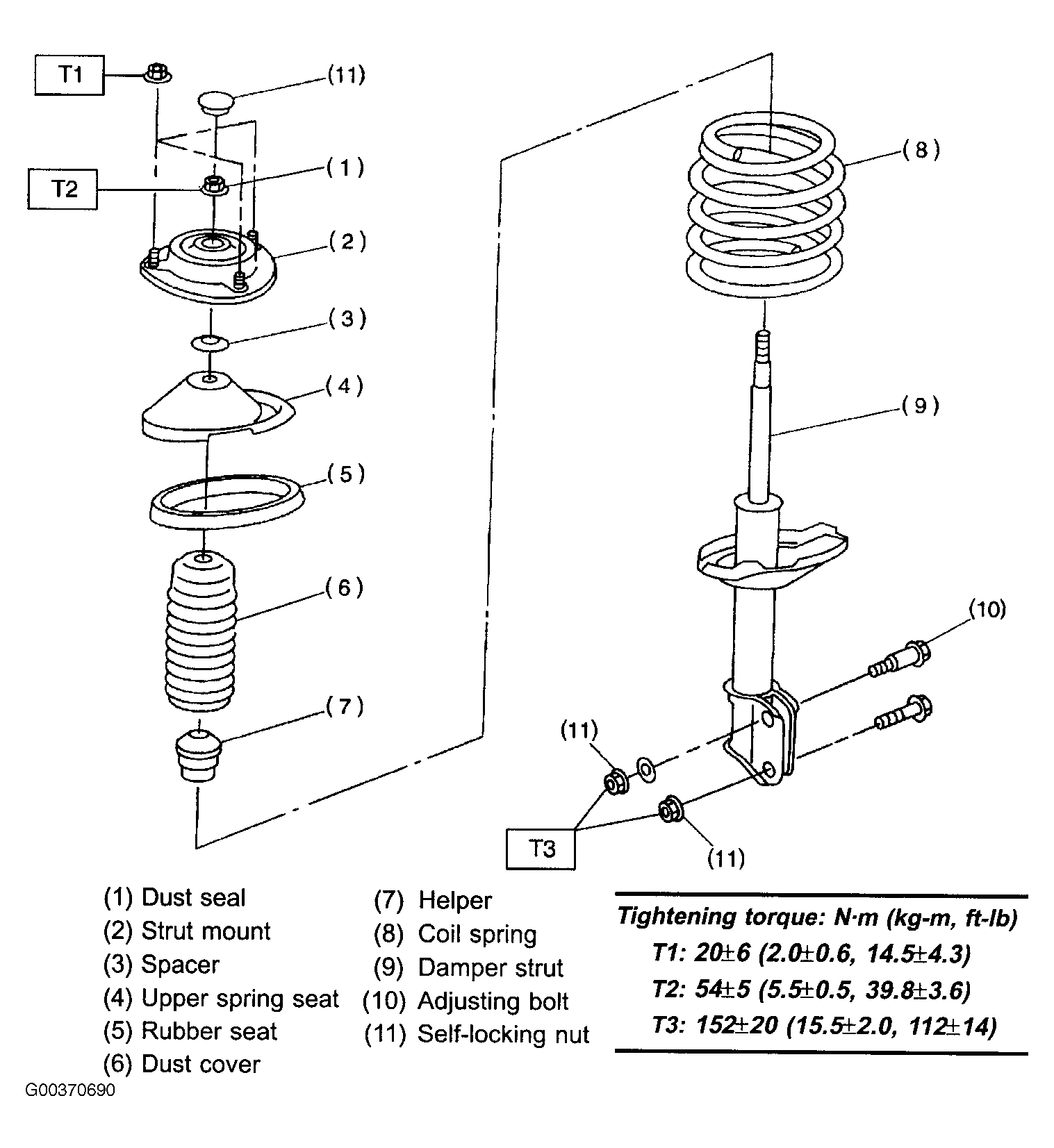

Fig 1: Exploded View Of Front Strut Assembly
G00370690Courtesy of SUBARU OF AMERICA, INC.
