Gear Shift Lever: Inspection

Check each part (bush A, cushion rubber, spacer, boot, stay and rod, etc.) for deformation, damage and wear. Repair or replace any defective part. Determine defective parts by comparing with new parts.

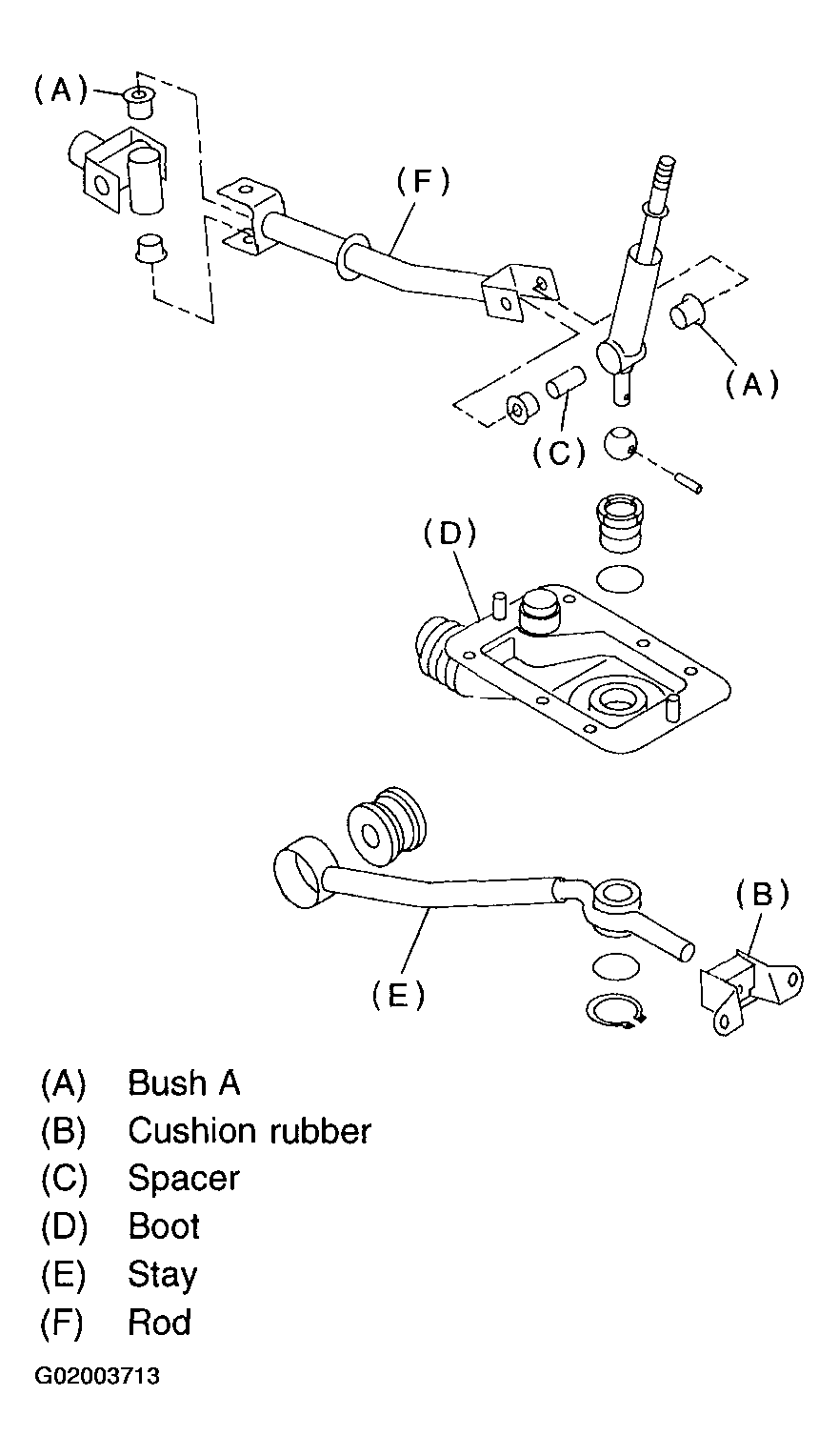

Fig 1: Inspecting Components
G02003713
