Hydraulic Control Valve: Function

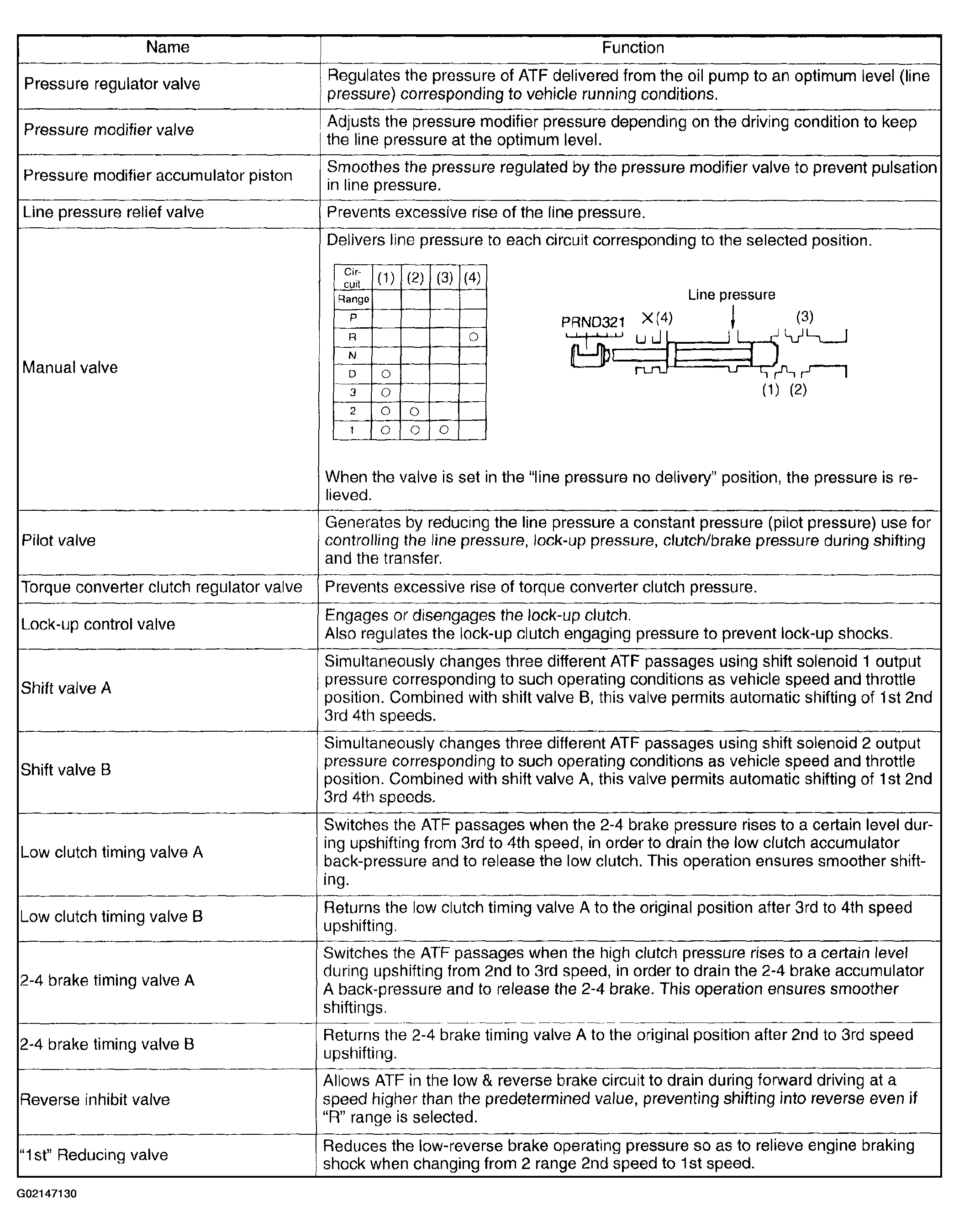

Fig 1: Hydraulic Control Valve Function Chart (1 Of 2)

G02147130

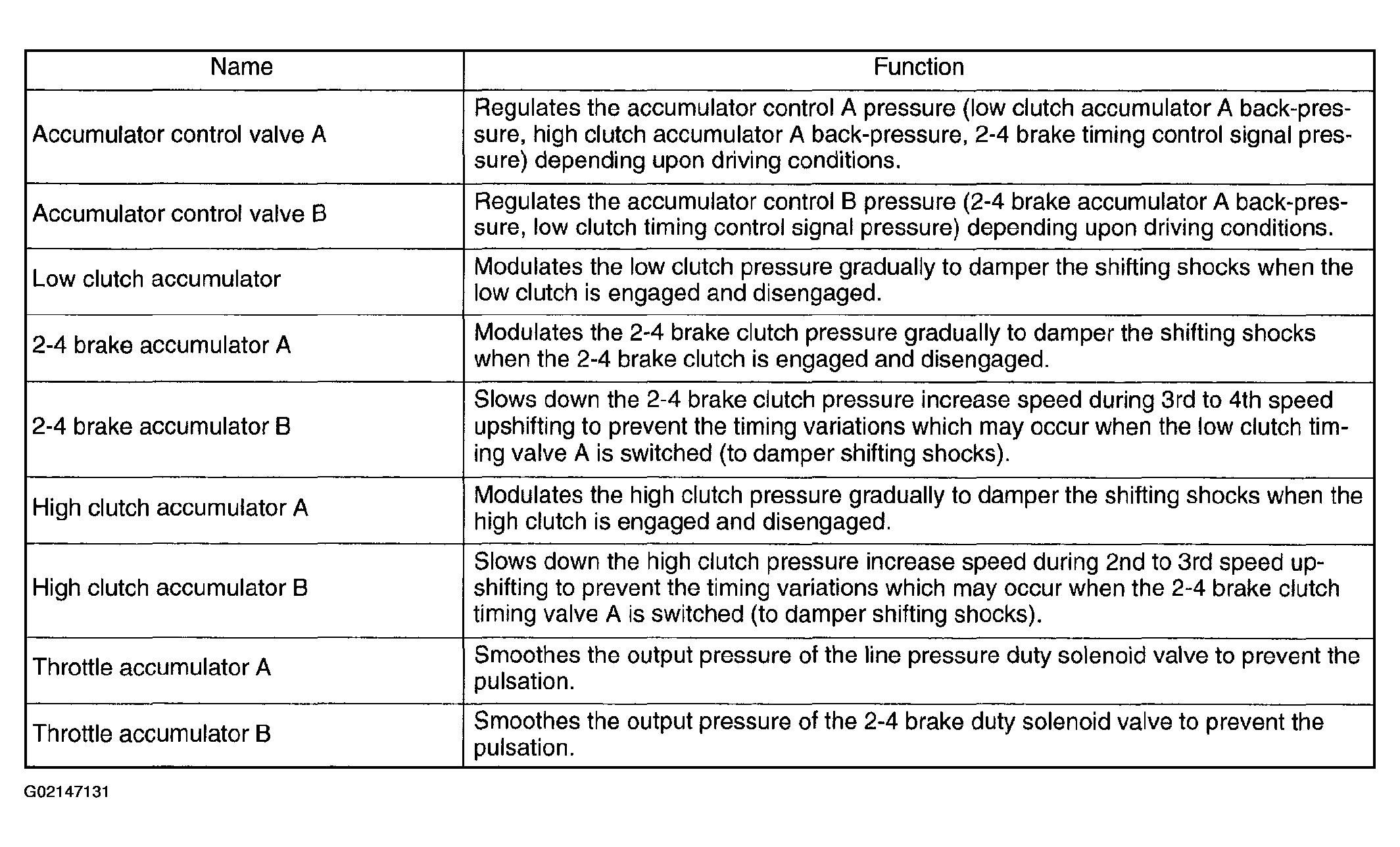

Fig 2: Hydraulic Control Valve Function Chart (2 Of 2)

G02147131
