Low Clutch: Construction

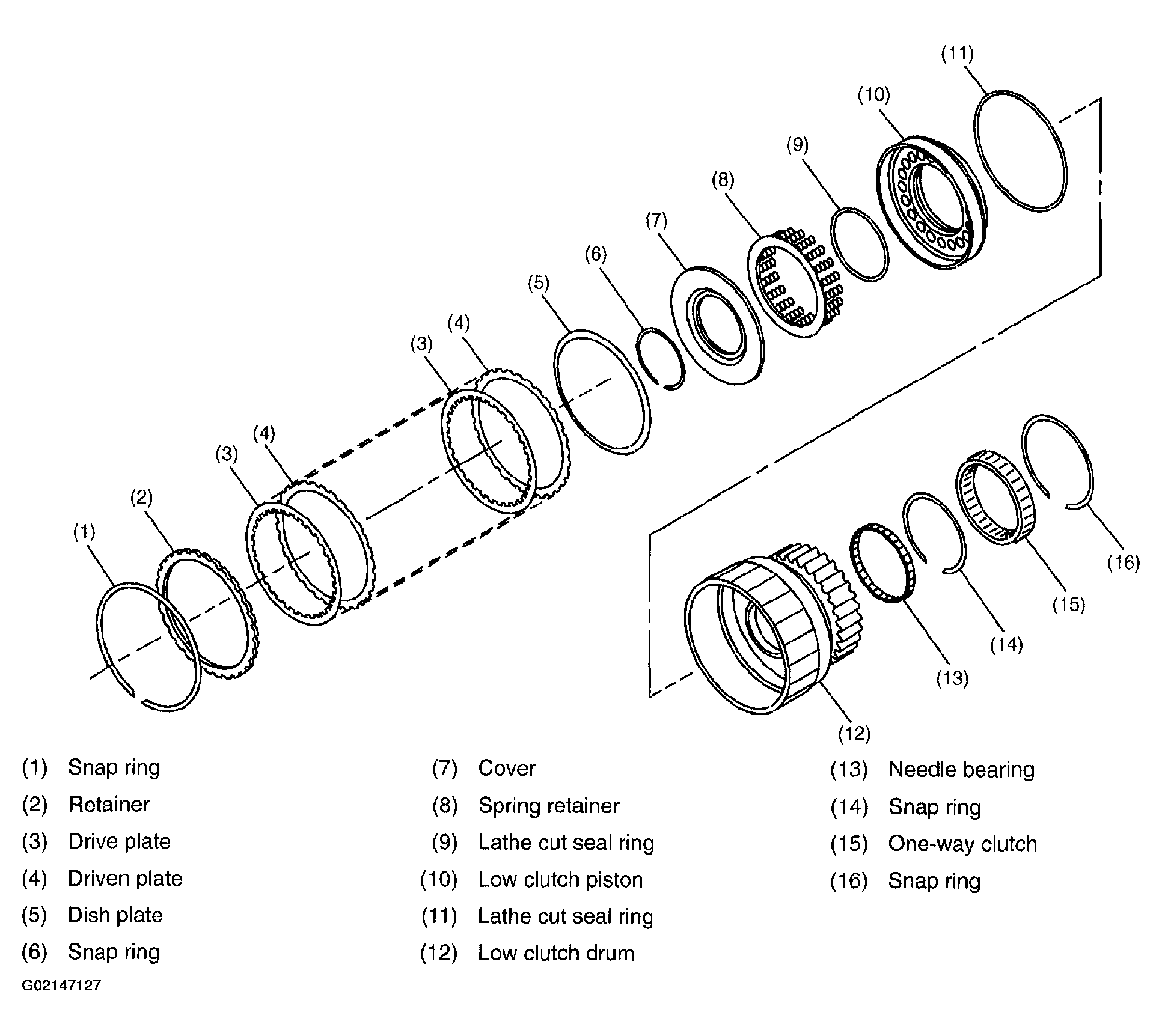

The low clutch consists of a clutch drum, clutch piston, return spring, cover, drive plates, driven plates etc.
The low clutch drum is manufactured by pressing sheet metal. The clutch drum, outer race and sleeve are welded together by the electron beam welding technique.
