First Speed Of D, 3 & 2 Range

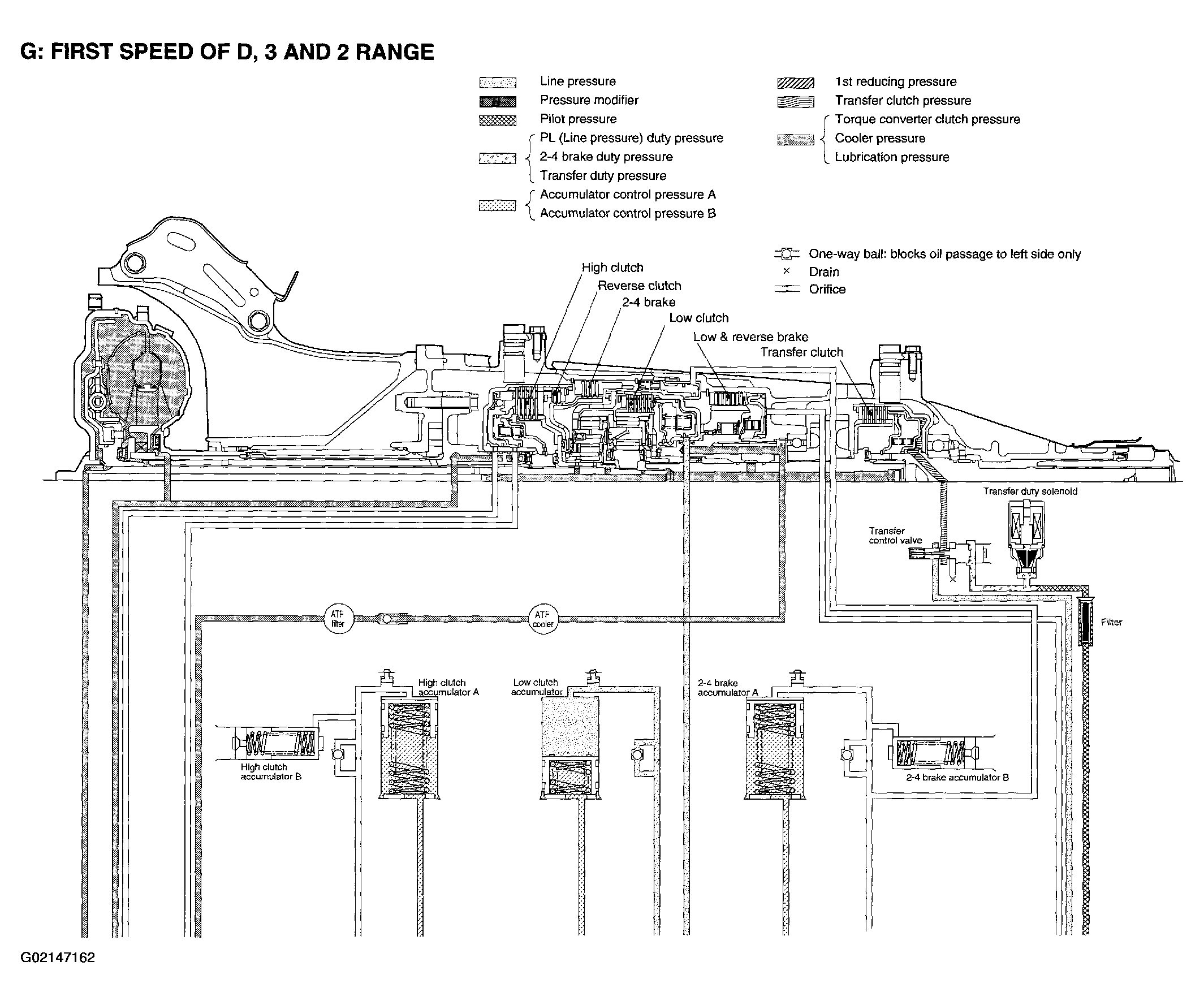

Fig 1: First Speed Of D, 3 & 2 Range - Schematic Drawing (1 Of 2)

G02147162

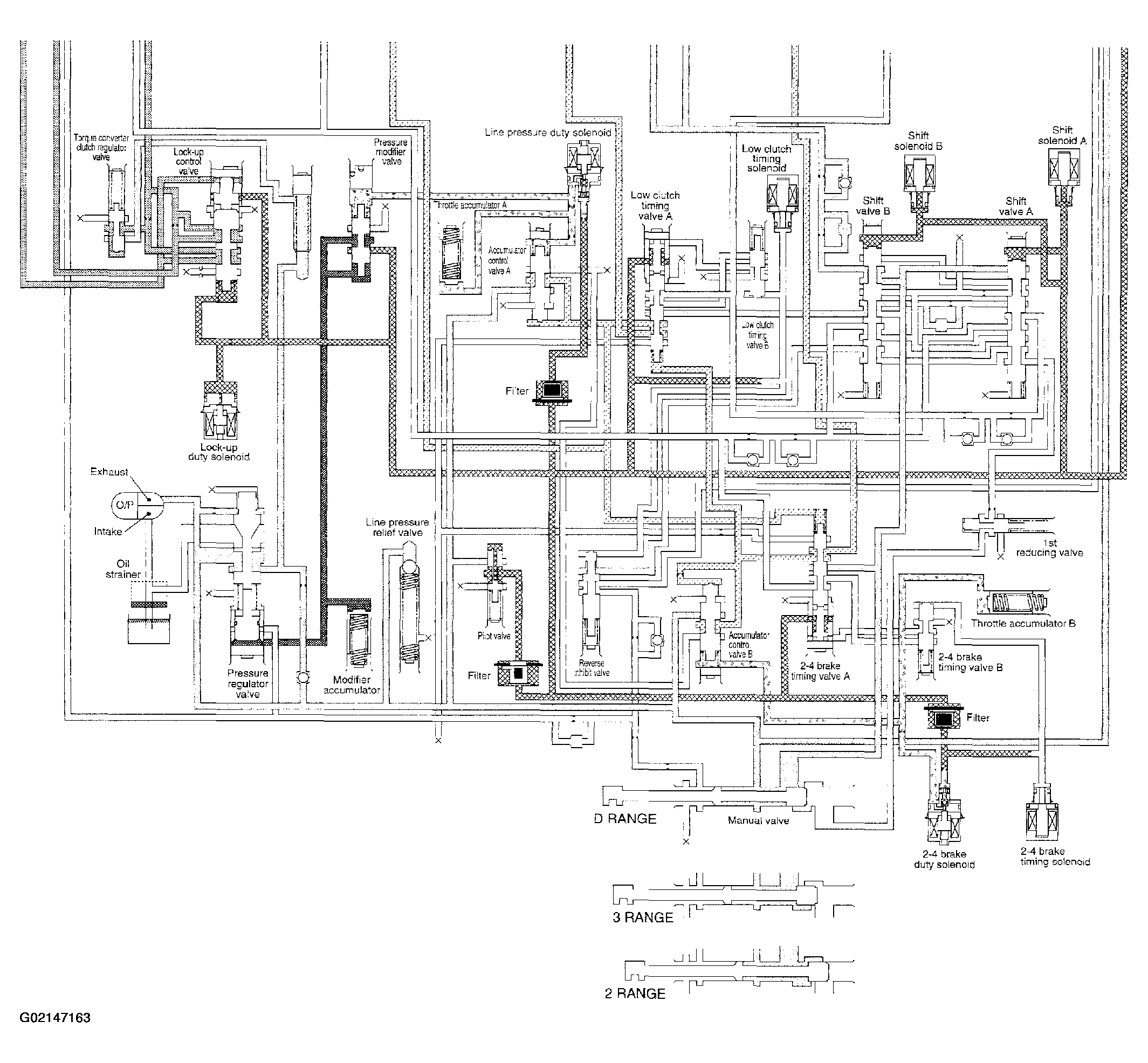

Fig 2: First Speed Of D, 3 & 2 Range - Schematic Drawing (2 Of 2)

G02147163
