Third Speed Of D & 3 Range
Third Speed Of D & 3 Range

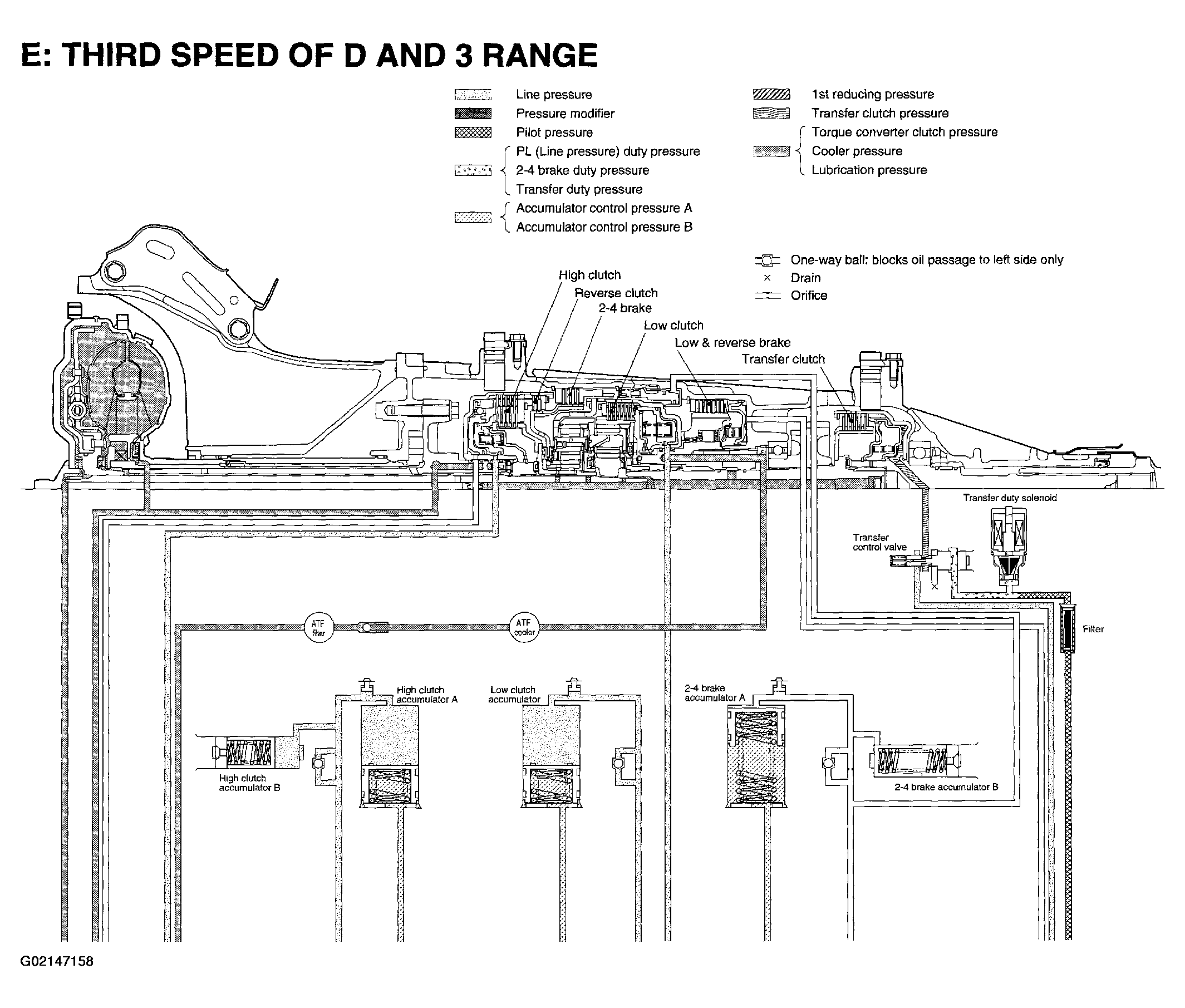

Fig 1: Third Speed Of D & 3 Range - Schematic Drawing (1 Of 2)

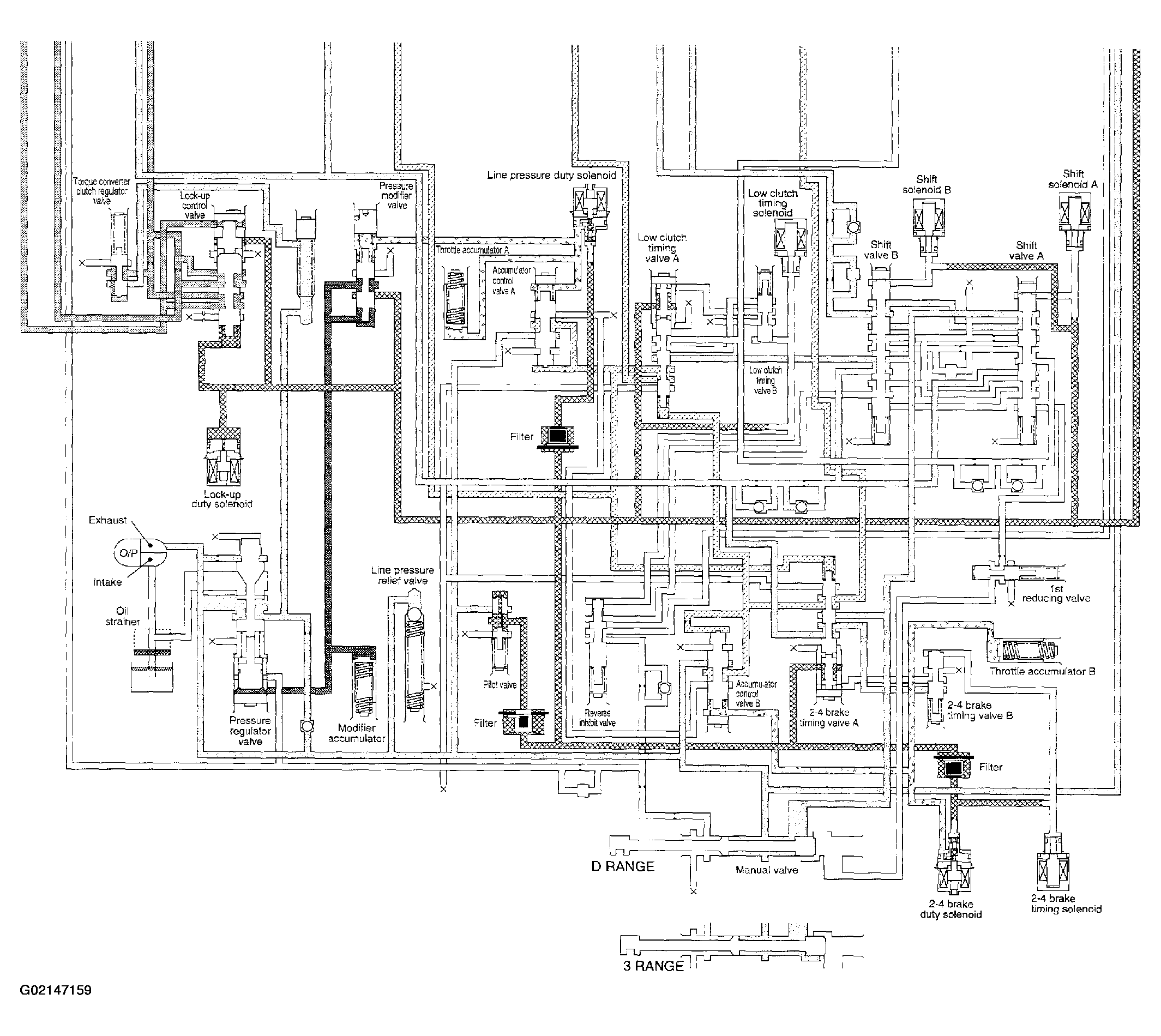

Fig 2: Third Speed Of D & 3 Range - Schematic Drawing (2 Of 2)
