AWD Transfer Clutch Control

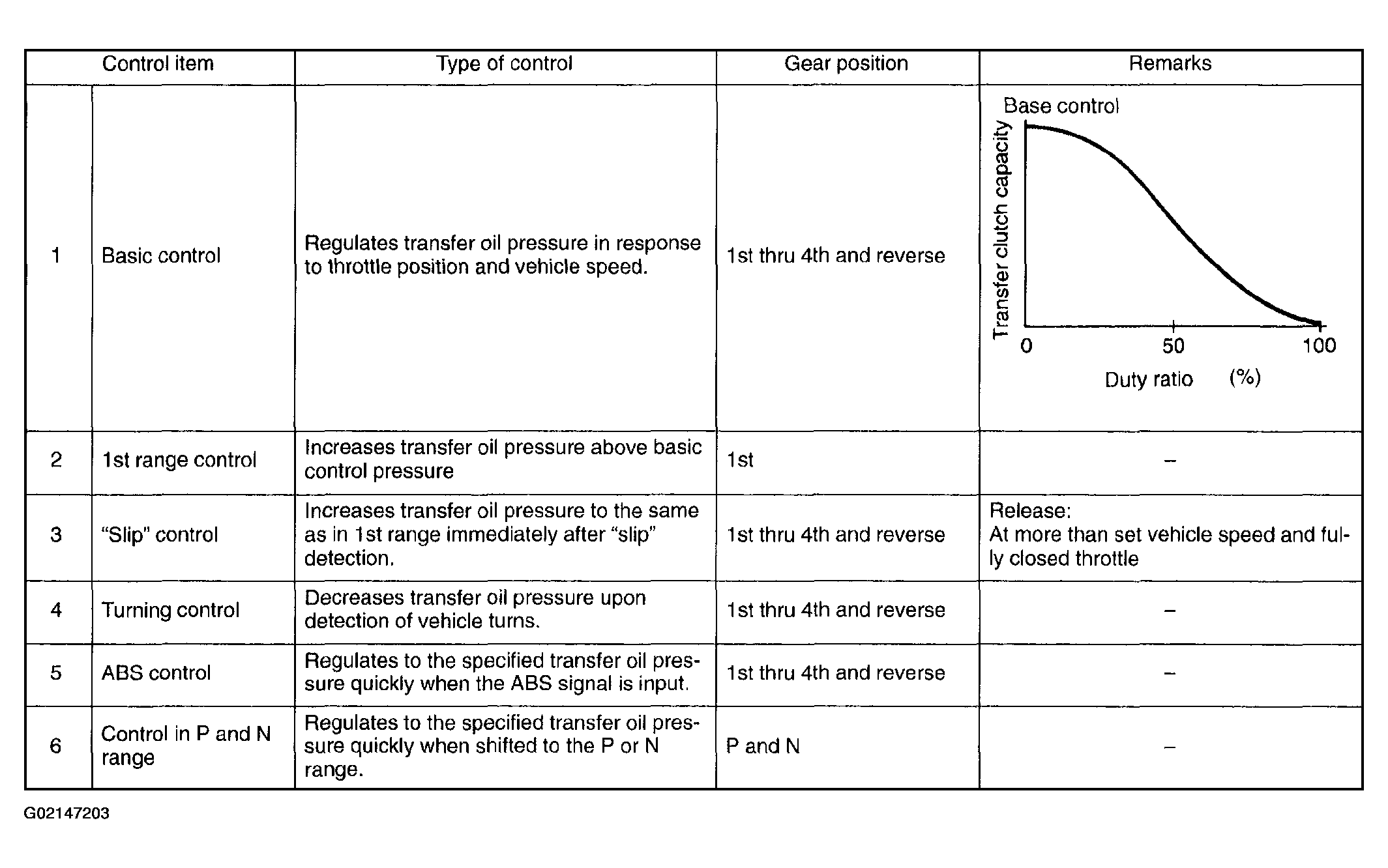

Fig 1: AWD Transfer Clutch Control Chart (1 Of 2)

G02147203

Fig 2: AWD Transfer Clutch Control Chart (2 Of 2)

G02147204
