How To Read Trouble Code At Indicator Light

The AT OIL TEMP indicator light flashes the code corresponding to the faulty part.

The long segment (1.2 sec on) indicates a "ten", and the short segment (0.2 sec on) signifies a "one".

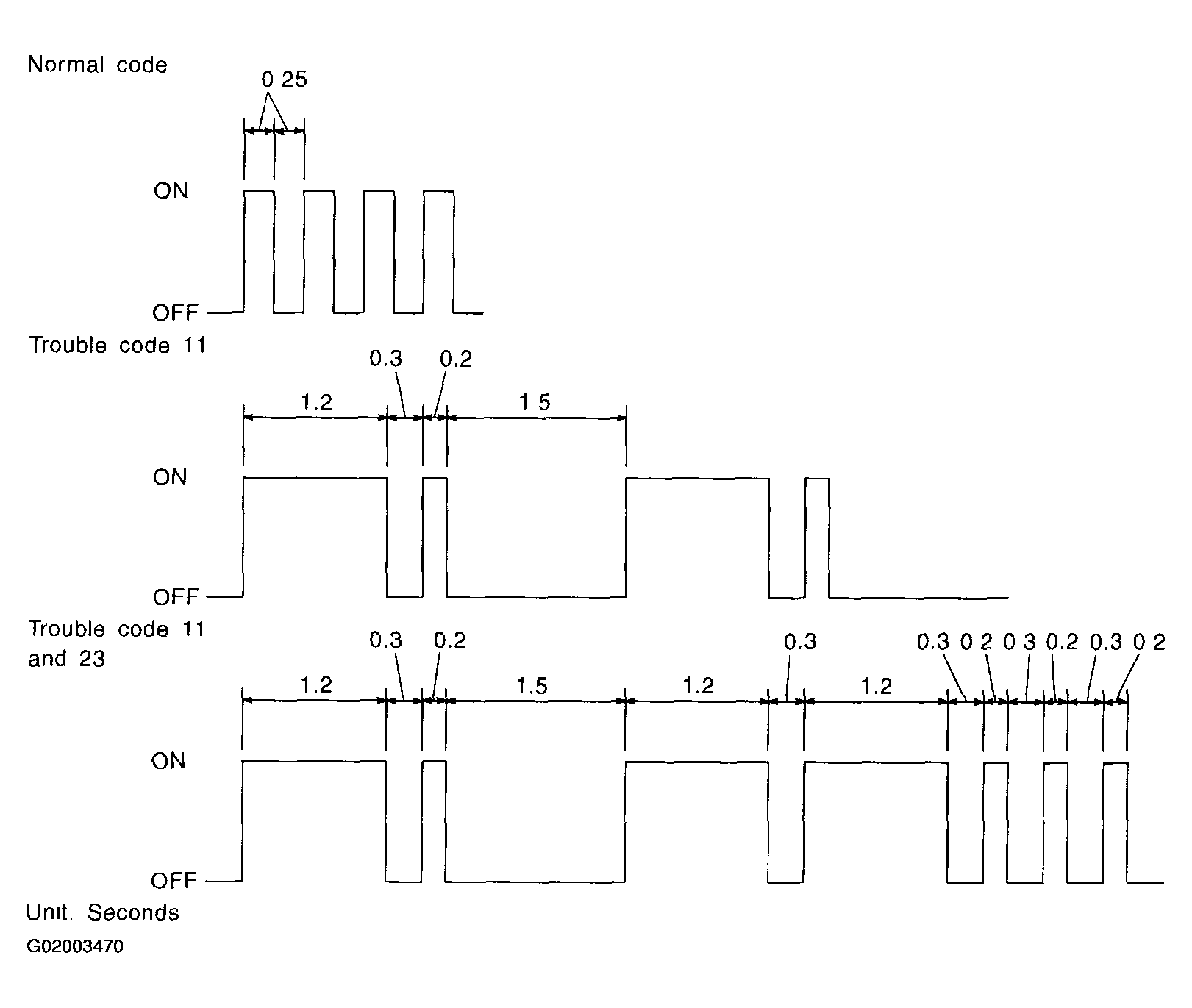

Fig 1: How To Read Trouble Codes (At The AT Oil Temp Indicator Light)
G02003470
