Diagnostics For On-Board Diagnostics Failed
›
Control Module Power Supply And Ground Line
›
Wiring Diagram:
Wiring Diagram:

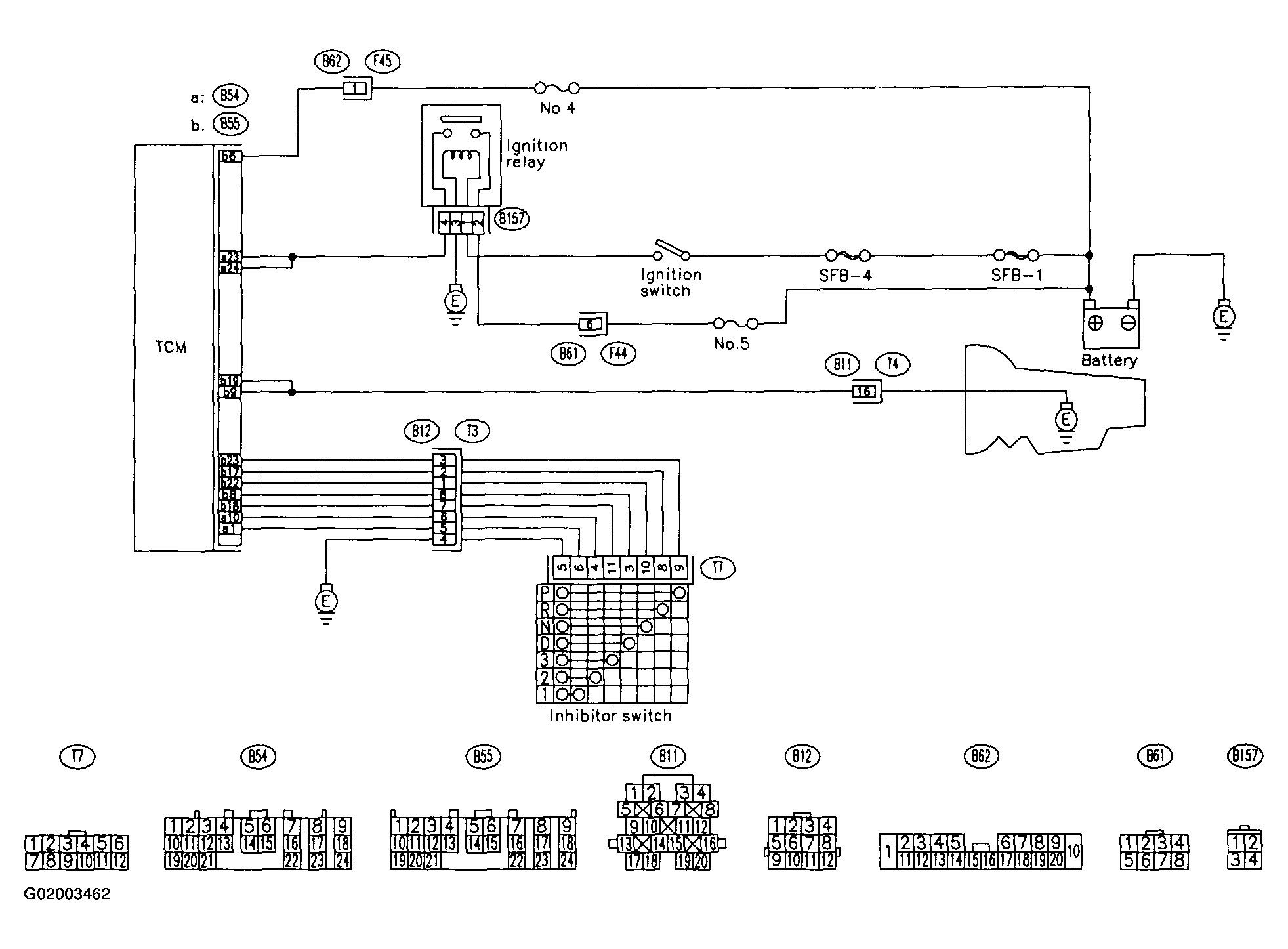

Fig 1: Control Module Power Supply & Ground Line Circuits
