Transfer Valve Body: Disassembly

Separate transfer duty solenoid and transfer valve body.
Remove the stopper plate and pry out the plug with a screwdriver. Then extract the spring and transfer control valve together.
CAUTION: Be careful not to damage the valve and valve body.

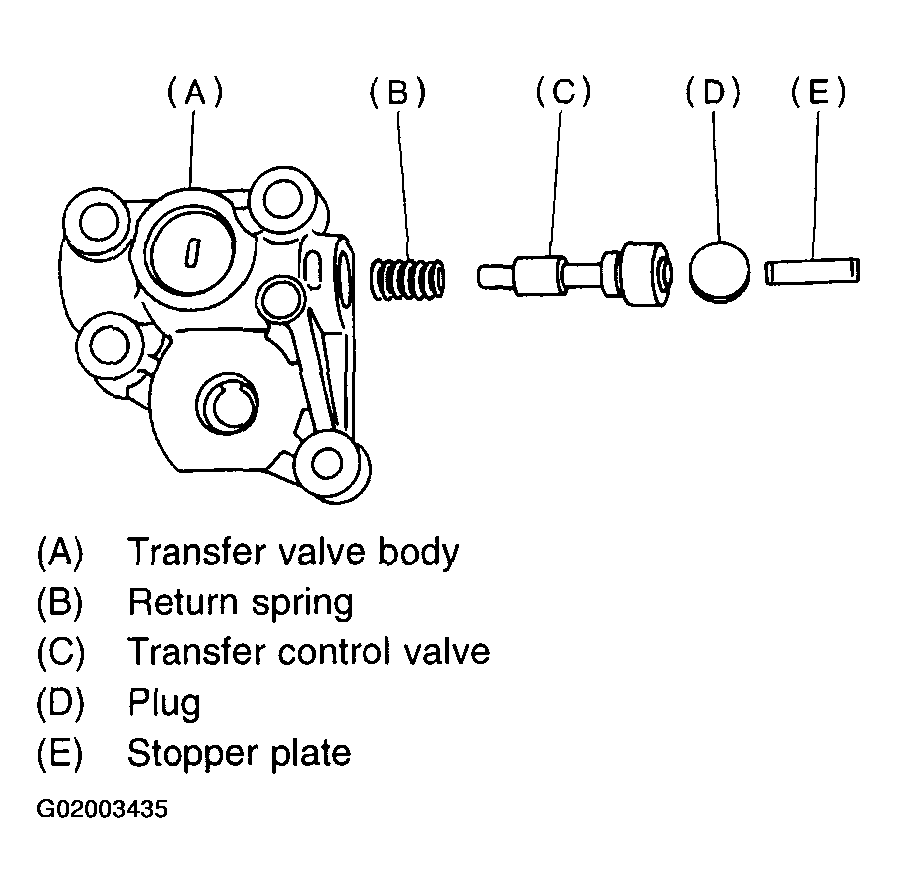

Fig 1: Identifying Transfer Valve Body Components
