Transmission Control Module (TCM): Installation

Install TCM to brake pedal bracket.
Tightening torque: 7.4+/-2.0 N.m (0.75+/-0.2 kg-m, 5.4+/-1.4 ft-lb)

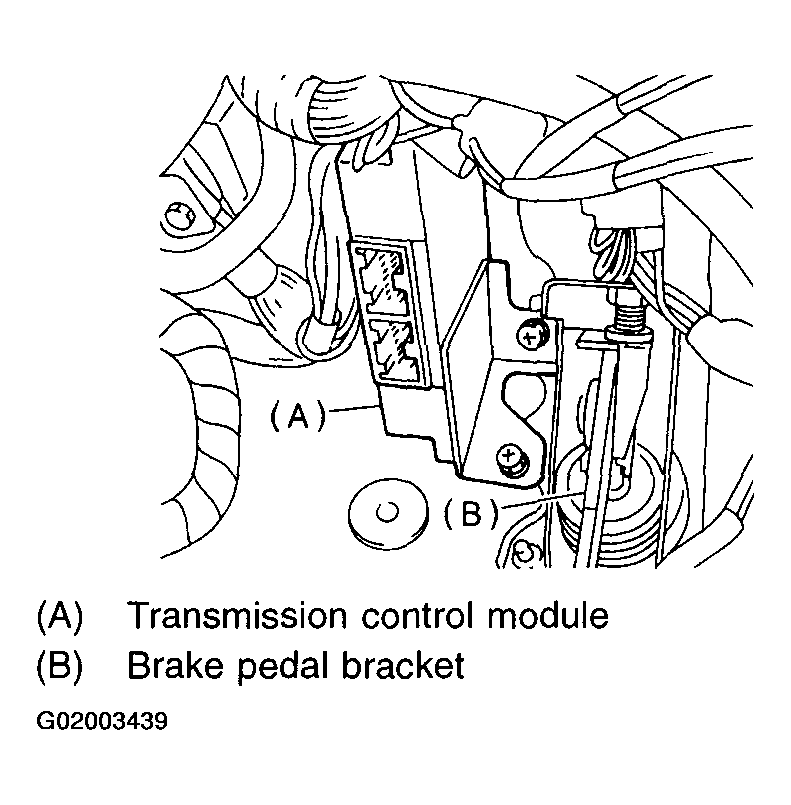

Fig 1: Installing TCM To Brake Pedal Bracket
Connect connectors to TCM.
Install lower cover and then connect connector.
Connect battery terminal.
