Oil Pump

Tightening torque: N.m (kgf-m, ft-lb)

1. T1:  7 (0.7, 5.1)
2. T2:  13 (1.3, 9.4)
3. T3:  18 (1.8, 13.0)
4. T4:  25 (2.5, 18.1)
5. T5:  39 (4.0, 28.9)
6. T6:  41 (4.2, 30.4)
7. T7:  121 (12.3, 89.0)

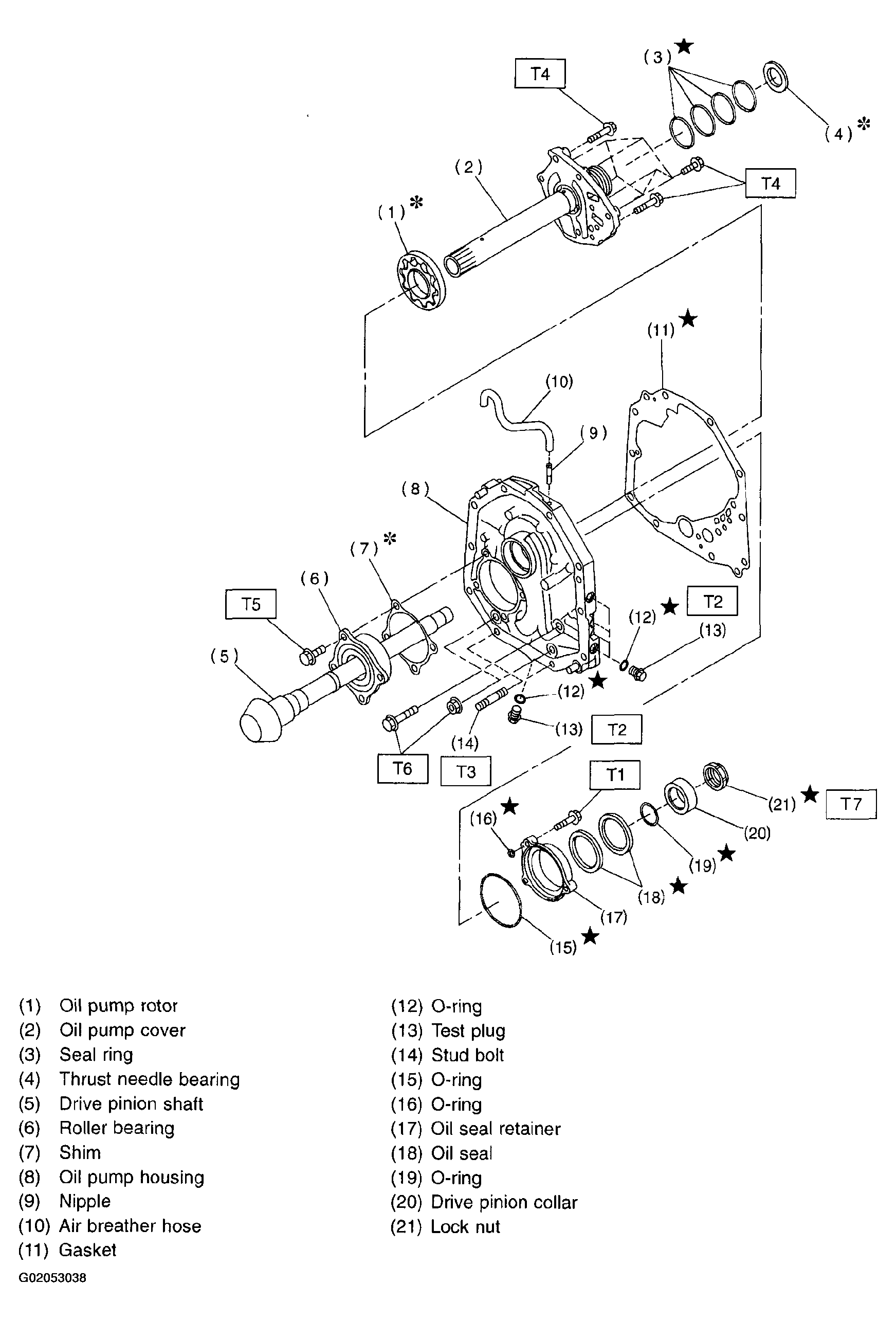

Fig 1: Exploded View Of Oil Pump
