Engine Mounting

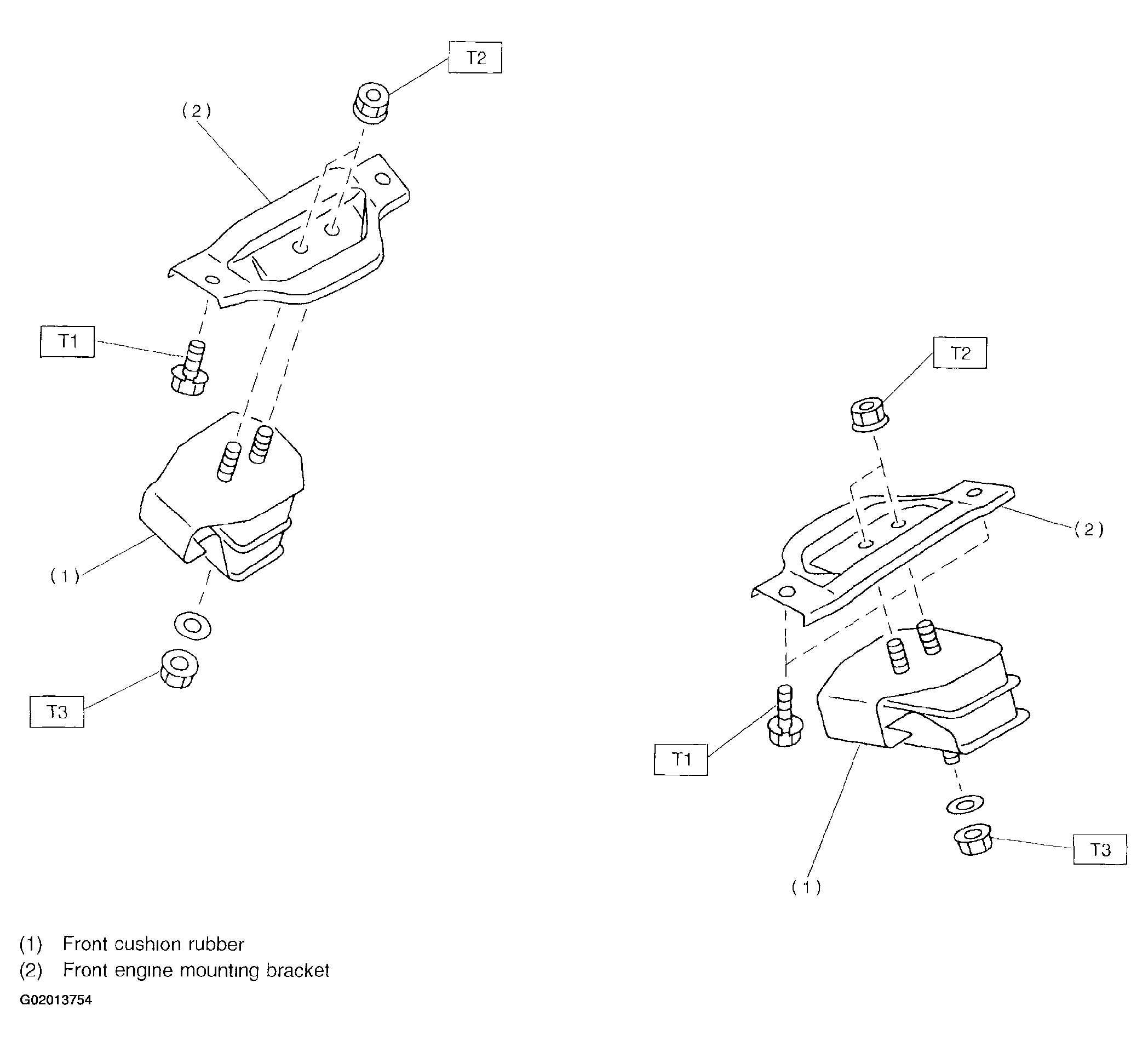

Fig 1: Identifying Engine Mounting Components
G02013754

Tightening torque: N.m (kg-m, ft-lb)

  1. T1:  34+/-5 (3.5+/-0.5, 25.3+/-3.6)
  2. T2:  41+/-10 (4.2+/-1.0, 30+/-7)
  3. T3:  83+/-15 (8.5+/-1.5, 61+/-11)
