At Model

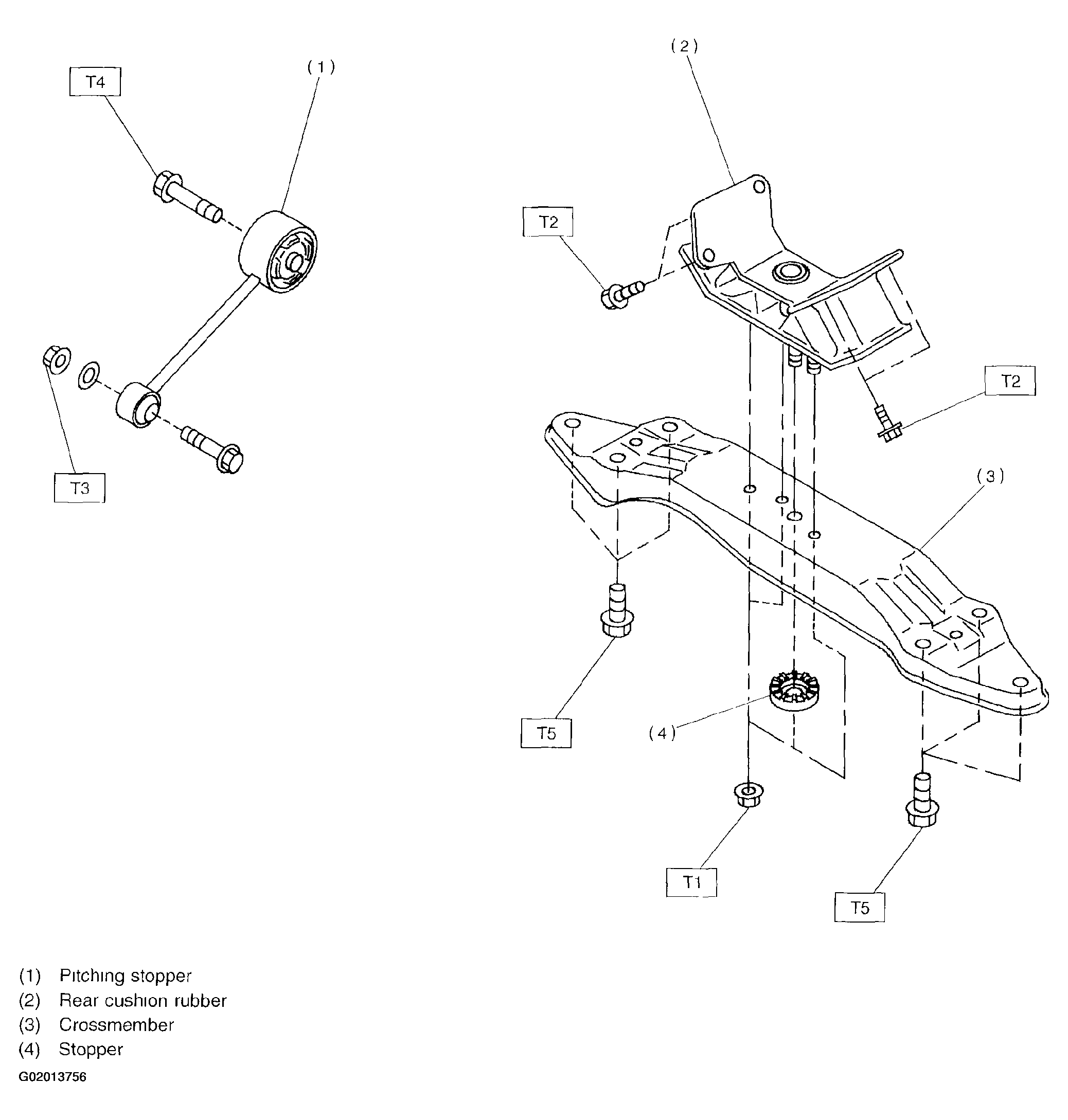

Fig 1: Identifying AT Transmission Mounting Components

Tightening torque: N.m (kg-m, ft-lb)

1. T1:  34+/-5 (3.5+/-0.5, 25.3+/-3.6)
2. T2:  38+/-15 (3.9+/-1.5, 28+/-11)
3. T3:  49+/-5 (5.0+/-0.5, 36.2+/-3.6)
4. T4:  57+/-10 (5.8+/-1.0, 42+/-7)
5. T5:  69+/-15 (7.0+/-1.5, 51+/-11)
