Hydraulic Control Valve: Construction

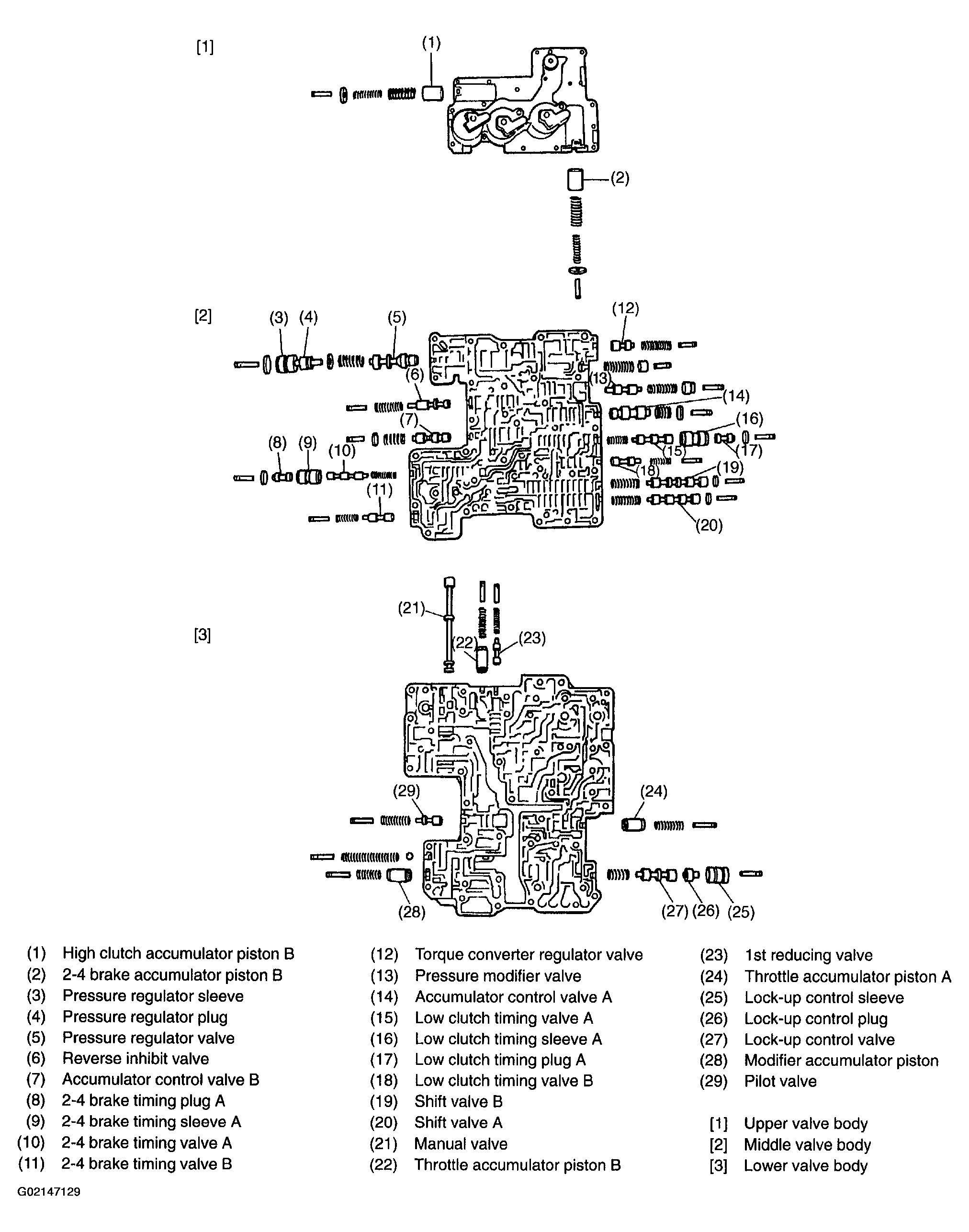

Fig 1: Identifying Hydraulic Control Valve Components
G02147129
