Sensors (In Transmission): Inspection: Notes

1. Remove air cleaner case and duct.
2. Disconnect transmission connector.

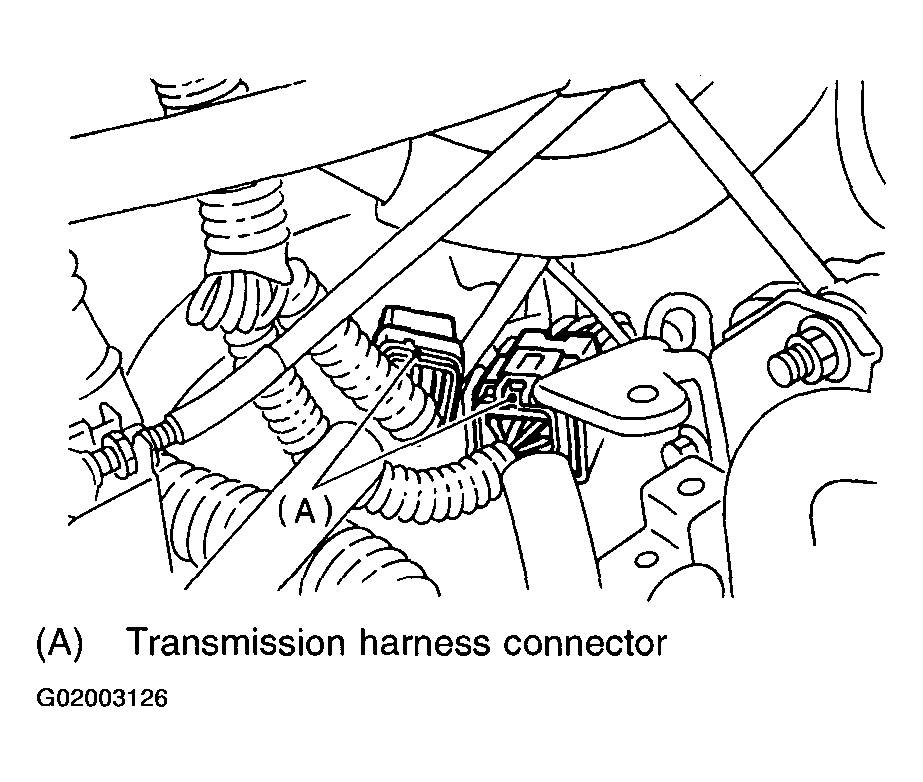

   Fig 1: Identifying Transmission Harness Connectors "A" (Inhibitor Switch & Sensors)


3. Check each sensor, solenoid and ground system for short circuits.

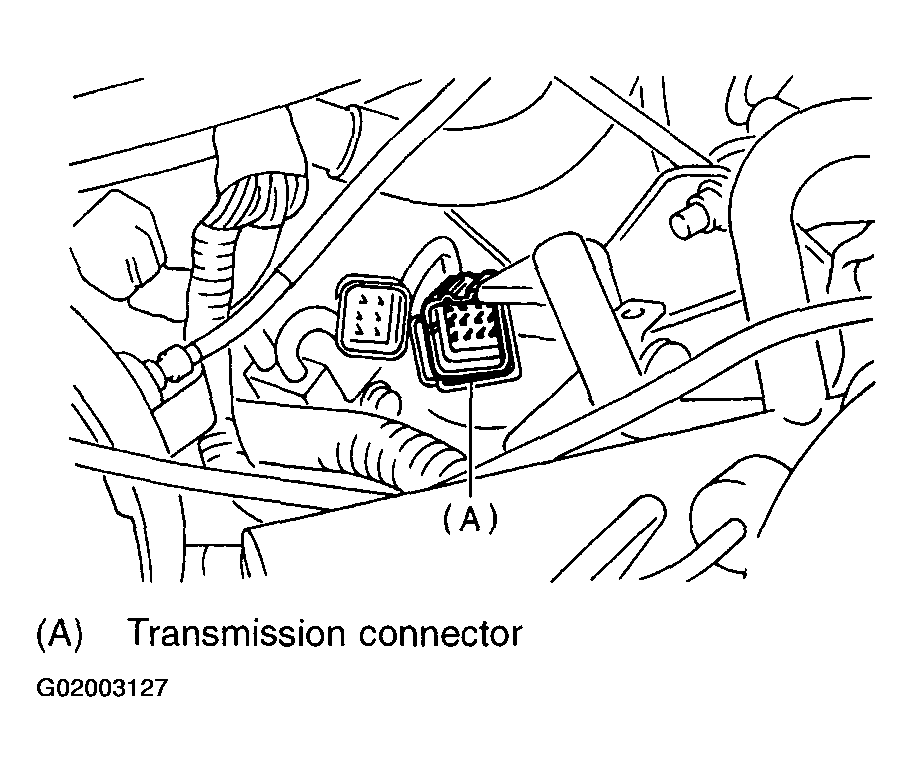

   Fig 2: Identifying Transmission Harness Connector "A" (Sensors)

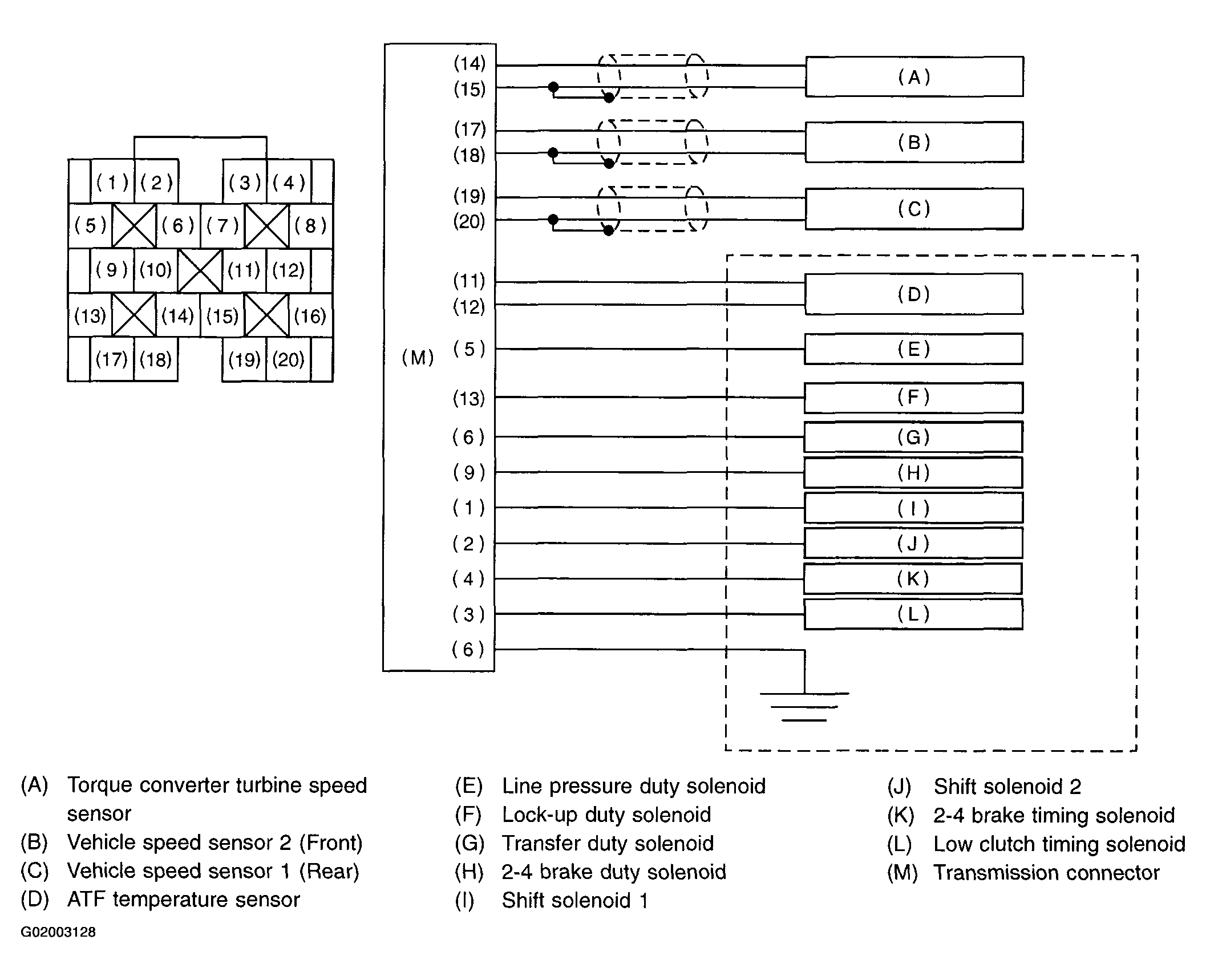

Fig 3: Transmission Harness Connector Terminal Circuits
