Clutch Disc And Cover: Removal

Install ST on flywheel.
ST 498497100 CRANKSHAFT STOPPER

Fig 1: Identifying Placement Of Crankshaft Stopper On Flywheel
Remove clutch cover and clutch disc.
CAUTION:
- Take care not to allow oil on the clutch disc facing.
- Do not disassemble either clutch cover or clutch disc.

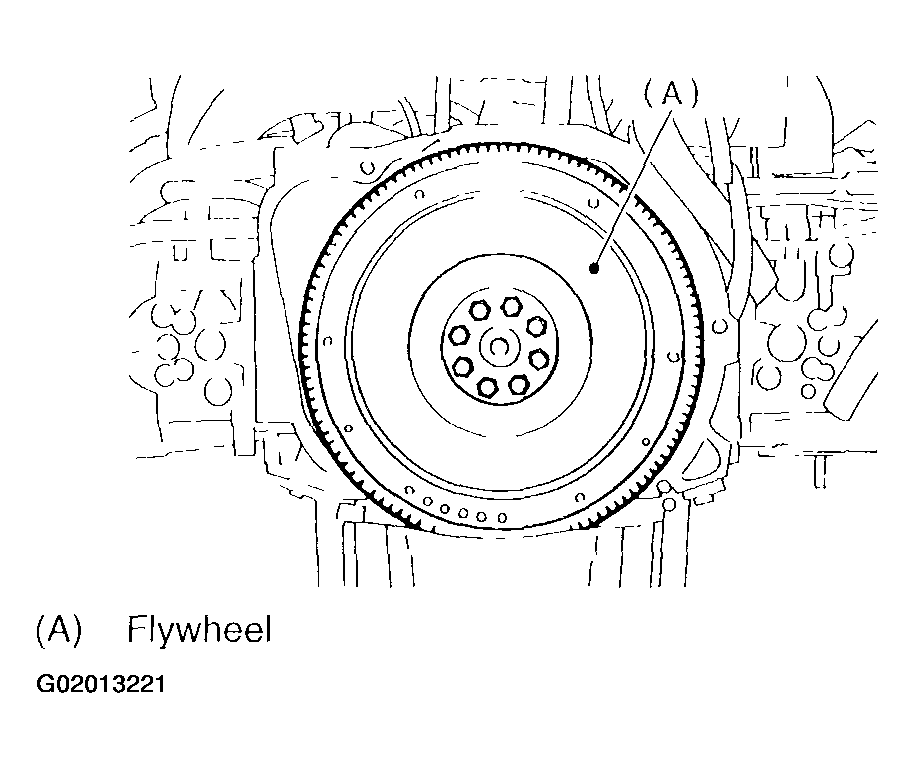

Remove flywheel.

Fig 2: Removing Clutch Cover & Clutch Disc & Flywheel
